Toyota HILUX — PARTIAL ENGINE ASSEMBLY

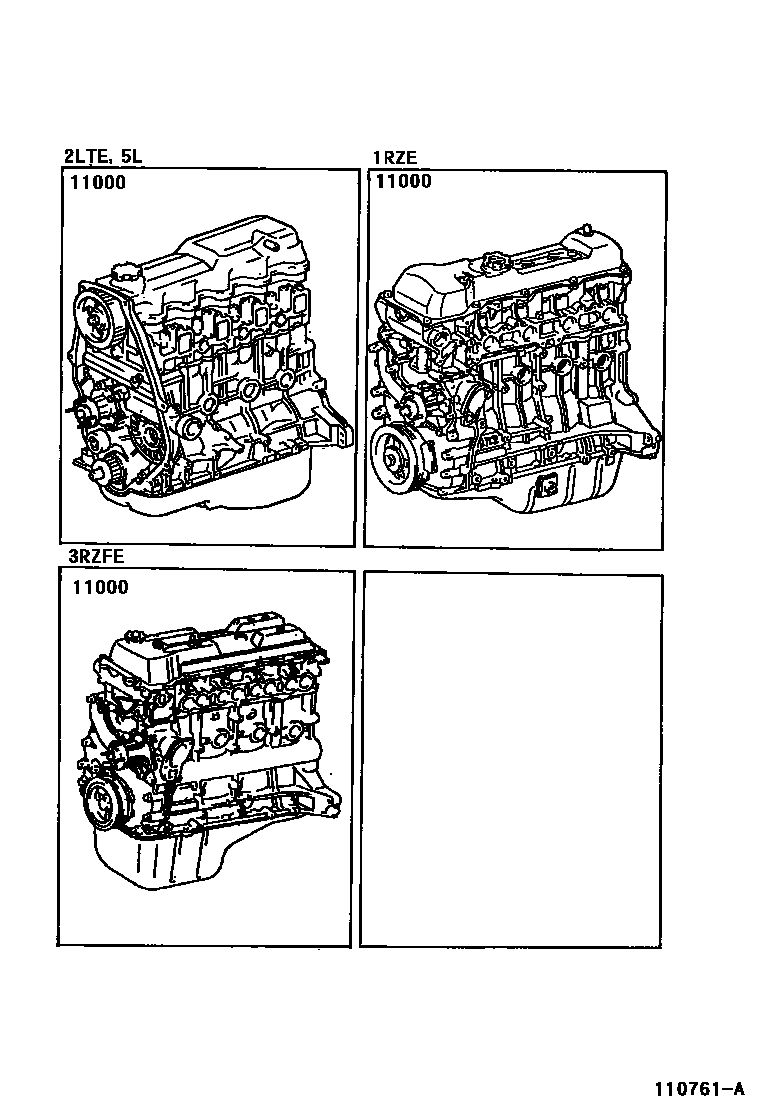

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-5B480i¥699,000199708-199908

main19000-5B520i¥788,000200108-200407

main19000-5B520i¥788,000199708-200108

main19000-5B530i¥788,000200108-200407

main19000-5B530i¥788,000199708-200108

main19000-75370i¥511,000200108-200308

main19000-75370i¥511,000199708-200108

main19000-75380i¥511,000199708-199908

main19000-75580i¥838,000199908-200108

main19000-75580i¥838,000200108-200308

1 parts on this diagram · 1 diagram in section
