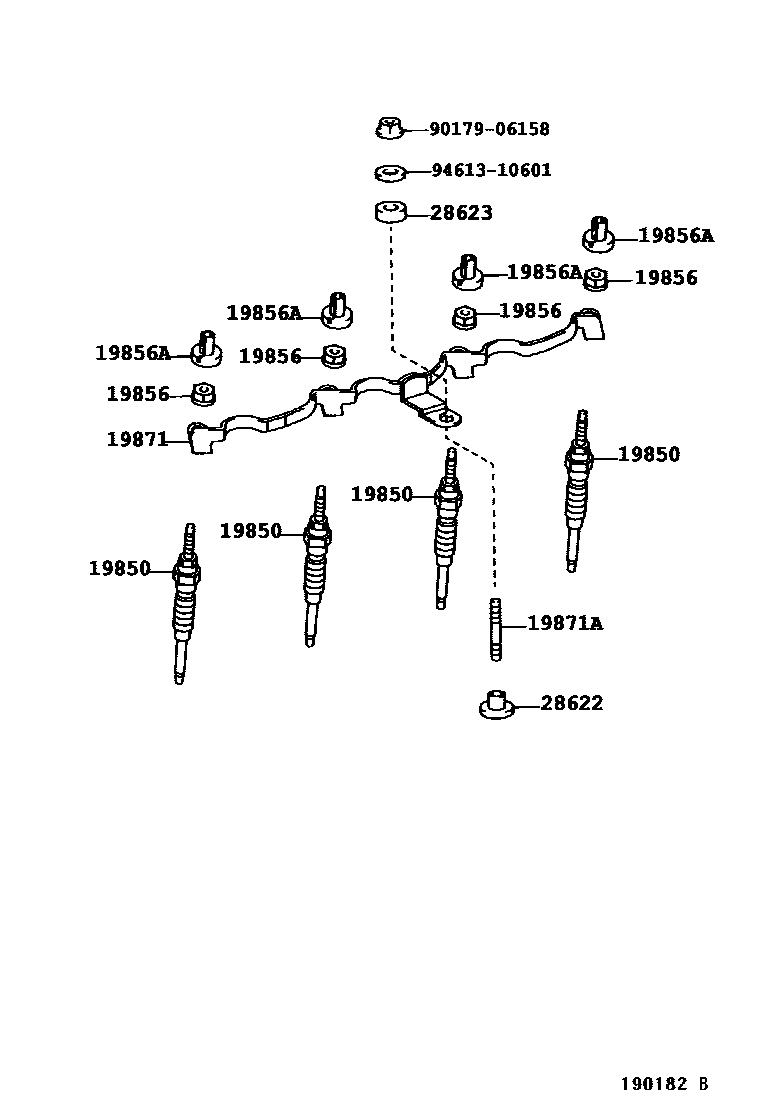

Toyota HILUX — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19850PLUG ASSY, GLOW

main19850-05010i5L..LN147,167,172199901-200312

main19850-54120i5L..LN147,167,172¥2,260200312-200407

main19850-54120i2LTE..LN165,170¥2,260199708-200108

main19850-54120i5L..LN147,167,172¥2,260200108-200312

19856NUT, CONNECTING(FOR GLOW PLUG)

main90179-04030i2LTE..LN165,170¥60199708-200407

19856AGROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)

main90189-04024i2LTE..LN165,170¥90199708-200407

19871CONNECTOR, GLOW PLUG NO.1

main19871-54020i5L..LN147,167,172¥1,310199708-200407

19871ABOLT, STUD(FOR INTAKE MANIFOLD TO GLOW PLUG CONNECTOR NO.1)

main90116-06041i2LTE..LN165,170¥120199708-199908

sub90116-06095¥90

main90116-06095i5L..LN147,167,172¥90199708-200407

28622INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010i2LTE,5L..LN147,16#,17#199708-200407

28623INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010i2LTE,5L..LN147,16#,17#199708-200407

9017906158

main90179-06158¥70

9461310601

main94613-10601¥70

9 parts on this diagram · 3 diagrams in section
