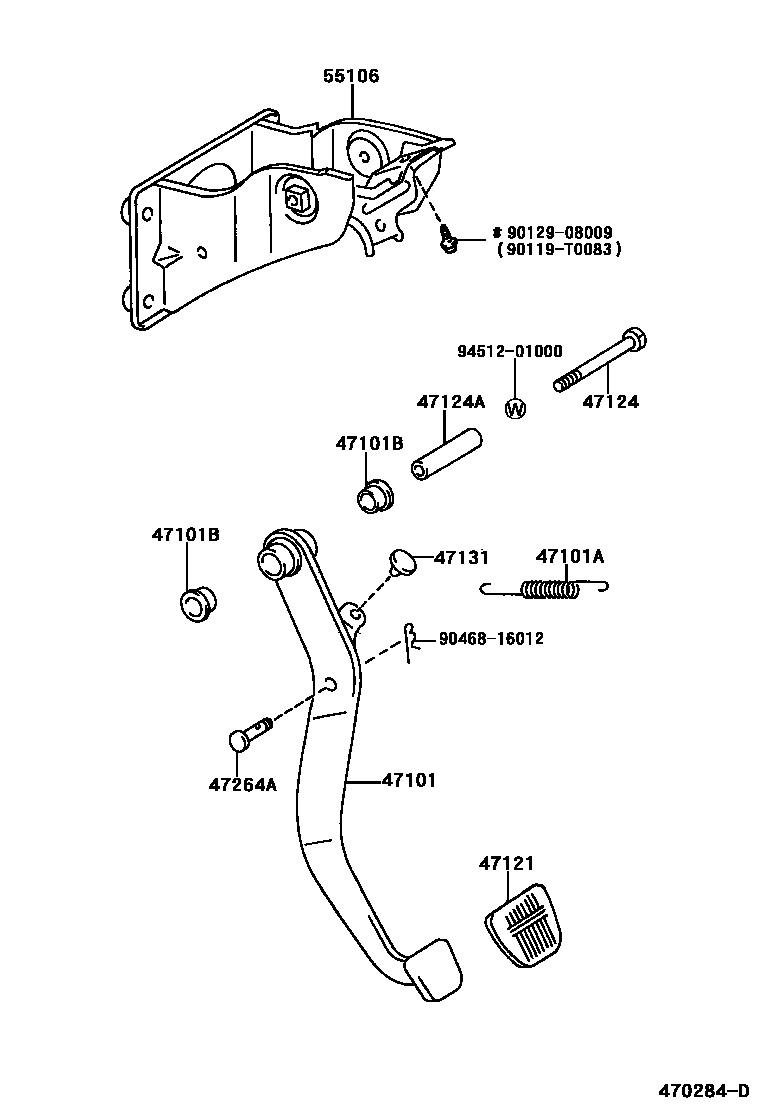

Toyota HILUX — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-35340iRZN147,152,169,174..ATM¥2,790199708-200308

main47101-35350iLN147,167,172¥2,170199708-200407

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-17002iLN147,16#,17#,RZN147,152,16#,174¥300199708-200407

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iRZN147,152,169,174¥120199804-200407

main90386-13020iLN147,16#,17#,RZN147,167¥120199708-199804

47121PAD, BRAKE PEDAL

main31321-14020iLN147,167,172,RZN147,167..MTM¥200199708-200407

main47121-14010iLN165,170,RZN147,152,169,174..ATM¥490199708-200308

47124SHAFT, BRAKE PEDAL

main90101-10039iRZN147,152,169,174¥160199708-200407

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iLN147,16#,17#,RZN147,152,16#,174¥370199708-200407

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iLN147,16#,17#,RZN147,152,16#,174¥110199708-200407

47264APIN(FOR PUSH ROD)

main47148-35010iLN147,16#,17#,RZN147,152,16#,174¥350199708-200407

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-35100iLN147,16#,17#,RZN147,152,16#,174¥3,370199708-200407

90119T0083

main90119-T0083

9012908009

main90129-08009¥170

9046816012

main90468-16012¥280

9451201000

main94512-01000¥90

13 parts on this diagram · 1 diagram in section
