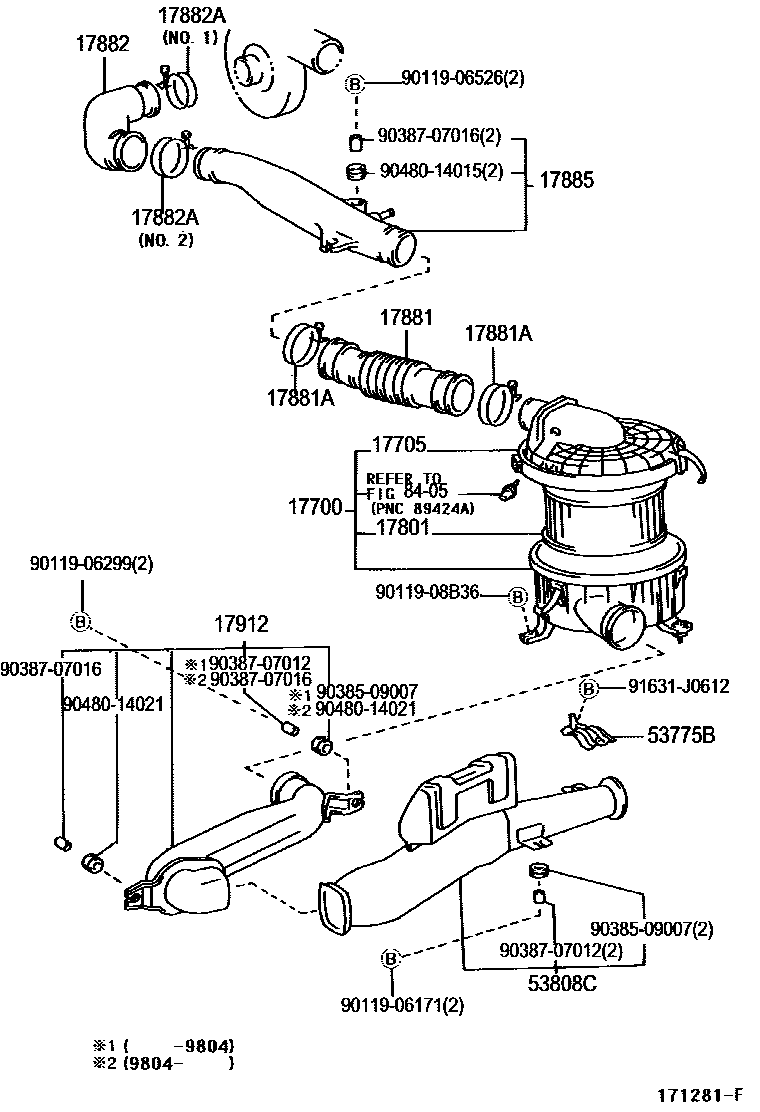

Toyota HILUX — AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

17700CLEANER ASSY, AIR

main17700-5B090i5L..LN147,167,172¥31,100199708-200004

sub17700-5B091¥31,100

main17700-5B091i5L..LN147,167,172¥31,100200004-200407

main17700-5B110i2LTE..LN165,170¥32,300199708-199908

sub17700-5B111¥32,300

main17700-75220i1RZE..RZN147,152¥25,000199708-200308

main17700-75230i3RZFE..RZN169,174¥25,000199908-200308

17705CAP SUB-ASSY, AIR CLEANER

main17705-54410i5L..LN147,167,172199708-200004

sub17705-54510

main17705-54411i5L..LN147,167,172200004-200407

main17705-54420i2LTE..LN165,170199708-199908

sub17705-54530

main17705-75170i1RZE..RZN147,152,167199708-200308

main17705-75180i3RZFE..RZN169,174199908-200308

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-54150i2LTE,5L..LN147,16#,17#¥4,300199708-200407

main17801-75030i1RZE,3RZFE..RZN147,152,169,174¥4,000199708-200308

17881HOSE, AIR CLEANER, NO.1

main17881-54640i2LTE,5L..LN147,16#,17#¥3,700199708-200407

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i5L..LN147,167,172¥190199708-200407

main96111-10830i1RZE,3RZFE..RZN147,152,169,174¥180200108-200308

NO. 1

main96111-10830i1RZE,3RZFE..RZN147,152,16#,174¥180199708-200108

main96111-10900i1RZE,3RZFE..RZN147,152,16#,174¥410199708-200308

17882HOSE, AIR CLEANER, NO.2

main17882-0C010i3RZFE..RZN169,174¥1,350200108-200506

main17882-54460i2LTE..LN165,170¥2,900199708-199908

main17882-75040i3RZFE..RZN169,174¥1,350199908-200108

main17882-75040i3RZFE..RZN169,174¥1,350200108-200506

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10600i2LTE..LN165,170¥110199708-199908

main96111-10730i2LTE..LN165,170¥160199708-199908

main96111-10800i3RZFE..RZN169,174¥160199908-200506

17885PIPE, AIR CLEANER

main17885-54200i2LTE..LN165,170¥14,000199708-199908

17912DUCT, COOL AIR INTAKE, NO.2

main52820-35020i2LTE,5L..LN147,16#¥3,590199708-199710

sub52820-35021¥3,600

main52820-35021i2LTE,5L..LN147,16#,17#¥3,600199710-199804

sub52820-35022¥3,590

main52820-35022i2LTE,5L..LN147,16#,17#¥3,590199804-199908

sub52820-35060¥3,590

sub90119-06465¥120

main52820-35060i5L..LN147,167,172¥3,590199908-200407

53775BBRACKET, COOL AIR INTAKE DUCT MOUNTING

main53775-35010iLN147,16#,17#¥910199708-200407

53808CDUCT SUB-ASSY, FRONT FENDER AIR, LH

main53808-35030iLN147,16#,17#¥5,900199708-199908

main53808-35070iLN147,167,172¥6,500199908-200407

8405

9011906171

main90119-06171¥130

9011906299

main90119-06299¥160

9011906526

main90119-06526¥120

9011908B36

main90119-08B36¥130

9038509007

main90385-09007¥200

9038707012

main90387-07012¥90

9038707016

main90387-07016¥90

9048014015

main90480-14015¥300

9048014021

main90480-14021¥120

91631J0612

main91631-J0612¥110

22 parts on this diagram · 5 diagrams in section
