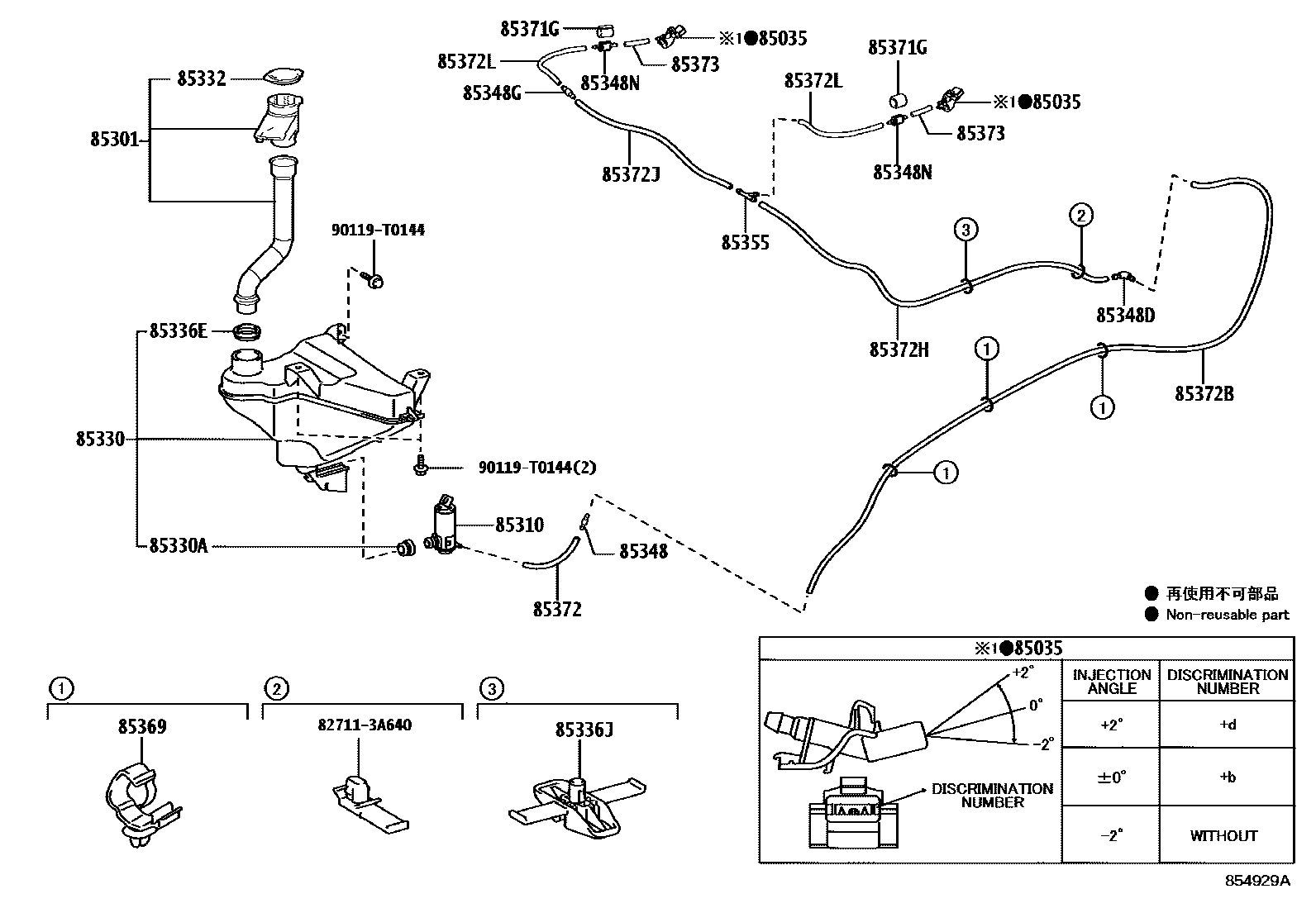

Toyota HILUX (SCB/XTR) — WINDSHIELD WASHER

0001 1 0002 1 0003 1 0004 1

85035NOZZLE SUB-ASSY, WASHER

main85381-0K070iGUN125,126,135,TGN126,136..AGTP¥1,140202208-202403

ANGLE 0

main85381-0K080iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

ANGLE -2

main85381-0K090iGUN125..MA¥1,140202208-202403

ANGLE +2

85301INLET SUB-ASSY, WASHER

main85301-0K111iGUN11#,12#,13#,TGN11#,12#..THP¥2,460202208-202401

main85301-0K140iGUN125,126,135,TGN126,136..AGTP202211-202310

main85301-0K160iGUN125..MA202209-202308

main85301-0K190iGUN125,135..KEN202301-202403

main85301-0K190iGUN122,125,126,13#,LAN125,TGN120,136..SA202301-202401

NIGERIA SPEC

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0K012iGUN125,126,135,TGN126,136..AGTP202208-202403

85330JAR ASSY, WINDSHIELD WASHER

main85315-0K250iGUN122..LHD..SA202301-202401

TYPE B:REFER ILLUST.

main85315-0K250iGUN11#,12#,13#,TGN11#,12#..THP202208-202307

main85315-0K250iTGN121..SA202301-202401

ALGERIA SPEC (EURO 3 REGULATION),TYPE B:REFER ILLUST.

main85315-0K270iTGN121..SA202301-202401

NIGERIA SPEC,TYPE A:REFER ILLUST.

main85315-0K270iGUN122,125,126,13#,LAN125,TGN120,136..SA202301-202403

TYPE A:REFER ILLUST.

main85315-0K280iGUN125,126,135,TGN126,136..AGTP202211-202310

main85315-0K460iGUN125..MA202209-202308

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGUN125..MA202208-202403

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iGUN125..MA¥0202209-202308

main85316-YE011iGUN122,126,TGN121..PKN202208-202403

main85386-0K140iGUN125,126,135,TGN126,136..AGTP202211-202310

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

85336JPROTECTOR, WASHER JAR

main85372-0K020iGUN11#,12#,13#,TGN11#,12#..THP¥280202208-202403

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-06101iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-0D040iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-06101iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85321-26020iGUN112,12#,135,TGN110,121..IDN,TH202208-202310

85355VALVE, WINDSHIELD WASHER HOSE

main85321-0A010iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202212-202403

main85321-28020iGUN11#,122,125,126,13#,TGN11#,12#..(MAP,THP)..(ARL,GCC,GEN,LA,MA,PH)¥680202208-202212

main85348-14390iGUN112,12#,135,TGN110,121..IDN,TH202208-202310

85369CLAMP

main82711-0K070iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

85371GPROTECTOR, FRONT WASHER

main85389-26080iGUN112,12#,135,TGN110,121..IDN,TH202208-202310

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33160iGUN125..MA¥400202208-202403

L=40

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59152iGUN125..MA202208-202403

L=1445

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33295iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

L=685

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90068-33257iGUN125..MA202208-202403

L=430

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90068-33398iGUN125,126,135,TGN126,136..AGTP202208-202310

L=175

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33019iGUN125,126,135,TGN126,136..AGTP202208-202310

L=40

main90068-33251iGUN125,135..KEN¥270202208-202403

L=235

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640¥90

90119T0144

main90119-T0144¥90

23 parts on this diagram · 4 diagrams in section
