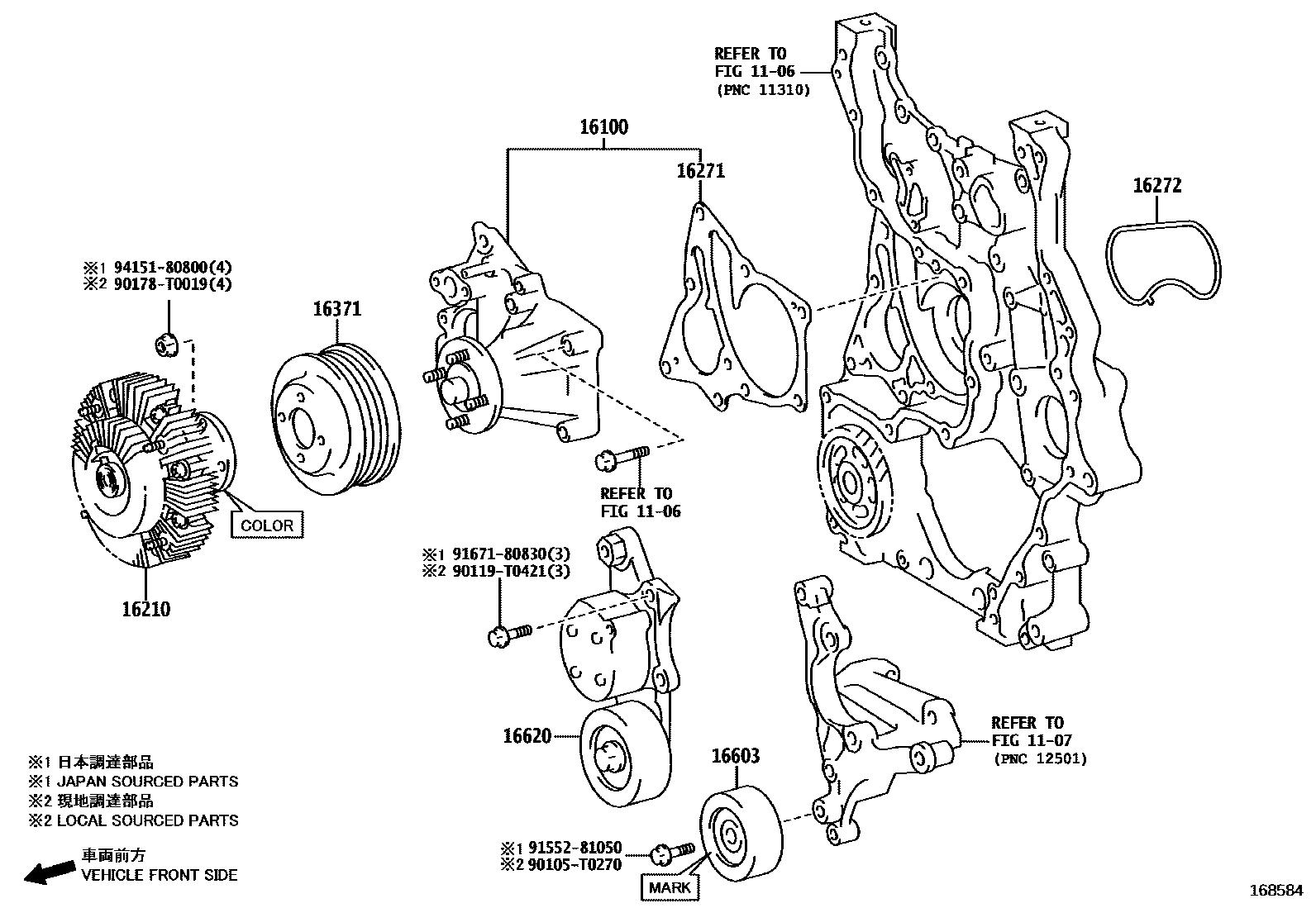

Toyota HILUX (SCB/XTR) — WATER PUMP
1106
1107
16100PUMP ASSY, ENGINE WATER
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
(L)
(J)
16210COUPLING ASSY, FLUID
main16210-0E010i2GDFTV..GUN125..LHD..S;2GDFTV..GUN122..LHD..SA;2GDFTV..GUN122..RHD..GEN;2GDFTV..GUN135..L..(ARL,LA,SA);2GDFTV..GUN125,135..6FC..(ARL,GEN,SA);2GDFTV..GUN125..6F..(H,¥23,700202208-202401
LIGHT GRAY
main16210-0E020i2GDFTV..GUN135..XTR..6F;2GDFTV..GUN122..LHD..THP;2GDFTV..GUN135..BZAG,KEN;2GDFTV..GUN125..RHD..6F..S;2GDFTV..GUN135..SCB..6F..S;2GDFTV..GUN122..RHD..(PKN,SA,TH);2GD¥23,700202208
GREEN
main16210-0E040i1GDFTV..GUN126..6FC..TH;1GDFTV..GUN111,121,136..6F;1GDFTV..GUN126..6F..(H,L)..(LA,PKN,SA,TH)¥23,700202208
YELLOW
main16210-0E050i1GDFTV..GUN126,136..6FC..(ARL,GCC,SA);1GDFTV..GUN126..6F..(L,S)..(ARL,BZAG,GCC,SA)¥23,700202208-202401
MOSS GREEN
16271GASKET, WATER PUMP
THA SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
16272GASKET, WATER PUMP, NO.2
THA SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
16371PULLEY, FAN
(L)
THA SOURCED PARTS
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
(J)
16603PULLEY SUB-ASSY, IDLER, NO.1
main16603-0C013i1GDFTV..GUN126..TH;2GDFTV..GUN122..LHD..GEN;2GDFTV..GUN125..THP..(GCC,IDN,LA,TH);1GDFTV,2GDFTV..GUN11#,120,121,122,135..GCC,IDN,PH,TH¥5,300202208-202403
THA, NO PAINTED
main16603-0C013i1GDFTV..GUN126..TH;2GDFTV..GUN122..LHD..GEN;2GDFTV..GUN125..THP..(GCC,IDN,LA,TH);1GDFTV,2GDFTV..GUN11#,120,121,122,135..GCC,IDN,PH,TH¥5,300202208-202307
SAUDI ARABIA SPEC,THA, NO PAINTED
main16603-0C013i1GDFTV..GUN126..TH;2GDFTV..GUN122..LHD..GEN;2GDFTV..GUN125..THP..(GCC,IDN,LA,TH);1GDFTV,2GDFTV..GUN11#,120,121,122,135..GCC,IDN,PH,TH¥5,300202208-202310
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),THA, NOPAINTED
main16603-0C013i1GDFTV..GUN126..TH;2GDFTV..GUN122..LHD..GEN;2GDFTV..GUN125..THP..(GCC,IDN,LA,TH);1GDFTV,2GDFTV..GUN11#,120,121,122,135..GCC,IDN,PH,TH¥5,300202208-202307
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA, NO PAINTED
main16603-0C013i1GDFTV..GUN126..TH;2GDFTV..GUN122..LHD..GEN;2GDFTV..GUN125..THP..(GCC,IDN,LA,TH);1GDFTV,2GDFTV..GUN11#,120,121,122,135..GCC,IDN,PH,TH¥5,300202208-202401
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA, NO PAINTED
main16603-0E010i2GDFTV..GUN122..RHD..GEN;1GDFTV,2GDFTV..GUN125,136..ARL,GEN;1GDFTV,2GDFTV..GUN126,135..THP..(ARL,GCC,LA)202208-202307
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
main16603-0E010i2GDFTV..GUN122..RHD..GEN;1GDFTV,2GDFTV..GUN125,136..ARL,GEN;1GDFTV,2GDFTV..GUN126,135..THP..(ARL,GCC,LA)202208-202307
ASEAN GENERAL SPEC,THA, BLACK PAINTED
main16603-0E010i2GDFTV..GUN122..RHD..GEN;1GDFTV,2GDFTV..GUN125,136..ARL,GEN;1GDFTV,2GDFTV..GUN126,135..THP..(ARL,GCC,LA)202208-202307
GCC SPEC EURO4 2022MY,THA, BLACK PAINTED
(L)
THA, BLACK PAINTED
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
CENTRAL AND SOUTH AMERICA SPEC,THA, BLACK PAINTED
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
IRAQ SPEC,THA, BLACK PAINTED
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
(J)
16620TENSIONER ASSY, V-RIBBED BELT
SAUDI ARABIA SPEC,(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(L)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
(L)
CENTRAL AND SOUTH AMERICA SPEC,WATER PROOF SPEC
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
IRAQ SPEC,WATER PROOF SPEC
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
ASEAN GENERAL SPEC,WATER PROOF SPEC
GCC SPEC EURO4 2022MY,WATER PROOF SPEC
WATER PROOF SPEC
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
(J)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155281050
9167180830
9415180800
15 parts on this diagram · 3 diagrams in section
