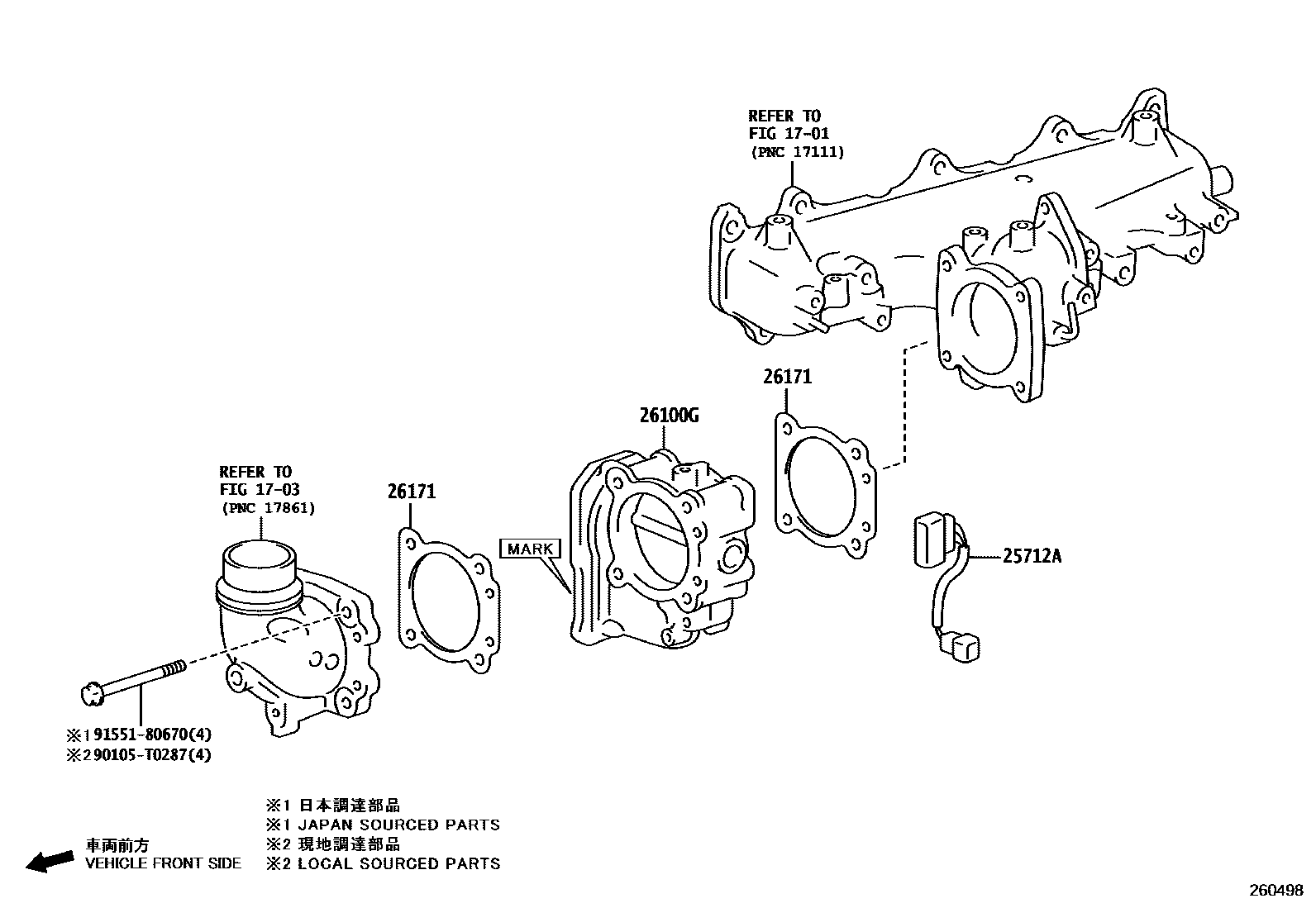

Toyota HILUX (SCB/XTR) — VENTURI
1701
1703
25712AWIRE, EMISSION CONTROL VALVE
THA SOURCED PARTS
IND SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
JAPAN SOURCED PARTS
26100VENTURI ASSY
26100GBODY ASSY, DIESEL THROTTLE
MARK=26100-0E050
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK=26100-0E060
MARK=26100-0E060
MARK=26100-11040
26171GASKET, VENTURI
THA SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
90105T0287
main90105-T0287
9155180670
8 parts on this diagram · 2 diagrams in section
