Toyota HILUX (SCB/XTR) — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1TRANSMISSION 1/2 0005 1TRANSMISSION 2/2 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1COWL 1/2 0011 1COWL 1/2 0012 1COWL 2/2 0013 1COWL 2/2 0014 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0016 1CONSOLE BOX 0017 1STEERING 0018 1SEAT 0019 1DOOR,ROOF & FLOOR

1708

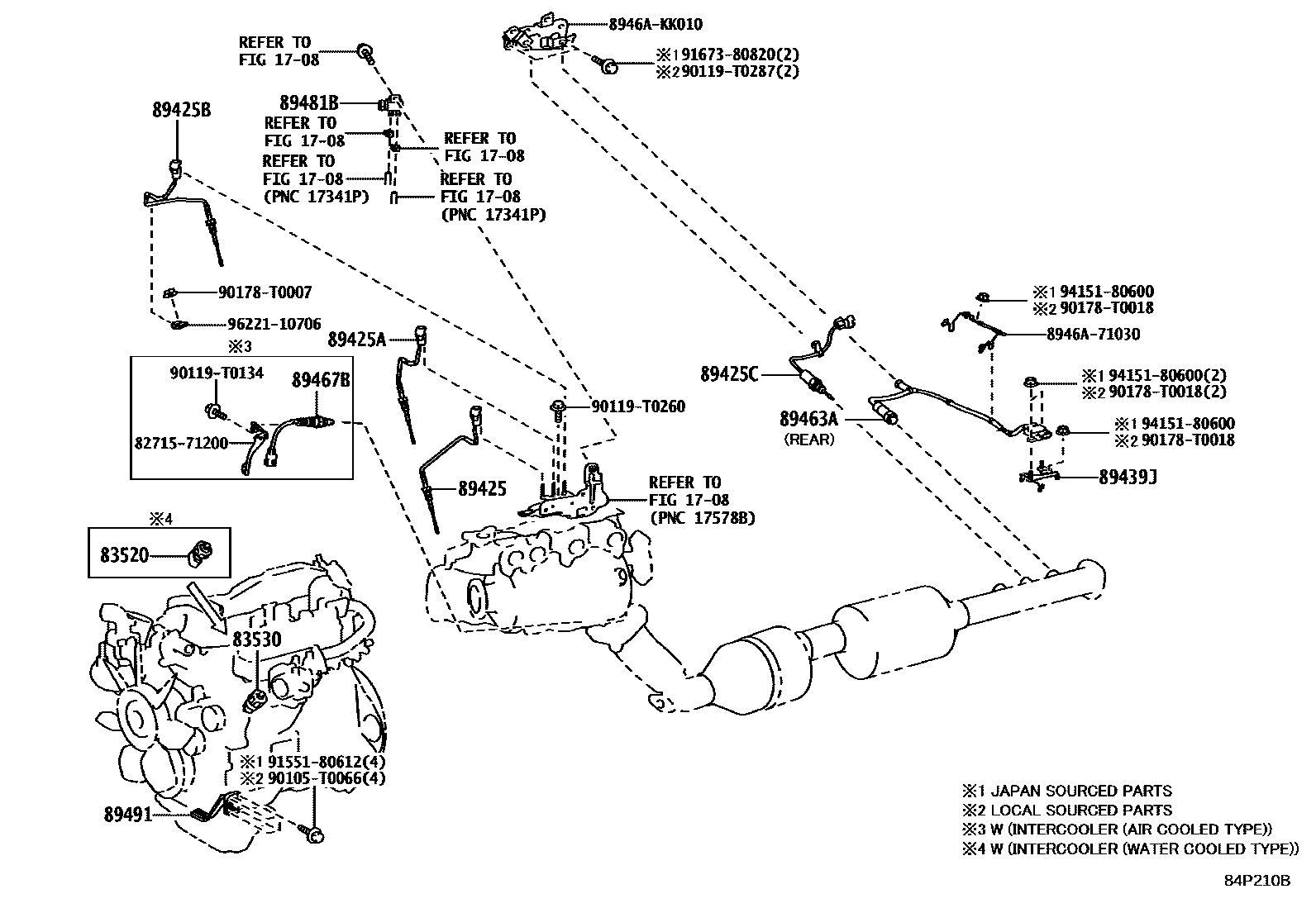

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iGUN125..S..GEN;GUN125..RHD..6F..GEN¥2,470202208-202308

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main83520-60060iGUN122..LHD..GEN;GUN125..6FC..GEN;GUN125..BZAG..IV3;GUN125..THP..(ARL,GCC,LA,TH);GUN11#,120,121,122,126,13#..ARL,GCC,PH,TH¥2,470202208-202308

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main83520-60060iGUN122..LHD..GEN;GUN125..6FC..GEN;GUN125..BZAG..IV3;GUN125..THP..(ARL,GCC,LA,TH);GUN11#,120,121,122,126,13#..ARL,GCC,PH,TH¥2,470202208-202310

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main83520-60060iGUN112,125..IDN¥2,470202208-202403

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iGUN125..THP..LA;GUN122..LHD..GEN¥1,970202208-202307

ASEAN GENERAL SPEC,DENSO

main83530-28010iGUN125..THP..LA;GUN122..LHD..GEN¥1,970202208-202310

EXHAUST EMISSION CONTROL-WITHOUT,DENSO

main83530-28010iGUN125..THP..LA;GUN122..LHD..GEN¥1,970202208-202307

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),DENSO

main83530-28010iGUN122..L..GCC¥1,970202208-202401

DENSO

main83530-28010iGUN122..L..GCC¥1,970202208-202307

CENTRAL AND SOUTH AMERICA SPEC,DENSO

main83530-28010iGUN122..L..GCC¥1,970202208-202307

IRAQ SPEC,DENSO

main83530-28020iTGN120,121,136..SA¥1,970202208-202401

DENSO

main83530-60010iGUN122..LHD..GEN¥1,970202208-202307

ASEAN GENERAL SPEC,YAZAKI

main83530-60010iGUN112,125..IDN¥1,970202208-202401

YAZAKI

main83530-60010iGUN125..6F..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202208-202307

CENTRAL AND SOUTH AMERICA SPEC,YAZAKI

main83530-60010iGUN125..6F..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202208-202307

IRAQ SPEC,YAZAKI

main83530-60010iGUN125..6F..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202208-202310

EXHAUST EMISSION CONTROL-WITHOUT,YAZAKI

main83530-60010iGUN125..6F..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202208-202307

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),YAZAKI

main83530-60020iTGN120,121,136..SA¥1,970202208-202401

YAZAKI

main83530-60030iLAN125¥1,970202301-202401

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥5,500202208-202310

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main89425-71070iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥5,500202208-202307

OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main89425-71070iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥5,500202208-202307

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71080iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥5,500202208-202310

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main89425-71080iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥5,500202208-202307

OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main89425-71080iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥5,500202208-202307

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71090iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥5,500202208-202310

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main89425-71090iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥5,500202208-202307

OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main89425-71090iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥5,500202208-202307

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

main89425-71060iGUN125..AGTP..LA¥5,500202211-202310

main89425-71100iGUN126..BZAG202211-202310

89439JBRACKET, SENSOR, NO.2

main8946A-71020iGUN125..AGTP..LA¥670202211-202310

89463ASENSOR, NITROGEN OXIDES

main89463-71011iGUN125..AGTP..LA¥52,400202211-202310

REAR

89467BSENSOR, AIR FUEL RATIO

main89467-71120iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥9,900202208-202307

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main89467-71120iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥9,900202208-202310

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main89467-71120iGUN125..ARL;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥9,900202208-202310

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main89467-71120iGUN125..RHD..6F..GEN¥9,900202208-202307

OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main89467-71130iTGN11#,12#..THP202208-202401

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGUN125..S..GEN¥10,200202208-202310

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main89481-71010iGUN125..L..IV3;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥10,200202208-202307

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main89481-71010iGUN125..L..IV3;GUN126,13#..ARL,GCC;GUN112,125..(5F,6FC)..L..(GCC,GEN)¥10,200202208-202307

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

89491SENSOR, ENGINE OIL LEVEL

main89491-26190iGUN11#,12#,13#..AGTP,KENP,MAP,SAP,THP¥4,790202208-202411

8271571200BRACKET,WIRING HARNESS CLAMP

main82715-71200¥300

8946A71030BRACKET, EXHAUST SENSOR CLAMP

main8946A-71030¥700

8946AKK010BRACKET, EXHAUST SENSOR CLAMP

main8946A-KK010¥1,430

90105T0066

main90105-T0066

90119T0134

main90119-T0134¥90

90119T0260

main90119-T0260

90119T0287

main90119-T0287

90178T0007

main90178-T0007¥80

90178T0018

main90178-T0018¥70

9155180612

main91551-80612¥60

9167380820

main91673-80820¥80

9415180600

main94151-80600¥60

9622110706

main96221-10706¥330

25 parts on this diagram · 19 diagrams in section
