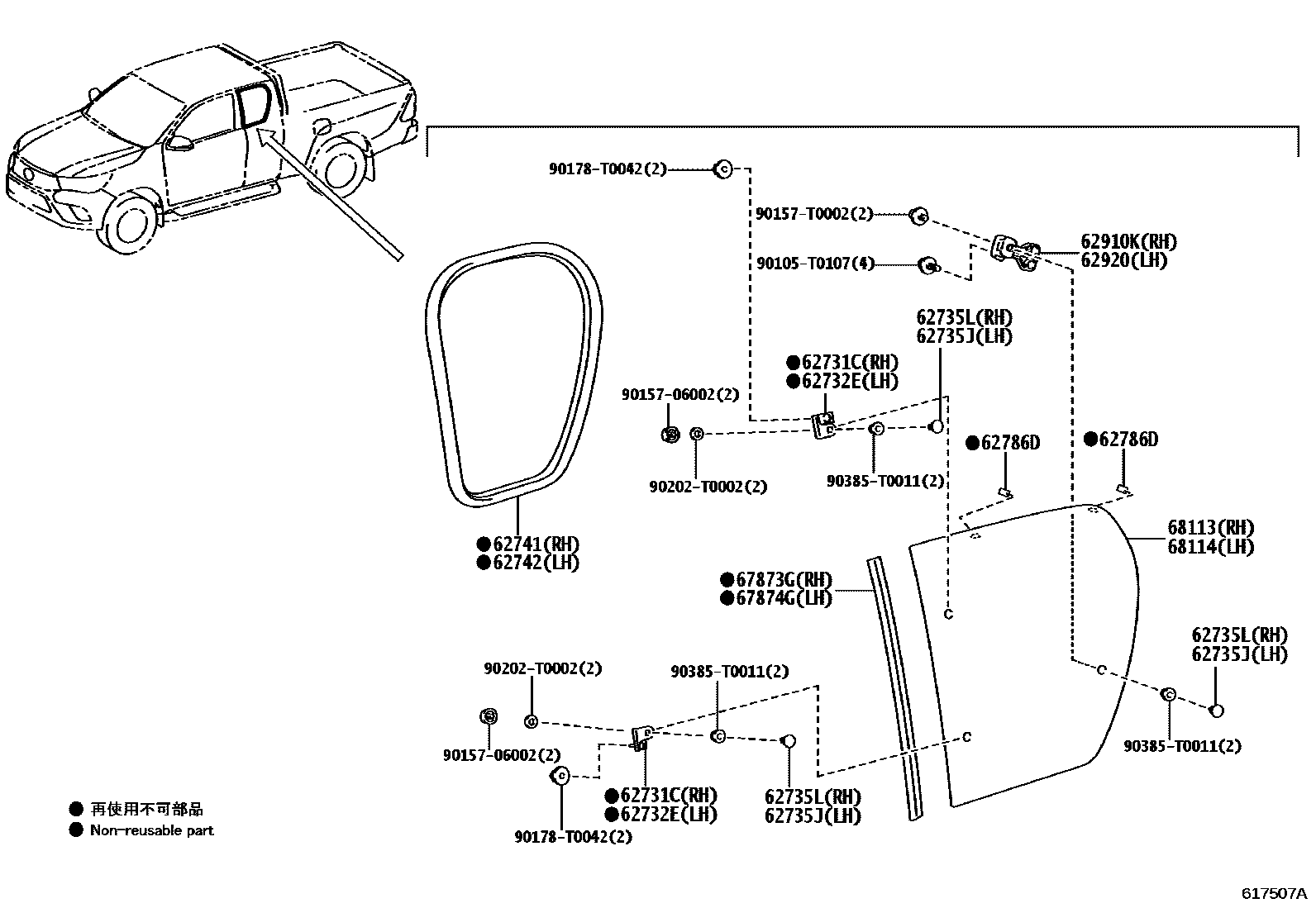

Toyota HILUX (SCB/XTR) — SIDE WINDOW

62731CHINGE, QUARTER WINDOW, RH

main62733-0K010iGUN120,122,125,126,13#..XTR..THP202208-202307

UPPER

main62733-0K010iGUN125,126,13#..XTR..SA202208-202401

UPPER

main62733-0K020iGUN120,122,125,126,13#..XTR..THP202208-202307

LOWER

main62733-0K020iGUN125,126,13#..XTR..SA202208-202401

LOWER

62732EHINGE, QUARTER WINDOW, LH

main62734-0K010iGUN125,126,13#..XTR..SA202208-202401

UPPER

main62734-0K010iGUN120,122,125,126,13#..XTR..THP202208-202307

UPPER

main62734-0K020iGUN120,122,125,126,13#..XTR..THP202208-202307

LOWER

main62734-0K020iGUN125,126,13#..XTR..SA202208-202401

LOWER

62735JRETAINER, QUARTER WINDOW HINGE, LH

main62735-0K040iGUN120,122,125,126,13#..XTR..THP202208-202307

(L)

main62735-0K040iGUN125,126,13#..XTR..SA202208-202401

(L)

main62735-35010iGUN125,126,13#..XTR..SA¥370202208-202401

(J)

main62735-35010iGUN120,122,125,126,13#..XTR..THP¥370202208-202307

(J)

62735LRETAINER, QUARTER WINDOW HINGE, RH

main62735-0K040iGUN120,122,125,126,13#..XTR..THP202208-202307

(L)

main62735-0K040iGUN125,126,13#..XTR..SA202208-202401

(L)

main62735-35010iGUN120,122,125,126,13#..XTR..THP¥370202208-202307

(J)

main62735-35010iGUN125,126,13#..XTR..SA¥370202208-202401

(J)

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-0K030iGUN120,122,125,126,13#..XTR..THP202208-202307

main62741-0K040iGUN125,126,13#..XTR..SA202301-202401

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-0K030iGUN120,122,125,126,13#..XTR..THP202208-202307

main62741-0K040iGUN125,126,13#..XTR..SA202301-202401

62786DSPACER, QUARTER WINDOW GLASS, NO.2

main62786-0K010iGUN120,122,125,126,13#..XTR..THP202208-202307

main62786-0K010iGUN125,126,13#..XTR..SA202208-202401

62910KLOCK ASSY, QUARTER WINDOW, RH

main62910-0K040-B0iGUN126,135..6FC..H..TH202208-202307

LT.GRAY,TRIM20

main62910-0K040-B0iGUN126,135..6FC..H..TH202208-202307

LT.GRAY,TRIM2#

main62910-0K040-B0iGUN126,136..XTR..SA202208-202401

LT.GRAY,TRIM20

main62910-0K040-B0iGUN126,136..XTR..SA202208-202401

LT.GRAY,TRIM2#

main62910-0K040-C0iGUN126,136..XTR..SA202208-202401

BLACK,TRIM21

main62910-0K040-C0iGUN126,135..6FC..H..TH202208-202307

BLACK,TRIM21

62920LOCK ASSY, QUARTER WINDOW, LH

main62920-0K040-B0iGUN126,135..6FC..H..TH202208-202307

LT.GRAY,TRIM2#

main62920-0K040-B0iGUN126..XTR..6FC..ARL;GUN135..6FC..(L,S)..TH;GUN126,135..XTR..THP..6F;GUN120,122,125,136..XTR..THP202208-202307

LT.GRAY,TRIM20

main62920-0K040-B0iGUN126,136..XTR..SA202208-202401

LT.GRAY,TRIM20

main62920-0K040-B0iGUN126,136..XTR..SA202208-202401

LT.GRAY,TRIM2#

main62920-0K040-C0iGUN126,135..6FC..H..TH202208-202307

BLACK,TRIM21

main62920-0K040-C0iGUN126,136..XTR..SA202208-202401

BLACK,TRIM21

67873GWEATHERSTRIP, QUARTER WINDOW, FRONT RH

main67865-0K030iGUN120,122,125,126,13#..XTR..THP202208-202307

main67865-0K040iGUN125,126,13#..XTR..SA202301-202401

67874GWEATHERSTRIP, QUARTER WINDOW, FRONT LH

main67866-0K030iGUN120,122,125,126,13#..XTR..THP202208-202307

main67866-0K040iGUN125,126,13#..XTR..SA202301-202401

68113GLASS, QUARTER WINDOW, RH

main68113-0K260iGUN126..H..TH;GUN126..XTR..IV3;GUN120,122,125,13#..XTR..THP202208-202307

main68113-0K270iGUN126..ARL..CBU202208-202307

main68113-0K280iGUN125,126,13#..XTR..SA202301-202401

68114GLASS, QUARTER WINDOW, LH

main68114-0K260iGUN126..H..TH;GUN126..XTR..IV3;GUN120,122,125,13#..XTR..THP202208-202307

main68114-0K270iGUN126..ARL..CBU202208-202307

main68114-0K280iGUN125,126,13#..XTR..SA202301-202401

90105T0107

main90105-T0107

9015706002

main90157-06002¥60

90157T0002

main90157-T0002

90178T0042

main90178-T0042

90202T0002

main90202-T0002

90385T0011

main90385-T0011

19 parts on this diagram · 1 diagram in section
