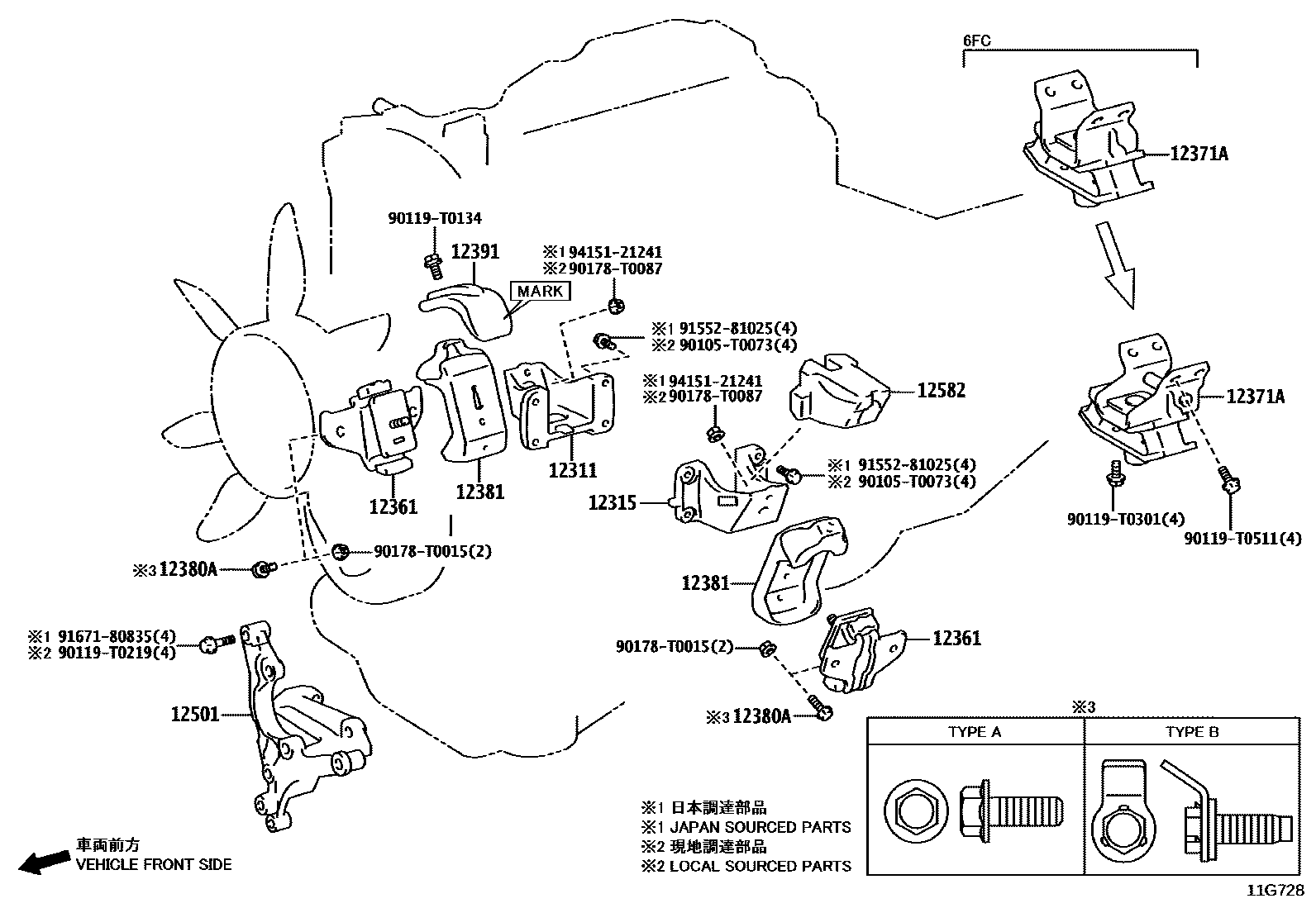

Toyota HILUX (SCB/XTR) — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
IDN SOURCED PARTS
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
ARG SOURCED PARTS
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),ARGSOURCED PARTS
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),ARG SOURCED PARTS
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),ARGSOURCED PARTS
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),ARG SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
IDN SOURCED PARTS
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
ARG SOURCED PARTS
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),ARGSOURCED PARTS
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),ARG SOURCED PARTS
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),ARG SOURCED PARTS
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),ARGSOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
12361INSULATOR, ENGINE MOUNTING, FRONT
(L)
(J)
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12371AINSULATOR, ENGINE MOUNTING, REAR
12380ABOLT(FOR ENGINE MOUNTING INSURATOR)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12381STABILIZER, ENGINE MOUNTING
(L)
(J)
12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
MARK=T
MARK=A
MARK=S
12501BRACKET SUB-ASSY, ALTERNATOR
THA SOURCED PARTS
IND SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),ARGSOURCED PARTS
ARG SOURCED PARTS
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),ARGSOURCED PARTS
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),ARG SOURCED PARTS
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),ARG SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
12582INSULATOR, CYLINDER BLOCK, NO.2
THA SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
90105T0073
main90105-T0073
90119T0134
90119T0219
main90119-T0219
90119T0301
main90119-T0301
90119T0511
90178T0015
main90178-T0015
90178T0087
main90178-T0087
9155281025
9167180835
9415121241
20 parts on this diagram · 7 diagrams in section
