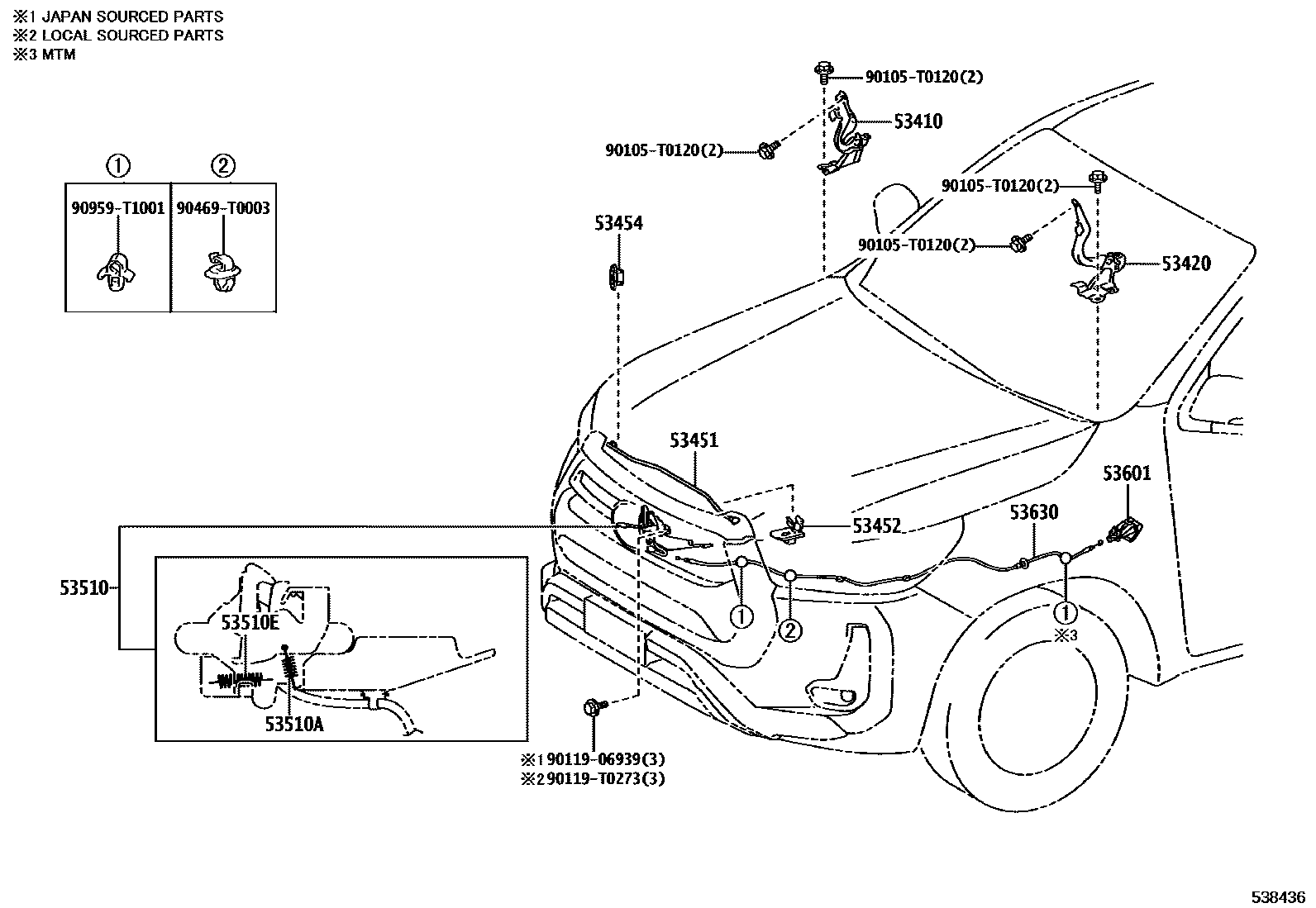

Toyota HILUX (SCB/XTR) — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0K230iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202301-202403

main53410-0K240iGUN125,126,135,TGN126,136..AGTP202211-202310

main53410-0K270iGUN122,126,TGN121..PKN202303

main53410-0K370iGUN11#,12#,13#,TGN11#,12#..THP¥1,810202208-202308

53420HINGE ASSY, HOOD, LH

main53420-0K230iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202301-202403

main53420-0K240iGUN125,126,135,TGN126,136..AGTP202211-202310

main53420-0K270iGUN122,126,TGN121..PKN202303

main53420-0K370iGUN125..MA¥1,810202208-202308

53451ROD, HOOD SUPPORT

main53440-0K010iGUN11#,12#,13#,TGN11#,12#..THP¥1,380202208-202307

main53440-0K020iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202301-202403

main53440-0K030iGUN125,126,135,TGN126,136..AGTP202211-202310

main53440-0K040iGUN125..MA202209-202308

main53440-0K060iGUN122,126,TGN121..PKN202303

53452HOLDER, HOOD STAY

main53452-0K020iGUN11#,12#,13#,TGN11#,12#..THP¥230202208-202403

53454CLIP, HOOD SUPPORT ROD

main53454-0D010iGUN11#,12#,13#,TGN11#,12#..THP¥130202208-202307

main53454-52020iGUN125..MA¥130202209-202403

53510LOCK ASSY, HOOD

main53510-0K380iGUN11#,122,125,126,TGN11#,12#..GCC202208-202307

main53510-0K590iGUN122,126,TGN121..PKN202303

main53510-0K650iGUN125,135..RHD..THP..L..CBU;GUN112,120,121,122,126,TGN110,121..RHD..(L,S)..(GEN,IDN,TH)202208-202308

main53510-0K660iGUN125,136..ARL,TH;GUN135,TGN121..ARL;GUN126,135..RHD..THP..(H,S)¥2,930202208-202307

TOYOTA STOP & START SYSTEM-WITH

main53510-0K670iGUN122,125,135,TGN121,126..LHD..THP..(GEN,LA,PH)202208-202307

main53510-0K690iGUN126..S..SA;GUN125..XTR..L..CBU202301-202401

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K690iGUN125,135..RHD..SCB..L..SA202301-202401

EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K690iGUN125,135..L..KEN202301-202403

main53510-0K700iGUN125..XTR..L..CBU;GUN125,135..RHD..S..SA;GUN122,126,136,TGN120,136..RHD..SA202301-202401

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main53510-0K700iGUN125..S..KEN202301-202403

main53510-0K710iGUN122,125,LAN125,TGN121..LHD..L..SA202301-202401

main53510-0K720iGUN122,LAN125,TGN121..LHD..SA202301-202401

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main53510-0K730iTGN136..BZAG;GUN125,126,135,TGN126..AGTP202211-202310

main53510-0K740iGUN126..LA202211-202310

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

WD=0.9,CW=21

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C0iGUN125..MA202208-202310

BLACK,TRIM2#

main53601-0D040-C0iGUN11#,122,125,126,TGN11#,12#..GCC202208-202307

BLACK,TRIM2#,3#

main53601-0K120-C0iGUN125,135..KEN202301-202403

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0K210iGUN112,12#,13#,TGN110,121..RHD..THP¥990202208-202403

main53630-0K260iGUN122,125,LAN125,TGN121..LHD..SA202208-202401

main53630-0K320iGUN125..MA202209-202308

90105T0120

main90105-T0120

9011906939

main90119-06939¥60

90119T0273

main90119-T0273

90469T0003

main90469-T0003

90959T1001

main90959-T1001

15 parts on this diagram · 2 diagrams in section
