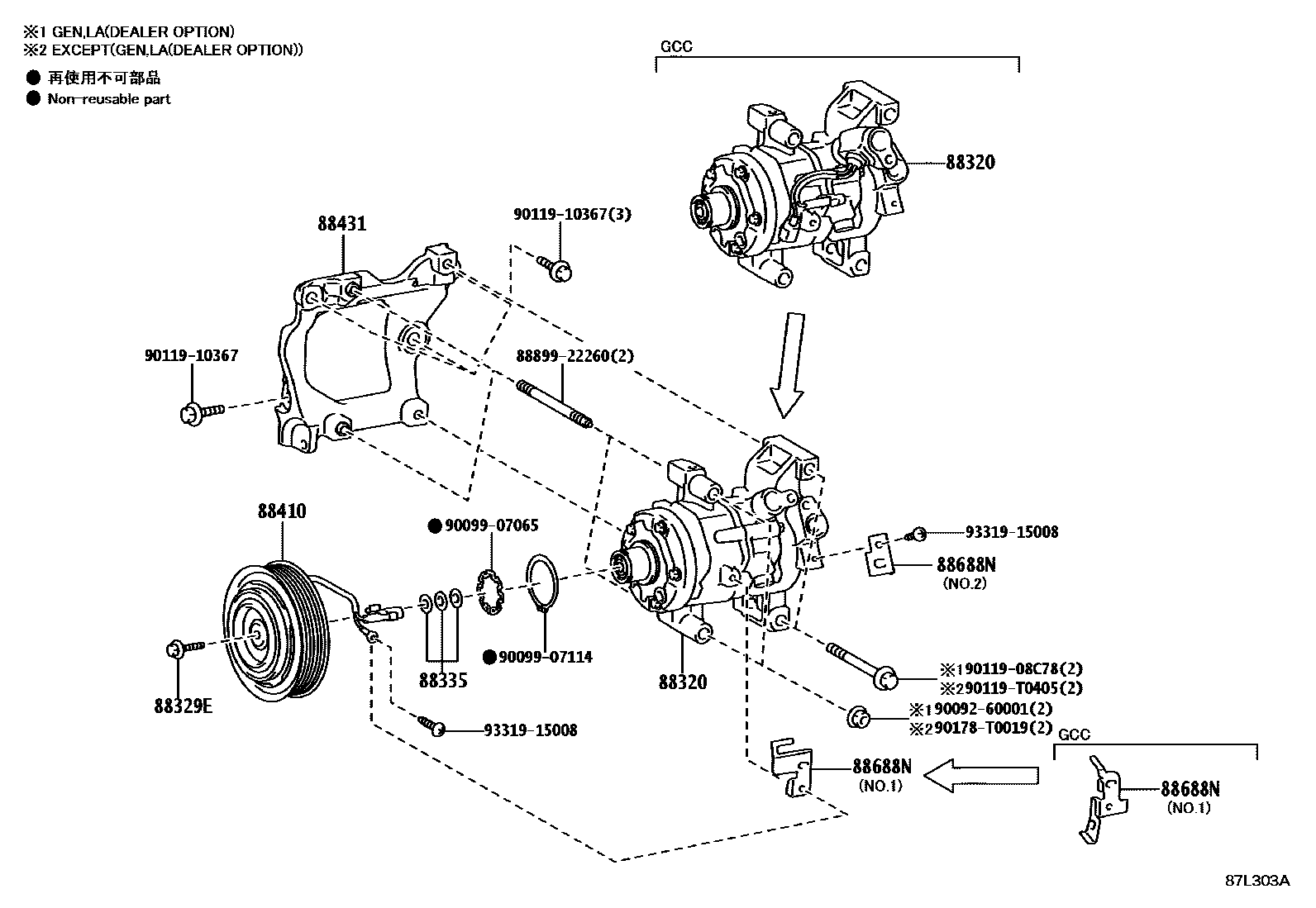

Toyota HILUX (SCB/XTR) — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88320COMPRESSOR ASSY, COOLER

main88320-0K520iGUN122..PH;GUN122..RHD..THP;GUN125..THP..(ARL,GEN,IDN,LA,TH);GUN112,120,121,126,13#,TGN121,126..THP..(ARL,GEN,LA,TH)¥52,900202208-202307

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88320-0K520iGUN122..PH;GUN122..RHD..THP;GUN125..THP..(ARL,GEN,IDN,LA,TH);GUN112,120,121,126,13#,TGN121,126..THP..(ARL,GEN,LA,TH)¥52,900202208-202401

FRONT AIR CONDITIONER-MANUAL

main88320-0K520iGUN122..LHD..GEN¥52,900202208-202307

CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88320-0K520iGUN125..MA¥52,900202208-202308

main88320-0K530iGUN11#,122,125,126..GCC202208-202307

main88320-0K550iTGN11#,12#..GCC202208-202307

main88320-0K590iGUN125,126,135,TGN126,136..AGTP202211-202310

88329EBOLT, COMPRESSOR, NO.1

main90099-04349iGUN122..LHD..GEN202208-202401

FRONT AIR CONDITIONER-MANUAL

main90099-04349iGUN125..THP;GUN122..GCC,PH;GUN122..RHD..THP;GUN11#,120,121,126,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202208-202307

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main90099-04349iGUN125..THP;GUN122..GCC,PH;GUN122..RHD..THP;GUN11#,120,121,126,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202208-202307

CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main90099-04349iGUN125..MA202208-202310

88335GASKET KIT, OVERHAUL

main88335-14020iGUN125..THP;GUN122..GCC,PH;GUN122..RHD..THP;GUN11#,120,121,126,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202208-202307

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88335-14020iGUN125..THP;GUN122..GCC,PH;GUN122..RHD..THP;GUN11#,120,121,126,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202208-202401

FRONT AIR CONDITIONER-MANUAL

main88335-14020iGUN122..LHD..GEN202208-202307

CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88335-14020iGUN125..MA202208-202310

88410CLUTCH ASSY, MAGNET

main88410-0K580iTGN121,136..SA202208-202401

main88410-0K600iGUN125..THP;GUN122..GCC,PH;GUN122..RHD..THP;GUN11#,120,121,126,13#..THP..(ARL,GCC,LA,TH)¥23,800202208-202307

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K600iGUN125..THP;GUN122..GCC,PH;GUN122..RHD..THP;GUN11#,120,121,126,13#..THP..(ARL,GCC,LA,TH)¥23,800202208-202307

CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K600iGUN125..THP;GUN122..GCC,PH;GUN122..RHD..THP;GUN11#,120,121,126,13#..THP..(ARL,GCC,LA,TH)¥23,800202208-202307

FRONT AIR CONDITIONER-MANUAL

main88410-0K600iGUN125..MA¥23,800202208-202308

main88410-0K690iTGN11#,12#..GCC202208-202307

main88410-0K760iGUN125,126,135..AGTP202211-202310

main88410-0K770iTGN126,136..AGTP202211-202310

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0K080iLAN125202301-202401

main88431-0K140iGUN125..THP;GUN122..GCC,PH;GUN122..RHD..THP;GUN11#,120,121,126,13#..THP..(ARL,GCC,LA,TH)¥5,900202208-202307

CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88431-0K140iGUN125..THP;GUN122..GCC,PH;GUN122..RHD..THP;GUN11#,120,121,126,13#..THP..(ARL,GCC,LA,TH)¥5,900202208-202307

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88431-0K140iGUN125..THP;GUN122..GCC,PH;GUN122..RHD..THP;GUN11#,120,121,126,13#..THP..(ARL,GCC,LA,TH)¥5,900202208-202307

FRONT AIR CONDITIONER-MANUAL

main88431-0K150iGUN125,126,135..AGTP202211-202310

main88431-0K160iGUN122,125..LHD..L..SA;GUN125,126,13#..(H,S)..SA202301-202401

FRONT AIR CONDITIONER-MANUAL

main88431-0K160iGUN125,135..KEN202301-202403

main88431-0K180iGUN125..MA202209-202308

main88431-0K210iTGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202208-202307

main88431-0K220iTGN126,136..AGTP202211-202310

main88431-0K230iTGN121,136..SA202301-202401

FRONT AIR CONDITIONER-MANUAL

main88431-0K290iGUN126..PKN202303

88688NBRACKET, COOLER

main88688-0K280iTGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)¥0202208-202401

main88849-0K010iGUN122..LHD..GEN¥250202208-202307

FRONT AIR CONDITIONER-MANUAL,NO.1:REFER ILLUST.

main88849-0K010iGUN122..PH;GUN122..RHD..THP;GUN125..THP..(ARL,GEN,IDN,LA,TH);GUN112,120,121,126,13#..THP..(ARL,LA,TH)¥250202208-202310

NO.1:REFER ILLUST.

main88849-0K010iGUN122..PH;GUN122..RHD..THP;GUN125..THP..(ARL,GEN,IDN,LA,TH);GUN112,120,121,126,13#..THP..(ARL,LA,TH)¥250202208-202307

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.1:REFER ILLUST.

main88849-0K010iGUN122..PH;GUN122..RHD..THP;GUN125..THP..(ARL,GEN,IDN,LA,TH);GUN112,120,121,126,13#..THP..(ARL,LA,TH)¥250202208-202307

CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.1:REFER ILLUST.

main88849-0K020iGUN125..THP;GUN122..GCC,PH;GUN122..RHD..THP;GUN11#,120,121,126,13#..THP..(ARL,GCC,LA,TH)¥200202208-202307

FRONT AIR CONDITIONER-MANUAL,NO.2:REFER ILLUST.

main88849-0K020iGUN122..LHD..GEN¥200202208-202307

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.2:REFER ILLUST.

main88849-0K020iGUN122..LHD..GEN¥200202208-202307

CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.2:REFER ILLUST.

main88849-0K020iGUN122..LHD..GEN¥200202208-202310

NO.2:REFER ILLUST.

main88849-0K030iGUN11#,122,125,126..GCC202208-202307

NO.1:REFER ILLUST.

8889922260COVER, EVAPORATOR

main88899-22260¥0

9009260001

main90092-60001

9009907065

main90099-07065¥90

9009907114

main90099-07114

9011908C78

main90119-08C78¥0

9011910367

main90119-10367¥110

90119T0405

main90119-T0405

90178T0019

main90178-T0019

9331915008

main93319-15008¥170

15 parts on this diagram · 4 diagrams in section
