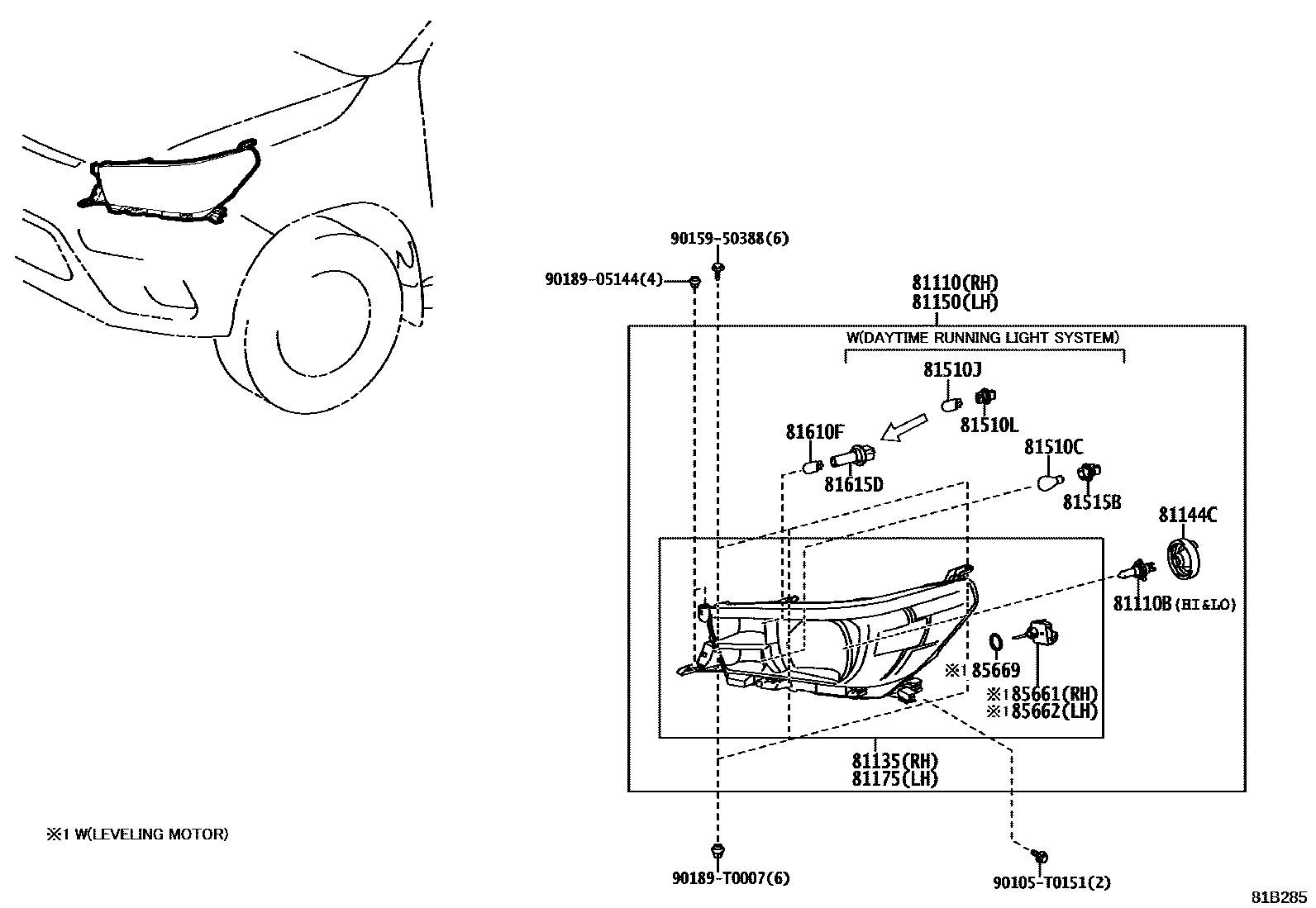

Toyota HILUX (SCB/XTR) — HEADLAMP

0001 1HALOGEN HEADLAMP(KOITO 2BEAM 0002 1HALOGEN HEADLAMP(4BEAM TYPE) 0003 1LED HEADLAMP 0004 1HALOGEN HEADLAMP(VALEO 2BEAM 0005 1HALOGEN HEADLAMP(KOITO 2BEAM 0006 1HALOGEN HEADLAMP(4BEAM TYPE) 0007 1LED HEADLAMP

81110HEADLAMP ASSY, RH

main81110-0K652iGUN125..RHD..THP..6F..L..CBU;GUN112,120,121,122,126,TGN110,121..RHD..L..(GEN,IDN,PKN,TH)202208

main81110-0K662iGUN11#,122,126,TGN11#,120,126..GCC,PH;GUN125,135,TGN121,136..LHD..SCB..(GCC,GEN,LA)202208-202310

main81110-0K672iGUN126..LA202211-202310

main81110-0K682iGUN125,126,135,TGN121..SCB..(ARL,MA)202208-202307

main81110-0K692iTGN126..LA202208-202310

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

main81110-0K752iGUN122,125,LAN125..LHD..SCB..SA202301-202401

NIGERIA SPEC

main81110-0K772iGUN135..RHD..SCB..L..CBU;GUN122,125,126,TGN120..RHD..SCB..(L,S)..(KEN,SA)202301-202403

main81110-0K792iGUN122..LHD..SA202301-202401

ALGERIA SPEC (EURO 3 REGULATION)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)

main81110-0K832iTGN126..LA202208-202310

main81110-0KC12iGUN125..6FC..GEN¥32,700202208-202307

main81110-0KF52iGUN125..RHD..6F..GEN202208-202307

DAYTIME RUNNING LIGHT SYSTEM-WITH

main81110-0KJ41iGUN125..S..GEN202208-202307

main81110-0KK11iGUN135..L..TH;GUN125,126,136..XTR..(L,S)..ARL202208-202307

main81110-0KK50iGUN125..XTR..S..SA202301-202401

TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81110-0KK50iGUN125..XTR..S..SA202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81110-0KK70iGUN125..RHD..6F..S..SA202301-202401

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81110-0KK70iGUN125..XTR..L..CBU;GUN135,TGN136..S..SA202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81110-0KT90iGUN125..H202208-202307

main81110-0KU40iGUN135..L..TH202208-202307

HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)

main81110-0KV00iGUN126,136..H..SA202301-202401

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iGUN135,TGN136..SCB..L;GUN11#,120,121,122,LAN125,TGN11#,12#;GUN125,126..SCB..(AGTP,KENP,PKNP,SAP,THP)..(L,S)¥2,000202208-202307

12V 60/55W,HALOGEN

main90981-13099iGUN135..L..TH;GUN13#,TGN136..S..(ARL,SA);GUN125,126..XTR..(L,S)..(ARL,GEN,SA)¥2,000202208-202401

12V 65W(SAE),60W(UN),FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main90981-13099iGUN120,122..XTR..L;GUN125..RHD..6F..S..SA¥2,000202208-202401

12V 65W(SAE),60W(UN)

81135UNIT ASSY, HEADLAMP, RH

main81130-0K652iGUN125..RHD..THP..6F..L..CBU;GUN112,120,121,122,126,TGN110,121..RHD..L..(GEN,IDN,PKN,TH)202208

main81130-0K662iGUN11#,122,126,TGN11#,120,126..GCC,PH;GUN125,135,TGN121,136..LHD..SCB..(GCC,GEN,LA)202208-202310

main81130-0K672iGUN126..LA202211-202310

main81130-0K682iGUN125,126,135,TGN121..SCB..(ARL,MA)202208-202307

main81130-0K692iTGN126..LA202208-202310

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

main81130-0K752iTGN121..SA202301-202401

NIGERIA SPEC

main81130-0K772iGUN135..RHD..SCB..L..CBU;GUN122,125,126,TGN120..RHD..SCB..(L,S)..(KEN,SA)202301-202403

main81130-0K792iTGN121..SA202301-202401

ALGERIA SPEC (EURO 3 REGULATION)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)

main81130-0K832iTGN126..LA202208-202310

main81130-0KC12iGUN125..6FC..GEN¥28,000202208-202307

main81130-0KF52iGUN120,122..S..TH202208-202307

DAYTIME RUNNING LIGHT SYSTEM-WITH

main81130-0KJ40iGUN125..S..GEN202208-202307

main81130-0KK10iGUN135..L..TH;GUN125,126,136..XTR..(L,S)..ARL202208-202307

main81130-0KK50iGUN125..LHD..SCB..S202301-202401

TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81130-0KK50iGUN125..LHD..SCB..S202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81130-0KK70iGUN126..S..SA;GUN125..6FC..SA202301-202401

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81130-0KK70iGUN125..XTR..L..CBU;GUN135,TGN136..S..SA202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81145-0KT90iGUN125..H202208-202307

main81145-0KU40iGUN135..L..TH202208-202307

HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)

81144CCOVER, HEADLAMP SOCKET

main90075-65002iGUN135..RHD..SCB..L..CBU;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..(KEN,SA)¥670202301-202403

main90075-65006iGUN135..L..TH;GUN13#,TGN136..S..(ARL,SA);GUN125,126..XTR..(L,S)..(ARL,GEN,SA)¥460202208-202401

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main90075-65019iGUN125..MA¥610202208-202307

81150HEADLAMP ASSY, LH

main81150-0K652iGUN125..RHD..THP..6F..L..CBU;GUN112,120,121,122,126,TGN110,121..RHD..L..(GEN,IDN,PKN,TH)202208

main81150-0K662iGUN11#,122,126,TGN11#,120,126..GCC,PH;GUN125,135,TGN121,136..LHD..SCB..(GCC,GEN,LA)202208-202310

main81150-0K672iGUN126..LA202211-202310

main81150-0K682iGUN125,126,135,TGN121..SCB..(ARL,MA)202208-202307

main81150-0K692iTGN126..LA202208-202310

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

main81150-0K752iGUN122,125,LAN125..LHD..SCB..SA202301-202401

NIGERIA SPEC

main81150-0K772iGUN135..RHD..SCB..L..CBU;GUN122,125,126,TGN120..RHD..SCB..(L,S)..(KEN,SA)202301-202403

main81150-0K792iTGN121..SA202301-202401

ALGERIA SPEC (EURO 3 REGULATION)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)

main81150-0K832iTGN126..LA202208-202310

main81150-0KC12iGUN125..6FC..GEN¥32,700202208-202307

main81150-0KF52iGUN120,122..S..TH202208-202307

DAYTIME RUNNING LIGHT SYSTEM-WITH

main81150-0KJ41iGUN125..S..GEN202208-202307

main81150-0KK11iGUN135..L..TH;GUN125,126,136..XTR..(L,S)..ARL202208-202307

main81150-0KK50iGUN125..LHD..SCB..S202301-202401

TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81150-0KK50iGUN125..XTR..S..SA202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81150-0KK70iGUN126..S..SA;GUN125..6FC..SA202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81150-0KK70iGUN125..XTR..L..CBU;GUN135,TGN136..S..SA202301-202401

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81150-0KT90iGUN125..H202208-202307

main81150-0KU40iGUN135..L..TH202208-202307

HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)

main81150-0KV00iGUN126,136..H..SA202301-202401

81175UNIT ASSY, HEADLAMP, LH

main81170-0K652iGUN125..RHD..THP..6F..L..CBU;GUN112,120,121,122,126,TGN110,121..RHD..L..(GEN,IDN,PKN,TH)202208

main81170-0K662iGUN11#,122,126,TGN11#,120,126..GCC,PH;GUN125,135,TGN121,136..LHD..SCB..(GCC,GEN,LA)202208-202310

main81170-0K672iGUN126..LA202211-202310

main81170-0K682iGUN125,126,135,TGN121..SCB..(ARL,MA)202208-202307

main81170-0K692iTGN126..LA202208-202310

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

main81170-0K752iTGN121..SA202301-202401

NIGERIA SPEC

main81170-0K772iGUN135..RHD..SCB..L..CBU;GUN122,125,126,TGN120..RHD..SCB..(L,S)..(KEN,SA)202301-202403

main81170-0K792iGUN122..LHD..SA202301-202401

ALGERIA SPEC (EURO 3 REGULATION)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)

main81170-0K832iTGN126..LA202208-202310

main81170-0KC12iGUN125..6FC..GEN¥28,000202208-202307

main81170-0KF52iGUN125..RHD..6F..GEN202208-202307

DAYTIME RUNNING LIGHT SYSTEM-WITH

main81170-0KJ40iGUN125..S..GEN202208-202307

main81170-0KK10iGUN135..L..TH;GUN125,126,136..XTR..(L,S)..ARL202208-202307

main81170-0KK50iGUN125..XTR..S..SA202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81170-0KK50iGUN125..XTR..S..SA202301-202401

TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81170-0KK70iGUN125..RHD..6F..S..SA202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81170-0KK70iGUN125..XTR..L..CBU;GUN135,TGN136..S..SA202301-202401

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main81185-0KT90iGUN125..H202208-202307

main81185-0KU40iGUN125,126,135..RHD..THP..(H,S)..CBU202208-202307

HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iGUN120,122..XTR..L;GUN125..RHD..6F..S..SA¥300202208-202401

12V 21W,AMBER,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main90981-15021iGUN135..L..TH;GUN13#,TGN136..S..(ARL,SA);GUN125,126..XTR..(L,S)..(ARL,GEN,SA)¥300202208-202401

12V 21W,AMBER

main90981-15028iGUN125..MA¥350202208-202307

12V 21W,AMBER

81510JBULB(FOR DAYTIME RUNNING LAMP)

main90981-13088iGUN135..RHD..THP..L;GUN125,TGN121..ARL,MA;GUN120,122,126,136..RHD..THP..S;GUN122,TGN126..LHD..THP..(GEN,LA)¥670202208-202401

12V 21/5W

main90981-13088iGUN135..RHD..THP..L;GUN125,TGN121..ARL,MA;GUN120,122,126,136..RHD..THP..S;GUN122,TGN126..LHD..THP..(GEN,LA)¥670202208-202401

12V 21/5W,DAYTIME RUNNING LIGHT SYSTEM-WITH

main90981-13088iGUN135..RHD..THP..L;GUN125,TGN121..ARL,MA;GUN120,122,126,136..RHD..THP..S;GUN122,TGN126..LHD..THP..(GEN,LA)¥670202208-202307

12V 21/5W,HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH

81510LSOCKET, DAYTIME RUNNING LAMP

main90075-60086iGUN122,TGN111..GCC;TGN121,126..(GCC,GEN)..CBU¥600202208-202307

HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH

main90075-60086iGUN135..RHD..THP..L;GUN125,TGN121..ARL,MA;GUN120,122,126,136..RHD..THP..S;GUN122,TGN126..LHD..THP..(GEN,LA)¥600202208-202401

DAYTIME RUNNING LIGHT SYSTEM-WITH

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iGUN135..L..TH;GUN13#,TGN136..S..(ARL,SA);GUN125,126..XTR..(L,S)..(ARL,GEN,SA)¥610202208-202401

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main90075-60069iGUN125..MA¥1,000202208-202307

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069iTGN136..LA,SA;GUN135..S..SA;GUN125..XTR..SA;GUN122,135..GCC,LA,PH;GUN126..SCB..(GCC,LA,PKN,TH);GUN120,122..RHD..(PKNP,THP)..L;GUN125..(L,S)..(GCC,GEN,IDN,LA);GUN11#¥110202208

12V 5W

main90981-11070iGUN135..RHD..SCB..L..CBU;GUN122,125,126,LAN125,TGN120..SCB..(L,S)..(KEN,SA)202301-202403

12V 5W

sub99132-12050¥110

81615DSOCKET, CLEARANCE LAMP

main90075-60077iGUN122..RHD..L;TGN121..GCC,GEN,PKN,TH;GUN135..L..(KEN,LA,SA);GUN122..LHD..(GCC,PH,SA);GUN120,TGN136..L..(LA,TH);GUN11#,121,LAN125,TGN11#,120,126..GCC,IDN,SA,TH;GUN1¥610202208

main90075-60089iGUN135,TGN136..S..SA;GUN125..XTR..(L,S)..(GEN,SA)¥610202208-202401

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

85661MOTOR, HEADLAMP LEVELING, RH

main85661-02040iGUN125..H;GUN125,126,135..RHD..THP..(H,S)..CBU¥3,340202208-202307

HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)

main85661-0D020iGUN122..LHD..GEN;GUN125..6FC..GEN;GUN125,126,135,TGN121..SCB..(ARL,MA)¥5,300202208-202307

HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH

main85661-0D020iGUN122..LHD..GEN;GUN125..6FC..GEN;GUN125,126,135,TGN121..SCB..(ARL,MA)¥5,300202208-202310

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

main85661-0D020iGUN135..L..SA;GUN122,125..RHD..SCB..SA;GUN126,TGN120,121..SCB..MTM..SA¥5,300202208-202403

85662MOTOR, HEADLAMP LEVELING, LH

main85661-02040iGUN125..H;GUN125,126,135..RHD..THP..(H,S)..CBU¥3,340202208-202307

HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)

main85661-0D020iGUN122..LHD..GEN;GUN125..6FC..GEN;GUN125,126,135,TGN121..SCB..(ARL,MA)¥5,300202208-202310

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

main85661-0D020iGUN122..LHD..GEN;GUN125..6FC..GEN;GUN125,126,135,TGN121..SCB..(ARL,MA)¥5,300202208-202307

HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH

main85661-0D020iGUN135..L..SA;GUN122,125..RHD..SCB..SA;GUN126,TGN120,121..SCB..MTM..SA¥5,300202208-202403

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iGUN122..LHD..GEN;GUN135..(H,S)..TH;GUN125,126..THP..H;GUN126,135..SCB..ARL;GUN125..6F..(ARL,MA,TH);GUN125,TGN121..RHD..SCB..(5F,6FC)..(ARL,GEN)¥220202208-202307

HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)

main90075-99120iGUN122..LHD..GEN;GUN135..(H,S)..TH;GUN125,126..THP..H;GUN126,135..SCB..ARL;GUN125..6F..(ARL,MA,TH);GUN125,TGN121..RHD..SCB..(5F,6FC)..(ARL,GEN)¥220202208-202310

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

main90075-99120iGUN122..LHD..GEN;GUN135..(H,S)..TH;GUN125,126..THP..H;GUN126,135..SCB..ARL;GUN125..6F..(ARL,MA,TH);GUN125,TGN121..RHD..SCB..(5F,6FC)..(ARL,GEN)¥220202208-202307

HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH

main90075-99120iGUN135..L..SA;GUN122,125..RHD..SCB..SA;GUN126,TGN120,121..SCB..MTM..SA¥220202208-202403

90105T0151

main90105-T0151¥60

9015950388

main90159-50388¥50

9018905144

main90189-05144¥80

90189T0007

main90189-T0007

19 parts on this diagram · 7 diagrams in section
