Toyota HILUX (SCB/XTR) — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202301-202403

main68710-0D050iGUN125..MA¥2,030202208-202308

main68710-0K010iGUN125,126,135,TGN126,136..AGTP202211-202310

main68710-12151iGUN122,126,TGN121..PKN¥2,050202303

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iGUN125,135..KEN202301-202403

main68720-0D050iGUN125..MA¥2,030202208-202308

main68720-0K010iGUN125,126,135,TGN126,136..AGTP202211-202310

main68720-12151iGUN122,126,TGN121..PKN¥2,050202303

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02070iGUN125,135..KEN202301-202403

main68730-02100iGUN11#,12#,13#,TGN11#,12#..THP202208-202308

main68730-0K050iGUN125,126,135,TGN126,136..AGTP202211-202310

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02070iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202301-202403

main68740-02100iGUN11#,12#,13#,TGN11#,12#..THP202208-202308

main68740-0K050iGUN125,126,135,TGN126,136..AGTP202211-202310

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0K010-C0iGUN122..LHD..(GEN,PH);GUN112,125,135,TGN110,121,126..THP..MTM..L..(GEN,IDN,LA)202208-202307

BLACK,TRIM2#,3#

main69260-0K010-C0iGUN122..LHD..(GEN,PH);GUN112,125,135,TGN110,121,126..THP..MTM..L..(GEN,IDN,LA)202208-202307

BLACK,TRIM2#

main69260-0K040-C0iGUN125..XTR..L..CBU;GUN125..RHD..6F..S..SA;GUN122,126..RHD..SCB..MTM..SA..CBU202301-202403

BLACK,TRIM2#

main69260-0K040-C0iGUN125..XTR..L..CBU;GUN125..RHD..6F..S..SA;GUN122,126..RHD..SCB..MTM..SA..CBU202301-202401

POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#

main69260-0K060-C0iTGN136..BZAG;GUN125,126,135,TGN126..AGTP202211-202310

BLACK,TRIM2#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52152iGUN125,135..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA202211-202403

main90520-01274iTGN126..IV3;GUN122..LHD..THP..L;GUN135,TGN110,126..THP..(IDN,LA);GUN112,125,TGN120,121..THP..MTM..L..(GCC,GEN,IDN,LA)¥160202208-202307

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-02022iTGN136..BZAG;GUN125,126,135,TGN126..AGTP¥100202211-202403

main69268-04020iTGN126..IV3;GUN122..LHD..THP..L;GUN135,TGN110,126..THP..(IDN,LA);GUN112,125,TGN120,121..THP..MTM..L..(GCC,GEN,IDN,LA)202208-202307

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0D351iTGN126..THP..LA;TGN121,126..GCC..IV3;GUN112,122,125,135,TGN120..THP..L..(GCC,LA)202208-202307

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69801-0D351iGUN125..MA202208-202308

main69801-0K140iGUN125..RHD..6F..GEN¥4,250202208-202307

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69801-0K140iGUN125..ARL;GUN125..6FC..GEN;GUN125..XTR..GEN;GUN122,126,13#,TGN121..RHD..(ARL,GEN)¥4,250202208-202307

POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)

main69801-0K140iGUN125..ARL;GUN125..6FC..GEN;GUN125..XTR..GEN;GUN122,126,13#,TGN121..RHD..(ARL,GEN)¥4,250202208-202307

POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)

main69801-0K150iGUN125,135..RHD..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA202301-202401

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main69801-0K150iGUN125..S..KEN202301-202403

main69801-0K150iGUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,136,TGN120,136..RHD..SA202301-202401

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main69801-0K160iTGN136..LA202211-202310

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69801-0K160iTGN136..LA202211-202310

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH

main69810-0K240iGUN122,126,TGN121..PKN202208-202307

main69810-0K270iGUN122..RHD..SA..CBU;GUN125..RHD..6F..S..SA202301-202401

POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT

main69810-0K270iGUN126..S..SA;GUN125..XTR..L..CBU202301-202401

EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT

main69810-0K270iGUN125,135..L..KEN202301-202403

main69810-0K310iTGN136..BZAG;GUN125,126,135,TGN126..AGTP202211-202310

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0D331iGUN125..MA202208-202308

main69802-0D331iTGN126..GCC..CBU;GUN112,122,TGN121..S..GCC;GUN112,122,125,TGN121..TH;GUN111,120,121,126,135,TGN11#..GCC,TH202208-202307

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69802-0K140iGUN125..RHD..6F..GEN¥4,250202208-202307

POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)

main69802-0K140iGUN125..ARL;GUN125..6FC..GEN;GUN125..XTR..GEN;GUN122,126,13#,TGN121..RHD..(ARL,GEN)¥4,250202208-202307

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69802-0K140iGUN125..ARL;GUN125..6FC..GEN;GUN125..XTR..GEN;GUN122,126,13#,TGN121..RHD..(ARL,GEN)¥4,250202208-202307

POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)

main69802-0K150iGUN125,135..RHD..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA202301-202401

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main69802-0K150iGUN125..S..KEN202301-202403

main69802-0K150iGUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,136,TGN120,136..RHD..SA202301-202401

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main69802-0K160iTGN136..LA202211-202310

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69802-0K160iTGN136..LA202211-202310

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH

main69820-0K260iGUN122,126,TGN121..PKN202208-202307

main69820-0K290iGUN125,135..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA202301-202401

EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT

main69820-0K290iGUN122..RHD..SA..CBU;GUN125..RHD..6F..S..SA202301-202401

POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT

main69820-0K290iGUN125,135..L..KEN202301-202403

main69820-0K320iTGN136..BZAG;GUN125,126,135,TGN126..AGTP202211-202310

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0D570iGUN125..MA202208-202308

main85710-0D570iTGN110,126..GCC..CBU;GUN11#,122,126,TGN111,121..S..GCC202208-202307

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85710-0K180iGUN122..LHD..GEN¥15,900202208-202307

POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)

main85710-0K180iGUN125..RHD..6F..GEN¥15,900202208-202307

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85710-0K180iGUN125..LHD..S..SA;GUN122,TGN120..RHD..SA¥15,900202208-202401

main85710-0K190iGUN122,125..RHD..MTM..GEN¥20,900202208-202307

POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)

main85710-0K190iGUN125..XTR..L..CBU;GUN125,126,13#,TGN136..RHD..(H,S)..SA¥20,900202208-202403

main85710-0K200iGUN112,12#,135,TGN121..TH202208-202307

main85710-0K290iGUN126..LA202211-202310

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85710-0K290iGUN126..LA202211-202310

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D570iTGN126..THP..LA;TGN121,126..GCC..IV3;GUN112,122,125,135,TGN120..THP..L..(GCC,LA)202208-202307

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85720-0D570iGUN125..MA202208-202308

main85720-0K170iGUN126,135..H..TH202208-202307

main85720-0K180iGUN125..RHD..6F..GEN¥15,900202208-202307

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85720-0K180iGUN125..ARL;GUN125..6FC..GEN;GUN122,126,13#,TGN121..RHD..(L,S)..(ARL,GEN)¥15,900202208-202307

POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)

main85720-0K180iGUN125..ARL;GUN125..6FC..GEN;GUN122,126,13#,TGN121..RHD..(L,S)..(ARL,GEN)¥15,900202208-202307

POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)

main85720-0K180iGUN126..6F..SA;GUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,136,TGN120,136..RHD..SCB..(5F,6FC)..SA¥15,900202208-202403

main85720-0K190iGUN125,126..XTR..(ARL,GEN)..CBU¥20,900202208-202401

main85720-0K290iGUN125,135,TGN126..AGTP..LA202211-202310

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH

main85720-0K290iGUN126..LA202211-202310

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

90105T0013

main90105-T0013¥60

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90119T0220

main90119-T0220

9016850040

main90168-50040¥70

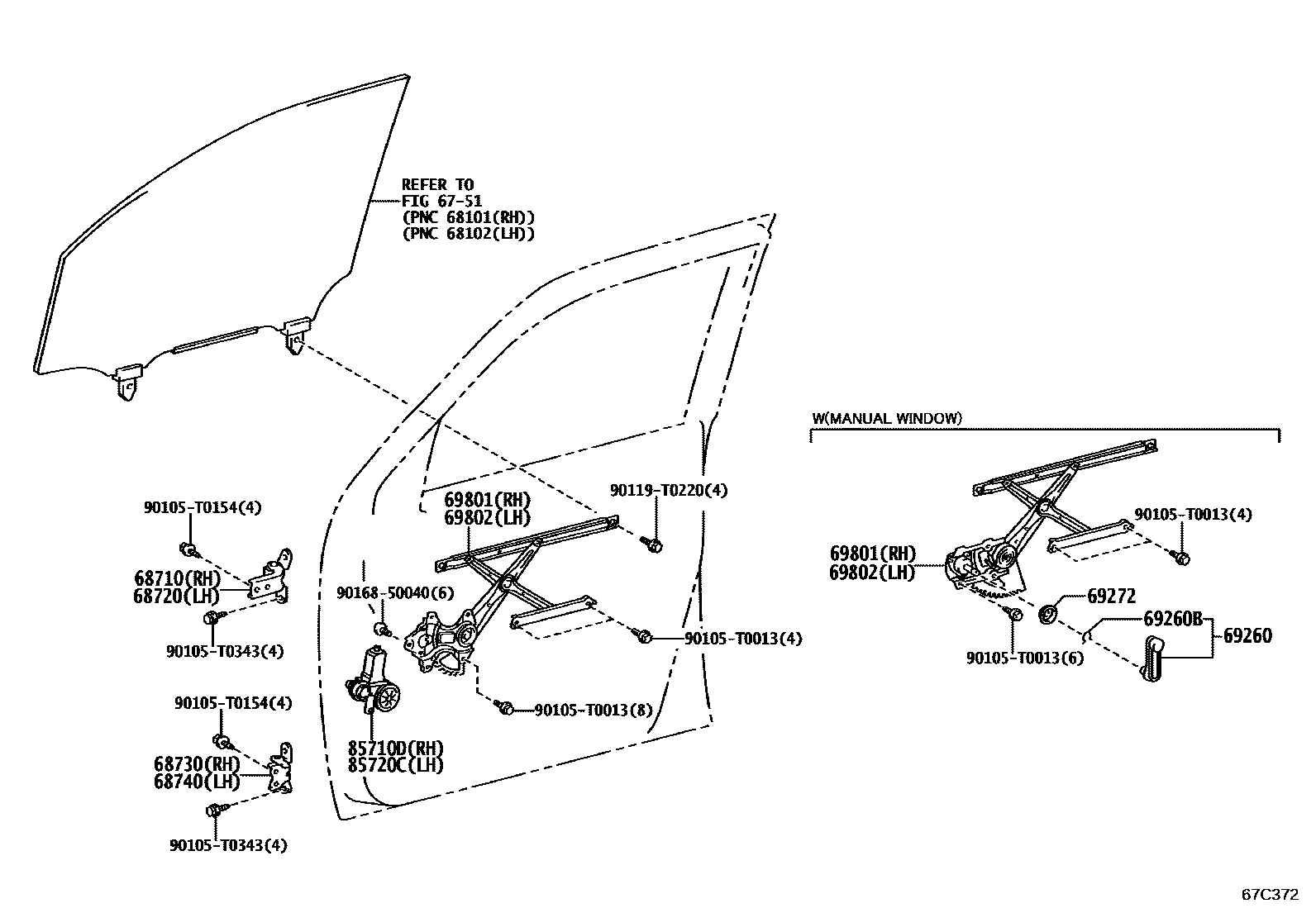

17 parts on this diagram · 1 diagram in section
