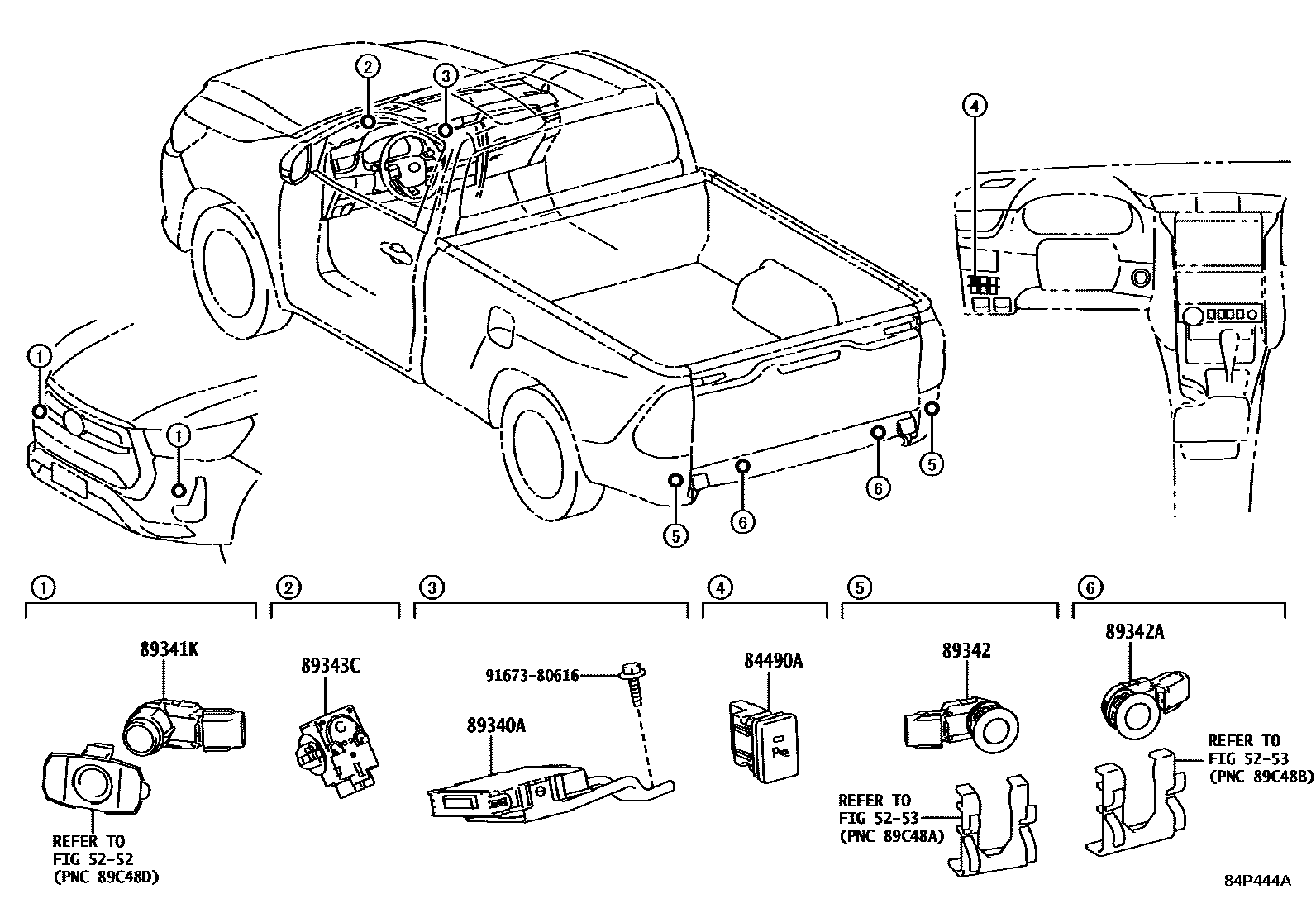

Toyota HILUX (SCB/XTR) — CLEARANCE & BACK SONAR

0001 1 0002 1

5252

5253

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-0K030iGUN125,126,135..THP..H¥3,030202208-202307

CLEARANCE & BACK SONAR-WITH

main84490-0K060iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

CLEARANCE & BACK SONAR-WITH

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0K030iGUN125..H202208-202307

main89340-0K100iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202208-202401

CLEARANCE & BACK SONAR-WITH

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-06080-A0iGUN125..XTR..S..SA;GUN135..SCB..6F..S202208-202401

CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040

main89341-06080-A0iGUN125..XTR..S..SA;GUN135..SCB..6F..S202208-202401

SUPER WHITE 2,040

main89341-06080-A1iGUN125,135..S..TH202208-202401

CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089

main89341-06080-A1iGUN125,135..S..TH202208-202401

PLATINUM WHITE PEARL MC.,089

main89341-06080-B2iGUN125..XTR..S..SA;GUN135..SCB..6F..S202208-202401

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3

main89341-06080-B2iGUN125,126,135..THP..H202208-202401

GRAY ME.,1G3

main89341-06080-B3iGUN125,135..S..TH202208-202401

CLEARANCE & BACK SONAR-WITH,SILVER ME.,1D6

main89341-06080-B3iGUN125,135..S..TH202208-202401

SILVER ME.,1D6

main89341-06080-C0iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202208-202401

CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218

main89341-06080-C0iGUN125,135..S..TH202208-202401

ATTITUDE BLACK MC.,218

main89341-06080-D2iGUN125..RHD..6F..S..SA..CBU202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&CLEARANCE & BACK SONAR-WITH,CRIMSON SPARK REDME.,3T6

main89341-06080-D2iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

CRIMSON SPARK RED ME.,3T6

main89341-06080-D2iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,CRIMSON SPARKRED ME.,3T6

main89341-06080-D2iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

CLEARANCE & BACK SONAR-WITH,CRIMSON SPARK RED ME.,3T6

main89341-06080-D5iGUN125,135..S..TH202208-202307

CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5

main89341-06080-D5iGUN125,126,135..THP..H202208-202307

EMOTIONAL RED 2,3U5

main89341-06080-E3iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

ORANGE ME.,4R8

main89341-06080-E3iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&CLEARANCE & BACK SONAR-WITH,ORANGE ME.,4R8

main89341-06080-E3iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,ORANGE ME.,4R8

main89341-06080-E3iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

CLEARANCE & BACK SONAR-WITH,ORANGE ME.,4R8

main89341-06080-G2iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,OXIDE BRONZEME.,6X1

main89341-06080-G2iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

OXIDE BRONZE ME.,6X1

main89341-06080-G2iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&CLEARANCE & BACK SONAR-WITH,OXIDE BRONZE ME.,6X1

main89341-06080-G2iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202301-202401

CLEARANCE & BACK SONAR-WITH,OXIDE BRONZE ME.,6X1

main89341-06080-J2iGUN125..XTR..S..SA;GUN135..SCB..6F..S202301-202401

NEBULA BLUE ME.,8X2

main89341-06080-J2iGUN125..XTR..S..SA;GUN135..SCB..6F..S202301-202401

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2

main89341-06080-J2iGUN125..XTR..S..SA;GUN135..SCB..6F..S202301-202401

TIRE & DISC WHEEL-265/65R17 ALUMINUM&CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2

main89341-06080-J2iGUN125..XTR..S..SA;GUN135..SCB..6F..S202301-202401

CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2

main89341-06080-J3iGUN125,126,135..THP..H202208-202307

DK. BLUE MC.,8X8

main89341-06080-J3iGUN125,126,135..THP..H202208-202307

CLEARANCE & BACK SONAR-WITH,DK. BLUE MC.,8X8

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-71040iGUN125,126,135..THP..H¥6,500202208-202401

CLEARANCE & BACK SONAR-WITH

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-71030iGUN125..XTR..S..SA;GUN135..SCB..6F..S¥6,500202208-202401

CLEARANCE & BACK SONAR-WITH

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iGUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA¥1,850202208-202401

CLEARANCE & BACK SONAR-WITH

9167380616

main91673-80616¥60

9 parts on this diagram · 2 diagrams in section
