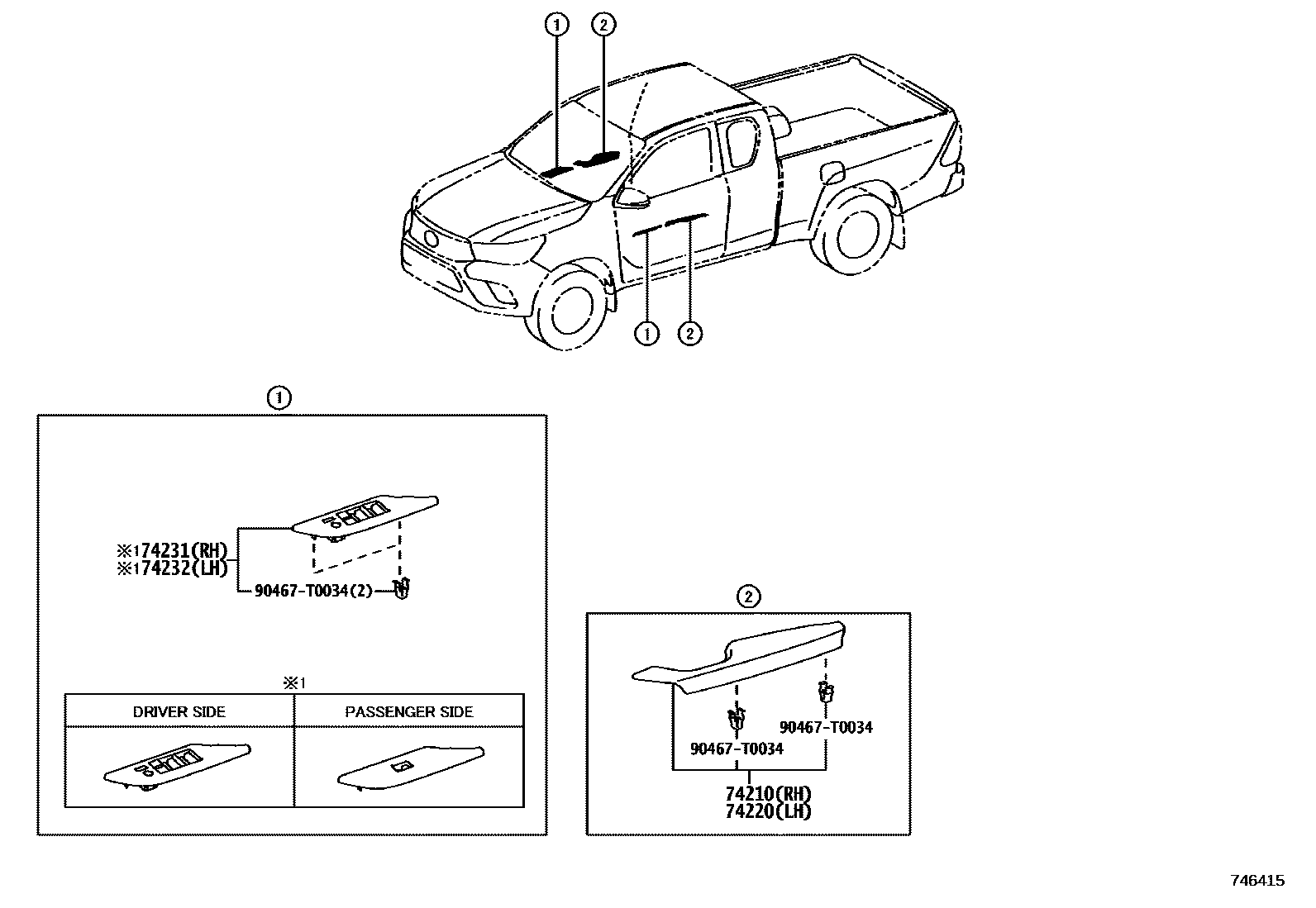

Toyota HILUX (SCB/XTR) — ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
main74210-0K010-C0iTGN126..IV3;GUN122..LHD..THP..L;GUN135,TGN110,126..THP..(IDN,LA);GUN112,125,TGN120,121..THP..MTM..L..(GCC,GEN,IDN,LA)202208-202307
BLACK,TRIM2#
RED,TRIM3#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
BLACK,TRIM2#
MAROON,TRIM3#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&DOOR TRIM-FABRIC & WITHOUT(*PW),BLACK,TRIM2#
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT,BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
BLACK,TRIM2#
RED,TRIM3#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main74220-0K020-C2iTGN126..GCC..CBU;GUN125..ARL,MA,TH;GUN125,126..6FC..(ARL,GEN)..CBU;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN112,122,125,TGN121..LHD..THP..(H,S);GUN111,120,121,126,13202208-202307
BLACK,TRIM2#
main74220-0K020-C2iTGN126..GCC..CBU;GUN125..ARL,MA,TH;GUN125,126..6FC..(ARL,GEN)..CBU;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN112,122,125,TGN121..LHD..THP..(H,S);GUN111,120,121,126,13202208-202307
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K020-C2iTGN126..GCC..CBU;GUN125..ARL,MA,TH;GUN125,126..6FC..(ARL,GEN)..CBU;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN112,122,125,TGN121..LHD..THP..(H,S);GUN111,120,121,126,13202208-202307
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main74220-0K020-C2iTGN126..GCC..CBU;GUN125..ARL,MA,TH;GUN125,126..6FC..(ARL,GEN)..CBU;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN112,122,125,TGN121..LHD..THP..(H,S);GUN111,120,121,126,13202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K020-C2iTGN126..GCC..CBU;GUN125..ARL,MA,TH;GUN125,126..6FC..(ARL,GEN)..CBU;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN112,122,125,TGN121..LHD..THP..(H,S);GUN111,120,121,126,13202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
MAROON,TRIM3#
BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&DOOR TRIM-FABRIC & WITHOUT(*PW),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&DOOR TRIM-LEATHER & PAINT(SILVER)
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&DOOR TRIM-FABRIC & PAINT(SILVER)
main74231-0K620iGUN125..6FC..GEN;GUN125,13#..ARL,MA;GUN126..RHD..THP..(L,S);GUN112,120,121,122,TGN121..RHD..L..(ARL,GEN,TH)202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&DOOR TRIM-FABRIC & PAINT(BLACK
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
74232PANEL, FRONT ARMREST BASE, UPPER LH
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&DOOR TRIM-FABRIC & PAINT(SILVER)
main74232-0K600iGUN13#..ARL;GUN125..6FC..GEN;GUN125,126..(L,S)..(ARL,MA,TH);GUN112,120,121,122,TGN121..RHD..L..(ARL,GEN,TH)¥1,740202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main74232-0K600iGUN13#..ARL;GUN125..6FC..GEN;GUN125,126..(L,S)..(ARL,MA,TH);GUN112,120,121,122,TGN121..RHD..L..(ARL,GEN,TH)¥1,740202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&DOOR TRIM-FABRIC & PAINT(BLACK
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
DOOR TRIM-LEATHER & PAINT(SILVER)
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&DOOR TRIM-LEATHER & PAINT(SILVER)
90467T0034
main90467-T0034
5 parts on this diagram · 2 diagrams in section
