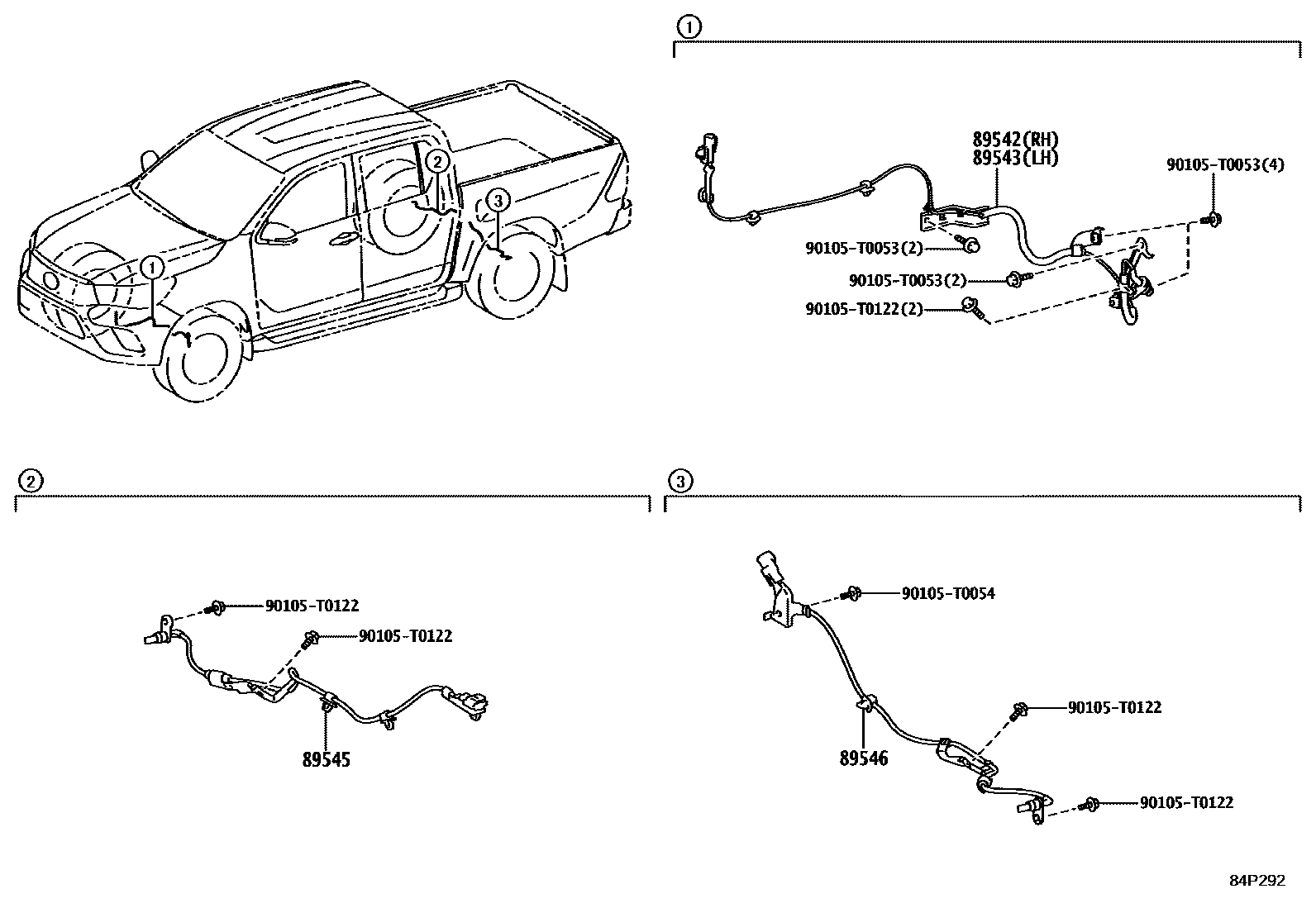

Toyota HILUX (SCB/XTR) — ABS & VSC

0001 1 0002 1

89542SENSOR, SPEED, FRONT RH

main89542-0K050iGUN11#,120,121,122,TGN11#,120,121..THP202208-202401

main89542-0K060iGUN125,126,135,TGN126,136..AGTP¥8,100202208-202310

main89542-0K080iGUN125..MA202209-202403

89543SENSOR, SPEED, FRONT LH

main89543-0K050iGUN122,TGN121..PKN202208-202401

main89543-0K061iGUN125,126,13#,TGN126..THP¥8,100202208-202310

main89543-0K081iGUN125..MA202209-202403

89545SENSOR, SPEED, REAR RH

main89545-0K220iGUN11#,120,121,122,TGN11#,120,121..THP202208-202307

main89545-0K240iGUN125,126,13#,TGN126..THP¥8,100202208-202310

main89545-0K280iGUN122,TGN120,121..SA202301-202401

main89545-0K290iGUN125,126,13#,LAN125,TGN136..SA202209-202403

89546SENSOR, SPEED, REAR LH

main89546-0K220iGUN11#,120,121,122,TGN11#,120,121..THP202208-202307

main89546-0K240iGUN126..PKN¥8,100202208-202310

main89546-0K280iGUN122,TGN120,121..SA202301-202401

main89546-0K290iGUN125,135..KEN202209-202403

90105T0053

main90105-T0053

90105T0054

main90105-T0054

90105T0122

main90105-T0122

7 parts on this diagram · 2 diagrams in section
