Toyota HILUX (SCB/XTR) — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1TRANSMISSION 0005 1TRANSMISSION 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1COWL 1/2 0012 1COWL 1/2 0013 1COWL 2/2 0014 1COWL 2/2 0015 1COWL 2/2 0016 1INSTRUMENT PANEL 0017 1INSTRUMENT PANEL 0018 1CONSOLE BOX 0019 1STEERING 0020 1SEAT 0021 1DOOR,ROOF & FLOOR

1708

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iGUN122..LHD..GEN;GUN125..THP..(ARL,GCC,IDN,LA,TH);GUN11#,120,121,122,126,13#..ARL,GCC,IDN,PH,TH¥2,470202308-202407

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main83520-60060iGUN122..LHD..GEN;GUN125..THP..(ARL,GCC,IDN,LA,TH);GUN11#,120,121,122,126,13#..ARL,GCC,IDN,PH,TH¥2,470202308-202407

CAMBODIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main83520-60060iGUN122..LHD..GEN;GUN125..THP..(ARL,GCC,IDN,LA,TH);GUN11#,120,121,122,126,13#..ARL,GCC,IDN,PH,TH¥2,470202308-202410

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main83520-60060iGUN125..MA¥2,470202308-202412

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iGUN125..S..GEN¥1,970202308-202407

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),DENSO,*369

main83530-28010iGUN125..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202308-202410

DENSO,*369

main83530-28010iGUN125..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202308-202407

CENTRAL AND SOUTH AMERICA SPEC,DENSO,*369

main83530-28010iGUN125..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202308-202407

COSTA RICA SPEC,DENSO,*369

main83530-28010iGUN125..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202308-202407

IRAQ SPEC,DENSO,*369

main83530-28010iGUN125..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202308-202407

ASEAN GENERAL SPEC,DENSO,*369

main83530-28010iGUN125..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202308-202407

CAMBODIA SPEC,DENSO,*369

main83530-28010iGUN125..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202308-202410

EXHAUST EMISSION CONTROL-WITHOUT,DENSO,*369

main83530-28010iGUN125..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202308-202407

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),DENSO,*369

main83530-28010iGUN125..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202308-202407

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),DENSO,*369

main83530-28020iTGN121..PKN¥1,970202308-202410

DENSO,*369

main83530-60010iGUN125..GEN;GUN135..THP..LA;GUN122..RHD..GEN¥1,970202308-202410

EXHAUST EMISSION CONTROL-WITHOUT,YAZAKI,*369

main83530-60010iGUN125..THP..LA;GUN122..LHD..GEN¥1,970202308-202407

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),YAZAKI,*369

main83530-60010iGUN122..L..GCC¥1,970202308-202410

YAZAKI,*369

main83530-60010iGUN122..L..GCC¥1,970202308-202407

CENTRAL AND SOUTH AMERICA SPEC,YAZAKI,*369

main83530-60010iGUN122..L..GCC¥1,970202308-202407

IRAQ SPEC,YAZAKI,*369

main83530-60010iGUN122..L..GCC¥1,970202308-202407

ASEAN GENERAL SPEC,YAZAKI,*369

main83530-60020iTGN121..PKN¥1,970202308-202410

YAZAKI,*369

main83530-60030iLAN125¥1,970202402-202410

DENSO,*369

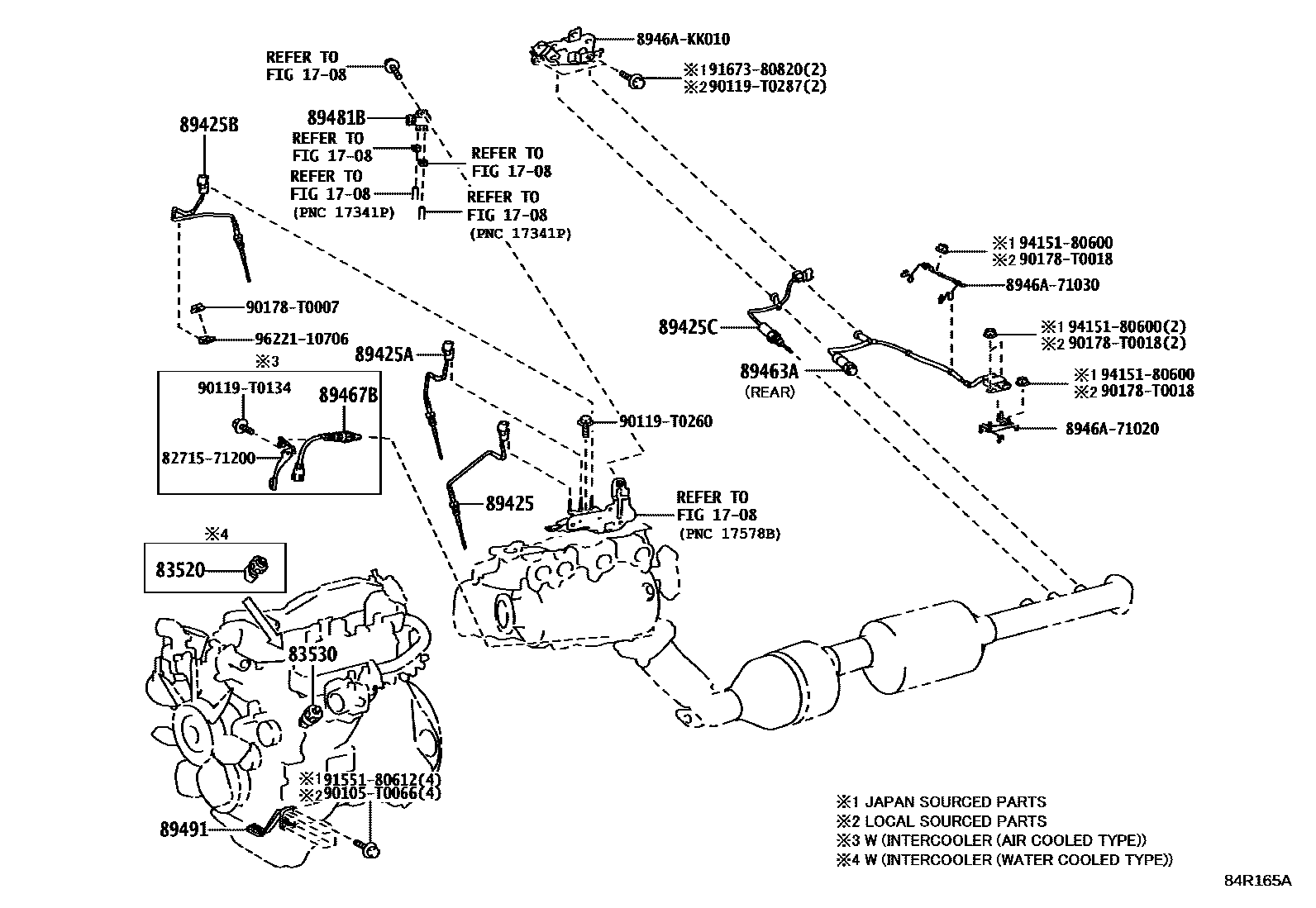

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070iGUN125..AGTP;GUN126,135..BZAG¥5,500202308-202410

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71080iGUN125..AGTP;GUN126,135..BZAG¥5,500202308-202410

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71090iGUN125..AGTP;GUN126,135..BZAG¥5,500202308-202410

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

main89425-71060iGUN125..AGTP..LA¥5,500202311-202411

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main89425-71100iGUN126..BZAG202311-202410

89463ASENSOR, NITROGEN OXIDES

main89463-71011iGUN126..LA¥52,400202311-202411

REAR

main89463-71011iGUN125..AGTP..LA¥52,400202311-202411

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),REAR

89467BSENSOR, AIR FUEL RATIO

main89467-71120iGUN125..AGTP;GUN126,135..BZAG¥9,900202308-202410

main89467-71130iTGN121..PKN202308-202411

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGUN125..AGTP;GUN126,135..BZAG¥10,200202308-202410

89491SENSOR, ENGINE OIL LEVEL

main89491-26190iGUN125..MA¥4,790202308-202412

8271571200BRACKET,WIRING HARNESS CLAMP

main82715-71200¥300

8946A71020BRACKET, EXHAUST SENSOR CLAMP

main8946A-71020¥670

8946A71030BRACKET, EXHAUST SENSOR CLAMP

main8946A-71030¥700

8946AKK010BRACKET, EXHAUST SENSOR CLAMP

main8946A-KK010¥1,430

90105T0066

main90105-T0066

90119T0134

main90119-T0134¥90

90119T0260

main90119-T0260

90119T0287

main90119-T0287

90178T0007

main90178-T0007¥80

90178T0018

main90178-T0018¥70

9155180612

main91551-80612¥60

9167380820

main91673-80820¥80

9415180600

main94151-80600¥60

9622110706

main96221-10706¥330

25 parts on this diagram · 21 diagrams in section
