Toyota HILUX (SCB/XTR) — STARTER

0001 112V 2.0KW(DENSO) 0002 112V 2.2KW(VALEO) 0003 112V 2.4KW(DENSO),W(STOP & STA0004 112V 2.7KW 0005 112V 1.6KW 0006 112V 1.9KW(BOSCH/SEG) 0007 112V 1.4KW 0008 112V 2.2KW 0009 112V 1.4KW(SEG)

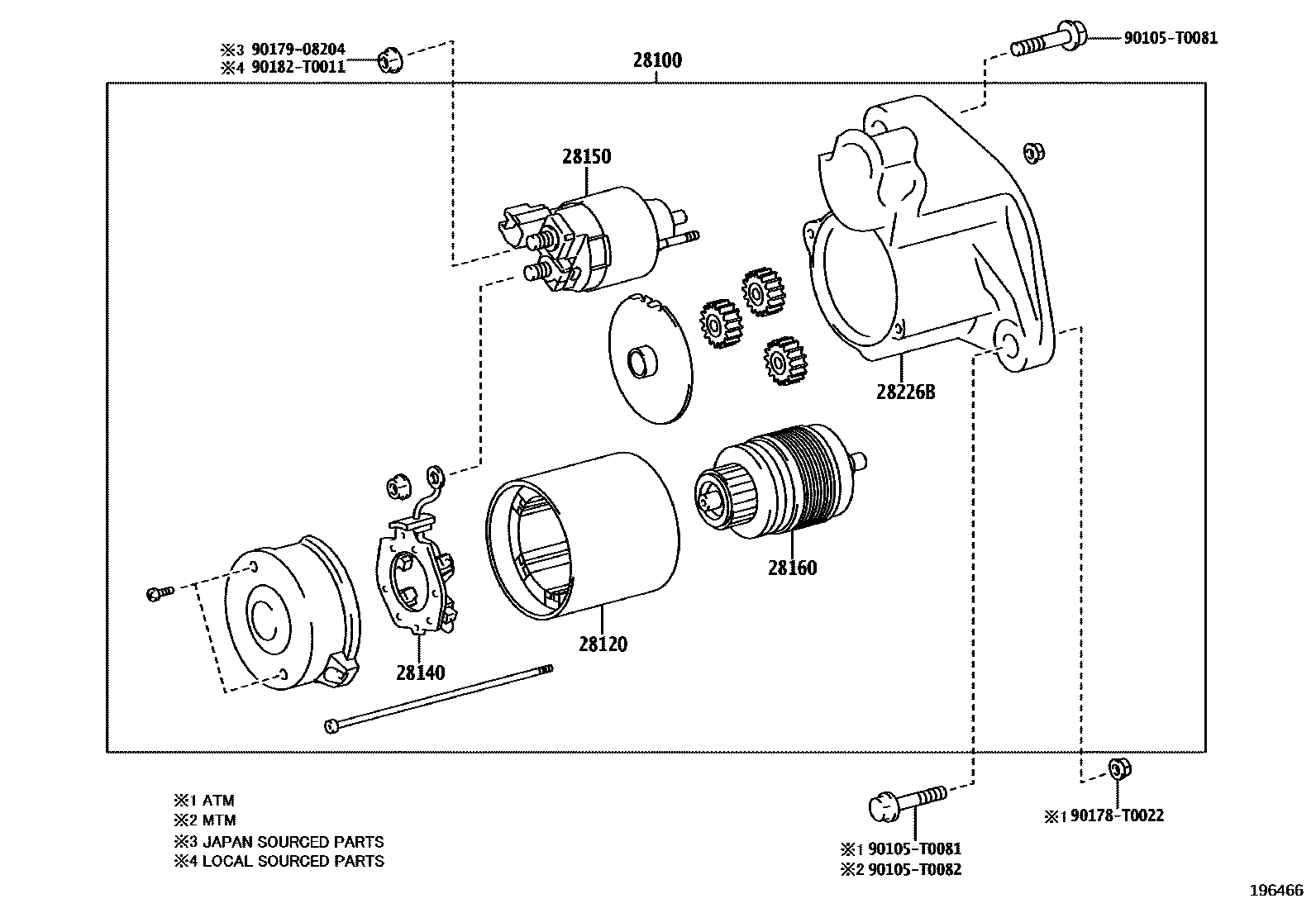

28100STARTER ASSY

main28100-0C090i2TR..TGN121202308-202407

12V 1.6KW

main28100-0C110i1TRFE,2TRFE..TGN120,121,136..SA202402-202410

12V 1.4KW

main28100-0C120i2TRFE..TGN126,136..AGTP202311-202410

12V 1.4KW

main28100-0L052i2GDFTV..GUN122..LHD..GEN¥88,300202308-202407

12V 2.7KW

main28100-0L180i2GDFTV..GUN122..GCC,PH;2GDFTV..GUN122..RHD..THP;1GDFTV,2GDFTV..GUN11#,120,121,125,126,13#..THP..(L,S)¥76,600202308-202407

12V 2.0KW,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),DENSO

main28100-0L180i2GDFTV..GUN122..LHD..GEN¥76,600202308-202410

12V 2.0KW,DENSO

main28100-0L180i2GDFTV..GUN122..LHD..GEN¥76,600202308-202408

12V 2.0KW

main28100-0L180i2GDFTV..GUN122..LHD..GEN¥76,600202308-202407

12V 2.0KW,CENTRAL AND SOUTH AMERICA SPEC

main28100-0L180i2GDFTV..GUN122..LHD..GEN¥76,600202308-202407

12V 2.0KW,ASEAN GENERAL SPEC

main28100-0L201i1GDFTV,2GDFTV..GUN125,126,135..AGTP202311-202410

12V 1.9KW,BOSCH

main28100-0L221i1GDFTV,2GDFTV..GUN122,125,126,13#..SA202402-202412

12V 1.9KW,SEG

main28100-0L262i1GDFTV,2GDFTV..GUN125,126,135..THP..H202308-202407

12V 2.2KW,VALEO

main28100-0L262i2GDFTV..GUN135..6FC..(L,S)..TH202308-202407

12V 2.2KW,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),VALEO

main28100-54491i5LE..LAN125202402-202410

12V 2.2KW

28120YOKE ASSY, STARTER

main28120-0C090i2TR..TGN121202308-202407

main28120-0C120i2TRFE..TGN126,136..AGTP202311-202410

main28120-0L050i2GDFTV..GUN122..LHD..GEN202308-202407

main28120-0L180i2GDFTV..GUN135..6FC..(L,S)..TH¥8,700202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),DENSO

main28120-0L180i1GDFTV,2GDFTV..GUN125,126,135..THP..H¥8,700202308-202412

DENSO

main28120-0L180i1GDFTV,2GDFTV..GUN125,126,135..THP..H¥8,700202308-202407

CENTRAL AND SOUTH AMERICA SPEC

main28120-0L180i1GDFTV,2GDFTV..GUN125,126,135..THP..H¥8,700202308-202407

ASEAN GENERAL SPEC

main28120-0L180i2GDFTV..GUN125..MA¥8,700202308-202408

main28120-0L260i2GDFTV..GUN135..6FC..(L,S)..TH202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),VALEO

main28120-0L260i2GDFTV..GUN125,135..6F..(L,S)..TH202308-202407

VALEO

main28120-54260i5LE..LAN125202402-202410

28140HOLDER ASSY, STARTER BRUSH

main28140-0C080i1TRFE,2TRFE..TGN11#,12#..THP202308-202407

main28140-0C120i2TRFE..TGN126,136..AGTP202311-202410

main28140-0L180i2GDFTV..GUN122..LHD..GEN¥0202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),DENSO

main28140-0L180i2GDFTV..GUN122..LHD..GEN¥0202308-202412

DENSO

main28140-0L180i2GDFTV..GUN122..LHD..GEN¥0202308-202407

CENTRAL AND SOUTH AMERICA SPEC

main28140-0L180i2GDFTV..GUN122..LHD..GEN¥0202308-202407

ASEAN GENERAL SPEC

main28140-0L180i2GDFTV..GUN125..MA¥0202308-202408

main28140-0L260i2GDFTV..GUN135..6FC..(L,S)..TH202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),VALEO

main28140-0L260i1GDFTV,2GDFTV..GUN125,126,135..THP..H202308-202407

VALEO

main28140-64040i5LE..LAN125202402-202410

main28140-77090i2GDFTV..GUN122..LHD..GEN202308-202407

28150SWITCH ASSY, MAGNET STARTER

main28150-0C080i2TR..TGN121202308-202407

(L)

main28150-0C120i2TRFE..TGN126,136..AGTP202311-202410

main28150-0L050i2GDFTV..GUN122..LHD..GEN¥25,000202308-202407

main28150-0L260i2GDFTV..GUN125,135..6F..(L,S)..TH202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),VALEO

main28150-0L260i2GDFTV..GUN125,135..6F..(L,S)..TH202308-202407

VALEO

main28150-0Y170i2GDFTV..GUN122..LHD..GEN202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),DENSO

main28150-0Y170i2GDFTV..GUN122..LHD..GEN202308-202412

DENSO

main28150-0Y170i2GDFTV..GUN122..LHD..GEN202308-202407

CENTRAL AND SOUTH AMERICA SPEC

main28150-0Y170i2GDFTV..GUN122..LHD..GEN202308-202407

ASEAN GENERAL SPEC

main28150-0Y170i2GDFTV..GUN125..MA202308-202408

main28150-40130i1TRFE,2TRFE..TGN11#,12#..THP¥9,400202308-202407

(J)

main28150-54330i5LE..LAN125¥14,500202402-202410

28160ARMATURE ASSY, STARTER

main28160-0C090i2TR..TGN121202308-202407

main28160-0C120i2TRFE..TGN126,136..AGTP202311-202410

main28160-0L180i2GDFTV..GUN122..GCC,PH;2GDFTV..GUN122..RHD..THP;1GDFTV,2GDFTV..GUN11#,120,121,125,126,13#..THP..(L,S)202308-202407

CENTRAL AND SOUTH AMERICA SPEC

main28160-0L180i1GDFTV,2GDFTV..GUN125,126,135..THP..H202308-202412

DENSO

main28160-0L180i1GDFTV,2GDFTV..GUN125,126,135..THP..H202308-202407

ASEAN GENERAL SPEC

main28160-0L180i1GDFTV,2GDFTV..GUN125,126,135..THP..H202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),DENSO

main28160-0L180i2GDFTV..GUN125..MA202308-202408

main28160-0L260i2GDFTV..GUN135..6FC..(L,S)..TH202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),VALEO

main28160-0L260i2GDFTV..GUN135..6FC..(L,S)..TH202308-202407

VALEO

main28160-54140i2GDFTV..GUN122..LHD..GEN¥20,000202308-202407

main28160-64041i5LE..LAN125¥18,500202402-202410

28226BSTARTER KIT, REPAIR SERVICE

main28226-0C090i2TR..TGN121202308-202407

main28226-0C120i2TRFE..TGN126,136..AGTP202311-202410

main28226-0L180i2GDFTV..GUN122..LHD..GEN¥19,700202308-202407

ASEAN GENERAL SPEC

main28226-0L180i2GDFTV..GUN122..LHD..GEN¥19,700202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),DENSO

main28226-0L180i2GDFTV..GUN122..LHD..GEN¥19,700202308-202412

DENSO

main28226-0L180i2GDFTV..GUN122..LHD..GEN¥19,700202308-202407

CENTRAL AND SOUTH AMERICA SPEC

main28226-0L180i1GDFTV,2GDFTV..GUN122,126..PKN¥19,700202308-202408

main28226-0L260i2GDFTV..GUN125,135..6F..(L,S)..TH202308-202407

VALEO

main28226-0L260i2GDFTV..GUN125,135..6F..(L,S)..TH202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),VALEO

90105T0081

main90105-T0081

90105T0082

main90105-T0082

90178T0022

main90178-T0022¥100

9017908204

main90179-08204¥140

90182T0011

main90182-T0011¥110

11 parts on this diagram · 9 diagrams in section
