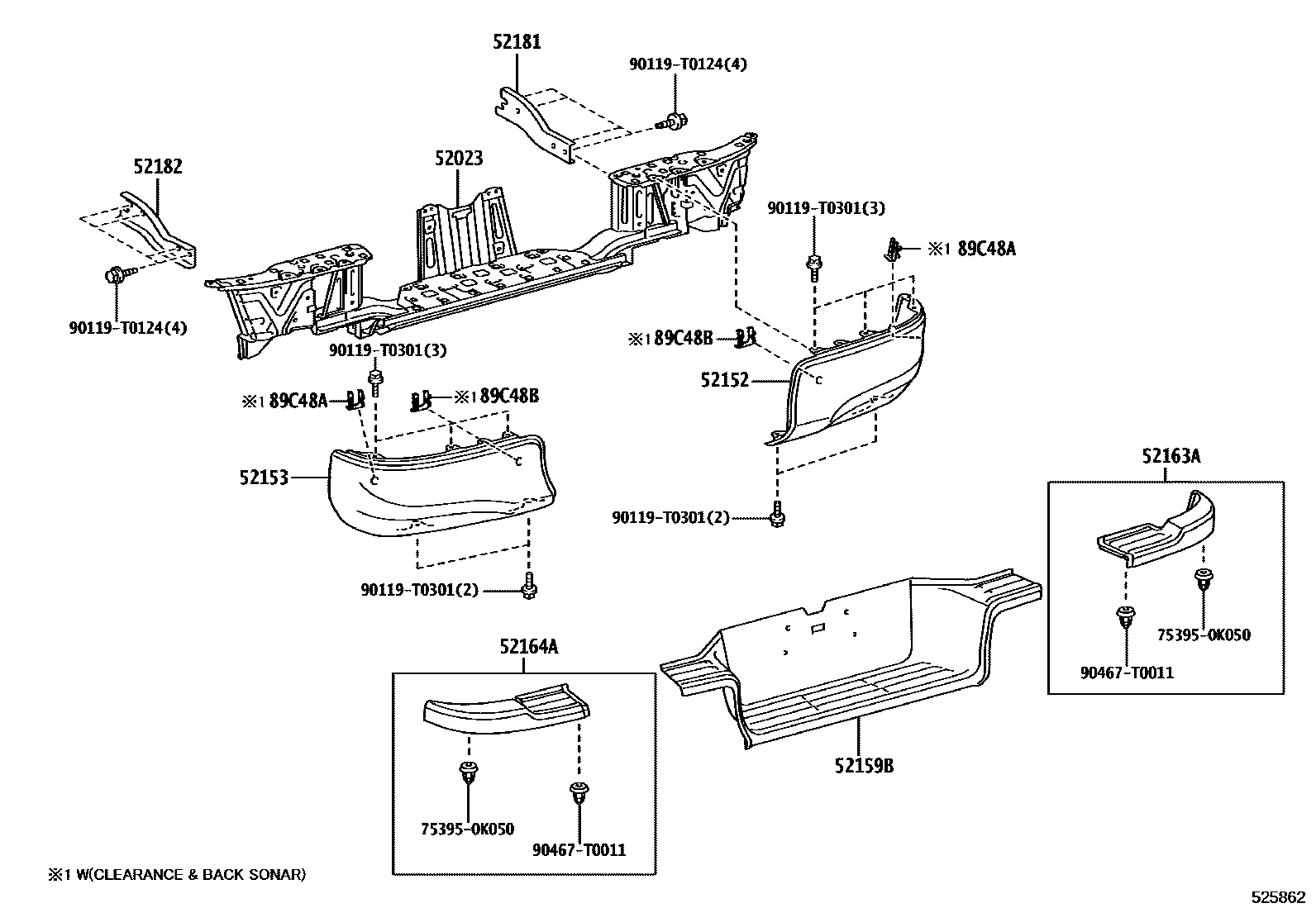

Toyota HILUX (SCB/XTR) — REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
main52023-0K031iGUN122,TGN121..LHD..THP..CBU;GUN125,126,135..THP..(H,S)..CBU;GUN11#,125,13#,TGN11#,120,126..THP..(ARL,GCC,LA)..CBU202308-202407
REAR BUMPER-STEP TYPE(PLATED)
REAR BUMPER-STEP TYPE(PAINTED)
REAR BUMPER-STEP TYPE(PAINTED)
EXPORT FROM SA&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)
EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT
EXPORT FROM SA&REAR BUMPER-STEP TYPE(PLATED)
EXPORT FROM SA&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITHOUT
52152BAR, REAR BUMPER, RH
main52151-0K040iTGN126..THP..LA;GUN125..LHD..L..GEN;GUN125,135..RHD..THP..(L,S)..CBU;GUN112,122,TGN110..RHD..(GEN,IDN)202308-202407
NO PAINT REQ.
main52151-0K040iTGN126..THP..LA;GUN125..LHD..L..GEN;GUN125,135..RHD..THP..(L,S)..CBU;GUN112,122,TGN110..RHD..(GEN,IDN)202308-202407
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)
main52151-0K050iGUN135..S..TH;GUN125..GCC,TH;GUN11#,122,126,TGN11#,12#..THP..(GCC,LA)..CBU¥13,100202308-202407
PLATED
main52151-0K050iGUN135..S..TH;GUN125..GCC,TH;GUN11#,122,126,TGN11#,12#..THP..(GCC,LA)..CBU¥13,100202308-202407
PLATED,REAR BUMPER-STEP TYPE(PLATED)
NO PAINT REQ.
NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)
PLATED
PLATED,REAR BUMPER-STEP TYPE(PLATED)
PLATED,CLEARANCE & BACK SONAR-WITHOUT
PLATED
PLATED,REAR BUMPER-WITH(*RUPD(PLATED))
PLATED
PLATED,CLEARANCE & BACK SONAR-WITH
PLATED,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
PLATED
PLATED,CLEARANCE & BACK SONAR-WITH
PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
52153BAR, REAR BUMPER, LH
main52152-0K040iTGN126..THP..LA;GUN125..LHD..L..GEN;GUN125,135..RHD..THP..(L,S)..CBU;GUN112,122,TGN110..RHD..(GEN,IDN)202308-202407
NO PAINT REQ.
main52152-0K040iTGN126..THP..LA;GUN125..LHD..L..GEN;GUN125,135..RHD..THP..(L,S)..CBU;GUN112,122,TGN110..RHD..(GEN,IDN)202308-202407
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)
PLATED,REAR BUMPER-STEP TYPE(PLATED)
main52152-0K050iGUN135..S..TH;GUN125..GCC,TH;GUN11#,122,126,TGN11#,12#..THP..(GCC,LA)..CBU¥13,100202308-202407
PLATED
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.
PLATED
PLATED,REAR BUMPER-STEP TYPE(PLATED)
PLATED
PLATED,CLEARANCE & BACK SONAR-WITHOUT
PLATED,REAR BUMPER-WITH(*RUPD(PLATED))
PLATED,CLEARANCE & BACK SONAR-WITH
PLATED
PLATED,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
PLATED
PLATED,CLEARANCE & BACK SONAR-WITH
PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
52159BPLATE, REAR BUMPER
main52159-0K291iGUN122,TGN121..LHD..THP..CBU;GUN125,126,135..THP..(H,S)..CBU;GUN11#,125,13#,TGN11#,120,126..THP..(ARL,GCC,LA)..CBU¥21,900202308-202407
REAR BUMPER-STEP TYPE(PAINTED)
main52159-0K291iGUN122,TGN121..LHD..THP..CBU;GUN125,126,135..THP..(H,S)..CBU;GUN11#,125,13#,TGN11#,120,126..THP..(ARL,GCC,LA)..CBU¥21,900202308-202407
REAR BUMPER-STEP TYPE(PLATED)
main52159-0K301iGUN125..XTR..L..CBU;GUN125,135..S..SA..CBU;GUN122,125..LHD..L..SA;GUN126,136,LAN125,TGN121,136..SA202402-202410
REAR BUMPER-STEP TYPE(PAINTED)
52163APLATE, REAR BUMPER, RH
main52163-0K030iGUN122,TGN121..LHD..THP..CBU;GUN125,126,135..THP..(H,S)..CBU;GUN11#,125,13#,TGN11#,120,126..THP..(ARL,GCC,LA)..CBU¥2,910202308-202407
REAR BUMPER-STEP TYPE(PAINTED)
main52163-0K030iGUN122,TGN121..LHD..THP..CBU;GUN125,126,135..THP..(H,S)..CBU;GUN11#,125,13#,TGN11#,120,126..THP..(ARL,GCC,LA)..CBU¥2,910202308-202407
REAR BUMPER-STEP TYPE(PLATED)
main52163-0K040iGUN125..XTR..L..CBU;GUN125,135..S..SA..CBU;GUN122,125..LHD..L..SA;GUN126,136,LAN125,TGN121,136..SA202402-202410
REAR BUMPER-STEP TYPE(PAINTED)
52164APLATE, REAR BUMPER, LH
main52164-0K030iGUN122,TGN121..LHD..THP..CBU;GUN125,126,135..THP..(H,S)..CBU;GUN11#,125,13#,TGN11#,120,126..THP..(ARL,GCC,LA)..CBU¥2,910202308-202407
REAR BUMPER-STEP TYPE(PLATED)
REAR BUMPER-STEP TYPE(PAINTED)
main52164-0K040iGUN125..XTR..L..CBU;GUN125,135..S..SA..CBU;GUN122,125..LHD..L..SA;GUN126,136,LAN125,TGN121,136..SA202402-202410
REAR BUMPER-STEP TYPE(PAINTED)
52181ARM, REAR BUMPER, RH
main52181-0K060iGUN122,TGN121..LHD..THP..CBU;GUN125,126,135..THP..(H,S)..CBU;GUN11#,125,13#,TGN11#,120,126..THP..(ARL,GCC,LA)..CBU¥2,210202308-202407
REAR BUMPER-STEP TYPE(PAINTED)
main52181-0K060iGUN122,TGN121..LHD..THP..CBU;GUN125,126,135..THP..(H,S)..CBU;GUN11#,125,13#,TGN11#,120,126..THP..(ARL,GCC,LA)..CBU¥2,210202308-202407
REAR BUMPER-STEP TYPE(PLATED)
main52181-0K070iGUN125..XTR..L..CBU;GUN125,135..S..SA..CBU;GUN122,125..LHD..L..SA;GUN126,136,LAN125,TGN121,136..SA202402-202410
REAR BUMPER-STEP TYPE(PAINTED)
52182ARM, REAR BUMPER, LH
main52182-0K060iGUN122,TGN121..LHD..THP..CBU;GUN125,126,135..THP..(H,S)..CBU;GUN11#,125,13#,TGN11#,120,126..THP..(ARL,GCC,LA)..CBU¥2,210202308-202407
REAR BUMPER-STEP TYPE(PLATED)
main52182-0K060iGUN122,TGN121..LHD..THP..CBU;GUN125,126,135..THP..(H,S)..CBU;GUN11#,125,13#,TGN11#,120,126..THP..(ARL,GCC,LA)..CBU¥2,210202308-202407
REAR BUMPER-STEP TYPE(PAINTED)
main52182-0K070iGUN125..XTR..L..CBU;GUN125,135..S..SA..CBU;GUN122,125..LHD..L..SA;GUN126,136,LAN125,TGN121,136..SA202402-202410
REAR BUMPER-STEP TYPE(PAINTED)
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE & BACK SONAR-WITH
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
753950K050CLIP, BACK DOOR MOULDING, NO.1
90119T0124
90119T0301
main90119-T0301
90467T0011
14 parts on this diagram · 1 diagram in section
