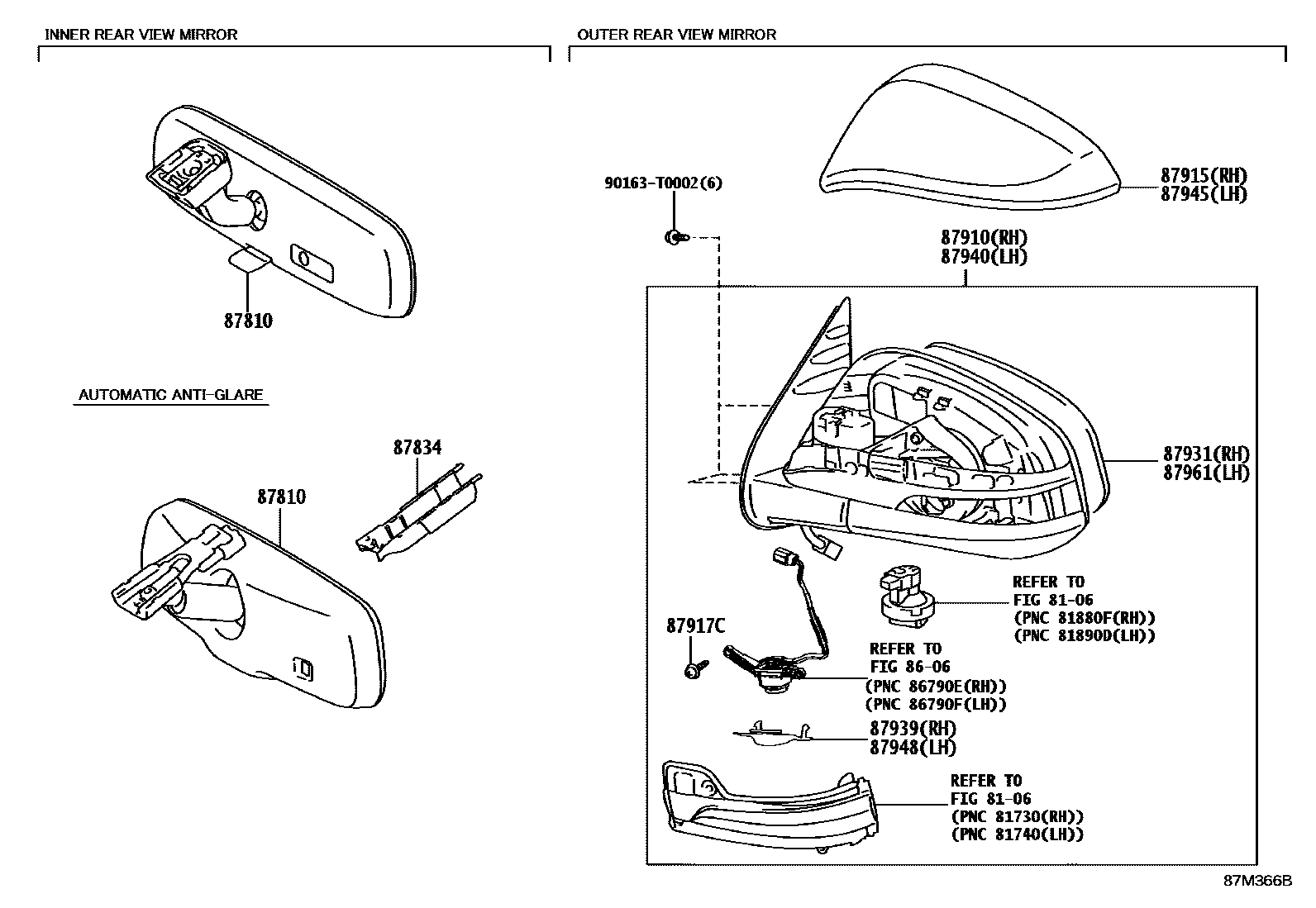

Toyota HILUX (SCB/XTR) — MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
main87810-06041iGUN126,136..SCB..H;GUN126..(AGTP,SAP)..6F;GUN122,125,135,LAN125,TGN12#,136..AGTP,SAP¥5,100202308-202412
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.,POWER WINDOW-WITHOUT
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL) & W(LOGO LAMP)
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
87915COVER, OUTER MIRROR, RH
main87915-0K390iGUN125,135..THP..L..(ARL,GEN,IDN,LA);GUN112,120,121,122,126,136,TGN110,121..(L,S)..(ARL,GEN,IDN,PH,TH)¥2,080202308-202412
NO PAINT REQ.,BLACK
main87915-0K390iGUN125,135..THP..L..(ARL,GEN,IDN,LA);GUN112,120,121,122,126,136,TGN110,121..(L,S)..(ARL,GEN,IDN,PH,TH)¥2,080202308-202407
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK),BLACK
main87915-0K390iGUN125,135..THP..L..(ARL,GEN,IDN,LA);GUN112,120,121,122,126,136,TGN110,121..(L,S)..(ARL,GEN,IDN,PH,TH)¥2,080202308-202407
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK),BLACK
main87915-0K390iGUN125,135..THP..L..(ARL,GEN,IDN,LA);GUN112,120,121,122,126,136,TGN110,121..(L,S)..(ARL,GEN,IDN,PH,TH)¥2,080202308-202407
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL),BLACK
PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL),*CR
main87915-0K400iGUN125..GCC;GUN126..THP..(H,S)..CBU;GUN125,135..XTR..THP..CBU;GUN11#,122,TGN11#,12#..THP..(GCC,LA)¥2,790202308-202407
PLATED,*CR
main87915-0K400iGUN125..GCC;GUN126..THP..(H,S)..CBU;GUN125,135..XTR..THP..CBU;GUN11#,122,TGN11#,12#..THP..(GCC,LA)¥2,790202308-202407
PLATED,OUTSIDE REAR VIEW MIRROR-*551(*CR),*CR
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK),BLACK
NO PAINT REQ.,BLACK
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK),BLACK
PLATED,*CR
PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL),BLACK
PLATED,BLACK
PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL),BLACK
PAINT REQ.
87917CSCREW, OUTER MIRROR
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,POWER WINDOW-WITHOUT
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
NO PAINT REQ.
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL) & W(LOGO LAMP)
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
main87945-0K390iGUN125,135..THP..L..(ARL,GEN,IDN,LA);GUN112,120,121,122,126,136,TGN110,121..(L,S)..(ARL,GEN,IDN,PH,TH)¥2,080202308-202412
NO PAINT REQ.,BLACK
main87945-0K390iGUN125,135..THP..L..(ARL,GEN,IDN,LA);GUN112,120,121,122,126,136,TGN110,121..(L,S)..(ARL,GEN,IDN,PH,TH)¥2,080202308-202407
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK),BLACK
main87945-0K390iGUN125,135..THP..L..(ARL,GEN,IDN,LA);GUN112,120,121,122,126,136,TGN110,121..(L,S)..(ARL,GEN,IDN,PH,TH)¥2,080202308-202407
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL),BLACK
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK),BLACK
PLATED,OUTSIDE REAR VIEW MIRROR-*551(*CR),*CR
PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL),*CR
PLATED,*CR
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK),BLACK
NO PAINT REQ.,BLACK
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK),BLACK
PLATED,*CR
PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL),BLACK
PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL),BLACK
PLATED,BLACK
PAINT REQ.
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
main87961-0KB20iGUN112,12#,13#,TGN110,121,126,XPN135..THP..(ARL,GEN,IDN,LA,PH,TH)¥2,070202308-202412
90163T0002
main90163-T0002
14 parts on this diagram · 1 diagram in section
