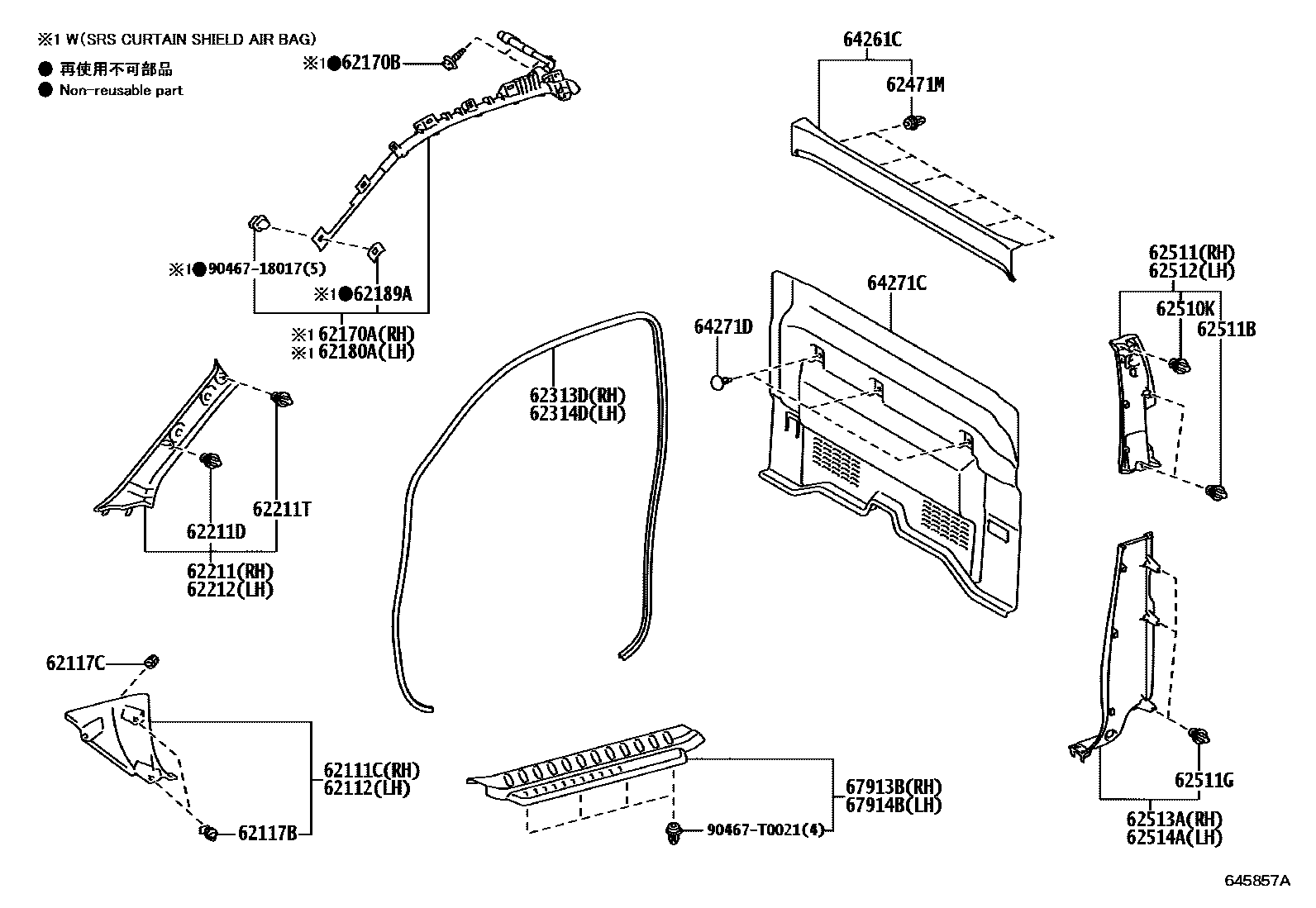

Toyota HILUX (SCB/XTR) — INSIDE TRIM BOARD
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
IVORY
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
62170BBOLT, W/WASHER
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
main62189-42010iGUN126..H..SA;GUN125,135..BZAG;GUN136,TGN136..H,L;GUN125,135..6FC..SA¥80202308-202410
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
62211GARNISH, FRONT PILLAR, RH
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
BLACK,TRIM2#
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4,LT.GRAY,TRIM2#
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#
ASSIST GRIP-ROOF:1,LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
BLACK,TRIM21
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90467-T0021iGUN135..SCB..6FC;GUN135..6F..S..SA;GUN125,126,136,TGN136..SCB..(H,S)..SA202308-202406
main90467-T0021iGUN135..XTR..6FC..SA;GUN125,126,136..XTR..(H,S)..SA;GUN122,125,126,135,LAN125,TGN12#,136..(AGTP,SAP)..L202308-202410
62211TCLIP(FOR FRONT PILLAR GARNISH)
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASSIST GRIP-ROOF:1
main90467-T0021iGUN135..XTR..6FC..SA;GUN125,135..L..(BZAG,SA);GUN125,126,136..XTR..(H,S)..SA;GUN122,LAN125,TGN120,121,136..L..(LA,SA)202308-202410
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
62212GARNISH, FRONT PILLAR, LH
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
main62212-0K190-B0iGUN135..S..TH;GUN125..S..GEN;GUN125..IDN,TH;GUN112,122,TGN110..GEN,IDN202308-202407
LT.GRAY,TRIM2#
main62212-0K190-B0iGUN135..S..TH;GUN125..S..GEN;GUN125..IDN,TH;GUN112,122,TGN110..GEN,IDN202308-202407
LT.GRAY,TRIM20
BLACK,TRIM21
LT.GRAY,TRIM2#
sub62212-0K201
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4,LT.GRAY,TRIM2#
sub62212-0K201
ASSIST GRIP-ROOF:1,LT.GRAY,TRIM2#
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
BLACK,TRIM21
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
BLACK,TRIM21
62313DTRIM, FRONT DOOR OPENING, RH
62314DTRIM, FRONT DOOR OPENING, LH
62471MCLIP
62510KCLIP(FOR QUARTER TRIM FRONT PANEL)
62511BOARD, QUARTER INSIDE TRIM, RH
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
BLACK,TRIM21
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
BLACK,TRIM21
LT.GRAY,TRIM2#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
62512BOARD, QUARTER INSIDE TRIM, LH
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
main62512-0K320-B0iGUN112,12#,135,TGN110,121,126,XPN135..SCB..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202407
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
BLACK,TRIM21
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
BLACK,TRIM21
LT.GRAY,TRIM2#
62513APANEL, QUARTER TRIM, LOWER RH
main62513-0K090-C0iGUN112,12#,135,TGN110,121,126,XPN135..SCB..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202407
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
62514APANEL, QUARTER TRIM, LOWER LH
BLACK,TRIM2#
main62514-0K090-C0iGUN112,12#,135,TGN110,121,126,XPN135..SCB..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202407
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
64261CGARNISH, BACK PANEL, UPPER
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#,3#
main64261-0K080-B0iGUN112,12#,135,TGN110,121,126,XPN135..SCB..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202407
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
64271CTRIM, BACK PANEL
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
64271DCLIP(FOR BACK PANEL TRIM)
NO.1
NO.1
BLACK
BLACK
BLACK
BLACK
BLACK
NO.2
NO.2
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#
main67913-0K130-C0iGUN112,12#,135,TGN110,121,126,XPN135..SCB..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202407
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#
main67914-0K130-C0iGUN112,12#,135,TGN110,121,126,XPN135..SCB..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202407
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
9046718017
90467T0021
main90467-T0021
