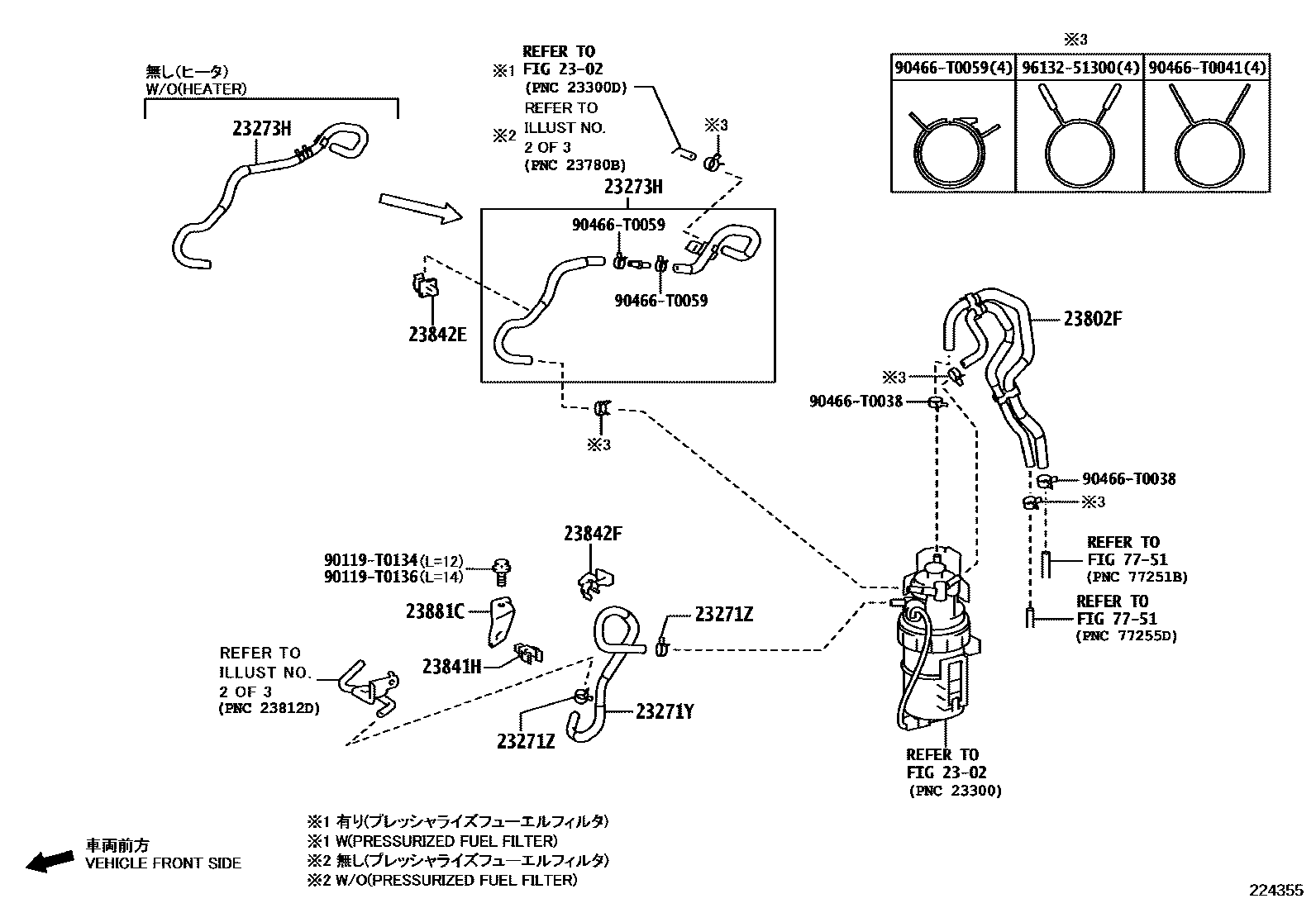

Toyota HILUX (SCB/XTR) — INJECTION PUMP ASSEMBLY

0001 1 0002 1W(PRESSURIZED FUEL FILTER) 0003 1W/O(PRESSURIZED FUEL FILTER) 0005 1 0006 1

2302

23271YHOSE, FUEL

main23271-0E041i1GDFTV,2GDFTV..GUN122,125,126,13#..AGTP,SAP202308-202412

23271ZCLIP, HOSE

main90466-T0023i1GDFTV,2GDFTV..GUN122,125,126,13#..AGTP,SAP202308-202412

23273HHOSE, FUEL, NO.2

main23273-0E040i1GDFTV..GUN126..BZAG202311-202410

main23273-0L132i2GDFTV..GUN125,135..(L,S)..TH¥2,880202308-202407

FRONT AIR CONDITIONER-MANUAL

main23273-0L132i2GDFTV..GUN135..H;1GDFTV..GUN121,126..THP;1GDFTV,2GDFTV..GUN11#,122,125,13#..THP..(ARL,GCC,GEN,LA)¥2,880202308-202407

FRONT AIR CONDITIONER-AUTO

main23273-0L132i1GDFTV..GUN126..LA,SA;1GDFTV,2GDFTV..GUN122,125,13#..AGTP,SAP¥2,880202308-202412

main23273-0L200i2GDFTV..GUN125..MA202308-202408

main23273-54190i5LE..LAN125202402-202410

23802FHOSE, FUEL

main23801-0E020i2GDFTV..GUN125..AGTP..LA¥3,620202311-202410

CHILE SPEC

main23801-0L050i1GDFTV,2GDFTV..GUN126,135..AGTP,SAP;1GDFTV,2GDFTV..GUN122,125,136..BZAG,SA202308-202412

23841HCLAMP, FUEL HOSE

main23841-0L010i1GDFTV,2GDFTV..GUN11#,12#,13#..THP¥140202308-202412

THA SOURCED PARTS

main23841-0L030i2GDFTV..GUN125..AGTP..LA¥140202311-202410

CHILE SPEC,IND SOURCED PARTS

main23841-0L030i2GDFTV..GUN125..AGTP..LA¥140202311-202410

IND SOURCED PARTS

23842ECLAMP, FUEL PIPE, NO.1

main23841-0L041i1GDFTV,2GDFTV..GUN11#,12#,13#..THP¥170202308-202412

THA SOURCED PARTS

main23841-0L061i2GDFTV..GUN125..AGTP..LA¥170202311-202410

IND SOURCED PARTS

main23841-0L061i2GDFTV..GUN125..AGTP..LA¥170202311-202410

CHILE SPEC,IND SOURCED PARTS

23842FCLAMP, FUEL PIPE, NO.2

main23842-0L010i1GDFTV,2GDFTV..GUN11#,12#,13#..THP¥300202308-202412

THA SOURCED PARTS

main23842-0L030i2GDFTV..GUN125..AGTP..LA¥300202311-202410

CHILE SPEC,IND SOURCED PARTS

main23842-0L030i1GDFTV..GUN126..LA¥300202311-202410

IND SOURCED PARTS

23881CBRACKET, FUEL HOSE

main23881-0E011i2GDFTV..GUN125..MA¥200202308-202412

7751

90119T0134

main90119-T0134¥90

90119T0136

main90119-T0136

90466T0038

main90466-T0038

90466T0041

main90466-T0041

90466T0059

main90466-T0059

9613251300

main96132-51300¥120

16 parts on this diagram · 5 diagrams in section
