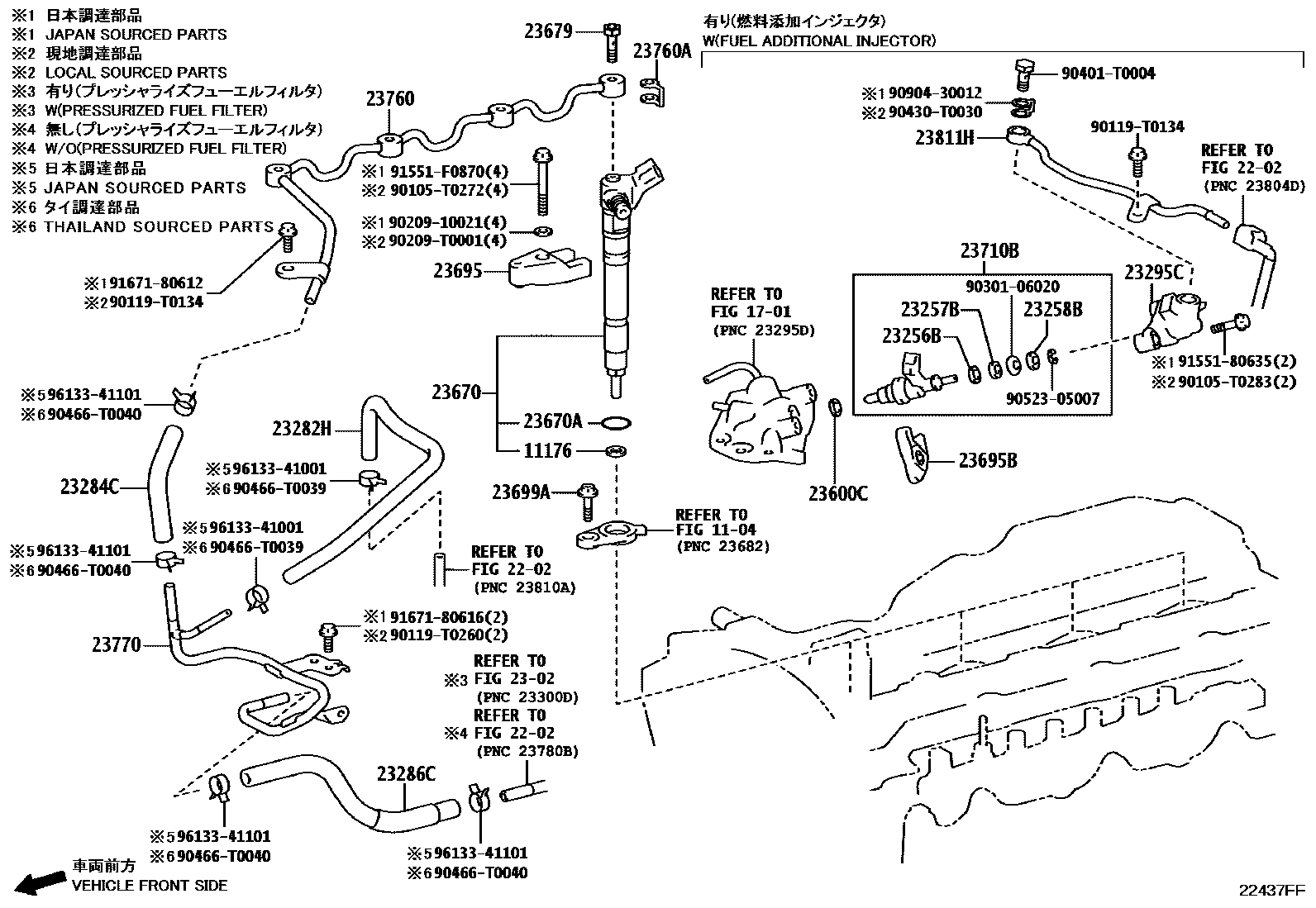

Toyota HILUX (SCB/XTR) — INJECTION NOZZLE
1104
11176SEAT, INJECTION NOZZLE
(L)
(J)
1701
2202
2302
23256BRING, FUEL INJECTOR BACK-UP, NO.1
main23256-74010i2GDFTV..GUN125..ARL;2GDFTV..GUN112..L..GCC;1GDFTV,2GDFTV..GUN111,126,13#..ARL,GCC¥190202308-202410
23257BRING, FUEL INJECTOR BACK-UP, NO.2
main23257-74010i2GDFTV..GUN125..ARL;2GDFTV..GUN112..L..GCC;1GDFTV,2GDFTV..GUN111,126,13#..ARL,GCC¥190202308-202410
23258BRING, FUEL INJECTOR BACK-UP, NO.3
main23258-28011i2GDFTV..GUN125..ARL;2GDFTV..GUN112..L..GCC;1GDFTV,2GDFTV..GUN111,126,13#..ARL,GCC¥210202308-202410
23282HHOSE, FUEL, NO.4
THA SOURCED PARTS
IND SOURCED PARTS
23284CHOSE, FUEL, NO.5
THA SOURCED PARTS
IND SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
23286CHOSE, FUEL, NO.6
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
23295CHOLDER, INJECTOR
23600HOLDER & NOZZLE SET, NOZZLE
23600CGASKET(FOR HOLDER & NOZZLE SET)
THA SOURCED PARTS
IND SOURCED PARTS
23670INJECTOR ASSY
THA SOURCED PARTS
THA SOURCED PARTS
main23670-09590i2GDFTV..GUN112..S;2GDFTV..GUN112..RHD;2GDFTV..GUN120,122,125,135..THP..(GCC,GEN,IDN,LA,PH,TH)202308-202407
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT
23670ARING, O(FOR INJECTOR ASSY)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
CAMBODIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
23679SCREW, INJECTOR FOLLOW
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(J)
(L)
23695CLAMP, NOZZLE HOLDER, NO.1
(L)
(J)
23695BCLAMP, NOZZLE HOLDER, NO.2
main23695-0E020i2GDFTV..GUN125..ARL;2GDFTV..GUN112..L..GCC;1GDFTV,2GDFTV..GUN111,126,13#..ARL,GCC202308-202410
(L)
main23695-28010i2GDFTV..GUN125..ARL;2GDFTV..GUN112..L..GCC;1GDFTV,2GDFTV..GUN111,126,13#..ARL,GCC¥550202308-202410
(J)
23699ASEAT, NOZZLE HOLDER CLAMP
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
23710BINJECTOR ASSY, EXHAUST FUEL ADDITION
main23710-11010i2GDFTV..GUN125..ARL;2GDFTV..GUN112..L..GCC;1GDFTV,2GDFTV..GUN111,126,13#..ARL,GCC¥26,900202308-202410
23760PIPE ASSY, NOZZLE LEAKAGE
THA SOURCED PARTS
IND SOURCED PARTS
23760AGASKET
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(J)
(L)
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
THA SOURCED PARTS
IND SOURCED PARTS
23811HPIPE, FUEL, NO.1
THA SOURCED PARTS
IND SOURCED PARTS
90105T0272
main90105-T0272
90105T0283
main90105-T0283
90119T0134
90119T0260
main90119-T0260
9020910021
90209T0001
main90209-T0001
9030106020
90401T0004
main90401-T0004
90430T0030
main90430-T0030
90466T0039
90466T0040
9052305007
9090430012
9155180635
91551F0870
9167180612
9167180616
9613341001
9613341101
44 parts on this diagram · 2 diagrams in section
