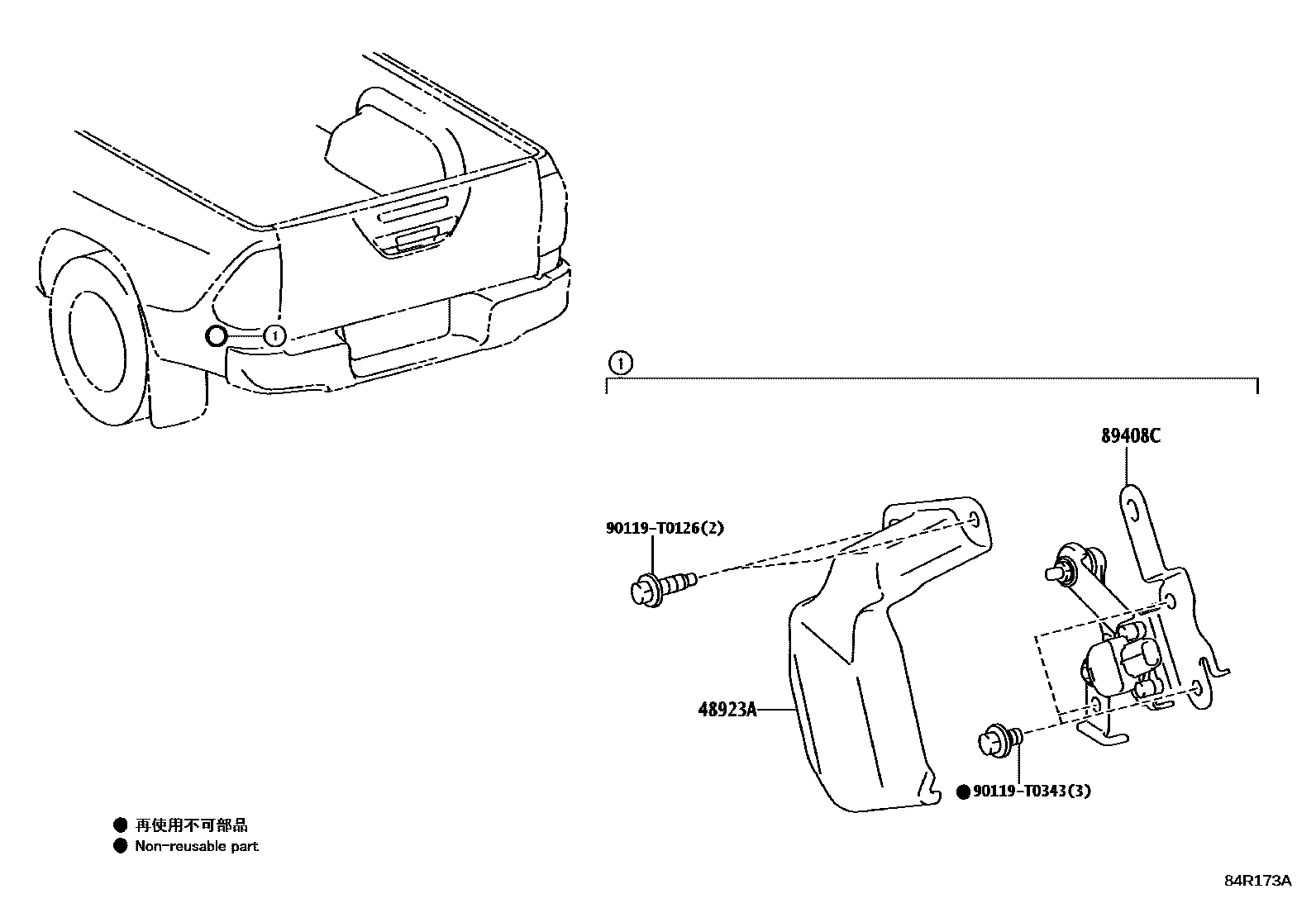

Toyota HILUX (SCB/XTR) — ELECTRONIC HEIGHT CONTROL

48923ACOVER, HEIGHT CONTROL LINK

main48923-KK010iGUN125..H;GUN125,126,135..RHD..THP..(H,S)..CBU¥1,210202308-202407

HEADLAMP LEVELING DEVICE-WITH(AUTO)

main48923-KK010iGUN125..H;GUN125,126,135..RHD..THP..(H,S)..CBU¥1,210202308-202407

HEADLAMP-LED(MLM)

main48923-KK010iGUN126,136..H..SA¥1,210202308-202410

HEADLAMP-LED(MLM)

89408CSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-0K050iGUN125..H;GUN125,126,135..RHD..THP..(H,S)..CBU¥15,800202308-202407

HEADLAMP LEVELING DEVICE-WITH(AUTO)

main89408-0K050iGUN125..H;GUN125,126,135..RHD..THP..(H,S)..CBU¥15,800202308-202407

HEADLAMP-LED(MLM)

main89408-0K050iGUN126,136..H..SA¥15,800202308-202410

HEADLAMP-LED(MLM)

90119T0126

main90119-T0126

90119T0343

main90119-T0343¥110

4 parts on this diagram · 1 diagram in section
