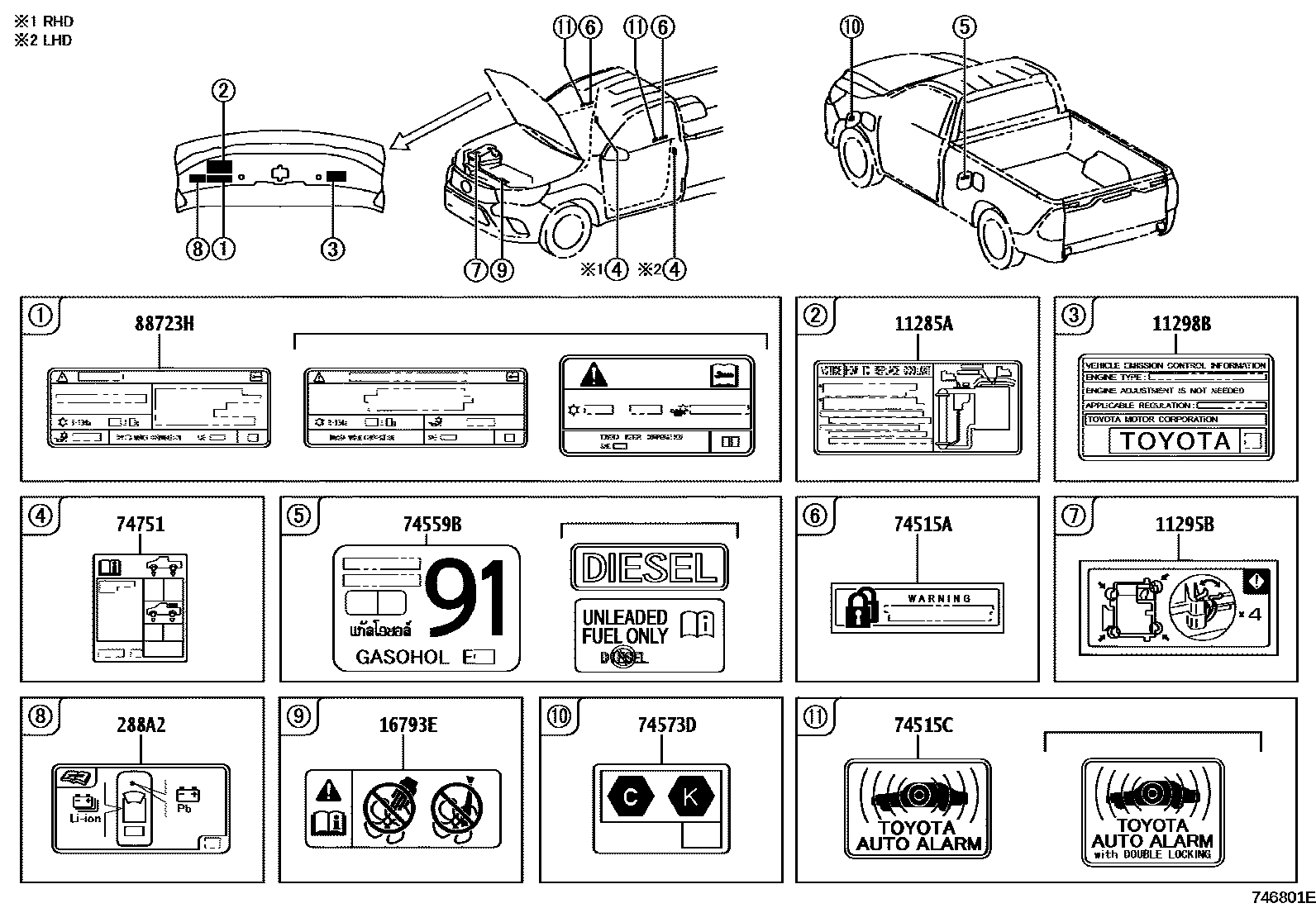

Toyota HILUX (SCB/XTR) — CAUTION PLATE

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0E010i1GDFTV..GUN126..6FC..L;2GDFTV..GUN125,135..(L,S)..TH202308-202407

FRONT AIR CONDITIONER-AUTO

main11285-0E010i1GDFTV..GUN126..6FC..L;2GDFTV..GUN125,135..(L,S)..TH202308-202407

FRONT AIR CONDITIONER-MANUAL

main11285-0E010i1GDFTV,2GDFTV..GUN122,125,126,13#..AGTP,SAP202308-202412

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-0E010i2GDFTV..GUN125,135..KEN¥170202311-202412

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-0E040i2GDFTV..GUN122..PH202308-202407

16793ELABEL, COOLING FAN CAUTION

main16793-36030iEM..XPN135¥110202311-202408

288A2LABEL, BATTERY LOCATION

main288A2-10010iEM..XPN135¥110202311-202407

74515APLATE, THEFT WARNING

main74515-20010iGUN125..MA¥300202309-202408

74515CLABEL, THEFT WARNING INFORMATION

main74515-0K020iGUN126..S..SA;GUN125..XTR..SA;GUN125..LHD..SCB..S¥480202402-202410

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main74515-0K020iGUN125..RHD..6F..S..SA..CBU;GUN122,126..RHD..MTM..(H,L)..SA..CBU¥480202402-202410

EXPORT FROM SA

main74515-0K020iGUN125..S..KEN¥480202402-202412

main74515-42010iGUN126..H..SA;GUN125,135..RHD..S..SA;GUN122,136,TGN120,136..RHD..SA¥300202402-202410

74559BLABEL, FUEL INFORMATION

main74559-02050iTGN121..TH202308-202407

main74559-0K020iGUN125,135..KEN202402-202412

main74559-20140iTGN121..PKN¥50202308-202410

main74559-89101iGUN125..MA¥100202308-202410

main74559-YE010iGUN112,12#,135..TH202308-202407

74573DLABEL, ELECTRIC VEHICLE BATTERY CAUTION

main74573-46010iXPN135¥110202311-202407

74751LABEL, TIRE PRESSURE INFORMATION

main42661-0KM31iGUN121;GUN122..LHD..GEN202308-202407

TIRE & DISC WHEEL-205/70R15C STEEL

main42661-0KM31iGUN122,TGN121..PKN202308

main42661-0KM40iTGN120,121..SA202402-202410

TIRE & DISC WHEEL-205/70R15C STEEL

main42661-0KM50iGUN120,122..XTR202308-202407

main42661-0KM70iGUN122..SCB..TH;GUN112,120,TGN121..SCB..(GEN,TH)202308-202407

TIRE & DISC WHEEL-215/65R16C ALUMINUM

main42661-0KM70iTGN121..ARL,GCC;GUN121,TGN110..GCC,TH;GUN11#,122,TGN111,120..GCC,GEN,IDN202308-202407

TIRE & DISC WHEEL-215/65R16C STEEL

main42661-0KM80iTGN120,121..SA202402-202410

TIRE & DISC WHEEL-215/65R16C STEEL

main42661-0KN20iLAN125202402-202410

TIRE & DISC WHEEL-205R16C STEEL

main42661-0KN20iGUN125..L..KEN202402-202412

main42661-0KN40iGUN135,TGN136..SCB..MTM..S202402-202410

SPEED METER-KM/H

main42661-0KN40iGUN135..KEN;GUN125..S..KEN202402-202412

main42661-0KN50iGUN125,126,135,TGN126,136..AGTP202311-202410

main42661-0KN60iGUN125,135..(L,S)..TH202308-202407

main42661-0KQ50iGUN126..PKN202308-202408

main42661-0KQ70iGUN125,126,136..XTR..(ARL,GEN)202308-202407

main42661-0KS00iXPN135202311-202407

main42661-0KS20iGUN125..LHD..SCB..S202402-202410

TIRE & DISC WHEEL-265/65R17 STEEL

main42661-0KS20iGUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA202402-202410

TIRE & DISC WHEEL-265/65R17 ALUMINUM

main42661-0KS20iGUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA202402-202410

SPEED METER-KM/H & WITH(*MID)

main42661-0KT11iGUN112..TH;TGN110..IDN202308-202407

TIRE & DISC WHEEL-205/70R15C STEEL

main42661-0KT30iGUN125,135..S..TH202308-202407

TIRE & DISC WHEEL-265/60R18 ALUMINUM

88723HLABEL, COOLER SERVICE CAUTION

main88723-0K261iGUN122..GCC,PH;GUN122..RHD..GEN;GUN125..ARL,GCC,GEN,IDN;GUN11#,126,13#,TGN11#,12#..ARL,GCC,GEN¥140202308-202407

FRONT AIR CONDITIONER-MANUAL

main88723-0K261iGUN122..LHD..GEN¥140202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88723-0K261iGUN122..GCC,PH;GUN122..RHD..GEN;GUN125..ARL,GCC,GEN,IDN;GUN11#,126,13#,TGN11#,12#..ARL,GCC,GEN¥140202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88723-0K270iGUN112,12#,135,TGN121..TH202308-202407

main88723-0K300iGUN125,126,135,TGN126,136..AGTP202311-202410

main88723-0K321iGUN125,135..KEN202402-202412

main88723-0K321iGUN122,125,135,TGN120..RHD..L..SA202402-202410

FRONT AIR CONDITIONER-MANUAL

main88723-0K350iGUN125,135,TGN126..THP..LA202308-202407

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88723-0K350iGUN125,135,TGN126..THP..LA202308-202407

ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88723-0K350iGUN125,135,TGN126..THP..LA202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88723-0K360iGUN125..MA202309-202408

main88723-0K390iGUN126..PKN202412

main88723-76090iXPN135202311-202407

11 parts on this diagram · 2 diagrams in section
