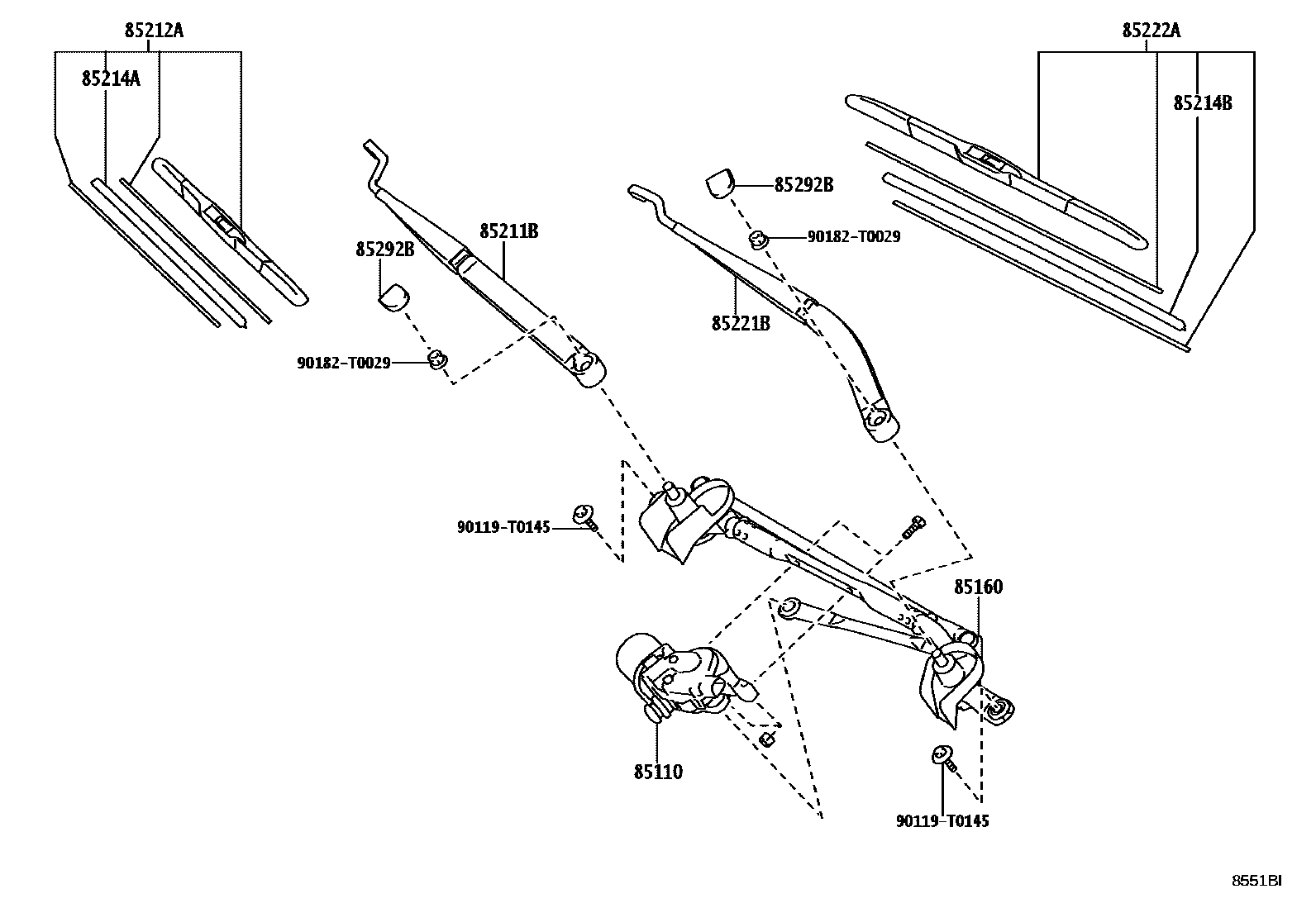

Toyota HILUX (DOUBLE CAB) — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0K171iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD..(CAMP,GHAP,MMRP,SAP,THP)202408

main85110-0K201iGUN126..S..IV3;GUN136..6F..SA;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GGN125,GUN120,121,122,125,135,TGN136..RHD;GUN126,TGN121..RHD..(KENP,MAP,SAP,THP)..(6F,6FC)..CBU202408-202411

main85110-0K222iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main85110-0K251iGUN126..IND202412

85160LINK ASSY, WINDSHIELD WIPER

main85150-0K140iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main85150-0K150iGUN125..LHD..S..GEN202408

ASIA COLD COUNTRY SPEC

main85150-0K150iTGN126..GEN202408

AZERBAIJAN SPEC

main85150-0K220iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main85150-0K230iGUN125,126..MA202409

main85150-0K250iGUN126..IND202412

main85150-0K280iTGN126..THP..(GCC,LA,SA);GGN125,GUN122,125,126,13#,TGN120,121,136..LHD..(CAMP,MMRP,THP)202408

main85150-0K290iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)202411

main85150-0K300iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHAP,SAP)202411

85211BARM, FRONT WIPER, RH

main85211-0K131iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main85211-0K140iTGN126..L..GEN;TGN126..GCC,LA,SA;GGN125,GUN122,125,126,13#,LAN125,TGN120,121,136..LHD202408

main85211-0K230iTGN126..(H,S)..GEN202408

85212ABLADE, FR WIPER, RH

main85212-42130iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD¥1,810202408

main85212-71010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥3,190202408-202411

85214ARUBBER, WIPER, RH

main85214-28090iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD¥750202408

main85214-53080iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥850202408-202411

85214BRUBBER, WIPER, LH

main85214-28090iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥750202408-202411

main85214-53080iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD¥850202408

85221BARM, FRONT WIPER, LH

main85221-0K130iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥3,180202408-202411

main85221-0K141iTGN126..L..GEN;TGN126..GCC,LA,SA;GGN125,GUN122,125,126,13#,LAN125,TGN120,121,136..LHD202408

main85221-0K150iTGN126..(H,S)..GEN202408

85222ABLADE, FR WIPER, LH

main85222-42130iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,800202408-202411

main85222-71010iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD202408

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥200202408-202411

90119T0145

main90119-T0145

90182T0029

main90182-T0029

11 parts on this diagram · 2 diagrams in section
