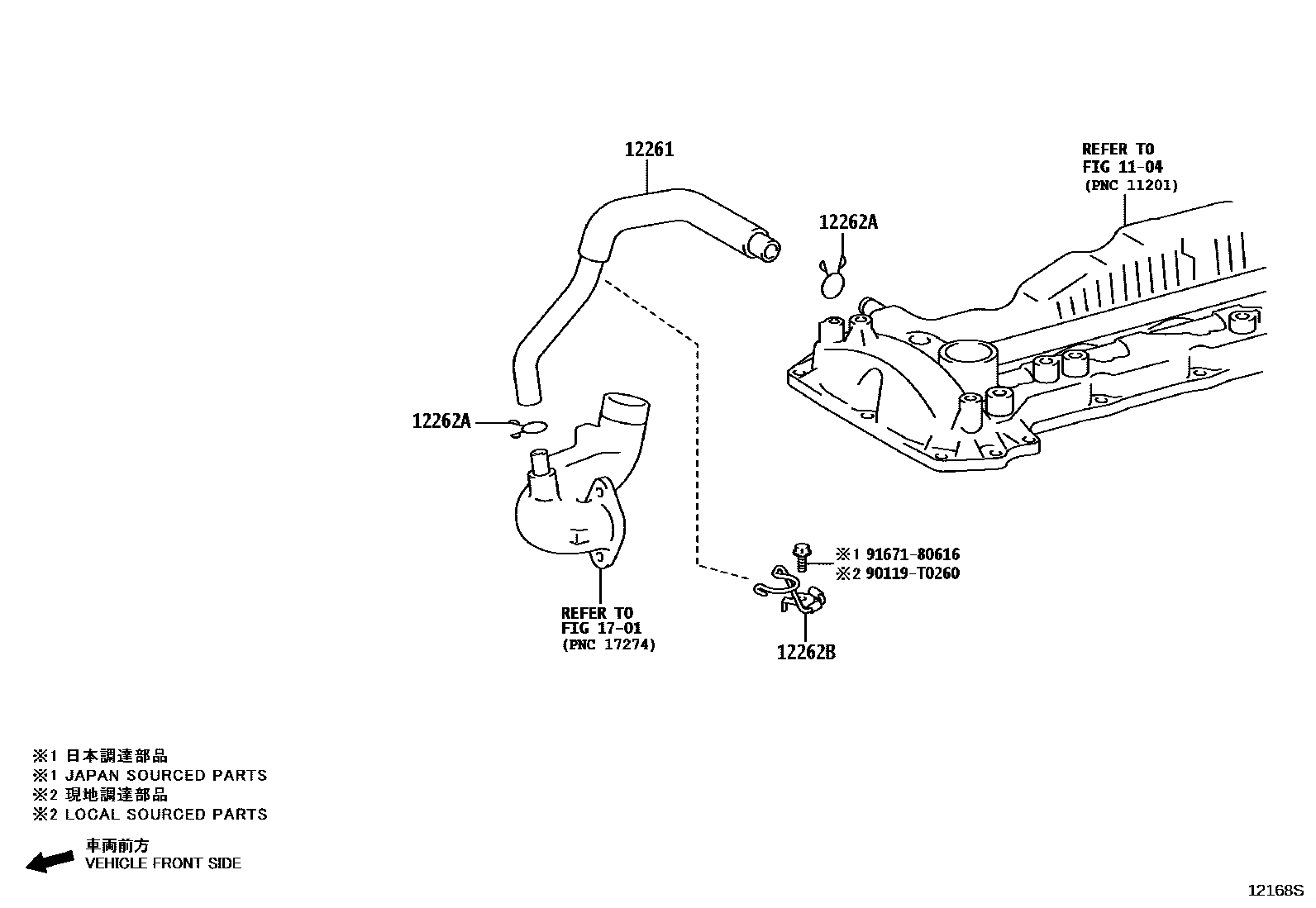

Toyota HILUX (DOUBLE CAB) — VENTILATION HOSE
1104
12261HOSE, VENTILATION
main12261-0C030i2TRFE..TGN121..LHD..5F;2TRFE..TGN126..6FC..(LA,SA);1TRFE,2TRFE..TGN120,126,136..5F..(BZAG,GCC,LA,SA)202408
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
main12261-0C030i2TRFE..TGN121..LHD..5F;2TRFE..TGN126..6FC..(LA,SA);1TRFE,2TRFE..TGN120,126,136..5F..(BZAG,GCC,LA,SA)202408
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
main12261-0C030i2TRFE..TGN121..LHD..5F;2TRFE..TGN126..6FC..(LA,SA);1TRFE,2TRFE..TGN120,126,136..5F..(BZAG,GCC,LA,SA)202408
JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
main12261-0C030i2TRFE..TGN121..LHD..5F;2TRFE..TGN126..6FC..(LA,SA);1TRFE,2TRFE..TGN120,126,136..5F..(BZAG,GCC,LA,SA)202408
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
main12261-0C030i2TRFE..TGN121..LHD..5F;2TRFE..TGN126..6FC..(LA,SA);1TRFE,2TRFE..TGN120,126,136..5F..(BZAG,GCC,LA,SA)202408
IDN SOURCED PARTS
main12261-0C030i2TRFE..TGN121..LHD..5F;2TRFE..TGN126..6FC..(LA,SA);1TRFE,2TRFE..TGN120,126,136..5F..(BZAG,GCC,LA,SA)202408
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDNSOURCED PARTS
THA SOURCED PARTS
main12261-0C040i2TRFE..TGN121..6FC..ARL;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..GCC,GEN202408
THA SOURCED PARTS
THA SOURCED PARTS
main12261-0E010i1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135;1GDFTV..GUN126..(ARL,BZAG,GCC,GEN202408
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
IND SOURCED PARTS
IND SOURCED PARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
AZERBAIJAN SPEC,JAPAN SOURCED PARTS
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCEDPARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
12262HOSE, VENTILATION, NO.2
main12262-0C060i2TRFE..TGN121..6FC..ARL;2TRFE..TGN126..THP..(GCC,LA,SA);1TRFE,2TRFE..TGN120,121,136..LHD..THP202408
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90466-22005i1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135;1GDFTV..GUN126..(AGTP,CAMP,GHAP,K¥120202408
(L),NO.1
(L),NO.1
main90466-T0075i2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN120,126..GCC,LA,SA;2TRFE..TGN121,136..BZAG,GCC,GEN,LA,SA202408
(L),NO.2
(L),NO.2
(J),NO.1
(J),NO.1
NO.2
(J),NO.2
(J),NO.2
12262BCLAMP(FOR VENTILATION HOSE)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
1701
90119T0260
main90119-T0260
9167180616
8 parts on this diagram · 6 diagrams in section
