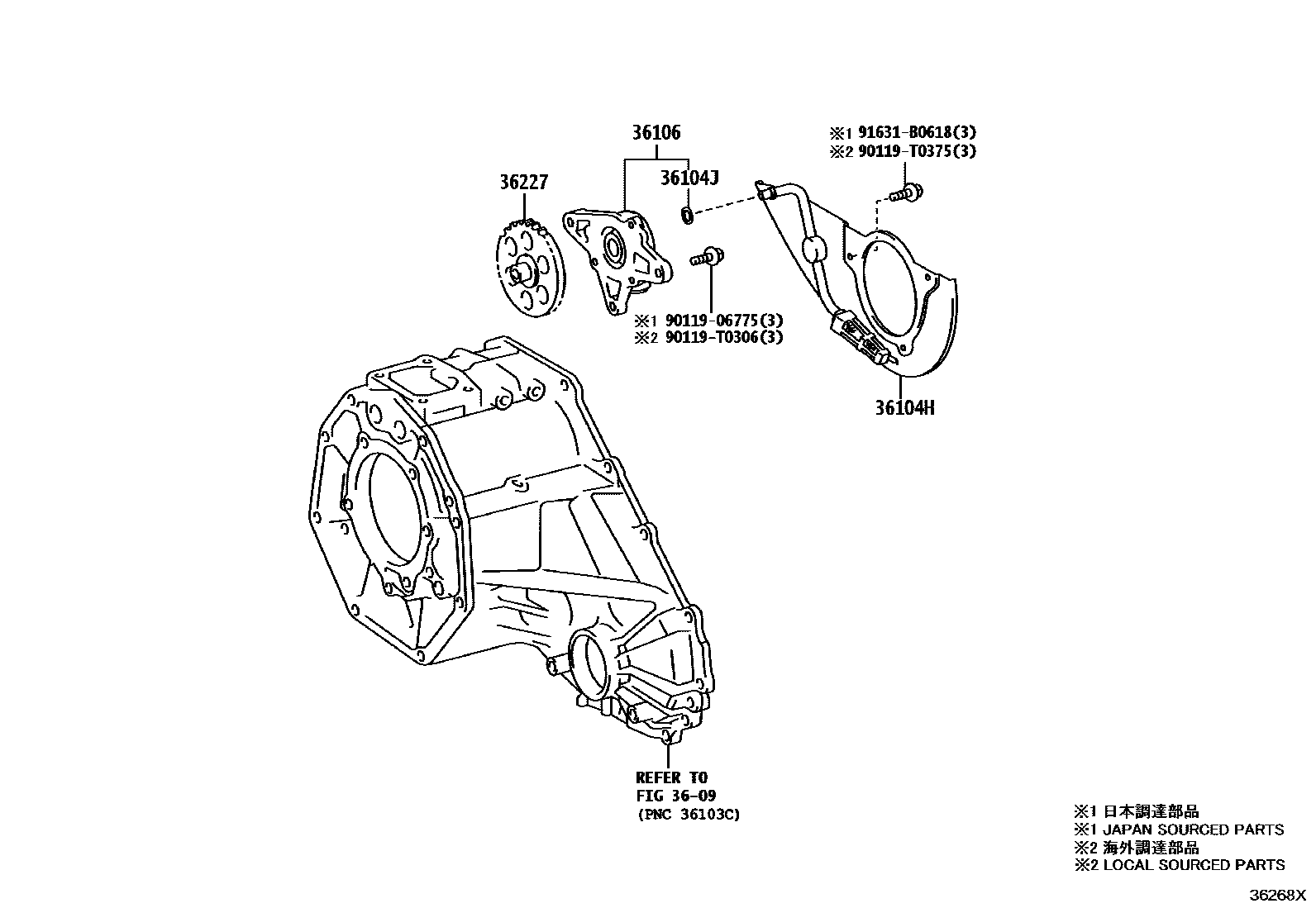

Toyota HILUX (DOUBLE CAB) — TRANSFER OIL PUMP

3609

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35021iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥1,900202408

*382

main36104-35021iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥1,900202408

*381

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19009iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU¥130202408

*382,*381

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-04010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥6,000202408

*382

main36106-35070iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥6,000202408

*381

36227GEAR, TRANSFER OIL PUMP

main36227-0K011iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36227-35021iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥1,410202408

*381

9011906775

main90119-06775¥130

90119T0306

main90119-T0306¥70

90119T0375

main90119-T0375¥60

91631B0618

main91631-B0618¥90

9 parts on this diagram · 1 diagram in section
