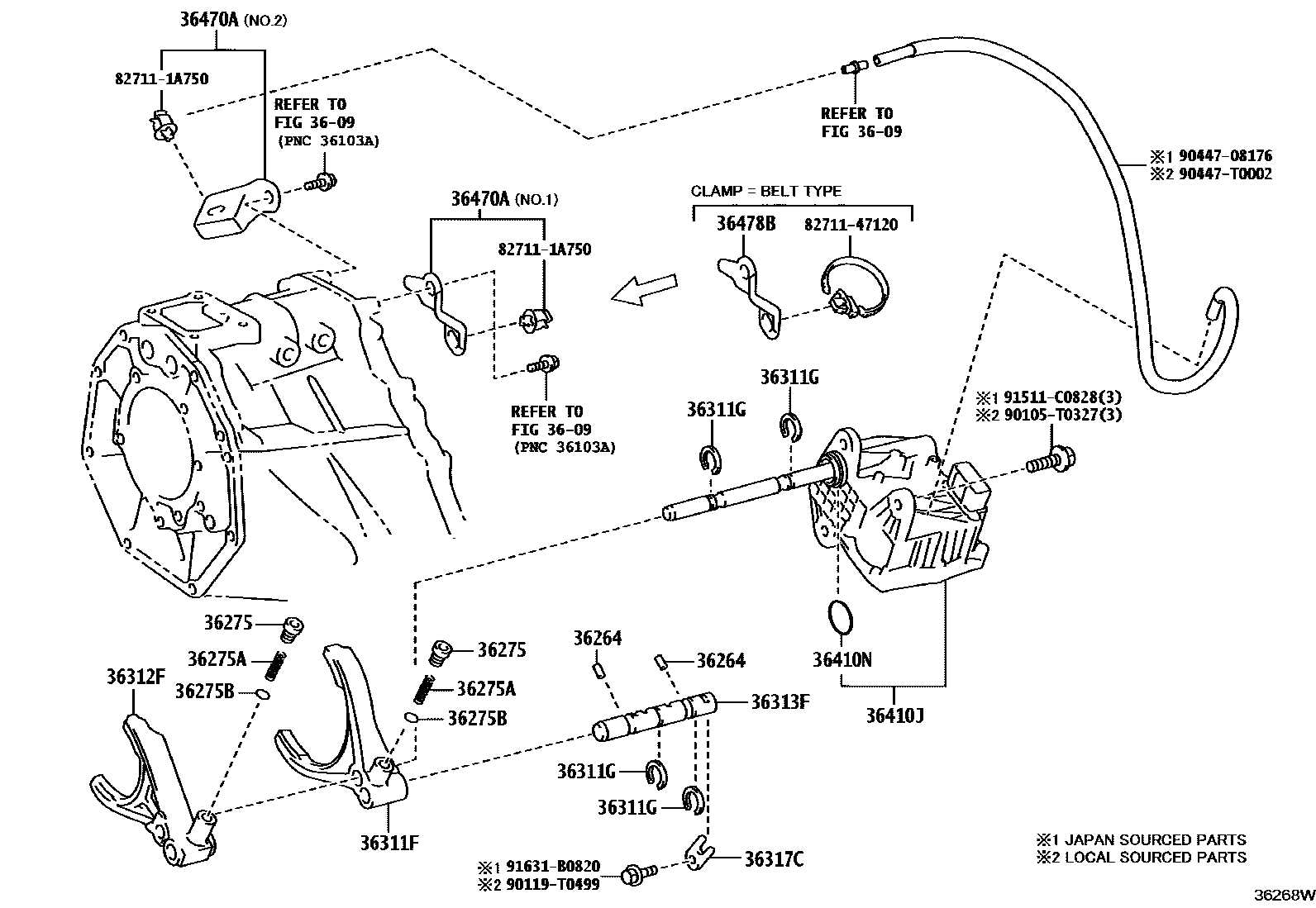

Toyota HILUX (DOUBLE CAB) — TRANSFER LEVER & SHIFT ROD

3609

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06007iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥110202408

L=8.6,OD=6,*381

main90250-06007iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥110202408

L=8.6,OD=6,*382

36275PLUG, SHIFT DETENT BALL SPRING

main33593-35030iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥280202408

*382

main33593-35030iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥280202408

*381

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-18091iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥90202408

L=20.8,*381

main90501-T0042iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

L=20.8,*382

36275BBALL, SHIFT DETENT

main90360-10003iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥100202408

OD=9.52,STEEL,*381

main90360-T0008iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

OD=9.53,STEEL,*382

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-0K011iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36311-34011iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥3,450202408

*381

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥80202408

*381

main90520-T0237iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-0K011iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36312-34011iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥3,040202408

*381

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-0K030iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36313-34011iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥1,210202408

*381

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-0K020iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36317-35041iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥210202408

*381

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-0K010iGGN125202408

*382

main36410-0K020iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN125,LAN125,TGN126202408

*382

main36410-71010iGGN125¥26,500202408

*381

main36410-71020iGUN126..S..IV3;GUN126..RHD..CBU;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F..(BZAG,GCC,LA,PH);GUN126,LAN125,TGN12¥20,200202408

*381

36410NRING, O (FOR TRANSFER SHIFT ACTUATOR)

main90301-28013iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU¥190202408

*381

main90301-T0066iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408

*382

36470ABRACKET ASSY, TRANSFER BREATHER

main36470-0K010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382,NO.1:REFER ILL.

main36470-0K020iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382,NO.2:REFER ILL.

main36470-71010iGUN126..S..IV3;GUN126..RHD..CBU;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F..(BZAG,GCC,LA,PH);GUN126,LAN125,TGN12¥230202408

*381,NO.1:REFER ILL.

main36470-71020iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥260202408

*381,NO.2:REFER ILL.

36478BBRACKET, TRANSFER BREATHER

main36478-71060iGGN125202408

*381

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750¥60

8271147120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-47120¥110

90105T0327

main90105-T0327

90119T0499

main90119-T0499¥80

9044708176

main90447-08176¥220

90447T0002

main90447-T0002

91511C0828

main91511-C0828¥80

91631B0820

main91631-B0820¥90

22 parts on this diagram · 1 diagram in section
