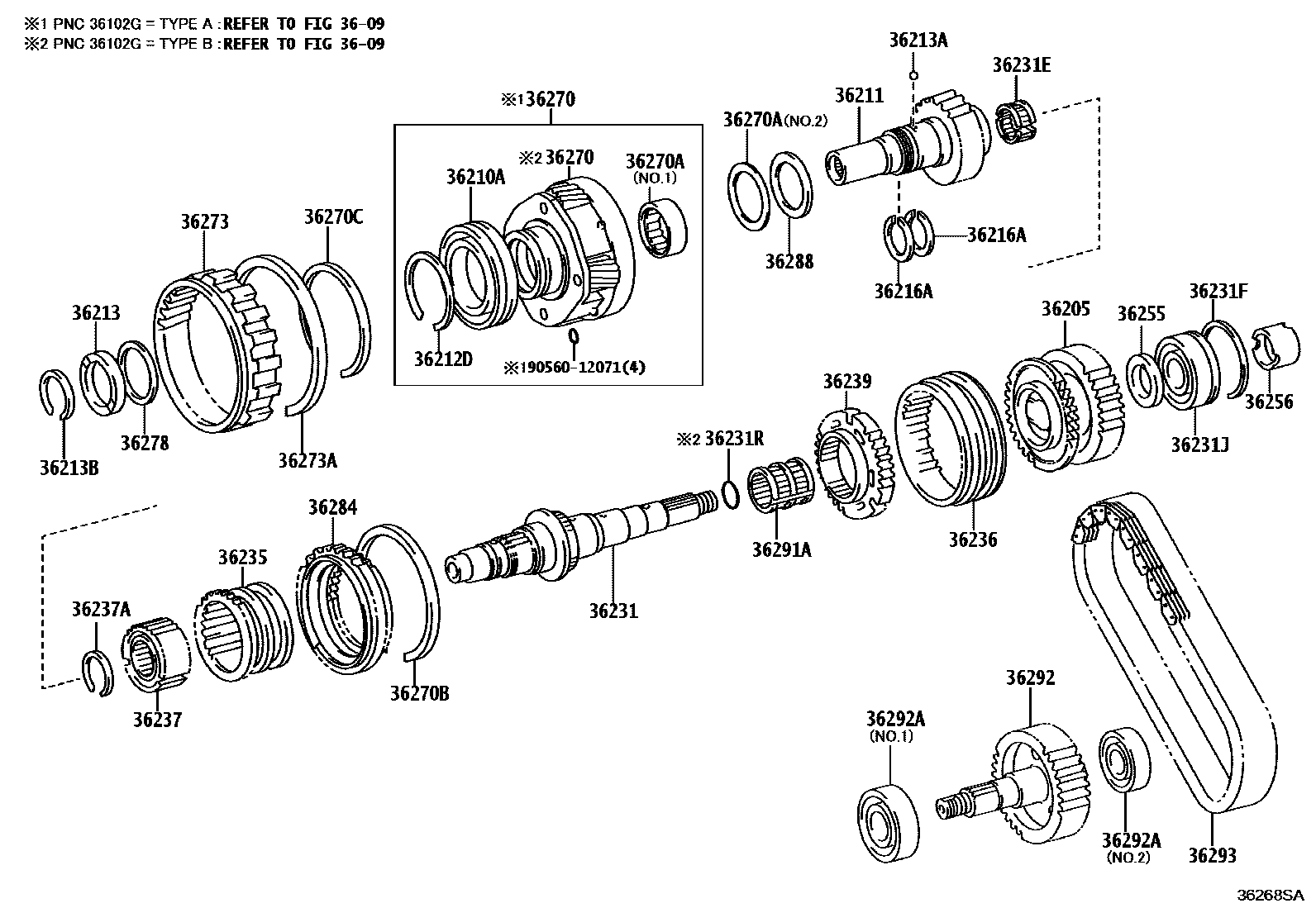

Toyota HILUX (DOUBLE CAB) — TRANSFER GEAR

0001 1W/O(AUTO DISCONNECT DIFFERENT0002 1W(AUTO DISCONNECT DIFFERENTIA

3609

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-0K040iGGN125,LAN125;TGN126..L..SA;TGN126..H..LA;GUN125..H..GCC;GUN126..S..IV3;GUN125..6F..L..GCC;GUN126..THP..S..LA;GUN126..H..MHV..IV3;GUN126..LHD..THP..(H,L);TGN126..(H202408

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*382

main36205-0K040iTGN126..H..GCC;TGN126..(L,S)..LA202408

*382

main36205-0K050iTGN126..H..GCC;TGN126..L..GEN;GUN125..6F..S..GCC;GUN126..LHD..S..GEN;GUN125..6FC..(L,S)..GCC;TGN126..(L,S)..(GCC,LA)202408

*382

main36205-0K050iTGN126..H..GCC;TGN126..L..GEN;GUN125..6F..S..GCC;GUN126..LHD..S..GEN;GUN125..6FC..(L,S)..GCC;TGN126..(L,S)..(GCC,LA)202408

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*382

main36205-71010iGGN125,LAN125;TGN126..L..SA;TGN126..H..LA;GUN125..H..GCC;GUN126..S..IV3;GUN125..6F..L..GCC;GUN126..THP..S..LA;GUN126..H..MHV..IV3;GUN126..LHD..THP..(H,L);TGN126..(H¥7,200202408

*381

main36205-71010iGGN125,LAN125;TGN126..L..SA;TGN126..H..LA;GUN125..H..GCC;GUN126..S..IV3;GUN125..6F..L..GCC;GUN126..THP..S..LA;GUN126..H..MHV..IV3;GUN126..LHD..THP..(H,L);TGN126..(H¥7,200202408

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*381

main36205-71020iTGN126..H..GCC;TGN126..L..GEN;TGN126..(L,S)..(GCC,LA);GUN125,126..LHD..6FC..(L,S)..(GCC,GEN)202408

*381

main36205-71020iTGN126..H..GCC;TGN126..L..GEN;TGN126..(L,S)..(GCC,LA);GUN125,126..LHD..6FC..(L,S)..(GCC,GEN)202408

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*381

36210ABEARING (FOR TRANSFER INPUT SHAFT)

main90363-75001iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥2,810202408

*381

main90363-75001iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥2,810202408

(J),*382

main90363-T0038iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥2,810202408

(L),*382

36211SHAFT, TRANSFER INPUT

main36201-0K070iGUN125,126..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F202408

*382

main36201-0K080iGUN126..6FC..CBU;GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..6FC¥9,200202408

*382

main36201-0K090iLAN125,TGN126..5F202408

*382

main36201-35130iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥9,300202408

*381

main36201-71010iGUN126..6FC..CBU;GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..6FC¥9,300202408

*381

main36201-71020iLAN125,TGN126..5F202408

*381

36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)

main90520-72001iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=1.45,MARK 1,*381

main90520-72002iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=1.50,MARK 2,*381

main90520-72003iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=1.55,MARK 3,*381

main90520-72004iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=1.60,MARK 4,*381

main90520-72005iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=1.65,MARK 5,*381

main90520-T0136iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=1.45,MARK 1,*382

main90520-T0137iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=1.50,MARK 2,*382

main90520-T0138iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=1.55,MARK 3,*382

main90520-T0139iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=1.60,MARK 4,*382

main90520-T0140iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=1.65,MARK 5,*382

36213STOPPER, TRANSFER INPUT GEAR

main36213-0K010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36213-35020iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥540202408

*381

36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)

main90360-05012iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥100202408

*381

main90360-T0010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)

main90520-44003iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=2.10-2.15,*381

main90520-44004iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=2.15-2.20,*381

main90520-44005iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=2.20-2.25,*381

main90520-44006iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=2.25-2.30,*381

main90520-44007iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=2.30-2.35,*381

main90520-44008iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=2.35-2.40,*381

main90520-44009iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=2.40-2.45,*381

main90520-44010iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=2.45-2.50,*381

main90520-44011iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=2.50-2.55,*381

main90520-44012iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=2.55-2.60,*381

main90520-44013iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=2.60-2.65,*381

main90520-44014iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=2.65-2.70,*381

main90520-44015iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=2.70-2.75,*381

main90520-44016iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=2.75-2.80,*381

main90520-44017iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=2.80-2.85,*381

main90520-44018iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=2.85-2.90,*381

main90520-44019iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=2.90-2.95,*381

main90520-44020iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥130202408

T=2.95-3.00,*381

main90520-44021iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥130202408

T=3.00-3.05,*381

main90520-T0202iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.10-2.15,*382

main90520-T0203iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.15-2.20,*382

main90520-T0204iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.20-2.25,*382

main90520-T0205iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.25-2.30,*382

main90520-T0206iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.30-2.35,*382

main90520-T0207iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.35-2.40,*382

main90520-T0208iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.40-2.45,*382

main90520-T0209iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.45-2.50,*382

main90520-T0210iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.50-2.55,*382

main90520-T0211iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.55-2.60,*382

main90520-T0212iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.60-2.65,*382

main90520-T0213iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.65-2.70,*382

main90520-T0214iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.70-2.75,*382

main90520-T0215iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.75-2.80,*382

main90520-T0216iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.80-2.85,*382

main90520-T0217iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.85-2.90,*382

main90520-T0218iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.90-2.95,*382

main90520-T0219iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.95-3.00,*382

main90520-T0220iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=3.00-3.05,*382

36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1

main36216-35012iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥160202408

*382

main36216-35012iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥160202408

*381

36231SHAFT, TRANSFER OUTPUT, REAR

main36231-0K030iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥13,900202408

*382

main36231-71022iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥13,900202408

*381

36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

main90364-28004iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥1,640202408

*381

main90364-C0016iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥1,640202408

*382

36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

main90520-78002iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥120202408

T=1.65,*381

main90520-T0187iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=1.65,ID=78.1,*382

36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

main90363-37011iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥3,190202408

*381

main90363-T0042iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

36231RRING, O (FOR TRANSFER OUTPUT SHAFT)

main90301-T0053iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408

*382

36235SLEEVE, TRANSFER HIGH & LOW CLUTCH

main36235-04010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥2,650202408

*382

main36235-35022iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥2,650202408

*381

36236SLEEVE, FRONT DRIVE CLUTCH

main36236-0K040iGGN125,LAN125;TGN126..L..SA;TGN126..H..LA;GUN125..H..GCC;GUN126..S..IV3;GUN125..6F..L..GCC;GUN126..THP..S..LA;GUN126..H..MHV..IV3;GUN126..LHD..THP..(H,L);TGN126..(H202408

*382

main36236-0K040iGGN125,LAN125;TGN126..L..SA;TGN126..H..LA;GUN125..H..GCC;GUN126..S..IV3;GUN125..6F..L..GCC;GUN126..THP..S..LA;GUN126..H..MHV..IV3;GUN126..LHD..THP..(H,L);TGN126..(H202408

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*382

main36236-0K050iTGN126..H..GCC;TGN126..L..GEN;GUN125..6F..S..GCC;GUN126..LHD..S..GEN;GUN125..6FC..(L,S)..GCC;TGN126..(L,S)..(GCC,LA)202408

*382

main36236-0K050iTGN126..H..GCC;TGN126..L..GEN;GUN125..6F..S..GCC;GUN126..LHD..S..GEN;GUN125..6FC..(L,S)..GCC;TGN126..(L,S)..(GCC,LA)202408

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*382

main36236-35070iGGN125,LAN125;TGN126..L..SA;TGN126..H..LA;GUN125..H..GCC;GUN126..S..IV3;GUN125..6F..L..GCC;GUN126..THP..S..LA;GUN126..H..MHV..IV3;GUN126..LHD..THP..(H,L);TGN126..(H¥2,650202408

*381

main36236-35070iGGN125,LAN125;TGN126..L..SA;TGN126..H..LA;GUN125..H..GCC;GUN126..S..IV3;GUN125..6F..L..GCC;GUN126..THP..S..LA;GUN126..H..MHV..IV3;GUN126..LHD..THP..(H,L);TGN126..(H¥2,650202408

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*381

main36236-71010iTGN126..H..GCC;TGN126..L..GEN;TGN126..(L,S)..(GCC,LA);GUN125,126..LHD..6FC..(L,S)..(GCC,GEN)202408

*381

main36236-71010iTGN126..H..GCC;TGN126..L..GEN;TGN126..(L,S)..(GCC,LA);GUN125,126..LHD..6FC..(L,S)..(GCC,GEN)202408

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*381

36237HUB, TRANSFER CLUTCH

main36237-0K020iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36237-35030iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥2,110202408

*381

36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)

main90520-39004iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥100202408

T=2.10-2.15,MARK A,*381

main90520-39005iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥100202408

T=2.15-2.20,MARK B,*381

main90520-39006iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥100202408

T=2.20-2.25,MARK C,*381

main90520-39007iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥100202408

T=2.25-2.30,MARK D,*381

main90520-39008iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥100202408

T=2.30-2.35,MARK E,*381

main90520-39009iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥100202408

T=2.35-2.40,MARK F,*381

main90520-39010iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥100202408

T=2.40-2.45,MARK G,*381

main90520-39011iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥100202408

T=2.45-2.50,MARK H,*381

main90520-39012iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥100202408

T=2.50-2.55,MARK J,*381

main90520-39013iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥100202408

T=2.00-2.05,MARK K,*381

main90520-39014iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥100202408

T=2.05-2.10,MARK L,*381

main90520-T0191iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.10-2.15,*382

main90520-T0192iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.15-2.20,*382

main90520-T0193iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.20-2.25,*382

main90520-T0194iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.25-2.30,*382

main90520-T0195iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.30-2.35,*382

main90520-T0196iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.35-2.40,*382

main90520-T0197iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.40-2.45,*382

main90520-T0198iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.45-2.50,*382

main90520-T0199iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.50-2.55,*382

main90520-T0200iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.00-2.05,*382

main90520-T0201iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=2.05-2.10,*382

36239HUB, TRANSFER DRIVE CLUTCH

main36239-0K050iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36239-71010iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥2,640202408

*381

36255SPACER, TRANSFER OUTPUT SHAFT, NO.1

main36255-04010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥570202408

*382

main36255-35040iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥570202408

*381

36256SPACER, TRANSFER OUTPUT SHAFT, NO.2

main36256-0K010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36256-71010iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥890202408

*381

36270GEAR ASSY, TRANSFER LOW PLANETARY

main36270-04020iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥39,400202408

*382

main36270-35911iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*381

36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)

main90364-47013iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥1,940202408

*381,NO.1:REFER ILL.

main90364-T0054iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥1,940202408

*382,NO.1:REFER ILL.

main90374-49001iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥1,090202408

*381,NO.2:REFER ILL.

main90374-49001iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥1,090202408

(J),*382,NO.2

main90374-C0017iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥1,090202408

(L),*382,NO.2

36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)

main90520-T0190iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥200202408

T=1.8,*382

main90521-99056iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥240202408

T=1.8,*381

sub90520-T0190¥200

36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)

main90520-99072iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥200202408

*381

main90520-T0188iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

36273GEAR, TRANSFER LOW PLANETARY RING

main36273-0K010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36273-35030iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥3,450202408

*381

36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)

main90520-99078iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥310202408

*381

main90520-T0189iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥310202408

*382

36278WASHER, MANUAL TRANSFER PLANETARY CARRIER

main36278-0K010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

T=0.95-1.05,*382

main36278-35020iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥230202408

T=0.95-1.05,*381

36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE

main36284-0K030iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥2,640202408

*382

main36284-34011iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥2,640202408

*381

36288RACE, TRANSFER THRUST BEARING, NO.1

main36288-0K010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥470202408

(L),*382

main36288-28010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥480202408

(J),*382

main36288-28010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥480202408

*381

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90364-42008iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥1,410202408

*381

main90364-T0043iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

36292SPROCKET, TRANSFER DRIVEN

main36292-0K020iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36292-35070iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥8,400202408

*381

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-28022iGUN125..6F..S..GCC;GUN126..LHD..6F..S..GEN¥1,920202408

*381,NO.2:REFER ILL.

main90363-32037iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F¥1,670202408

*381,NO.1:REFER ILL.

main90363-32037iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥1,670202408

(J),*382,NO.1

main90363-T0036iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

(L),*382,NO.1

main90363-T0061iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382,NO.2:REFER ILL.

36293CHAIN, TRANSFER FRONT DRIVE

main36293-35050iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥22,400202408

*382

main36293-35050iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126¥22,400202408

*381

9056012071

main90560-12071¥70

35 parts on this diagram · 2 diagrams in section
