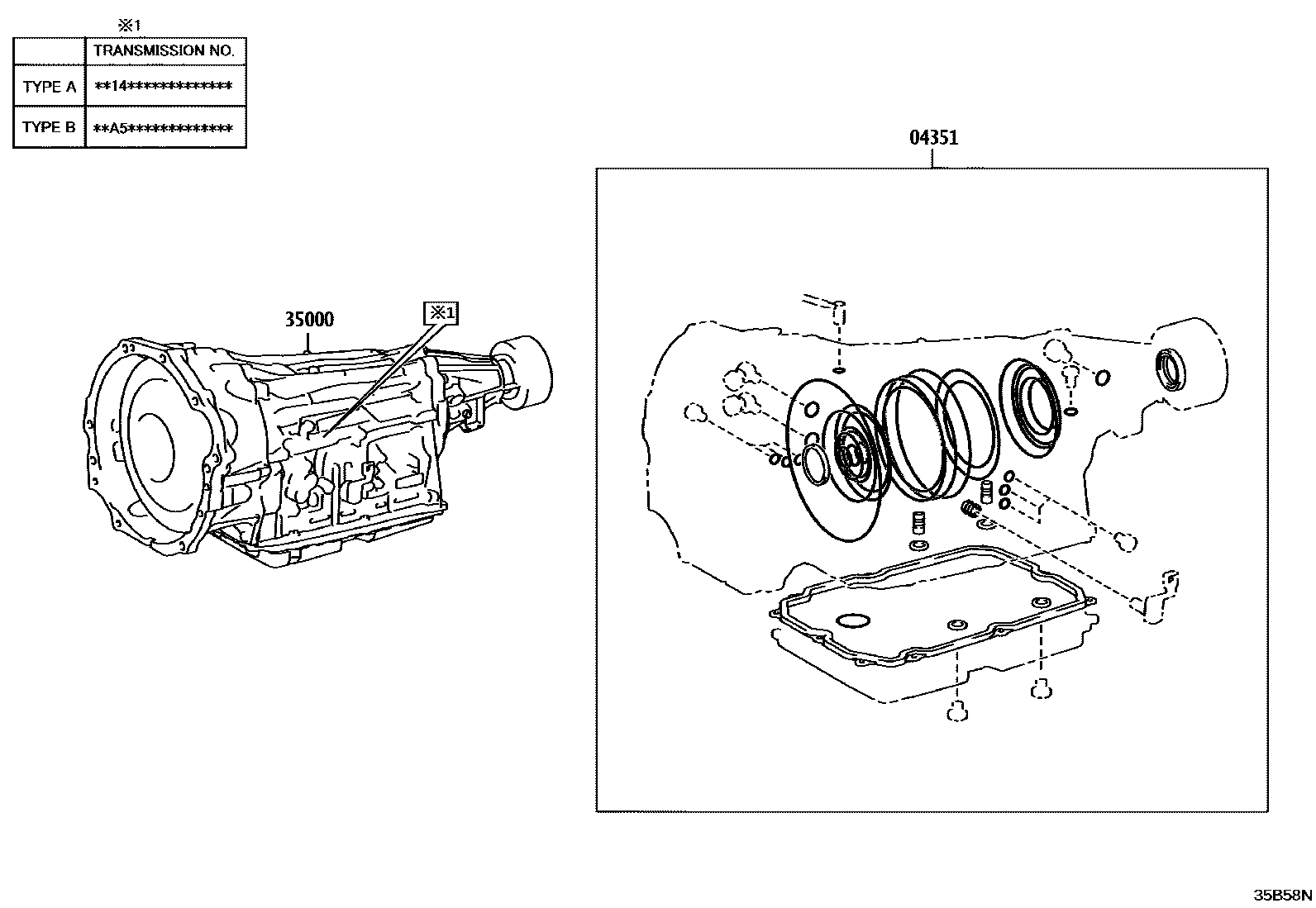

Toyota HILUX (DOUBLE CAB) — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1AC60E 0002 1AC60F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-71220iGUN120,135..6FC;TGN126..(AGTP,SAP)..6FC202408

TYPE B:REFER ILLUST.

main04351-71220iGUN120,135..6FC;TGN126..(AGTP,SAP)..6FC202408

TYPE A:REFER ILLUST.

main04351-71230iGUN126..6FC..S..DCRL..(ARL,LA);GGN125,GUN125..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,¥16,100202408

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER ILLUST.

main04351-71230iGUN126..6FC..DCRL..GCC¥16,100202408

TYPE B:REFER ILLUST.

main04351-71230iGUN126..6FC..DCRL..GCC¥16,100202408

TYPE A:REFER ILLUST.

main04351-71230iGUN126..6FC..TH¥16,100202408

TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER ILLUST.

main04351-71230iGUN126..6FC..IND¥16,100202412

TYPE A:REFER ILLUST.

main04351-71241iGUN136..6FC..(BZAG,SA)¥16,100202411

TYPE A:REFER ILLUST.

main04351-71241iGUN121,136..THP..6FC¥16,100202408

TYPE B:REFER ILLUST.

35000TRANSMISSION ASSY, AUTOMATIC

main35000-0K030iGUN125..(MAP,THP)..6FC202408

AC60F,TYPE B:REFER ILLUST.

main35000-0K050iGUN120,135..THP..6FC202408

AC60E,TYPE B:REFER ILLUST.

main35000-0K070iGGN125..GCC202408

AC60F,TYPE B:REFER ILLUST.

main35000-0K080iTGN121..6FC202408

AC60E,TYPE B:REFER ILLUST.

main35000-0K090iTGN126..THP..6FC202408

AC60F,TYPE B:REFER ILLUST.

main35000-0K110iGUN121,136..THP..6FC202408

AC60E,TYPE B:REFER ILLUST.

main35000-0K130iGUN126..6FC..TH202408

AC60F,TYPE B:REFER ILLUST.

main35000-0K130iGUN126..6FC..S..DCRL..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..DCRL..(ARL,GCC,GEN,LA,MA,MMR,PH,TWN,VN)..CBU202408

AC60F,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE B:REFER ILLUST.

main35000-0K140iGUN126..6FC..TH;GUN126..THP..MHV202408

AC60F,TYPE B:REFER ILLUST.

main35000-0K140iGUN126..6FC..TH;GUN126..THP..MHV202408

AC60F,TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER ILLUST.

main35000-71340iGUN126..6FC..IND202412

AC60F,TYPE A:REFER ILLUST.

main35000-71340iGUN126..6FC..S..DCRL..IV3;GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..DCRL..(ARL,BZAG,GCC,GEN,GHA,KEN,LA,PH,SA,TWN,VN)..CBU202408

AC60F,TYPE A:REFER ILLUST.

main35000-71340iGUN126..6FC..S..DCRL..IV3;GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..DCRL..(ARL,BZAG,GCC,GEN,GHA,KEN,LA,PH,SA,TWN,VN)..CBU202408

AC60F,TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER ILLUST.

main35000-71340iGUN126..6FC..S..DCRL..IV3;GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..DCRL..(ARL,BZAG,GCC,GEN,GHA,KEN,LA,PH,SA,TWN,VN)..CBU202408

AC60F,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER ILLUST.

main35000-71350iGUN126..MHV..SA202411

AC60F,TYPE A:REFER ILLUST.

main35000-71390iGUN120,135..6FC202408

AC60E,TYPE A:REFER ILLUST.

main35000-71410iTGN126..(AGTP,SAP)..6FC202411

AC60F,TYPE A:REFER ILLUST.

main35000-71420iGUN125..(AGTP,KENP,SAP)..6FC¥517,000202411

AC60F,TYPE A:REFER ILLUST.

main35000-71440iGGN125..LA,SA202411

AC60F,TYPE A:REFER ILLUST.

main35000-71490iGUN136..MHV202411

AC60E,TYPE A:REFER ILLUST.

main35000-71520iGUN136..6FC..DCRL..(BZAG,SA)202411

AC60E,TYPE A:REFER ILLUST.

2 parts on this diagram · 2 diagrams in section
