Toyota HILUX (DOUBLE CAB) — STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,STEERING WHEEL-URETHANE,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,URETHANE,MLM ADVENTURE PACKAGE,BLACK,TRIM2#
3-SPOKE,URETHANE,MLM PACKAGE&STEERING WHEEL-URETHANE,BLACK,TRIM2#
3-SPOKE,URETHANE,MLM Z-PLUS PACKAGE&STEERING WHEEL-URETHANE,BLACK,TRIM2#
main45100-0K250-C0iGUN126..RHD..THP..S;GUN126..THP..(L,S)..LA;TGN126..THP..(L,S)..(GEN,LA,SA);GUN122,136..(5F,6FC)..S..(ARL,GEN);GUN120,122,135,TGN121,136..THP..L..(GEN,PH,SA,TH);GUN1202408
3-SPOKE,URETHANE,BLACK,TRIM2#,3#
main45100-0K250-C0iGUN126..RHD..THP..S;GUN126..THP..(L,S)..LA;TGN126..THP..(L,S)..(GEN,LA,SA);GUN122,136..(5F,6FC)..S..(ARL,GEN);GUN120,122,135,TGN121,136..THP..L..(GEN,PH,SA,TH);GUN1202408
3-SPOKE,URETHANE,BLACK,TRIM2#
main45100-0K641-C0iGUN126..LHD..S..GEN;GUN126..H..MHV..IV3;GUN120,121,122,125,135..S..TH;GUN125,126,13#,TGN126..(CAMP,MAP,MMRP,THP)..H..(ARL,GEN,IDN,LA,MA,MMR,PH,TH,TWN,VN)..CBU202408
3-SPOKE,LEATHER,BLACK & GRAY NO.205,TRIM2#
3-SPOKE,LEATHER,MLM Z-PLUS PACKAGE&STEERING WHEEL-LEATHER,BLACK & GRAY NO.205,TRIM2#
3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK & GRAY NO.205,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY NO.205,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,SEAT COVER MATERIAL-FABLIC(HI),BLACK & GRAY,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#
3-SPOKE,LEATHER,GR SPORT WIDE TREAD,BLACK & GRAY,TRIM2#
3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK & GRAY,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#
45107WIRE SUB-ASSY, HORN BUTTON
ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITHOUT
main45107-0K030iGUN122..THP..L;GUN125,135..6F..VN;GUN125..AGTP..L..LA;TGN126..L..(GEN,LA);GUN120,125,TGN121..L..(GEN,IDN,PH,TH)202408
MLM Z-PLUS PACKAGE&STEERING SWITCH-WITH(AUDIO & TELEPHONE)
main45107-0K030iGUN122..THP..L;GUN125,135..6F..VN;GUN125..AGTP..L..LA;TGN126..L..(GEN,LA);GUN120,125,TGN121..L..(GEN,IDN,PH,TH)202408
MLM Z-PLUS PACKAGE&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)
main45107-0K030iGUN122..THP..L;GUN125,135..6F..VN;GUN125..AGTP..L..LA;TGN126..L..(GEN,LA);GUN120,125,TGN121..L..(GEN,IDN,PH,TH)202408
STEERING SWITCH-WITH(AUDIO & TELEPHONE)
main45107-0K030iGUN122..THP..L;GUN125,135..6F..VN;GUN125..AGTP..L..LA;TGN126..L..(GEN,LA);GUN120,125,TGN121..L..(GEN,IDN,PH,TH)202408
STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)
main45107-0K030iGUN122..THP..L;GUN125,135..6F..VN;GUN125..AGTP..L..LA;TGN126..L..(GEN,LA);GUN120,125,TGN121..L..(GEN,IDN,PH,TH)202408
STEERING SWITCH-WITHOUT
45116ORNAMENT, STEERING WHEEL, NO.1
BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITHOUT&SPEED METER-KM/H,BLACK,TRIM2#
STEERING SWITCH-WITHOUT,BLACK,TRIM2#
main45116-0K030-C0iGUN125..VN;TGN126..THP..L..(GEN,LA);GUN125,TGN121..LHD..SAP..L;GUN120,122..L..(GEN,PH,SA,TH);GUN125,135,TGN121..L..(GEN,IDN,PH,VN)202408
BLACK,TRIM2#,3#
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&STEERING SWITCH-WITHOUT&SPEED METER-KM/H,BLACK,TRIM2#
BLACK,TRIM2#
URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITHOUT&SPEED METER-KM/H,BLACK,TRIM2#
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITHOUT&SPEED METER-KM/H,BLACK,TRIM2#
STEERING SWITCH-WITHOUT,BLACK,TRIM2#
45130BUTTON ASSY, HORN
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main45130-0K270-C0iGUN12#,13#,TGN121,126,136..(CAMP,MAP,MMRP,THP)..(GEN,IDN,LA,MA,MMR,PH,SA,TH,VN)202408
BLACK,TRIM2#
BLACK,TRIM2#,3#
main45130-0K350-C0iGUN126..S..IV3;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN126..(ARL,TWN)..CBU;GUN125,135,TGN121..(6F,6FC)..ARL202408
BLACK,TRIM2#
BLACK,TRIM2#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
GR SPORT WIDE TREAD,BLACK,TRIM2#
BLACK,TRIM2#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#
MLM Z-PLUS PACKAGE&CRUISE CONTROL-WITH,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM2#
CRUISE CONTROL-WITH,BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
MLM Z-PLUS PACKAGE&CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
GR SPORT WIDE TREAD&CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#,3#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
main45186-0K130-C0iGUN126..CAMP;GUN135..L..VN;GUN126..THP..L;GUN125..H..IDN;GUN125..THP..S..SA;GUN135..(L,S)..(PH,TH);TGN126..THP..(L,S)..(GEN,LA,SA);GUN12#,TGN121,136..(L,S)..(GEN,ID202408
BLACK,TRIM2#,3#
main45186-0K130-C0iGUN126..CAMP;GUN135..L..VN;GUN126..THP..L;GUN125..H..IDN;GUN125..THP..S..SA;GUN135..(L,S)..(PH,TH);TGN126..THP..(L,S)..(GEN,LA,SA);GUN12#,TGN121,136..(L,S)..(GEN,ID202408
BLACK,TRIM2#
BLACK,TRIM2#
MLM Z-PLUS PACKAGE&CRUISE CONTROL-WITH,BLACK,TRIM2#
CRUISE CONTROL-WITH,BLACK,TRIM2#
main45186-0K150-C0iGUN125..L..GHA;GUN125,135..RHD..(KEN,SA);GUN125..LHD..(GHAP,SAP)..S;GUN126,LAN125,TGN126,136..SAP..(L,S)202411
NIGERIA SPEC,BLACK,TRIM2#
BLACK,TRIM2#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM2#
CRUISE CONTROL-WITH,BLACK,TRIM2#
CRUISE CONTROL-WITH (HIGH SPEED *ACC),BLACK,TRIM2#
main45186-0K170-C0iGUN135..AGTP..S;GUN125..AGTP..LA;TGN126..AGTP..5F;GUN135..AGTP..L..LA;GUN125,135..6FC..L..BZAG;GUN126,TGN136..AGTP..(L,S)202411
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
45201PNUT, STEERING WHEEL SET
main90179-12071iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121¥130202408
45713ADAMPER, STEERING SHAKE
main45713-0K030iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN120,121,125,13#..6FC;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..6FC..CBU¥1,590202408
8401
8408
9015950199

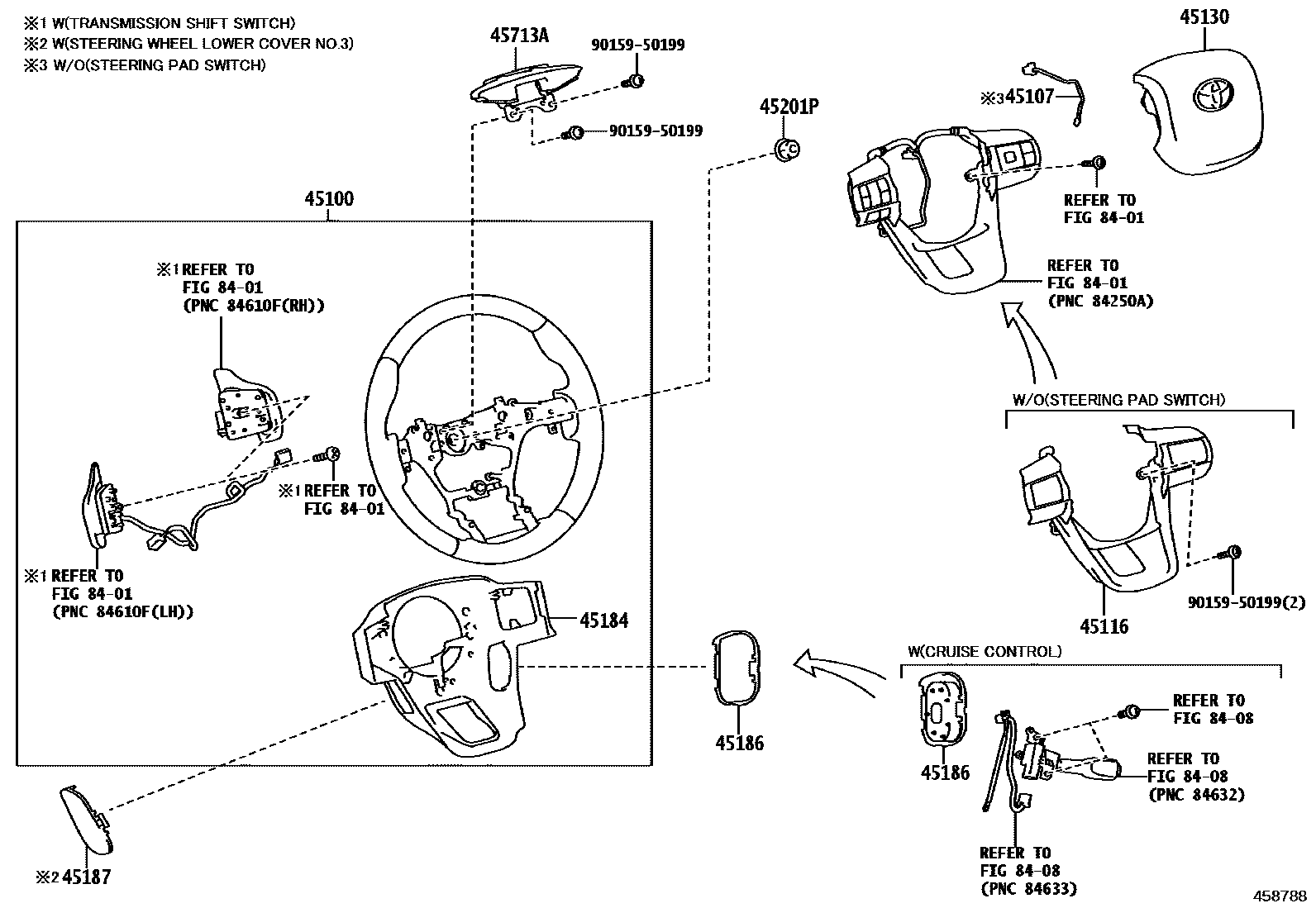

12 parts on this diagram · 1 diagram in section
