Toyota HILUX (DOUBLE CAB) — SPOILER & SIDE MUDGUARD
76621DMUDGUARD, FRONT FENDER, RH
main76621-0K130iGUN122..S..GEN;GUN126..THP..L;TGN121..6FC..H;TGN126..5F..L..GCC;GUN125,TGN136..LHD..MTM..L..(GCC,GEN)202408
MUD GUARD-WITH(FRONT & REAR)
main76621-0K130iGUN122..S..GEN;GUN126..THP..L;TGN121..6FC..H;TGN126..5F..L..GCC;GUN125,TGN136..LHD..MTM..L..(GCC,GEN)202408
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
TIRE & DISC WHEEL-265/60R18 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(REAR ONLY)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&MUD GUARD-WITH(FRONT &REAR)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/60R18 ALUMINUM
TIRE & DISC WHEEL-225/70R17C STEEL
TIRE & DISC WHEEL-265/65R17 STEEL
main76621-0K160iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-225/70R17C STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
76622DMUDGUARD, FRONT FENDER, LH
main76622-0K130iGUN122..S..GEN;GUN126..THP..L;TGN121..6FC..H;TGN126..5F..L..GCC;GUN125,TGN136..LHD..MTM..L..(GCC,GEN)202408
MUD GUARD-WITH(FRONT & REAR)
main76622-0K130iGUN122..IV3;TGN121,126..6FC..L;GUN120,121,122..RHD;GUN125..THP..L..(LA,PH);GUN125..RHD..6F..L..GEN;TGN126..THP..L..(GEN,LA);GUN122,135,TGN121..LHD..THP..L..(GEN,LA,202408
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
TIRE & DISC WHEEL-265/60R18 ALUMINUM
TIRE & DISC WHEEL-265/60R18 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(REAR ONLY)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&MUD GUARD-WITH(FRONT &REAR)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-225/70R17C STEEL
main76622-0K160iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM
main76622-0K160iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-225/70R17C STEEL
MUD GUARD-WITH(FRONT & REAR)
main76622-0K180iGUN125..BZAG;GUN135..6F..BZAG;GUN126..AGTP..L..LA;GUN135..AGTP..S..LA;GUN135..6FC..L..BZAG;GUN125..AGTP..6FC..LA;GGN125,GUN126,136,TGN126,136..AGTP..(H,S)202411
MUD GUARD-WITH(FRONT & REAR)
main76622-0K180iGUN125..BZAG;GUN135..6F..BZAG;GUN126..AGTP..L..LA;GUN135..AGTP..S..LA;GUN135..6FC..L..BZAG;GUN125..AGTP..6FC..LA;GGN125,GUN126,136,TGN126,136..AGTP..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
main76622-0K180iGUN125..BZAG;GUN135..6F..BZAG;GUN126..AGTP..L..LA;GUN135..AGTP..S..LA;GUN135..6FC..L..BZAG;GUN125..AGTP..6FC..LA;GGN125,GUN126,136,TGN126,136..AGTP..(H,S)202411
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
76625GMUDGUARD, QUARTER PANEL, REAR RH
MUD GUARD-WITH(REAR ONLY)
MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(REAR ONLY)
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/60R18 ALUMINUM
TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&MUD GUARD-WITH(FRONT & REAR)&AUDIO-*DA(8INCH) & *BT
TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&MUD GUARD-WITH(FRONT & REAR)&AUDIO-*DA(FOR EMERGING MA
MUD GUARD-WITH(FRONT & REAR)
SAUDI ARABIA SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&MUD GUARD-WITH(FRONT & REAR)&AUDIO-*
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&MUD GUARD-WITH(FRONT &REAR)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR
MUD GUARD-WITH(FRONT ONLY)
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED
MUD GUARD-WITH(FRONT ONLY)
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
76626EMUDGUARD, QUARTER PANEL, REAR LH
MUD GUARD-WITH(REAR ONLY)
MUD GUARD-WITH(FRONT & REAR)
main76626-0K250iTGN121..THP..SA;TGN121..6FC..ARL;TGN126..THP..L..(GCC,GEN,LA);GUN125,135..THP..6F..L..(GEN,LA,PH)202408
MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(REAR ONLY)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&MUD GUARD-WITH(FRONT &REAR)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/60R18 ALUMINUM
TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&MUD GUARD-WITH(FRONT & REAR)&AUDIO-*DA(8INCH) & *BT
TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&MUD GUARD-WITH(FRONT & REAR)&AUDIO-*DA(FOR EMERGING MA
MUD GUARD-WITH(FRONT & REAR)
SAUDI ARABIA SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&MUD GUARD-WITH(FRONT & REAR)&AUDIO-*
main76626-0K290iGUN136..6FC..ARL;GUN126..(ARL,IND,VN)..CBU;GUN135,TGN126..THP..(SA,VN);GUN125..THP..6F..(ARL,SA,VN)¥2,220202408
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED
MUD GUARD-WITH(FRONT & REAR)
main76626-0K310iGUN125..BZAG;GUN135..6F..BZAG;GUN126..AGTP..L..LA;GUN135..AGTP..S..LA;GUN135..6FC..L..BZAG;GUN125..AGTP..6FC..LA;GGN125,GUN126,136,TGN126,136..AGTP..(H,S)202411
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
main76626-0K310iGUN125..BZAG;GUN135..6F..BZAG;GUN126..AGTP..L..LA;GUN135..AGTP..S..LA;GUN135..6FC..L..BZAG;GUN125..AGTP..6FC..LA;GGN125,GUN126,136,TGN126,136..AGTP..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
main76626-0K310iGUN125..BZAG;GUN135..6F..BZAG;GUN126..AGTP..L..LA;GUN135..AGTP..S..LA;GUN135..6FC..L..BZAG;GUN125..AGTP..6FC..LA;GGN125,GUN126,136,TGN126,136..AGTP..(H,S)202411
MUD GUARD-WITH(FRONT & REAR)
main76626-0K310iGUN125..BZAG;GUN135..6F..BZAG;GUN126..AGTP..L..LA;GUN135..AGTP..S..LA;GUN135..6FC..L..BZAG;GUN125..AGTP..6FC..LA;GGN125,GUN126,136,TGN126,136..AGTP..(H,S)202411
MUD GUARD-WITH(FRONT ONLY)
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED
MUD GUARD-WITH(FRONT ONLY)
main76626-0K330iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 STEEL
main76626-0K330iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main76626-0K330iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM
main76626-0K330iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main76626-0K330iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
main76626-0K330iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
90159T0034
main90159-T0034

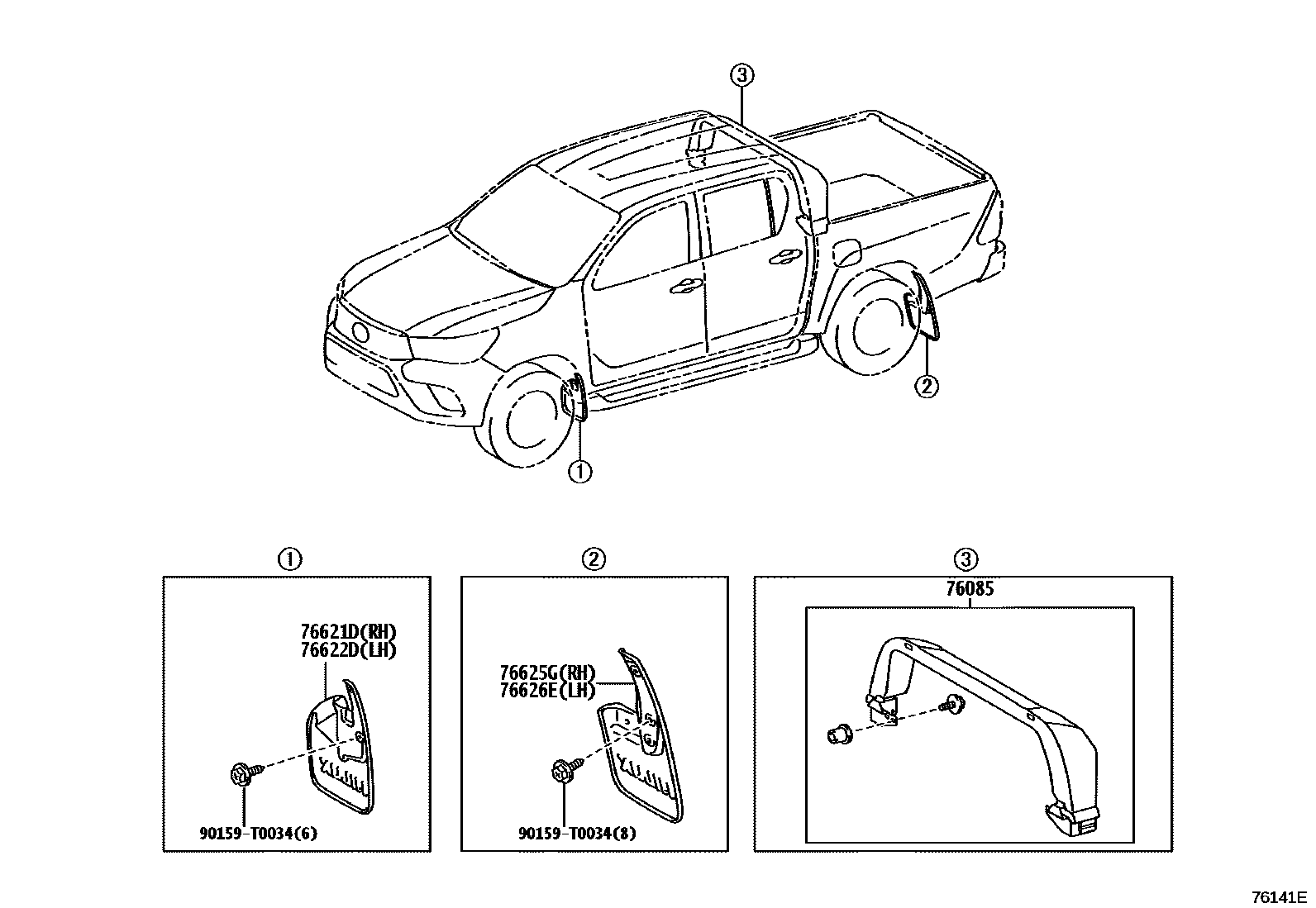

6 parts on this diagram · 1 diagram in section
