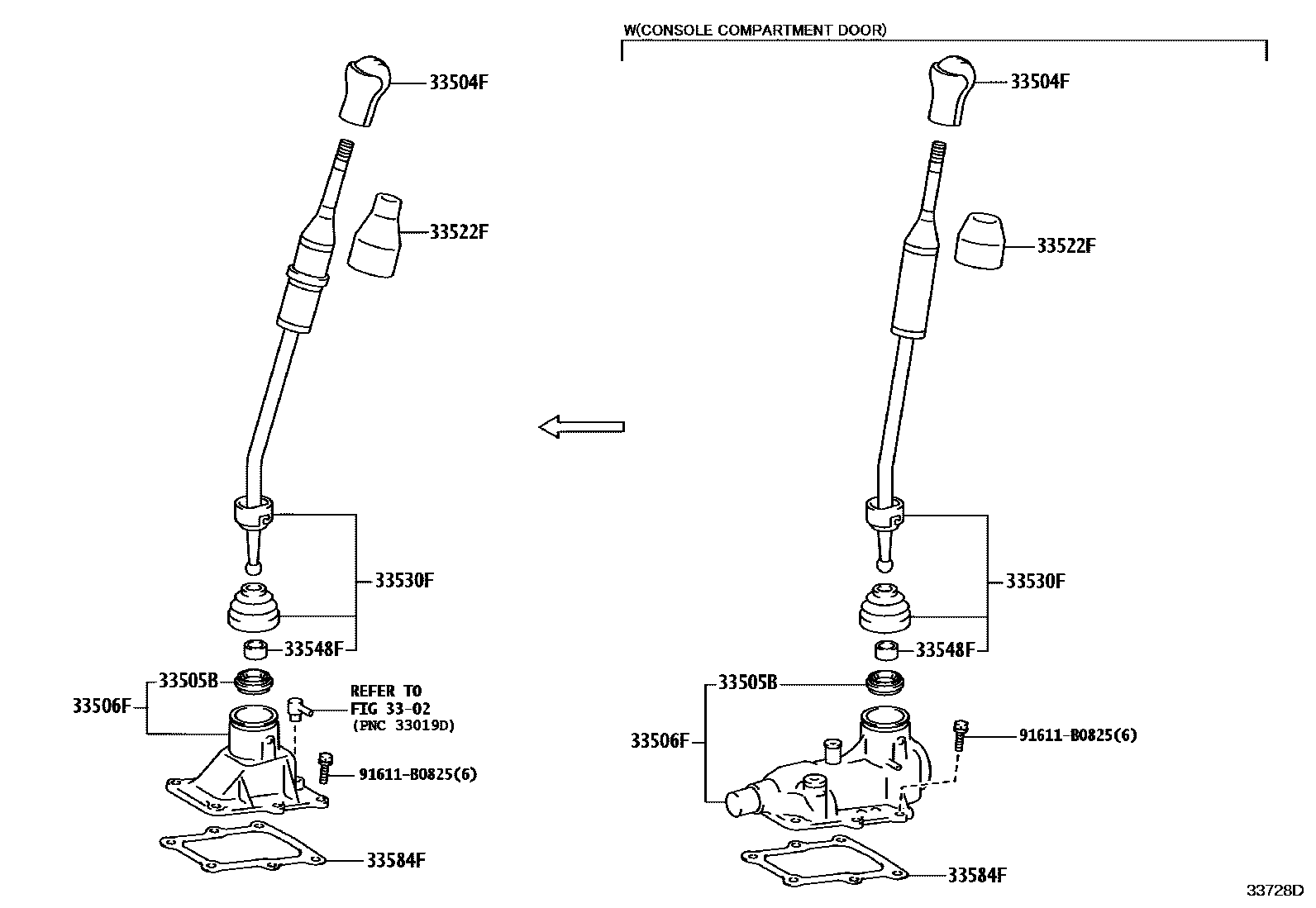

Toyota HILUX (DOUBLE CAB) — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

3302

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0K050iGUN122,TGN121,126..5F..H¥5,000202408

main33504-0K060-C0iTGN126..L..GEN;GUN122,TGN126,136..(AGTP,THP)..5F..S..(GEN,LA,SA)202408-202411

BLACK,TRIM2#

main33504-0K090-C0iGUN125..6F..S..GCC202408

ASIA COLD COUNTRY SPEC,BLACK,TRIM2#

main33504-0K090-C0iGUN125..6F..S..GCC202408

STEERING WHEEL-URETHANE,BLACK,TRIM2#

main33504-0K090-C0iGUN126..6F..S..LA;GUN135..6F..L..(TH,VN);GUN125..6F..(ARL,PH,VN);GUN126..RHD..THP..6F..S;GUN122,126..6F..L..(BZAG,TH);GUN125,135..(AGTP,THP)..6F..S..(GEN,IDN,LA,SA)202408

BLACK,TRIM2#,3#

main33504-0K090-C0iGUN126..6F..S..LA;GUN135..6F..L..(TH,VN);GUN125..6F..(ARL,PH,VN);GUN126..RHD..THP..6F..S;GUN122,126..6F..L..(BZAG,TH);GUN125,135..(AGTP,THP)..6F..S..(GEN,IDN,LA,SA)202408-202411

BLACK,TRIM2#

main33504-0K090-C0iGUN126..6F..S..LA;GUN135..6F..L..(TH,VN);GUN125..6F..(ARL,PH,VN);GUN126..RHD..THP..6F..S;GUN122,126..6F..L..(BZAG,TH);GUN125,135..(AGTP,THP)..6F..S..(GEN,IDN,LA,SA)202408

MOROCCO SPEC,BLACK,TRIM2#

main33504-0K101-C0iGUN125,126..6F..H..GCC202408

BLACK,TRIM2#,3#

main33504-0K101-C0iGUN125,126..6F..H..GCC202408

BLACK,TRIM2#

main33504-0K101-C0iGUN125,126..6F..H..GCC202408

STEERING WHEEL-LEATHER,BLACK,TRIM2#

main33504-0K121-C0iGUN121..6FC202408

BLACK,TRIM2#,3#

main33504-0K121-C0iGUN126..H..DCRL..IV3202408-202411

BLACK,TRIM2#

main33504-0K121-C0iGGN125,GUN125,126,TGN121,126..6FC..H..GCC202408

GR SPORT WIDE TREAD,BLACK,TRIM2#,3#

main33504-0K121-C0iGGN125,GUN125,126,TGN121,126..6FC..H..GCC202408

GR SPORT WIDE TREAD,BLACK,TRIM2#

main33504-0K121-C0iGGN125,GUN125,126,TGN121,126..6FC..H..GCC202408

GR SPORT WIDE TREAD&STEERING WHEEL-GR SPORT(LEATHER),BLACK,TRIM2#

main33504-0K121-C0iGGN125,GUN125,126,TGN121,126..6FC..H..GCC202408

STEERING WHEEL-GR SPORT(LEATHER)&DOOR TRIM-LEATHER(GR SPORT),BLACK,TRIM2#

main33504-0K121-C0iGUN126..6FC..IND202412

BLACK,TRIM2#,THA SOURCED PARTS

main33504-0K131-C0iGUN120..S202408

BLACK,TRIM2#,3#

main33504-0K131-C0iGUN125,TGN121,126..6FC..(L,S)..GCC202408

STEERING WHEEL-URETHANE,BLACK,TRIM2#

main33504-0K131-C0iGUN126..RHD..6FC..S..GEN;GUN120,126,135..6FC..L..(BZAG,TH);GUN126,135..6FC..(L,S)..(ARL,LA,SA,VN);GUN125,136,TGN121,126..6FC..(L,S)..(ARL,BZAG,GEN,KEN,LA,MA,SA)202408

BLACK,TRIM2#

main33504-0K160-C0iLAN125..L202411

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main33504-0K160-C0iLAN125..L202411

BLACK,TRIM2#

main33504-0K220-C0iGUN125..6F..MA202409

BLACK,TRIM2#

main33504-0K230-C0iGUN125,126,135..(GHAP,SAP)..6F..S202411

BLACK,TRIM2#

main33504-0K230-C0iGUN125,126,135..(GHAP,SAP)..6F..S202411

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main33504-0K261-C0iGUN126..6F..H..IND202412

BLACK,TRIM2#

main33504-0K270-C0iTGN126..(AGTP,THP)..L..(LA,SA);GUN122,TGN121,136..(AGTP,THP)..L..(BZAG,GEN,PH,SA)202408

BLACK,TRIM2#,3#

main33504-0K270-C0iGUN122,TGN12#..5F..(L,S)..GCC202408

BLACK,TRIM2#

main33504-0K280-C0iGUN122,LAN125,TGN121,126,136..SAP..L202411

BLACK,TRIM2#

main33504-0K290-C0iGUN125..6F..L..GCC202408

BLACK,TRIM2#

main33504-0K290-C0iGUN125..6F..L..GCC202408

BLACK,TRIM2#,3#

main33504-0K300-C0iGUN125,135..(GHAP,KENP,SAP)..L202411

BLACK,TRIM2#

main33504-0K350-C0iGUN126..6FC..IND202412

BLACK,TRIM2#,IND SOURCED PARTS

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-0K010iTGN121..5F..ARL202408-202411

TYPE A:REFER 33-01

main33505-0K010iGUN136..6F..ARL202408-202411

TYPE B:REFER 33-01

main33505-0K010iGUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,KENP,MAP,SAP,THP)..6F202408

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33505-0K010iGUN126..6F..IND202412

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33505-35030iLAN125,TGN126..5F..L..(GCC,LA,SA)¥1,380202408

TYPE B:REFER 33-01

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-0K070iGUN121,122,13#..6F..(BZAG,GEN,LA,PH,SA,TH,VN)202408-202411

TYPE A:REFER 33-01

main33506-0K090iGUN136..6F..SA;GUN135..AGTP..LA;GUN121,122,135..6F..(BZAG,GEN,PH,SA,TH,VN)202408

TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC),TYPE B:REFER 33-01

main33506-0K090iGUN136..6F..SA;GUN135..AGTP..LA;GUN121,122,135..6F..(BZAG,GEN,PH,SA,TH,VN)202408

TYPE B:REFER 33-01

main33506-0K090iGUN136..6F..SA;GUN135..AGTP..LA;GUN121,122,135..6F..(BZAG,GEN,PH,SA,TH,VN)202408

TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 33-01

main33506-0K090iGUN136..6F..SA;GUN135..AGTP..LA;GUN121,122,135..6F..(BZAG,GEN,PH,SA,TH,VN)202408

TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITH,TYPE B:REFER 33-01

main33506-0K090iGUN136..6F..SA;GUN135..AGTP..LA;GUN121,122,135..6F..(BZAG,GEN,PH,SA,TH,VN)202408

ACTIVE SAFETY PACKAGE-WITH,TYPE B:REFER 33-01

main33506-0K090iGUN136..6F..SA;GUN135..AGTP..LA;GUN121,122,135..6F..(BZAG,GEN,PH,SA,TH,VN)202408

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33506-60061iLAN125,TGN126..5F..L..(GCC,LA,SA)¥3,460202408

TYPE B:REFER 33-01

main33570-0K030iGUN122..L..GEN;GUN122..(L,S)..(GCC,PH,SA);TGN120,121,136..LHD..5F..(L,S)..(BZAG,GCC,GEN,SA)202408

TYPE B:REFER 33-01

main33570-0K071iTGN126..L..GEN;LAN125,TGN126..5F..(H,S)202408

TYPE B:REFER 33-01

main33570-0K100iTGN121..5F..ARL202408-202411

TYPE B:REFER 33-01

main33570-0K111iGUN125,126..(AGTP,GHAP,KENP,MAP,SAP,THP)..6F202408

TYPE A:REFER 33-01

main33570-0K121iGUN125,126..(AGTP,GHAP,KENP,MAP,SAP,THP)..6F202408

TYPE B:REFER 33-01

33522FSEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)

main33522-0K010-C0iGUN122..TH;GUN122..S..GEN;GUN121,TGN121..MTM..(GEN,SA,TH)202408-202411

BLACK,TRIM2#

main33522-0K010-C0iGUN122..H;TGN120,121..5F..GCC202408

BLACK,TRIM2#,3#

main33522-0K020-C0iGUN122..(L,S)..GCC202408

BLACK,TRIM2#,3#

main33522-0K020-C0iGUN122..(L,S)..GCC202408

BLACK,TRIM2#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0K621iTGN121..5F..ARL202408-202411

main33530-0K631iTGN126..L..GEN;TGN126..5F..(H,S)202408

main33530-0K641iGUN122..H;GUN122..S..GEN202408

main33530-0K651iGUN122..L..GEN;GUN122..(L,S)..(GCC,PH,SA)202408

main33530-0K671iTGN120,121,136..LHD..5F..(L,S)..(BZAG,GCC,GEN,SA)202408

main33530-0K681iGUN121,122,13#..6F..(BZAG,GEN,LA,PH,SA,TH,VN)202408-202411

main33530-0K691iGUN125,126..(AGTP,GHAP,KENP,MAP,SAP,THP)..6F202408

main33530-0K731iGUN126..6F..IND202412

main33530-0K741iTGN126..5F..L..(GCC,LA,SA)202408

main33530-0K761iLAN125..L202411

main33530-0K781iLAN125..S202411

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iGUN122,LAN125,TGN12#,136..5F..(BZAG,GCC,GEN,LA,PH,SA)202408-202411

main33548-22020iGUN125,126..(AGTP,GHAP,KENP,MAP,SAP,THP)..6F¥170202408

main33548-60040iGUN121,122,13#..6F..(BZAG,GEN,LA,PH,SA,TH,VN)¥340202408-202411

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-0K010iGUN125,126..(AGTP,GHAP,KENP,MAP,SAP,THP)..6F202408

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33584-0K020iGUN136..6F..SA;GUN135..AGTP..LA;GUN121,122,135..6F..(BZAG,GEN,PH,SA,TH,VN)202408

TYPE B:REFER 33-01

main33584-0K020iGUN136..6F..ARL202408-202411

TYPE A:REFER 33-01

main33584-0K020iGUN121,122,13#..6F..(BZAG,GEN,LA,PH,SA,TH,VN)202408

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33584-60070iTGN126..L..GEN;LAN125,TGN126..5F..(H,S)202408

TYPE B:REFER 33-01

main33584-71010iTGN121..5F..ARL¥540202408-202411

TYPE B:REFER 33-01

91611B0825

main91611-B0825¥160

9 parts on this diagram · 7 diagrams in section
