Toyota HILUX (DOUBLE CAB) — REAR DOOR WINDOW REGULATOR & HINGE

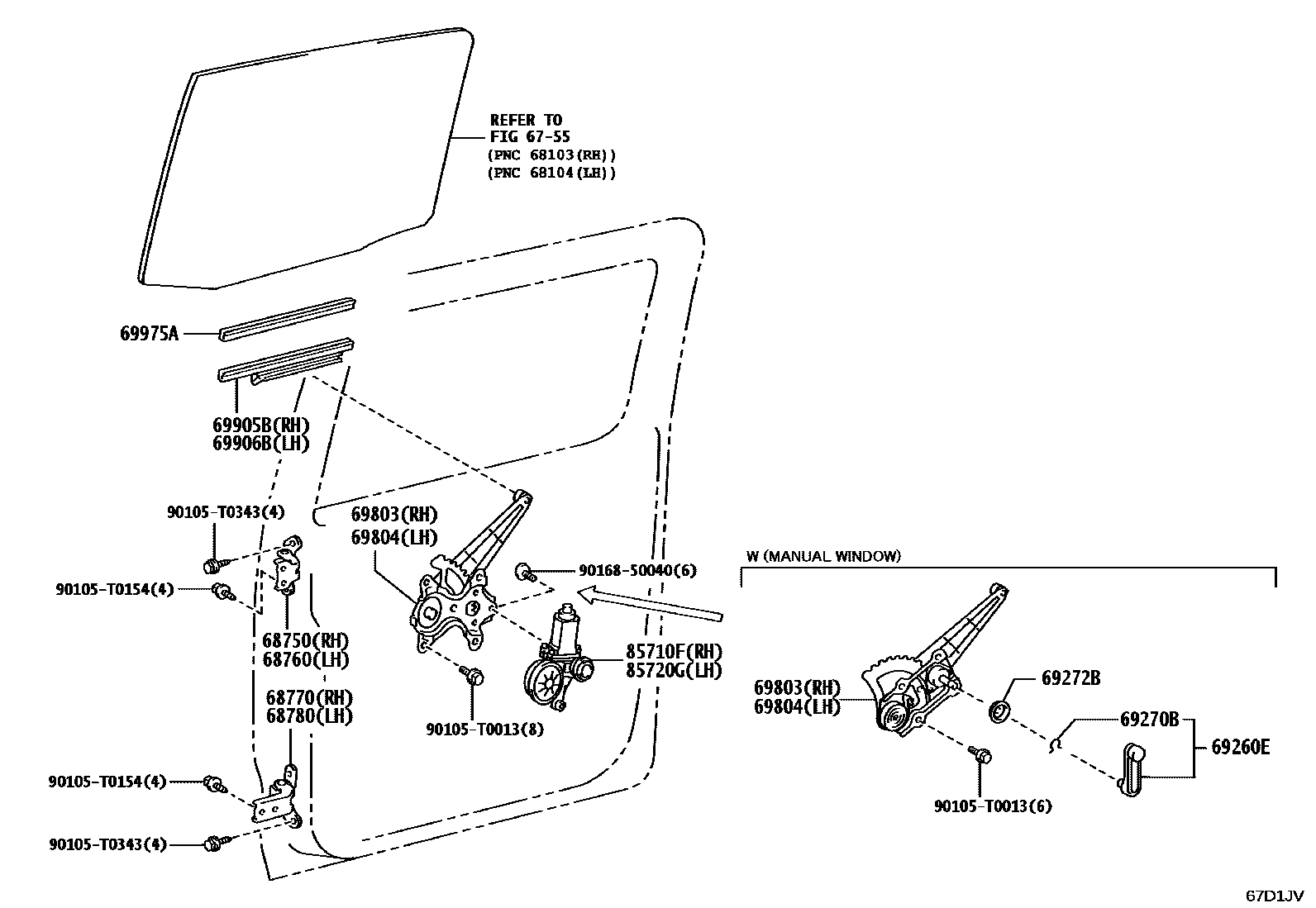

Parts diagram
6755
68750HINGE ASSY, REAR DOOR, UPPER RH
main68750-02020i202411
main68750-0D030i¥2,030202408-202411
main68750-0K100i202411
68760HINGE ASSY, REAR DOOR, UPPER LH
main68760-02020i202411
main68760-0D030i¥2,030202408-202411
main68760-0K100i202411
68770HINGE ASSY, REAR DOOR, LOWER RH
main68770-02020i202411
main68770-0D030i¥2,030202408-202411
main68770-0K020i202411
68780HINGE ASSY, REAR DOOR, LOWER LH
main68780-02020i202411
main68780-0D030i¥2,030202408-202411
main68780-0K020i202411
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
main69260-0K010-C0i202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
main69260-0K010-C0i202408
BLACK,TRIM2#,3#
main69260-0K010-C0i202408
BLACK,TRIM2#
main69260-0K010-C0i202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#,3#
main69260-0K040-C0i202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
main69260-0K040-C0i202411
BLACK,TRIM2#
main69260-0K040-C0i202411
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#
main69260-0K040-C0i202411
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
main69260-0K060-C0i202411
BLACK,TRIM2#
main69260-0K060-C0i202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
main90080-52152i202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main90080-52152i202411
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main90080-52152i202411
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main90080-52152i202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main90520-01274i¥160202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
main69268-02022i¥100202411
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69268-02022i¥100202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69268-02022i¥100202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69268-02022i¥100202411
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69268-04020i202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
main69803-0K110i¥3,430202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69803-0K110i¥3,430202408-202411
main69803-0K120i202411
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69803-0K120i202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69803-0K130i202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69803-0K150i202412
main69803-0K160i202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69830-0K180i202408
main69830-0K210i202411
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69830-0K210i202411
EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69830-0K240i202411
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
main69804-0K110i¥3,430202408-202411
main69804-0K110i¥3,430202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69804-0K120i202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69804-0K120i202411
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69804-0K130i202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69804-0K150i202412
main69804-0K160i202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69840-0K180i202408
main69840-0K210i202411
EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69840-0K210i202411
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69840-0K240i202411
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
main69905-0K071i¥450202408-202411
main69905-0K080i202411
main69905-0K090i202411
main69905-0K110i202412
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
main69906-0K071i¥450202408-202411
main69906-0K080i202411
main69906-0K090i202411
main69906-0K110i202412
69975AFILLER, REAR DOOR GLASS CHANNEL
main69975-0D040i202412
main69975-0D130i¥360202408-202411
main69975-0K050i202411
main69975-0K060i202411
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85720-0D580i202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85720-0K180i¥15,900202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85720-0K180i¥15,900202408-202411
main85720-0K180i¥15,900202408
WIRELESS DOOR LOCK-WITH
main85720-0K200i202408
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main85720-0K200i202408
GCC SPEC EURO4 2018MY&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main85720-0K200i202408
GCC SPEC EURO4 2022MY&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main85720-0K200i202408
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main85720-0K200i202408
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
main85720-0K200i202408
WIRELESS DOOR LOCK-WITH(*SES)
main85720-0K200i202408
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main85720-0K270i¥20,900202408-202411
main85720-0K270i¥20,900202408
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main85720-0K290i202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85720-0K290i202411
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85720-0K300i202411
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main85720-0K320i202412
85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85710-0D580i202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85710-0K180i¥15,900202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85710-0K180i¥15,900202408
WIRELESS DOOR LOCK-WITH
main85710-0K180i¥15,900202408-202411
main85710-0K220i202408
GCC SPEC EURO4 2018MY&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main85710-0K220i202408
GCC SPEC EURO4 2022MY&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main85710-0K220i202408
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main85710-0K220i202408
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
main85710-0K220i202408
WIRELESS DOOR LOCK-WITH(*SES)
main85710-0K220i202408
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main85710-0K220i202408
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main85710-0K270i¥20,900202408
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main85710-0K270i¥20,900202408-202411
main85710-0K290i202411
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85710-0K290i202411
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85710-0K300i202411
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main85710-0K320i202412
90105T0013
main90105-T0013¥60
90105T0154
main90105-T0154
90105T0343
main90105-T0343
9016850040
main90168-50040¥70

19 parts on this diagram · 1 diagram in section
