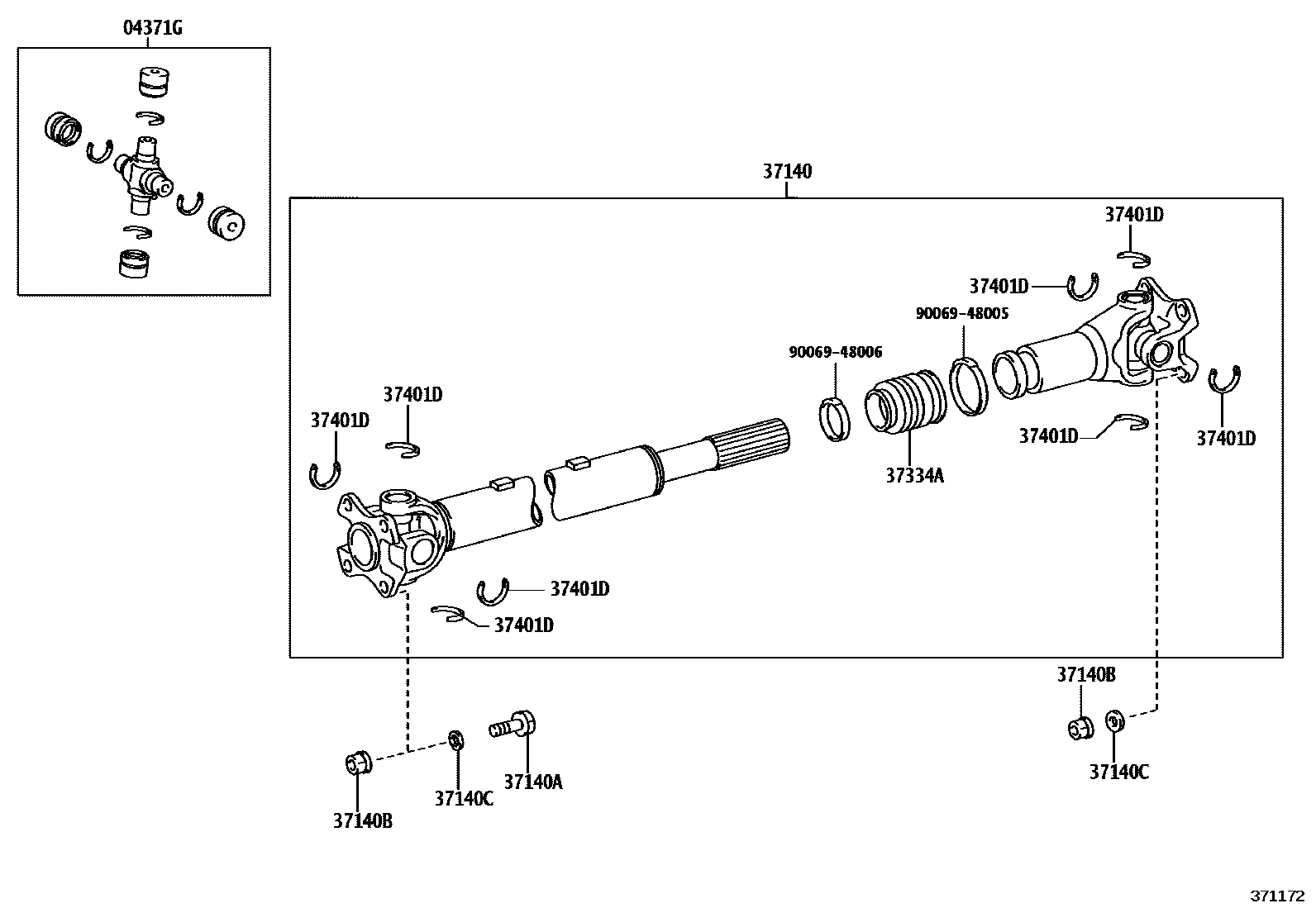

Toyota HILUX (DOUBLE CAB) — PROPELLER SHAFT & UNIVERSAL JOINT

0001 1FRONT 0002 1FRONT 0003 1REAR 0004 1REAR 0005 1REAR 0006 1

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-0K110iGUN126..H..DCRL..IV3¥4,380202408-202411

main04371-0K110iGUN126..IND¥4,380202412

main04371-0K110iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU¥4,380202408

main04375-0K012iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP202411

37140SHAFT ASSY, PROPELLER, FRONT

main37140-0K010iGUN126..6FC..IND¥36,200202412

main37140-0K010iGUN126..H..DCRL..IV3¥36,200202408-202411

main37140-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN125..(MAP,THP)..6FC;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU¥36,200202408

main37140-0K020iGGN125,TGN126..THP202408

main37140-0K030iGUN125,126..(MAP,THP)..6F¥36,200202408

main37140-0K030iGUN126..6F..IND¥36,200202412

main37140-0K052iTGN126..SAP..5F202411

main37140-0K072iGGN125,TGN126..AGTP202411

main37140-0K102iGUN125,126..AGTP..6F202411

main37140-0K112iGUN125,126..(GHAP,KENP,SAP)..6F202411

main37140-0K152iTGN126..SAP..6FC;GGN125,LAN125..SA202411

main37140-0K162iGUN125,126..AGTP..6FC202411

main37140-0K202iGUN125,126..6FC..(GHA,KEN,SA)202411

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-T0084iGUN126..H..DCRL..IV3202408-202411

main90105-T0084iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408

main90105-T0084iGUN126..IND202412

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90178-T0024iGUN126..H..DCRL..IV3202408-202411

main90178-T0024iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408

main90178-T0024iGUN126..IND202412

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90201-T0003iGUN126..IND202412

sub90201-11013¥90

main90201-T0003iGUN126..H..DCRL..IV3202408-202411

sub90201-11013¥90

main90201-T0003iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408

sub90201-11013¥90

37334ABOOT, SLIDING SHAFT

main37334-0C010iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP¥370202411

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90080-52038iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP¥170202411

T=1.64,BLUE

main90080-52039iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP¥170202411

T=1.59,YELLOW

main90080-52040iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP¥170202411

T=1.54,SILVER

main90080-52041iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP¥170202411

T=1.49,COPPER

main90080-52042iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP¥170202411

T=1.51,BLACK

main90080-52043iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP¥170202411

T=1.44,RED

main90080-52044iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP¥170202411

T=1.38,GREEN

main90080-52174iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP202411

T=1.41

main90080-52175iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP202411

T=1.46

main90080-52176iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP202411

T=1.48

main90080-52177iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP202411

T=1.56

main90080-52178iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP202411

T=1.61

main90080-52179iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP202411

T=1.66

main90080-52180iGGN125,GUN125,126,LAN125,TGN126..AGTP,GHAP,KENP,SAP202411

T=1.71

main90520-T0007iGUN126..IND202412

T=2.19,MARK F

main90520-T0007iGUN126..H..DCRL..IV3202408-202411

T=2.19,MARK F

main90520-T0007iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.19,MARK F

main90520-T0008iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.21,MARK G

main90520-T0008iGUN126..IND202412

T=2.21,MARK G

main90520-T0008iGUN126..H..DCRL..IV3202408-202411

T=2.21,MARK G

main90520-T0009iGUN126..H..DCRL..IV3202408-202411

T=2.23,MARK H

main90520-T0009iGUN126..IND202412

T=2.23,MARK H

main90520-T0009iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.23,MARK H

main90520-T0010iGUN126..H..DCRL..IV3202408-202411

T=2.25,MARK J

main90520-T0010iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.25,MARK J

main90520-T0010iGUN126..IND202412

T=2.25,MARK J

main90520-T0011iGUN126..H..DCRL..IV3202408-202411

T=2.27,MARK K

main90520-T0011iGUN126..IND202412

T=2.27,MARK K

main90520-T0011iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.27,MARK K

main90520-T0012iGUN126..H..DCRL..IV3202408-202411

T=2.29,MARK 1

main90520-T0012iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.29,MARK 1

main90520-T0012iGUN126..IND202412

T=2.29,MARK 1

main90520-T0013iGUN126..H..DCRL..IV3202408-202411

T=2.31,MARK 2

main90520-T0013iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.31,MARK 2

main90520-T0013iGUN126..IND202412

T=2.31,MARK 2

main90520-T0014iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.33,MARK 3

main90520-T0014iGUN126..H..DCRL..IV3202408-202411

T=2.33,MARK 3

main90520-T0014iGUN126..IND202412

T=2.33,MARK 3

main90520-T0015iGUN126..IND202412

T=2.35,MARK 4

main90520-T0015iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.35,MARK 4

main90520-T0015iGUN126..H..DCRL..IV3202408-202411

T=2.35,MARK 4

main90520-T0016iGUN126..H..DCRL..IV3202408-202411

T=2.37,MARK 5

main90520-T0016iGUN126..IND202412

T=2.37,MARK 5

main90520-T0016iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.37,MARK 5

main90520-T0017iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.39,MARK 6

main90520-T0017iGUN126..H..DCRL..IV3202408-202411

T=2.39,MARK 6

main90520-T0017iGUN126..IND202412

T=2.39,MARK 6

main90520-T0018iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.41,MARK 7

main90520-T0018iGUN126..H..DCRL..IV3202408-202411

T=2.41,MARK 7

main90520-T0018iGUN126..IND202412

T=2.41,MARK 7

main90520-T0019iGUN126..H..DCRL..IV3202408-202411

T=2.43,MARK 8

main90520-T0019iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.43,MARK 8

main90520-T0019iGUN126..IND202412

T=2.43,MARK 8

main90520-T0020iGUN126..IND202412

T=2.45,MARK N

main90520-T0020iGUN126..H..DCRL..IV3202408-202411

T=2.45,MARK N

main90520-T0020iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.45,MARK N

main90520-T0021iGUN126..H..DCRL..IV3202408-202411

T=2.47,MARK 10

main90520-T0021iGUN126..IND202412

T=2.47,MARK 10

main90520-T0021iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.47,MARK 10

main90520-T0022iGUN126..IND202412

T=2.49,MARK A

main90520-T0022iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.49,MARK A

main90520-T0022iGUN126..H..DCRL..IV3202408-202411

T=2.49,MARK A

main90520-T0023iGUN126..H..DCRL..IV3202408-202411

T=2.51,MARK B

main90520-T0023iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.51,MARK B

main90520-T0023iGUN126..IND202412

T=2.51,MARK B

main90520-T0024iGUN126..H..DCRL..IV3202408-202411

T=2.53,MARK C

main90520-T0024iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.53,MARK C

main90520-T0024iGUN126..IND202412

T=2.53,MARK C

main90520-T0025iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.55,MARK D

main90520-T0025iGUN126..H..DCRL..IV3202408-202411

T=2.55,MARK D

main90520-T0025iGUN126..IND202412

T=2.55,MARK D

main90520-T0026iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU202408

T=2.57,MARK E

main90520-T0026iGUN126..IND202412

T=2.57,MARK E

main90520-T0026iGUN126..H..DCRL..IV3202408-202411

T=2.57,MARK E

9006948005

main90069-48005¥180

9006948006

main90069-48006¥170

9 parts on this diagram · 6 diagrams in section
