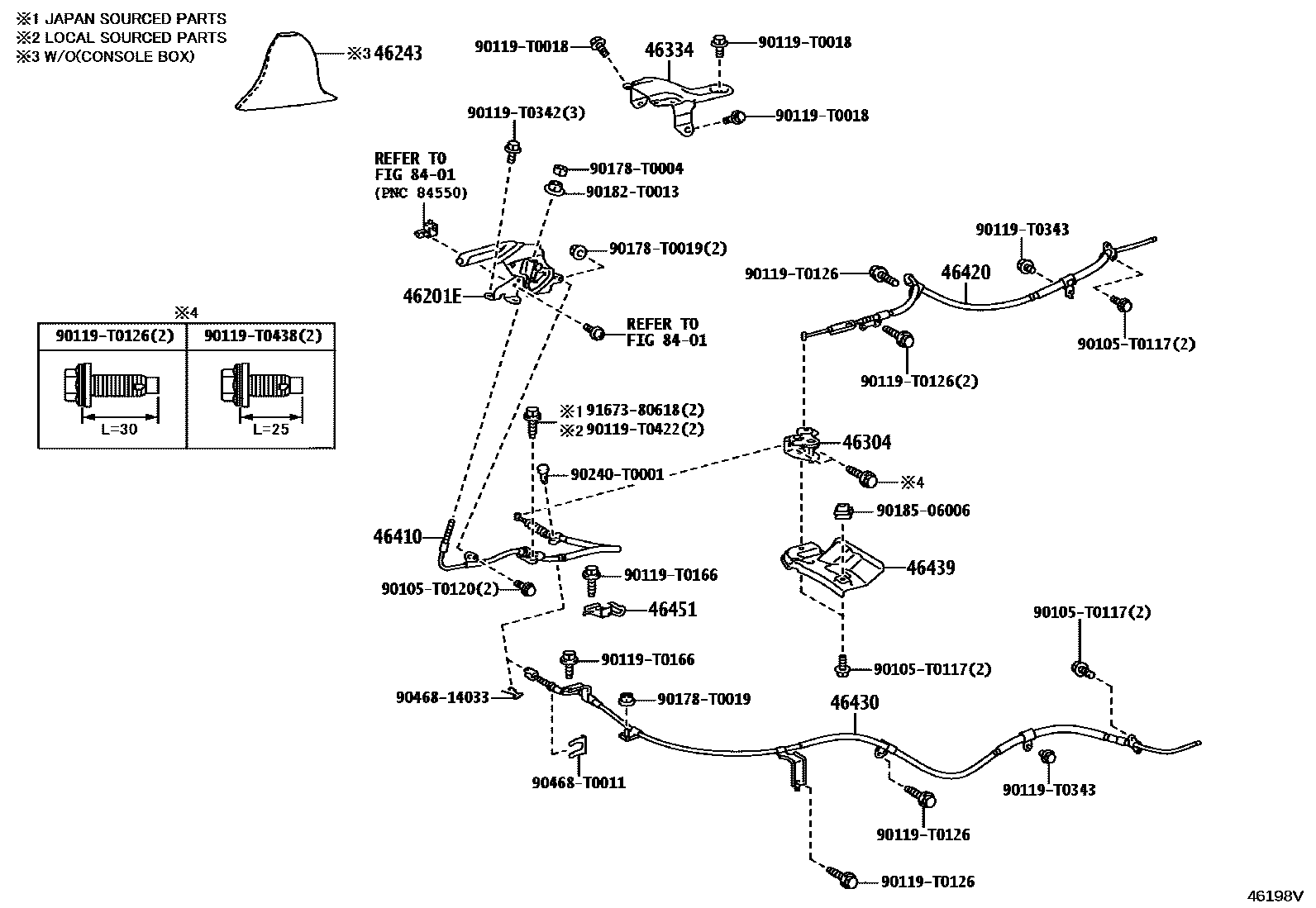

Toyota HILUX (DOUBLE CAB) — PARKING BRAKE & CABLE

0001 1 0002 1 0003 1W(PARKING BRAKE SHOE)

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K140-C0iGUN126..H..IND202412

BLACK,TRIM2#

main46201-0K150-C0iGUN126..S..IND202412

BLACK,TRIM2#,TYPE A:REFER ILLUST.

main46201-0K190-C0iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)202411

BLACK,TRIM2#

main46201-0K210-C0iGUN126..S..SA202411

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#

main46201-0K210-C0iGGN125,GUN125,126,136..H..(GHA,KEN,SA)202411

BLACK,TRIM2#

main46201-0K230-C0iGUN126..H..DCRL..IV3202408-202411

BLACK,TRIM2#

main46201-0K250-C0iGUN136,TGN121..MTM..ARL202408-202411

BLACK,TRIM2#

main46201-0K250-C0iGGN125,GUN122,125,126,TGN12#..GCC202408

BLACK,TRIM2#,3#

main46201-0K250-C0iGUN126..S..IND202412

BLACK,TRIM2#,TYPE B:REFER ILLUST.

main46201-0K260-C0iGUN125,126,135,TGN126,136..AGTP..L202411

BLACK,TRIM2#

main46201-0K280-C0iGUN122,125,126,135,LAN125,TGN121,126,136..(GHAP,KENP,SAP)..(L,S)202411

BLACK,TRIM2#

46243COVER, PARKING BRAKE LEVER

main46243-0K020-C0iGUN122..RHD..GEN;GUN125,TGN121,126..THP..L..SA202408

BLACK,TRIM2#

main46243-0K020-C0iGUN122..RHD..GEN;GUN125,TGN121,126..THP..L..SA202408

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#

main46243-0K020-C0iGUN122..RHD..GEN;GUN125,TGN121,126..THP..L..SA202408

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main46243-0K020-C0iTGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202408

BLACK,TRIM2#,3#

main46243-0K030-C0iGUN125,135,LAN125,TGN121,126,136..(KENP,SAP)..L202411

FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#

main46243-0K030-C0iGUN125,LAN125,TGN121,126..(KENP,SAP)..L202411

BLACK,TRIM2#

main46243-0K030-C0iGUN125,LAN125,TGN121,126..(KENP,SAP)..L202411

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,220202408-202411

main46304-0K090iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGUN126..IND¥2,300202409

main46334-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥2,080202408-202411

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K070iGUN126..IND202412

main46410-0K120iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121¥2,110202408-202411

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K160iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH¥2,900202408-202411

main46420-0K210iGUN126..IND¥3,010202408-202411

main46420-0K220iGUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP202411

main46420-0K280iGGN125..LHD202408

main46420-0K290iTGN126..GEN¥3,010202408

ASIA COLD COUNTRY SPEC

main46420-0K290iTGN126..GEN¥3,010202408

AZERBAIJAN SPEC

main46420-0K300iGGN125..SA202411

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K120iGUN125..LHD..(H,L)..GEN¥3,740202408

ASIA COLD COUNTRY SPEC

main46430-0K120iGUN125..LHD..(H,L)..GEN¥3,740202408

AZERBAIJAN SPEC

main46430-0K160iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH¥3,600202408-202411

main46430-0K210iGUN126..S..IV3;GUN136..LHD..6F;GUN126..H..MHV..IV3;GUN126..(AGTP,CAMP,MAP,MMRP,THP)..CBU;GGN125,GUN125,135,TGN136..AGTP,MAP,THP;GUN136,TGN126..(AGTP,THP)..(5F,6FC).¥3,740202408-202411

main46430-0K220iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP202411

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121¥1,390202408-202411

46451BRACKET, CABLE SUPPORT

main46451-0K040iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥540202408-202411

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166¥80

90119T0342

main90119-T0342

90119T0343

main90119-T0343¥110

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013¥80

9018506006

main90185-06006¥80

90240T0001

main90240-T0001

9046814033

main90468-14033¥90

90468T0011

main90468-T0011

9167380618

main91673-80618¥60

27 parts on this diagram · 3 diagrams in section
