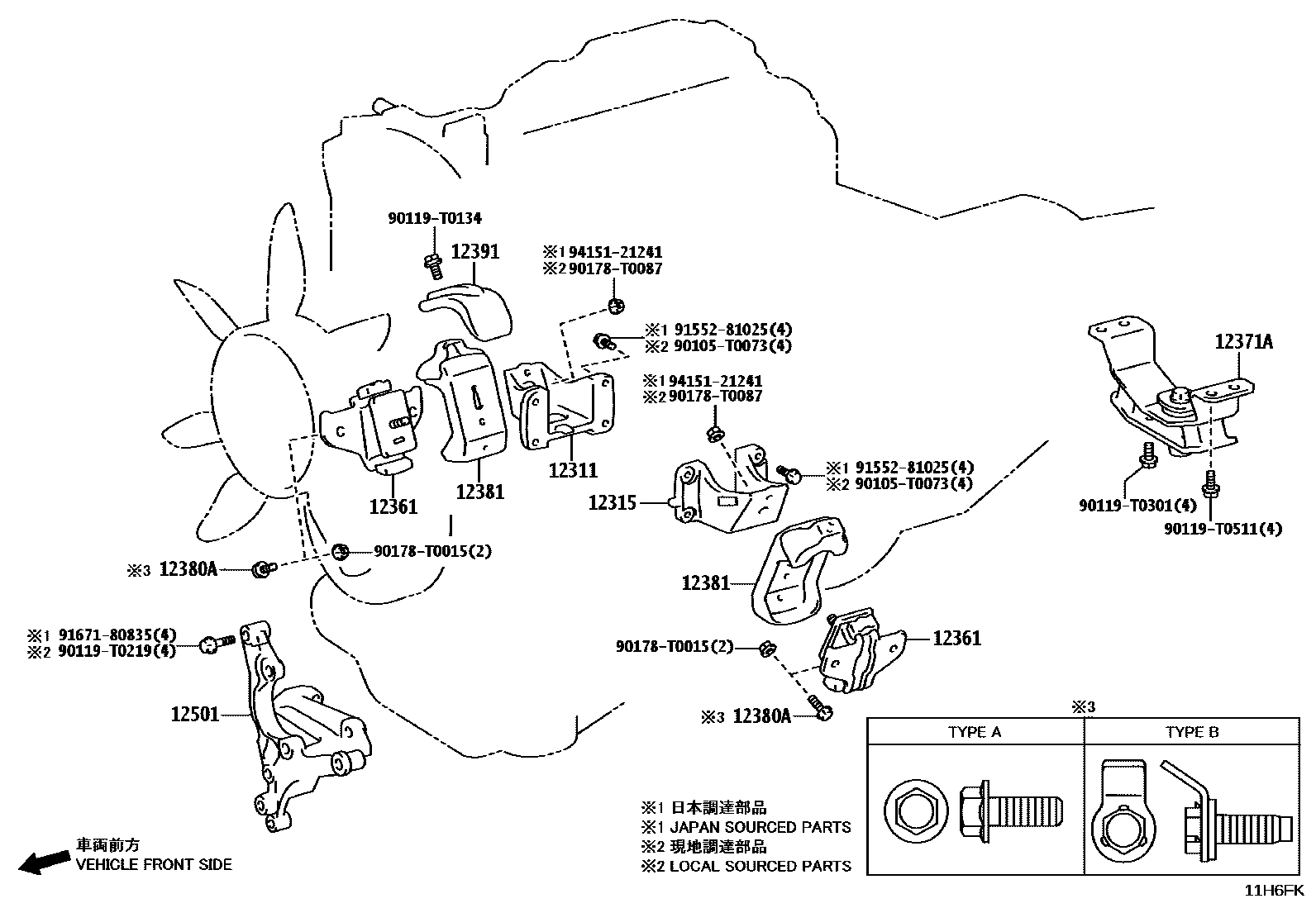

Toyota HILUX (DOUBLE CAB) — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IDN SOURCED PARTS
main12311-0C010i2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,LA,SA);1TRFE,2TRFE..TGN120,136..BZAG,GCC,LA,SA202408
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
main12311-0C010i2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,LA,SA);1TRFE,2TRFE..TGN120,136..BZAG,GCC,LA,SA202408
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
main12311-0C010i2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,LA,SA);1TRFE,2TRFE..TGN120,136..BZAG,GCC,LA,SA202408
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
main12311-0C010i2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,LA,SA);1TRFE,2TRFE..TGN120,136..BZAG,GCC,LA,SA202408
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDNSOURCED PARTS
THA SOURCED PARTS
URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main12311-0E020i1GDFTV..GUN126..S..IV3;1GDFTV..GUN136..RHD..6FC;1GDFTV..GUN126..H..MHV..IV3;1GDFTV..GUN136..6F..(LA,SA);2GDFTV..GUN125..AGTP..6F..LA;2GDFTV..GUN125..GHAP,KENP,MAP,S202408-202411
THA SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA SOURCED PARTS
COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),ARG SOURCEDPARTS
ARG SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,ARG SOURCED PARTS
main12311-0E050i2GDFTV..GUN125..6FC..S..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN202408
EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS
main12311-0E050i2GDFTV..GUN125..6FC..S..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN202408
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12311-0E050i2GDFTV..GUN125..6FC..S..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN202408
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12311-0E050i2GDFTV..GUN125..6FC..S..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN202408
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12311-0E050i2GDFTV..GUN125..6FC..S..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN202408
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12311-0E050i2GDFTV..GUN125..6FC..S..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN202408
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12311-0E050i2GDFTV..GUN125..6FC..S..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN202408
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCEDPARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
AZERBAIJAN SPEC,JAPAN SOURCED PARTS
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
BRAZIL SPEC&EXHAUST EMISSION CONTROL-L8
main12315-0C010i2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,LA,SA);1TRFE,2TRFE..TGN120,136..BZAG,GCC,LA,SA202408
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
main12315-0C010i2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,LA,SA);1TRFE,2TRFE..TGN120,136..BZAG,GCC,LA,SA202408
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
main12315-0C010i2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,LA,SA);1TRFE,2TRFE..TGN120,136..BZAG,GCC,LA,SA202408
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDNSOURCED PARTS
IDN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
THA SOURCED PARTS
main12315-0E010i1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..6F..S..BZAG;2GDFTV..GUN125..AGTP..6FC..LA;1GDFTV,2GDFTV..GUN125,13#..BZAG202411
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main12315-0E010i1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..6F..S..BZAG;2GDFTV..GUN125..AGTP..6FC..LA;1GDFTV,2GDFTV..GUN125,13#..BZAG202411
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA SOURCED PARTS
main12315-0E010i1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..6F..S..BZAG;2GDFTV..GUN125..AGTP..6FC..LA;1GDFTV,2GDFTV..GUN125,13#..BZAG202411
URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main12315-0E010i1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..6F..S..BZAG;2GDFTV..GUN125..AGTP..6FC..LA;1GDFTV,2GDFTV..GUN125,13#..BZAG202411
COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
main12315-0E010i1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..6F..S..BZAG;2GDFTV..GUN125..AGTP..6FC..LA;1GDFTV,2GDFTV..GUN125,13#..BZAG202411
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main12315-0E010i1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..6F..S..BZAG;2GDFTV..GUN125..AGTP..6FC..LA;1GDFTV,2GDFTV..GUN125,13#..BZAG202411
EXHAUST EMISSION CONTROL-TIER 2.5
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,ARG SOURCED PARTS
main12315-0E030i1GDFTV..GUN136..BZAG;1GDFTV..GUN126..AGTP..H;2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126..AGTP..6F..S;1GDFTV..GUN126..AGTP..L..LA202411
ARG SOURCED PARTS
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),ARG SOURCED PARTS
main12315-0E030i1GDFTV..GUN136..BZAG;1GDFTV..GUN126..AGTP..H;2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126..AGTP..6F..S;1GDFTV..GUN126..AGTP..L..LA202411
URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),ARG SOURCEDPARTS
main12315-0E030i1GDFTV..GUN136..BZAG;1GDFTV..GUN126..AGTP..H;2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126..AGTP..6F..S;1GDFTV..GUN126..AGTP..L..LA202411
EXHAUST EMISSION CONTROL-TIER 2.5,ARG SOURCED PARTS
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
main12315-0E040i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..(ARL,IND)..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS
main12315-0E040i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..(ARL,IND)..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12315-0E040i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..(ARL,IND)..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12315-0E040i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..(ARL,IND)..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12315-0E040i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..(ARL,IND)..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12315-0E040i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..(ARL,IND)..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCEDPARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
AZERBAIJAN SPEC,JAPAN SOURCED PARTS
12361INSULATOR, ENGINE MOUNTING, FRONT
main12361-0L021i1GDFTV..GUN126..CBU;1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135¥4,140202408-202411
(L)
(J)
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12371AINSULATOR, ENGINE MOUNTING, REAR
12380ABOLT(FOR ENGINE MOUNTING INSURATOR)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12381STABILIZER, ENGINE MOUNTING
main12381-0L081i1GDFTV..GUN126..CBU;1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135¥1,950202408-202411
(L)
main12381-30091i1GDFTV..GUN126..CBU;1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135¥1,750202408-202411
(J)
12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
MARK=T
MARK=A
MARK=S
MARK=T
12501BRACKET SUB-ASSY, ALTERNATOR
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCEDPARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
AZERBAIJAN SPEC,JAPAN SOURCED PARTS
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
90105T0073
main90105-T0073
90119T0134
90119T0219
main90119-T0219
90119T0301
main90119-T0301
90119T0511
90178T0015
main90178-T0015
90178T0087
main90178-T0087
9155281025
9167180835
9415121241
19 parts on this diagram · 9 diagrams in section
