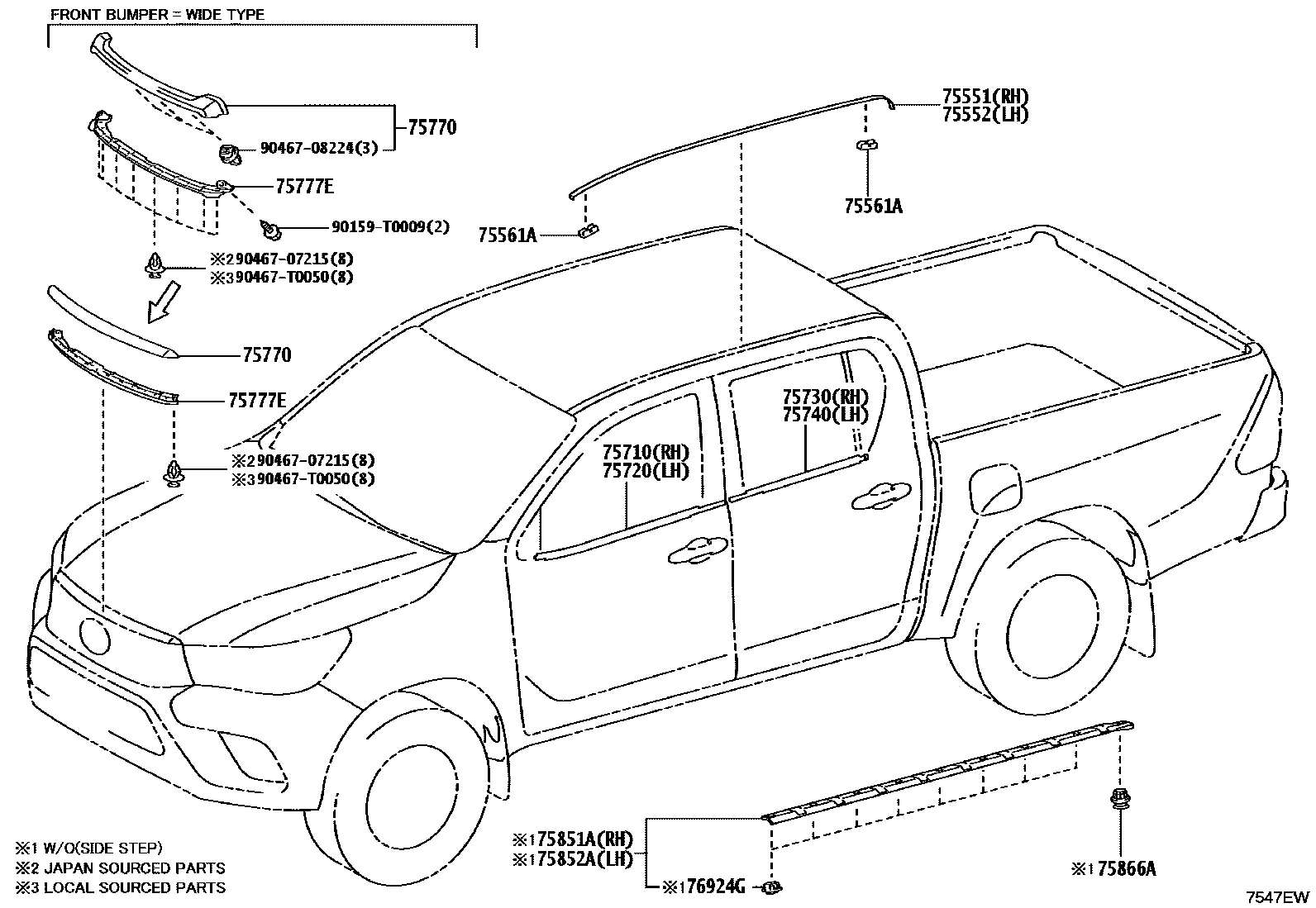

Toyota HILUX (DOUBLE CAB) — MOULDING
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
NO PAINT REQ.
main75551-0K160iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122¥2,160202408
NO PAINT REQ.
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
NO PAINT REQ.
main75552-0K160iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122¥2,160202408
NO PAINT REQ.
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-33030iGUN126..S..IV3;GUN136..LHD..6F;TGN121..LHD..THP;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG);GUN126..(AGTP,CAMP,MAP,MMRP,THP)..CBU;GGN125,GUN120,121,122,125,1¥140202408
(J)
75710MOULDING ASSY, FRONT DOOR BELT, RH
main68160-0K010iGUN126..CAMP;GUN126..S..IV3;GUN125,135..L,S;GUN126..H..MHV..IV3;GUN125..LHD..H..GEN;GUN136..6F..(LA,SA);GUN136,TGN121..RHD..6FC;GUN125..H..(GCC,IDN,SA);GUN126..(L,S¥2,880202408
DOOR BELT MOULDING-WITH(BLACK)
main68160-0K070iGUN125..RHD..H..(GEN,MA);GUN126,13#..(AGTP,MAP,MMRP,THP)..H..(BZAG,GEN,MA,MMR,PH,TH,VN)¥2,880202408
PLANT TMT
PLANT TKM
75720MOULDING ASSY, FRONT DOOR BELT, LH
main68210-0K010iGUN135..6FC..H;GUN126..6FC..TH;GUN135..LHD..6F..H;GUN125..RHD..H..GEN;GUN126,136..(AGTP,MAP,MMRP,THP)..H..(BZAG,GEN,MA,MMR,PH,VN)¥2,880202408
DOOR BELT MOULDING-WITH(BLACK)
PLANT TMT
main68210-0K070iGUN125..RHD..H..(GEN,MA);GUN126,13#..(AGTP,MAP,MMRP,THP)..H..(BZAG,GEN,MA,MMR,PH,TH,VN)¥2,880202408
PLANT TKM
75730MOULDING ASSY, REAR DOOR BELT, RH
main68180-0K010iGUN126..CAMP;GUN126..S..IV3;GUN125,135..L,S;GUN126..H..MHV..IV3;GUN125..LHD..H..GEN;GUN136..6F..(LA,SA);GUN136,TGN121..RHD..6FC;GUN125..H..(GCC,IDN,SA);GUN126..(L,S¥2,480202408
DOOR BELT MOULDING-WITH(BLACK)
main68180-0K120iGUN125..RHD..H..(GEN,MA);GUN126,13#..(AGTP,MAP,MMRP,THP)..H..(BZAG,GEN,MA,MMR,PH,TH,VN)¥2,480202408
75740MOULDING ASSY, REAR DOOR BELT, LH
main68230-0K010iGUN135..6FC..H;GUN126..6FC..TH;GUN135..LHD..6F..H;GUN125..RHD..H..GEN;GUN126,136..(AGTP,MAP,MMRP,THP)..H..(BZAG,GEN,MA,MMR,PH,VN)¥2,480202408
DOOR BELT MOULDING-WITH(BLACK)
main68230-0K120iGUN125..RHD..H..(GEN,MA);GUN126,13#..(AGTP,MAP,MMRP,THP)..H..(BZAG,GEN,MA,MMR,PH,TH,VN)¥2,480202408
75770MOULDING ASSY, HOOD, FRONT
PLATED,REAR BUMPER-STEP TYPE(PLATED)
PLATED,RADIATOR GRILLE-PAINTING
PLATED,RADIATOR GRILLE-CHROME PLATED
PLATED
PLATED,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE
PLATED,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE
NO PAINT REQ.,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SI
NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)
NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)
NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)
NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(B
NO PAINT REQ.,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&OUTSIDEREAR VIEW MIRROR-*273(BLACK) & W(*SITL)
NO PAINT REQ.,TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & BLACK(MLM)
NO PAINT REQ.,TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
NO PAINT REQ.,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & BLACK(MLM)
PLATED,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR
PLATED,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLORMOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
PLATED
PLATED,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED
NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR
NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.,TIRE & DISC WHEEL-265/60R18 ALUMINUM
NO PAINT REQ.,TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main75770-0K380iGUN135..L..LA;GUN126..THP..L;GUN125..AGTP..L..LA;GUN125..RHD..6F..L..GEN¥4,070202408-202501
NO PAINT REQ.
main75770-0K380iGUN135..L..LA;GUN126..THP..L;GUN125..AGTP..L..LA;GUN125..RHD..6F..L..GEN¥4,070202408-202501
NO PAINT REQ.,MLM Z-PLUS PACKAGE
main75770-0K380iGUN135..L..LA;GUN126..THP..L;GUN125..AGTP..L..LA;GUN125..RHD..6F..L..GEN¥4,070202408-202501
NO PAINT REQ.,RUGGED X PACKAGE
main75770-0K380iGUN135..L..LA;GUN126..THP..L;GUN125..AGTP..L..LA;GUN125..RHD..6F..L..GEN¥4,070202408-202501
NO PAINT REQ.,TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main75770-0K380iGUN135..L..LA;GUN126..THP..L;GUN125..AGTP..L..LA;GUN125..RHD..6F..L..GEN¥4,070202408-202501
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE
NO PAINT REQ.
main75770-0K390iGUN136..6FC..S;GUN126..RHD..THP..S;GUN125..6FC..L..GEN;GUN135..(L,S)..(PH,VN);GUN126,135..THP..S..LA;GUN125,TGN126..(MAP,THP)..S..(GEN,LA,MA,SA,VN)202408-202501
NO PAINT REQ.,RADIATOR GRILLE-PAINTING
main75770-0K390iGUN136..6FC..S;GUN126..RHD..THP..S;GUN125..6FC..L..GEN;GUN135..(L,S)..(PH,VN);GUN126,135..THP..S..LA;GUN125,TGN126..(MAP,THP)..S..(GEN,LA,MA,SA,VN)202408-202501
NO PAINT REQ.,WHEEL ARCH-WIDE TYPE(MLM)&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
main75770-0K390iGUN136..6FC..S;GUN126..RHD..THP..S;GUN125..6FC..L..GEN;GUN135..(L,S)..(PH,VN);GUN126,135..THP..S..LA;GUN125,TGN126..(MAP,THP)..S..(GEN,LA,MA,SA,VN)202408-202501
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE
main75770-0K390iGUN136..6FC..S;GUN126..RHD..THP..S;GUN125..6FC..L..GEN;GUN135..(L,S)..(PH,VN);GUN126,135..THP..S..LA;GUN125,TGN126..(MAP,THP)..S..(GEN,LA,MA,SA,VN)202408-202501
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&RADIATOR GRILLE-PAINTING
main75770-0K390iGUN136..6FC..S;GUN126..RHD..THP..S;GUN125..6FC..L..GEN;GUN135..(L,S)..(PH,VN);GUN126,135..THP..S..LA;GUN125,TGN126..(MAP,THP)..S..(GEN,LA,MA,SA,VN)202408-202501
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,RADIATOR GRILLE-MATERIAL COLOR
NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&REARBUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED&REAR BUMPER-WITH(*RUPD(PAINTED))
PLATED,GR SPORT WIDE TREAD
PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)
PLATED,TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED
PLATED,TIRE & DISC WHEEL-265/65R17 STEEL&RADIATOR GRILLE-CHROME PLATED
PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&RADIATOR GRILLE-CHROME PLATED
PLATED,TIRE & DISC WHEEL-265/60R18 ALUMINUM&RADIATOR GRILLE-CHROME PLATED
PLATED,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED
PLATED,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
PLATED,FRONT BUMPER-PAINTED(MLM)&RADIATOR GRILLE-CHROME PLATED
PLATED
PLATED,MLM ADVENTURE PACKAGE
PLATED,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
PLATED,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
PLATED,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM
PLATED,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
PLATED,MLM Z-PLUS PACKAGE
PLATED,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
PLATED,MLM Z-PLUS PACKAGE&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
PLATED,MLM ADVENTURE WIDE TREAD
PLATED,MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM
PLATED,MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM)
PLATED,MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM)
PLATED
PLATED
NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,RADIATOR GRILLE-PAINTING
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-PAINTING
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-PAINTING
main75770-0K470iGUN125,135..RHD..6FC..SA;GUN125,126..H..(GHA,KEN,SA);GGN125,GUN136,TGN136..RHD..SA202411
PLATED,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
PLATED,TIRE & DISC WHEEL-265/65R17 STEEL&RADIATOR GRILLE-CHROME PLATED
PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&RADIATOR GRILLE-CHROME PLATED
PLATED
PLATED,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
PLATED,MLM Z-PLUS PACKAGE
PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.
PLATED
PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&AUDIO-*DA(8INCH) & *BT
PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&AUDIO-AUDIO (IN LINE ACCESSORY)
75777EPAD, HOOD FRONT MOULDING
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & BLACK(MLM)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & BLACK(MLM)
TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SIT
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main53393-0K020iGUN125..L..GHA;TGN126,136..SAP..L;GUN122,125,135,LAN125,TGN121..(KENP,SAP)..MTM..(L,S)202411
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR
main53393-0K020iGUN125..L..GHA;TGN126,136..SAP..L;GUN122,125,135,LAN125,TGN121..(KENP,SAP)..MTM..(L,S)202411
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED
main53393-0K020iGUN125..L..GHA;TGN126,136..SAP..L;GUN122,125,135,LAN125,TGN121..(KENP,SAP)..MTM..(L,S)202411
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&REAR BUMPER-WITH(*RUPD(PAINTED))
main53393-0K020iGUN125..L..GHA;TGN126,136..SAP..L;GUN122,125,135,LAN125,TGN121..(KENP,SAP)..MTM..(L,S)202411
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED&REAR BUMPER-WITH(*RUPD(PAINTED))
main53393-0K020iGUN125..L..GHA;TGN126,136..SAP..L;GUN122,125,135,LAN125,TGN121..(KENP,SAP)..MTM..(L,S)202411
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
main53393-0K020iGUN125..L..GHA;TGN126,136..SAP..L;GUN122,125,135,LAN125,TGN121..(KENP,SAP)..MTM..(L,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&RADIATOR GRILLE-CHROME PLATED
TIRE & DISC WHEEL-265/60R18 ALUMINUM
TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/60R18 ALUMINUM&RADIATOR GRILLE-CHROME PLATED
TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED
FRONT BUMPER-PAINTED(MLM)
FRONT BUMPER-PAINTED(MLM)&RADIATOR GRILLE-CHROME PLATED
MLM Z-PLUS PACKAGE
MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
MLM Z-PLUS PACKAGE&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 STEEL&RADIATOR GRILLE-PAINTING
TIRE & DISC WHEEL-265/65R17 STEEL&RADIATOR GRILLE-CHROME PLATED
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main53393-0K051iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 STEEL
main53393-0K051iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 STEEL&RADIATOR GRILLE-CHROME PLATED
main53393-0K051iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM
main53393-0K051iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main53393-0K051iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM&RADIATOR GRILLE-CHROME PLATED
main53393-0K051iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-MATERIAL COLOR
main53393-0K051iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-PAINTING
main53393-0K051iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-MATERIAL COLOR
main53393-0K051iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-PAINTING
MLM Z-PLUS PACKAGE
MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))
75851AMOULDING, ROCKER PANEL, FRONT RH
main75851-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN126..THP..S..LA;GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TGN126..THP..L..(LA,SA);¥4,720202408
RUGGED X PACKAGE
main75851-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN126..THP..S..LA;GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TGN126..THP..L..(LA,SA);¥4,720202408
RUGGED X PACKAGE&STEP & STEP COVER-WITHOUT
main75851-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN126..THP..S..LA;GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TGN126..THP..L..(LA,SA);¥4,720202408
GR SPORT WIDE TREAD&STEP & STEP COVER-WITHOUT
main75851-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN126..THP..S..LA;GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TGN126..THP..L..(LA,SA);¥4,720202408
STEP & STEP COVER-WITHOUT
main75851-0K060iTGN136..S..SA;GUN126..LHD..SA;GUN125..LHD..SAP..S;GUN125..(GHAP,KENP,SAP)..(H,L);GUN122,126,135,LAN125,TGN121,126..SAP..(L,S)202411
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
75852AMOULDING, ROCKER PANEL, FRONT LH
main75852-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN126..THP..S..LA;GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TGN126..THP..L..(LA,SA);¥4,720202408
RUGGED X PACKAGE
main75852-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN126..THP..S..LA;GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TGN126..THP..L..(LA,SA);¥4,720202408
RUGGED X PACKAGE&STEP & STEP COVER-WITHOUT
main75852-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN126..THP..S..LA;GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TGN126..THP..L..(LA,SA);¥4,720202408
GR SPORT WIDE TREAD&STEP & STEP COVER-WITHOUT
main75852-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN126..THP..S..LA;GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TGN126..THP..L..(LA,SA);¥4,720202408
STEP & STEP COVER-WITHOUT
main75852-0K060iTGN136..S..SA;GUN126..LHD..SA;GUN125..LHD..SAP..S;GUN125..(GHAP,KENP,SAP)..(H,L);GUN122,126,135,LAN125,TGN121,126..SAP..(L,S)202411
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
75866ARETAINER, ROCKER PANEL MOULDING
main76923-52021iGUN135..SA;GUN125..IV3;TGN126..SAP..S;TGN121..6FC..ARL;TGN126..L..(LA,SA);GUN125..RHD..6F..L;GUN125..RHD..S..GEN;TGN126..S..(GEN,LA);GUN125,126..LHD..SAP;GUN126..RH¥220202408
RUGGED X PACKAGE
main76923-52021iGUN135..SA;GUN125..IV3;TGN126..SAP..S;TGN121..6FC..ARL;TGN126..L..(LA,SA);GUN125..RHD..6F..L;GUN125..RHD..S..GEN;TGN126..S..(GEN,LA);GUN125,126..LHD..SAP;GUN126..RH¥220202408
RUGGED X PACKAGE&STEP & STEP COVER-WITHOUT
main76923-52021iGUN135..SA;GUN125..IV3;TGN126..SAP..S;TGN121..6FC..ARL;TGN126..L..(LA,SA);GUN125..RHD..6F..L;GUN125..RHD..S..GEN;TGN126..S..(GEN,LA);GUN125,126..LHD..SAP;GUN126..RH¥220202408
GR SPORT WIDE TREAD&STEP & STEP COVER-WITHOUT
main76923-52021iGUN135..SA;GUN125..IV3;TGN126..SAP..S;TGN121..6FC..ARL;TGN126..L..(LA,SA);GUN125..RHD..6F..L;GUN125..RHD..S..GEN;TGN126..S..(GEN,LA);GUN125,126..LHD..SAP;GUN126..RH¥220202408
STEP & STEP COVER-WITHOUT
76924GRETAINER, ROCKER PANEL MOULDING
main76924-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN125..RHD..S..GEN;TGN126..S..(GEN,LA);GUN126,TGN136..S..LA;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TG¥160202408
RUGGED X PACKAGE
main76924-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN125..RHD..S..GEN;TGN126..S..(GEN,LA);GUN126,TGN136..S..LA;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TG¥160202408
RUGGED X PACKAGE&STEP & STEP COVER-WITHOUT
main76924-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN125..RHD..S..GEN;TGN126..S..(GEN,LA);GUN126,TGN136..S..LA;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TG¥160202408
GR SPORT WIDE TREAD&STEP & STEP COVER-WITHOUT
main76924-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN125..RHD..S..GEN;TGN126..S..(GEN,LA);GUN126,TGN136..S..LA;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TG¥160202408
STEP & STEP COVER-WITHOUT
main76924-0K020iTGN136..S..SA;GUN126..LHD..SA;GUN125..LHD..SAP..S;GUN125..(GHAP,KENP,SAP)..(H,L);GUN122,126,135,LAN125,TGN121,126..SAP..(L,S)202411
STEP & STEP COVER-WITHOUT
90159T0009
main90159-T0009
9046707215
9046708224
90467T0050
main90467-T0050
17 parts on this diagram · 2 diagrams in section
