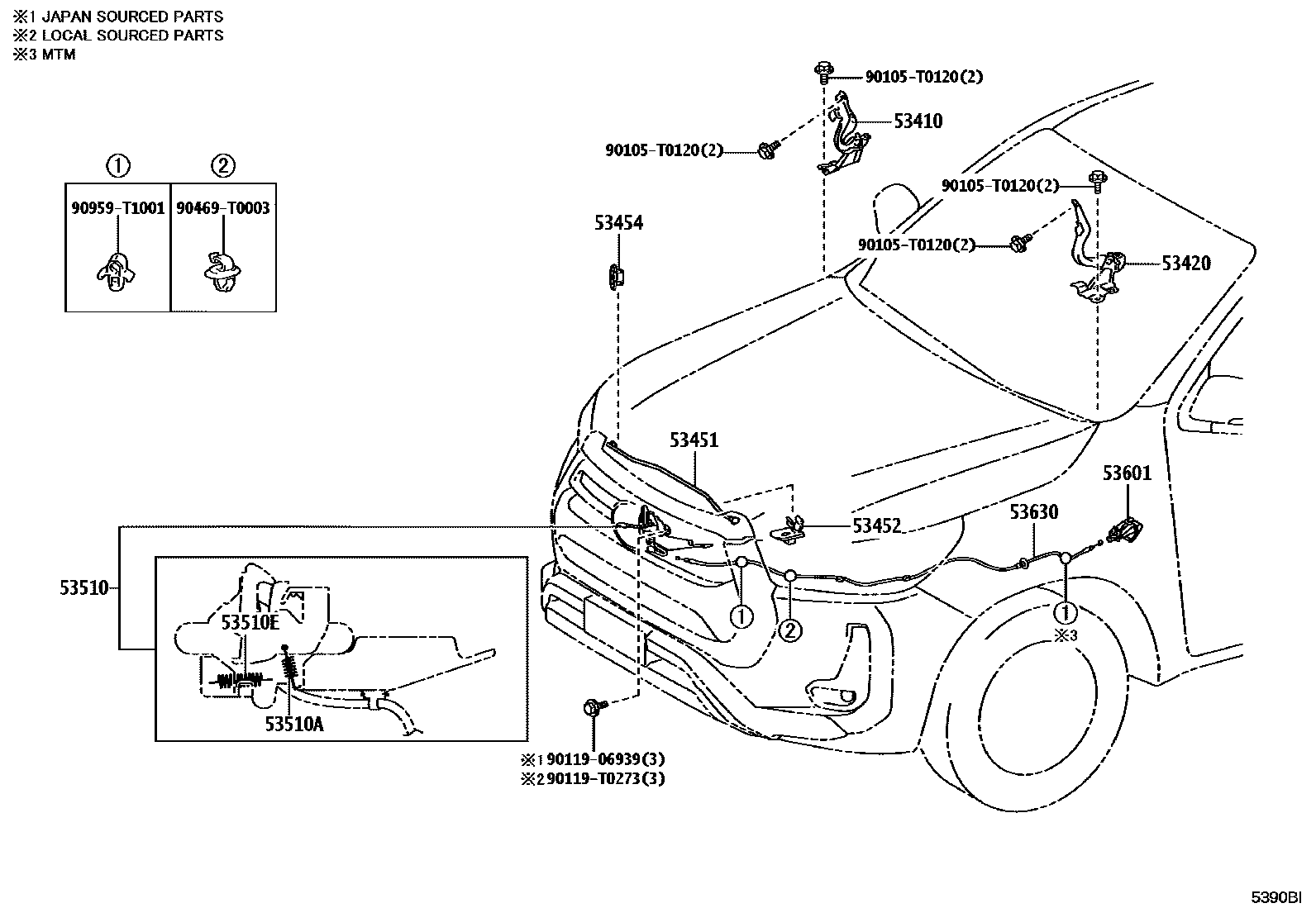

Toyota HILUX (DOUBLE CAB) — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0K230iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

main53410-0K240iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main53410-0K370iGUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..ARL;GUN136,TGN121..LHD..THP;GUN126..(CAMP,MAP,MMRP,THP)..CBU;GGN125,GUN120,121,122,125,135,TGN120,126,136..MA¥1,810202408-202411

53420HINGE ASSY, HOOD, LH

main53420-0K230iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

main53420-0K240iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main53420-0K370iGUN126..IND¥1,810202408-202411

53451ROD, HOOD SUPPORT

main53440-0K010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,380202408-202411

main53440-0K020iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

main53440-0K030iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main53440-0K040iGUN125,126..MA202409

main53440-0K050iGUN126..IND202412

53452HOLDER, HOOD STAY

main53452-0K020iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥230202408-202411

53454CLIP, HOOD SUPPORT ROD

main53454-0D010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥130202408-202411

main53454-52020iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..AGTP,GHAP,KENP,MAP,SAP¥130202409

53510LOCK ASSY, HOOD

main53510-0K380iTGN126..S..GEN202408

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K470iTGN126..S..GEN;GUN126..MHV..GCC202408

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-0K470iGUN125,126..H..DCRL..GCC202408

TOYOTA STOP & START SYSTEM-WITH

main53510-0K650iGUN135..L..TH;GUN125..RHD..(GEN,IDN);GUN126..RHD..6FC..H..GEN;GUN120,121,122,126..RHD..(L,S)..(GEN,TH)202408

main53510-0K660iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥2,930202408-202411

main53510-0K660iGUN135..ARL;GUN126..S..IV3;GUN135..(H,S)..TH;GUN126..H..MHV..IV3;GUN126..RHD..THP..6F..H;GUN126..6F..S..ARL..CBU;GUN126,136..6FC..(ARL,MA,TH)..CBU;GUN125,TGN121..(6¥2,930202408

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-0K660iGUN135..ARL;GUN126..S..IV3;GUN135..(H,S)..TH;GUN126..H..MHV..IV3;GUN126..RHD..THP..6F..H;GUN126..6F..S..ARL..CBU;GUN126,136..6FC..(ARL,MA,TH)..CBU;GUN125,TGN121..(6¥2,930202408

TOYOTA STOP & START SYSTEM-WITH

main53510-0K670iTGN126..L..GEN;GUN125..THP..(LA,PH);GUN126..LHD..THP..GEN;GUN122,TGN121..LHD..(GEN,PH);GUN126,135,TGN126..THP..S..LA;GUN135..THP..(H,L)..(GEN,LA,VN);GUN125..LHD..TH202408

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K680iTGN126..H..GEN202408

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-0K690iGUN125..RHD..L..(KEN,SA)202411

EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K690iGUN126..S..SA202411

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K700iGGN125,GUN125,126,13#,TGN136..RHD..(H,S)..(KEN,SA)202411

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main53510-0K710iGUN122,125,135,LAN125,TGN121,126..LHD..SAP..L202411

main53510-0K720iTGN136..L..SA;GUN125..L..GHA;GUN125,126,LAN125,TGN126..LHD..(GHAP,SAP)..(H,S)202411

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main53510-0K730iGUN135,TGN136..AGTP..L;GUN126..AGTP..(L,S)..LA;GUN135,TGN126..AGTP..S..LA;GUN125,TGN126..AGTP..(6F,6FC)202411

main53510-0K740iGUN126,135..S..BZAG;GUN126..AGTP..6F..H;GUN126..6F..L..BZAG;TGN126..AGTP..5F..(H,L);GUN126..AGTP..6FC..(H,L);GGN125,GUN136,TGN136..AGTP..(H,S)202411

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-0K791iGUN126..IND202412

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iGUN126..IND202408-202411

WD=0.9,CW=21

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C0iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

BLACK,TRIM2#

main53601-0D040-C0iGGN125,GUN122,125,126,TGN12#..GCC202408

BLACK,TRIM2#,3#

main53601-0D090-C1iGUN126..IND202412

BLACK,TRIM2#

main53601-0K120-C0iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0K210iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥990202408-202411

main53630-0K260iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD202408

main53630-0K290iGUN126..IND202412

main53630-0K320iGUN125,126..MA202409

90105T0120

main90105-T0120

9011906939

main90119-06939¥60

90119T0273

main90119-T0273

90469T0003

main90469-T0003

90959T1001

main90959-T1001

15 parts on this diagram · 2 diagrams in section
