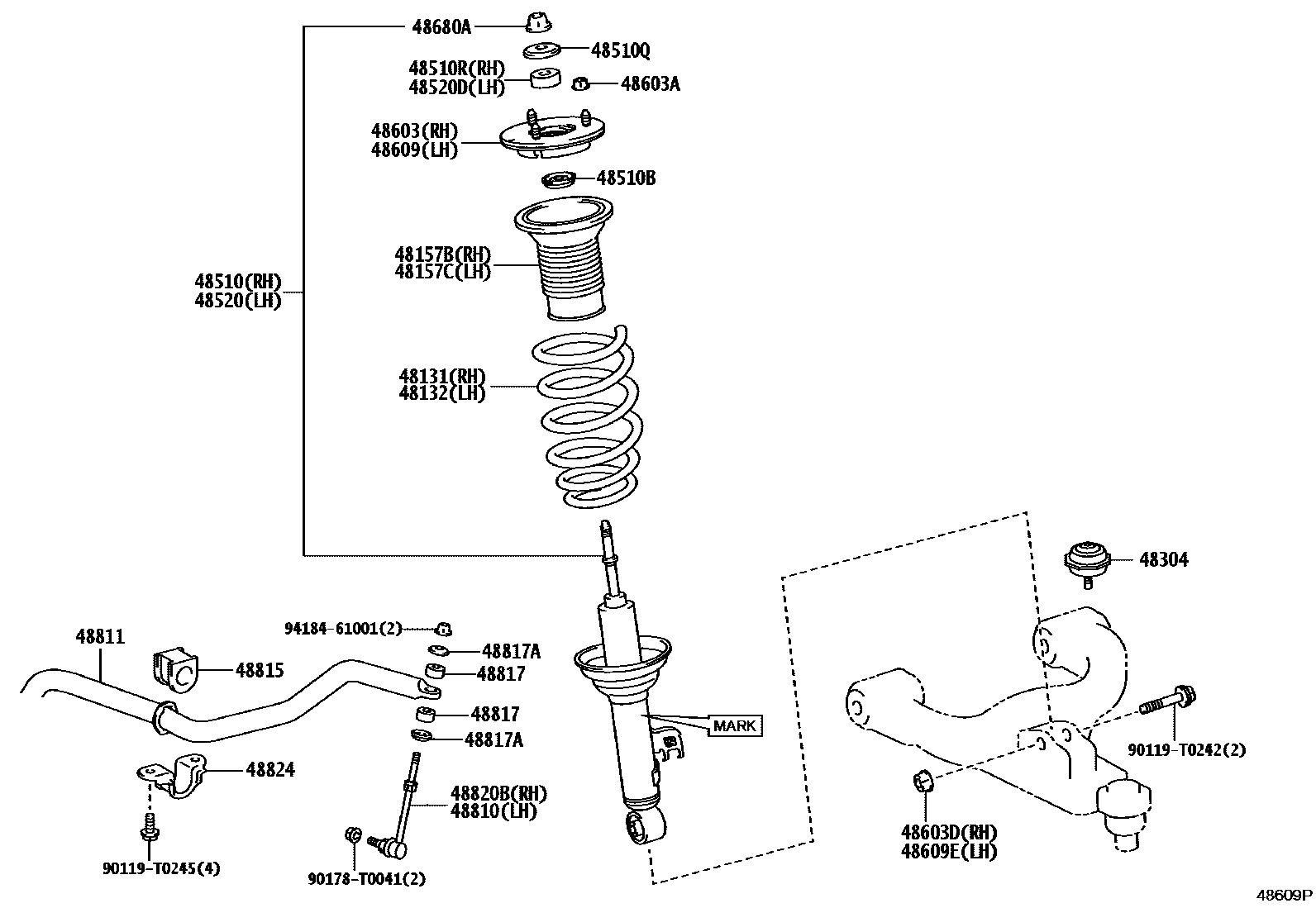

Toyota HILUX (DOUBLE CAB) — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1EXCEPT WIDE TREAD 0003 1WIDE TREAD

48131SPRING, FRONT COIL, RH

main48131-0KF20iTGN120;TGN121..GEN202408

main48131-0KF50iTGN121..5F..ARL202408-202411

main48131-0KF91iGUN135..TH202408

main48131-0KG31iTGN136..GEN202408

main48131-0KG41iGGN125,GUN13#,TGN126..THP..(GCC,GEN,LA,PH,VN)202408

GR SPORT WIDE TREAD

main48131-0KK70iGUN121..6FC202408

TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)

main48131-0KK70iGUN120,121,122..THP202408

GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)

main48131-0KL10iTGN121..SAP202411

main48131-0KL20iGUN122..SA202411

main48131-0KL41iGUN126..6FC..DCRL..(GCC,PH,VN)202408

GR SPORT WIDE TREAD

main48131-0KM40iTGN136..L..SA202411

main48131-0KM50iGUN13#,LAN125,TGN126..SAP202411

main48131-0KM60iGGN125..SA202411

main48131-0KM70iGUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main48131-0KN10iTGN136..AGTP202411

main48131-0KN20iGGN125,GUN13#,TGN126..AGTP202411

main48131-0KN40iGUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main48131-0KR40iGUN125,126..MA202409

GR SPORT

main48131-0KS71iGUN125..ARL;GUN126..S..IV3;GUN126..ARL..CBU;GUN126..H..MHV..IV3202408

RUGGED X PACKAGE

main48131-0KS71iGUN126..H..DCRL..IV3202408-202411

main48131-0KS71iGUN125..ARL;GUN126..S..IV3;GUN126..ARL..CBU;GUN126..H..MHV..IV3202408

GR SPORT WIDE TREAD

main48131-0KS91iTGN136..S..SA202411

main48131-0KT01iGUN136..6F..ARL202408-202411

main48131-0KT01iGUN136..6FC..ARL202408

main48131-0KU40iGUN125,126..TH202408

GR SPORT WIDE TREAD

48132SPRING, FRONT COIL, LH

main48131-0KF20iTGN120;TGN121..GEN202408

main48131-0KF50iTGN121..5F..ARL202408-202411

main48131-0KF50iTGN121..GCC;TGN121..6FC..ARL202408

main48131-0KF91iGUN135..TH202408

main48131-0KG31iTGN136..GEN202408

main48131-0KG41iTGN126..THP..(GCC,GEN,LA)202408

main48131-0KK70iGUN121..6FC202408

TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)

main48131-0KK70iGUN120,121,122..RHD202408

GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)

main48131-0KK80iGUN122..LHD..THP202408

main48131-0KL10iTGN121..SAP202411

main48131-0KL31iGGN125,GUN13#..LHD..THP202408

GR SPORT WIDE TREAD

main48131-0KL41iGUN135..ARL;GUN125,126..RHD..(GEN,IDN,IND)202408

main48131-0KM40iTGN136..L..SA202411

main48131-0KM50iGUN135..S..SA;GUN136,TGN126..SAP202411

main48131-0KM60iGUN135..L..SA;GGN125,LAN125..SA202411

main48131-0KM70iGUN125,126..RHD..(KEN,SA)202411

GR SPORT WIDE TREAD

main48131-0KM80iGUN126..LHD..SA202411

GR SPORT WIDE TREAD

main48131-0KN10iTGN136..AGTP202411

main48131-0KN20iTGN126..AGTP202411

main48131-0KN30iGGN125,GUN13#..AGTP202411

main48131-0KN50iGUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main48131-0KN70iGUN122..SA202411

main48131-0KR40iGUN125,126..MA202409

GR SPORT

main48131-0KS71iGUN126..6FC..H..ARL..CBU202408

GR SPORT WIDE TREAD

main48131-0KS71iGUN126..6FC..H..ARL..CBU202408

RUGGED X PACKAGE

main48131-0KS71iGUN126..H..DCRL..IV3202408-202411

main48131-0KS91iTGN136..S..SA202411

main48131-0KT01iGUN136..6F..ARL202408-202411

main48131-0KT01iGUN136..6FC..ARL202408

main48131-0KU40iGUN126..6FC..TH202408

GR SPORT WIDE TREAD

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-0K010iTGN121..5F..ARL¥1,180202408-202411

main48157-0K010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH¥1,180202408

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-0K010iTGN121..5F..ARL¥1,180202408-202411

main48157-0K010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH¥1,180202408

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K010iTGN121..5F..ARL¥1,310202408-202411

main48304-0K010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH¥1,310202408

main48304-0K041iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥1,540202408-202411

main48304-0K041iGUN126..S..IV3;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN136..(SAP,THP)..6F..H;GUN126..(CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN125,135,LAN125,TGN126,136..GHA¥1,540202408

main48304-0K101iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main48304-0K121iGUN126..IND202412

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z189iGUN121..6FC202408

MARK 48510-0KF20

main48510-8Z189iGUN120,121,122..TH202408

MARK 48510-0KF20,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)

main48510-8Z189iGUN120,121,122..TH202408

MARK 48510-0KF20,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)

main48510-8Z190iTGN121..5F..ARL202408-202411

MARK 48510-0K740

main48510-8Z190iTGN121..6FC..ARL;GUN122,TGN120,121..THP..(GCC,GEN,PH,SA)202408

MARK 48510-0K740

main48510-8Z199iGUN122,TGN121..SAP202411

MARK 48510-0K780

main48510-8Z450iGUN126..AGTP..6FC..H202411

MARK 48510-0K810,GR SPORT WIDE TREAD

main48510-8Z450iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

MARK 48510-0K810

main48510-8Z451iGUN125,126..GHA,KEN202501

MARK 48510-0K800

main48510-8Z453iGUN126..TWN¥16,600202408

MARK 48510-0KC50

main48510-8Z454iGUN125,126..MA202409

MARK 48510-0K820,GR SPORT

main48510-8Z454iGUN126..MA202409

MARK 48510-0K820

main48510-8Z456iGGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,GCC,PH,VN)..CBU¥16,000202408

MARK 48510-0K760

main48510-8Z456iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥16,000202408-202411

MARK 48510-0K760

main48510-8Z456iGUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GGN125,GUN125,135,TGN126,136..THP..(ARL,GCC,GEN,IDN,LA,PH,SA,VN);GUN126..(CAMP,INDP,MMRP,THP)..(¥16,000202408

MARK 48510-0K760,GR SPORT WIDE TREAD

main48510-8Z457iGUN126..6FC..TH202408

MARK 48510-0KA70,GR SPORT WIDE TREAD

main48510-8Z457iGUN126..6FC..TH202408

MARK 48510-0KA70

main48510-8Z493iGUN126..6FC..H..DCRL..SA202411

MARK 48510-0K631

main48510-8Z493iGGN125,GUN125,126,13#,LAN125,TGN126,136..SAP202411

MARK 48510-0K631,GR SPORT WIDE TREAD

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-F2002iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

main90948-T2003iGUN126..S..IV3;GUN136..LHD..6F;TGN121..LHD..THP;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG);GUN126..(AGTP,CAMP,MAP,MMRP,THP)..CBU;GGN125,GUN120,121,122,125,1202408

main90948-T2003iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main90948-T2003iGUN126..IND202412

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-F2003iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

main90948-T2004iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main90948-T2004iGUN126..S..IV3;GUN136..LHD..6F;TGN121..LHD..THP;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG);GUN126..(AGTP,CAMP,MAP,MMRP,THP)..CBU;GGN125,GUN120,121,122,125,1202408

main90948-T2004iGUN126..IND202412

48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH

main90948-T1013iTGN121..5F..ARL¥300202408-202411

main90948-T1013iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..THP..(GCC,GEN,PH,SA,TH)¥300202408

main90948-T1013iGUN122,TGN121..SAP¥300202411

PNC 48603=TYPE B

main90948-T1015iGUN122,TGN121..SAP202411

PNC 48603=TYPE A

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-8Z450iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

MARK 48510-0K810,GR SPORT WIDE TREAD

main48510-8Z450iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

MARK 48510-0K810

main48510-8Z451iGUN125,126..GHA,KEN202501

MARK 48510-0K800

main48510-8Z453iGUN126..TWN¥16,600202408

MARK 48510-0KC50

main48510-8Z454iGUN126..MA202409

MARK 48510-0K820

main48510-8Z454iGUN125,126..MA202409

MARK 48510-0K820,GR SPORT

main48510-8Z456iGUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GGN125,GUN125,135,TGN126,136..THP..(ARL,GCC,GEN,IDN,LA,PH,SA,VN);GUN126..(CAMP,INDP,MMRP,THP)..(¥16,000202408

MARK 48510-0K760

main48510-8Z456iGGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,GCC,PH,VN)..CBU¥16,000202408

MARK 48510-0K760,GR SPORT WIDE TREAD

main48510-8Z456iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥16,000202408-202411

MARK 48510-0K760

main48510-8Z457iGUN126..6FC..TH202408

MARK 48510-0KA70,GR SPORT WIDE TREAD

main48510-8Z457iGUN126..6FC..TH202408

MARK 48510-0KA70

main48510-8Z493iGGN125,GUN125,126,13#,LAN125,TGN126,136..SAP202411

MARK 48510-0K631,GR SPORT WIDE TREAD

main48510-8Z493iGGN125,GUN125,126,13#,LAN125,TGN126,136..SAP202411

MARK 48510-0K631

main48520-8Z070iGUN121..6FC202408

MARK 48520-0K660

main48520-8Z070iGUN121..6FC202408

MARK 48520-0K660,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)

main48520-8Z070iGUN121..6F;GUN120,122..TH202408

MARK 48520-0K660,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)

main48520-8Z071iTGN121..5F..ARL202408-202411

MARK 48520-0K590

main48520-8Z071iTGN121..6FC..ARL;GUN122,TGN120,121..THP..(GCC,GEN,PH,SA)202408

MARK 48520-0K590

main48520-8Z074iGUN122,TGN121..SAP202411

MARK 48520-0K630

48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH

main90948-T1013iTGN121..5F..ARL¥300202408-202411

main90948-T1013iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..THP..(GCC,GEN,PH,SA,TH)¥300202408

main90948-T1013iGUN122,TGN121..SAP¥300202411

PNC 48603=TYPE B

main90948-T1015iGUN122,TGN121..SAP202411

PNC 48603=TYPE A

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K070iGUN126..IND¥2,910202412

MADE IN THAILAND

main48609-0K070iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥2,910202408-202411

main48609-0K070iGUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..CBU;GGN125,GUN125,135,TGN126,136..MAP,THP¥2,910202408

main48609-0K080iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main48609-0K090iGUN122,TGN121..SAP202411

TYPE A:REFER ILLUST.

main48609-0K120iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP202411

MADE IN INDIA

main48609-0K120iGUN126..IND202412

MADE IN INDIA

main48609-0K150iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..THP..(GCC,GEN,PH,SA,TH)202408

main48609-0K150iGUN122,TGN121..SAP202411

TYPE B:REFER ILLUST.

main48609-0K150iTGN121..5F..ARL202408-202411

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU202408

MLM ADVENTURE WIDE TREAD

main90178-T0050iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU202408

GR SPORT WIDE TREAD

main90178-T0050iGUN126..IND202412

main90178-T0050iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main90178-T0048iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121202408

main90178-T0048iGUN126..IND202412

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K070iGUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..CBU;GGN125,GUN125,135,TGN126,136..MAP,THP¥2,910202408

main48609-0K070iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥2,910202408-202411

main48609-0K070iGUN126..IND¥2,910202412

MADE IN THAILAND

main48609-0K080iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main48609-0K090iGUN122,TGN121..SAP202411

TYPE A:REFER ILLUST.

main48609-0K120iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP202411

MADE IN INDIA

main48609-0K120iGUN126..IND202412

MADE IN INDIA

main48609-0K150iGUN122,TGN121..SAP202411

TYPE B:REFER ILLUST.

main48609-0K150iTGN121..5F..ARL202408-202411

main48609-0K150iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..THP..(GCC,GEN,PH,SA,TH)202408

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121202408

main90178-T0048iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main90178-T0048iGUN126..IND202412

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-T0015iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main90177-T0015iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121202408

main90177-T0015iGUN126..IND202412

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0K010iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥4,390202408-202411

main48810-0K010iGUN126..S..IV3;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN136..(SAP,THP)..6F..H;GUN126..(CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN125,135,LAN125,TGN126,136..GHA¥4,390202408-202506

main48810-0K020iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main48810-0K031iGUN126..IND202412

main48820-0K010iTGN121..5F..ARL¥4,390202408-202411

main48820-0K010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH¥4,390202408-202506

48811BAR, STABILIZER, FRONT

main48811-0K170iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥14,200202408-202411

main48811-0K170iGUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..CBU;GGN125,GUN125,135,TGN126,136..MAP,THP¥14,200202408

main48811-0K180iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP202411

main48811-0K190iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main48811-0K210iGUN126..IND202412

main48811-0K230iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..THP..(GCC,GEN,PH,SA,TH)202408

main48811-0K230iTGN121..5F..ARL202408-202411

main48811-0K250iGUN122,TGN121..SAP202411

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K050iTGN121..5F..ARL202408-202411

main48815-0K050iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

main48815-0K090iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥850202408-202411

main48815-0K090iGUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU¥850202408

main48815-0K120iGUN126..IND202412

48817CUSHION, FRONT STABILIZER

main90948-T1002iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

main90948-T1002iTGN121..5F..ARL202408-202411

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-T2002iTGN121..5F..ARL202408-202411

main90948-T2002iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K010iTGN121..5F..ARL¥4,390202408-202411

main48820-0K010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH¥4,390202408-202506

main48820-0K030iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥4,390202408-202411

main48820-0K030iGUN126..S..IV3;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN136..(SAP,THP)..6F..H;GUN126..(CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN125,135,LAN125,TGN126,136..GHA¥4,390202408-202506

main48820-0K040iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main48820-0K061iGUN126..IND202412

48824BRACKET, STABILIZER, FRONT

main48824-0K010iTGN121..5F..ARL¥1,080202408-202411

main48824-0K010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH¥1,080202408

main48824-KK010iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥1,170202408-202411

main48824-KK010iGUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU¥1,170202408

main48824-KK010iGUN126..IND¥1,170202412

90119T0242

main90119-T0242¥310

90119T0245

main90119-T0245¥120

90178T0041

main90178-T0041

9418461001

main94184-61001¥80

28 parts on this diagram · 3 diagrams in section
