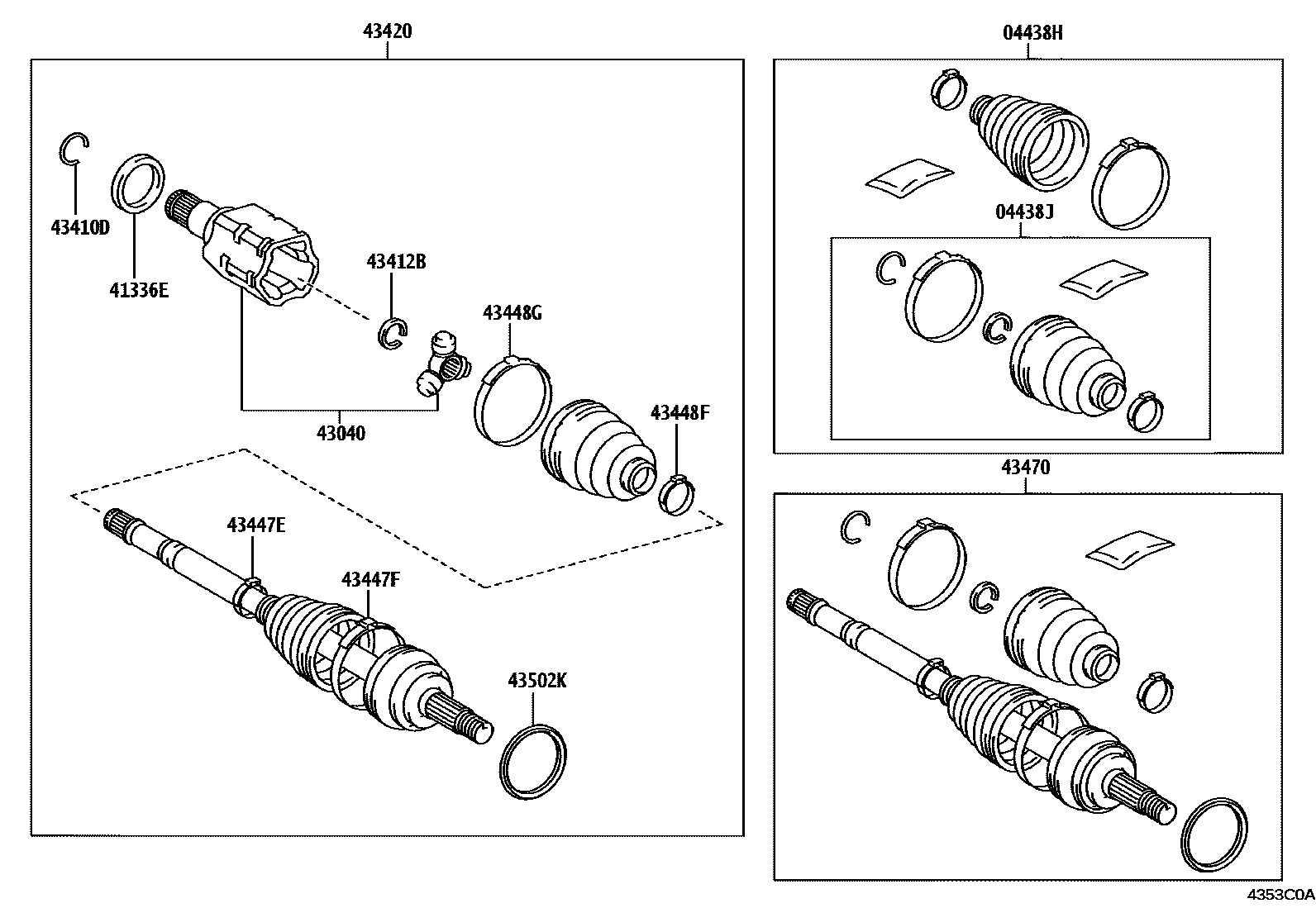

Toyota HILUX (DOUBLE CAB) — FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-0D581iGUN125,126..MA202409

main04427-0K050iGGN125,GUN125,126,TGN126..AGTP202411

main04427-0K072iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

main04427-0K090iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..THP;GUN126..(CAMP,INDP,MMRP,THP)..CBU¥6,700202408-202411

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-0D420iGUN125,126..MA202409

main04437-0K050iGGN125,GUN125,126,TGN126..AGTP202411

main04437-0K061iGUN126..H..DCRL..IV3¥4,150202408-202411

main04437-0K071iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-0K051iGGN125,GUN125,126,TGN126..AGTP202411

main41336-0K071iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

main41336-0K080iGUN126..H..DCRL..IV3¥1,150202408-202411

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-0K050iGGN125,GUN125,126,TGN126..AGTP202411

main43040-0K060iGUN126..H..DCRL..IV3¥18,900202408-202411

main43040-0K070iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

main43040-0K080iGUN125,126..MA202409

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-0K060iGGN125,GUN125,126,TGN126..AGTP202411

main43430-0K070iGUN126..H..DCRL..IV3¥44,900202408-202411

main43430-0K080iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

main43430-0K130iGUN125,126..MA202409

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main43425-0K040iGUN126..H..DCRL..IV3¥60202408-202411

main43425-0K080iGGN125,GUN125,126,TGN126..AGTP202411

main43425-0K110iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP¥50202411

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-0K130iGGN125,GUN125,126,TGN126..AGTP202411

main43425-0K140iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..MAP,THP;GUN126..(CAMP,INDP,MAP,MMRP,THP)..CBU¥50202408-202411

main43425-0K150iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-0K060iGGN125,GUN125,126,TGN126..AGTP202411

main43430-0K070iGUN126..H..DCRL..IV3¥44,900202408-202411

main43430-0K080iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

main43430-0K130iGUN125,126..MA202409

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K070iGUN126..H..DCRL..IV3¥260202408-202411

main42345-0K090iGGN125,GUN125,126,TGN126..AGTP202411

main42345-0K150iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K100iGUN126..H..DCRL..IV3¥480202408-202411

main42345-0K120iGGN125,GUN125,126,TGN126..AGTP202411

main42345-0K160iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K040iGUN126..H..DCRL..IV3¥200202408-202411

main42345-0K060iGGN125,GUN125,126,TGN126..AGTP202411

main42345-0K140iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K010iGUN126..H..DCRL..IV3¥1,720202408-202411

main42345-0K030iGGN125,GUN125,126,TGN126..AGTP202411

main42345-0K130iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-09Y50iGGN125,GUN125,126,TGN126..AGTP202411

main43460-09Y63iGUN126..H..DCRL..IV3¥30,700202408-202411

main43460-09Y70iGGN125,GUN125,126,LAN125,TGN126..GHAP,KENP,SAP202411

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-T0001iGUN126..H..DCRL..IV3¥1,050202408-202411

14 parts on this diagram · 2 diagrams in section
