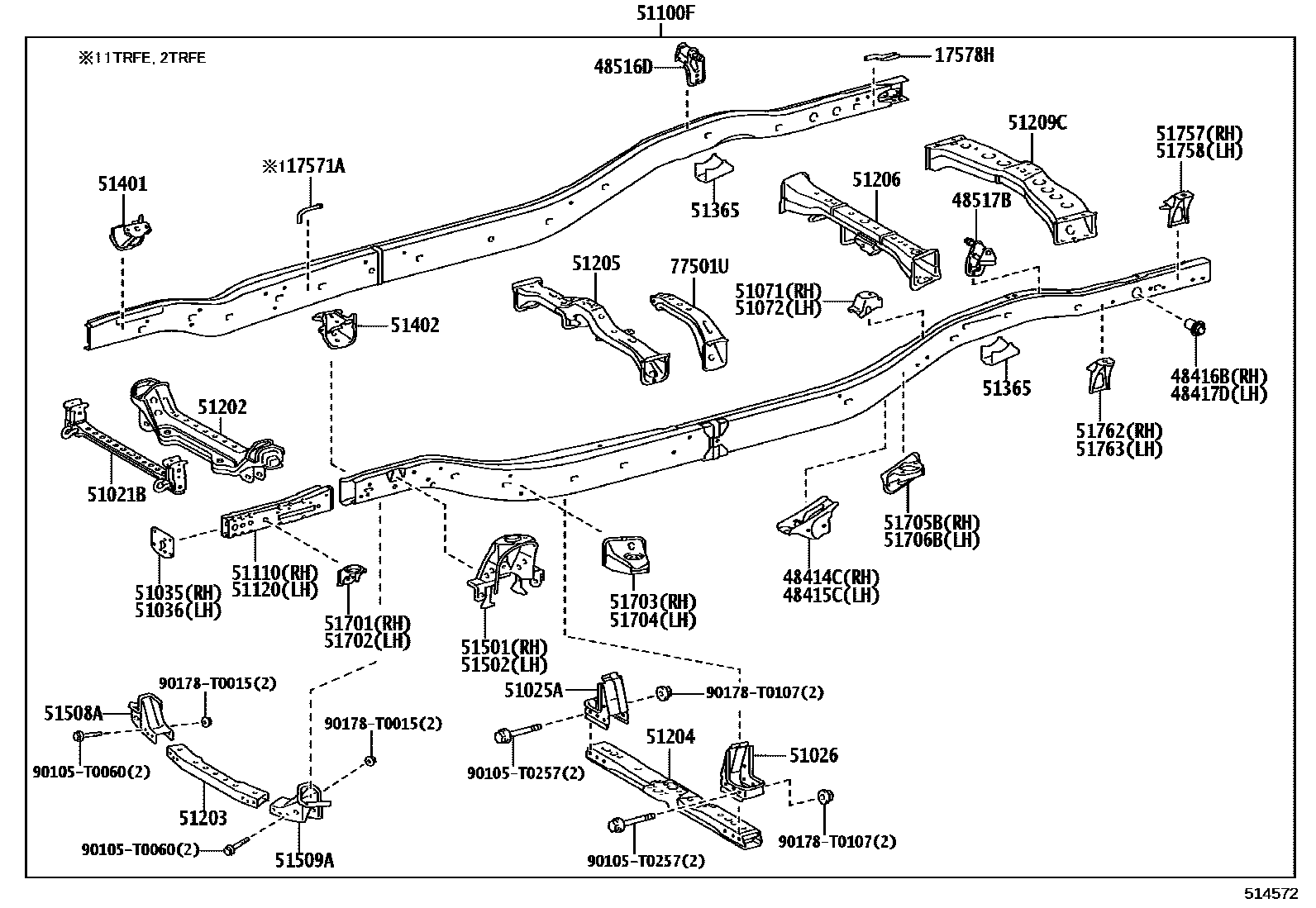

Toyota HILUX (DOUBLE CAB) — FRAME

0001 1 0002 1 0003 1PROPELLER SHAFT GUARD 0004 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i2TRFE..TGN121..6FC..ARL;5LE,1TRFE,2TRFE..LAN125,TGN12#,136..BZAG,GCC,GEN,LA,SA202408-202411

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L020i2TRFE..TGN121..LHD;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV,2TRFE..GUN136,TGN121..6FC..(ARL,BZAG,SA);1GDFTV..GUN126..(AGTP,CA¥1,070202408-202411

48414CBRACKET, SPRING, NO.3 RH

main48404-KK030iTGN121..5F..ARL202408-202411

main48404-KK040iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥1,920202408-202411

48415CBRACKET, SPRING, NO.3 LH

main48407-KK030iTGN121..5F..ARL202408-202411

main48407-KK040iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥1,920202408-202411

48416BBRACKET, SPRING, NO.4 RH

main48405-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥730202408-202411

48417DBRACKET, SPRING, NO.4 LH

main48405-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥730202408-202411

48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

main48505-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥3,380202408-202411

48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

main48506-KK010iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121¥3,330202408-202411

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-KK010iTGN121..GCC;TGN121..SAP;GUN126..S..IV3;TGN121..6FC..ARL;GUN126..H..MHV..IV3;GUN136..(SAP,THP)..6F..H;GUN125,135,TGN126,136..GHAP,KENP,MAP,SAP,THP;GUN126..(CAMP,GHAP¥8,200202408-202411

main51021-KK020iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main51021-KK030iGUN120,121,122,TGN121..THP..(GEN,PH,SA,TH)202408

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥4,670202408-202411

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥4,670202408-202411

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-KK010iGUN126..IND¥1,180202408-202411

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,180202408-202411

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,290202408-202411

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51072-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,290202408-202411

51100FFRAME SUB-ASSY

main51001-KK244iTGN121..6FC202408

main51001-KK254iTGN121..5F..ARL202408-202411

main51001-KK284iGUN122..GCC202408

main51001-KK355iTGN126..THP..(GCC,LA,SA)202408

main51001-KK365iGGN125..GCC202408

main51001-KK372iGUN125,126..GHAP,KENP,SAP¥242,000202411

sub51001-KKJ90¥242,000

main51001-KK382iLAN125202411

main51001-KK455iTGN136..GEN202408

main51001-KK472iGUN13#..6F..SA202411

sub51001-KKK10

main51001-KK486iGUN13#..THP..6FC202408

main51001-KK682iTGN126..SAP202411

sub51001-KKJ80

main51001-KK692iGGN125..SA202411

main51001-KK733iTGN136..SA202411

main51001-KK744iGUN136..6F..ARL202408-202411

main51001-KK753iGUN13#..6FC..SA202411

main51001-KK782iTGN121..SAP202411

main51001-KK792iGUN122..SA202411

main51001-KKA34iTGN126..AGTP202411

main51001-KKA44iGUN125,126..AGTP202411

main51001-KKA84iTGN136..AGTP202411

main51001-KKA94iGUN13#..AGTP..6F202411

main51001-KKB04iGUN13#..6FC..BZAG202411

main51001-KKC04iGGN125..LA202411

main51001-KKC33iGUN121,122..6F202408

main51001-KKJ61iTGN121..THP..(GEN,SA)202408

main51001-KKJ71iGUN120,121,122..(5F,6FC)..(GEN,PH,TH)202408

main51001-KKJ82iTGN126..GEN202408

main51001-KKL00iGUN126..IND¥220,000202408-202411

51110EXTENSION ASSY, SIDE RAIL, RH

main51110-KK906iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408-202411

main51110-KK907iGUN126..IND¥6,300202408-202411

51120EXTENSION ASSY, SIDE RAIL, LH

main51122-KK906iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408-202411

main51122-KK907iGUN126..IND¥6,100202408-202411

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-KK010iTGN121..5F..ARL202408-202411

main51201-KK020iGGN125,GUN125,126,13#,TGN126,136..AGTP¥28,300202411

sub51201-KK050¥25,700

main51201-KK050iGUN126..S..IV3;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN136..(SAP,THP)..6F..H;GUN126..(CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN125,135,LAN125,TGN126,136..GHA¥25,700202408-202411

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-0K010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408-202411

main51202-KK010iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥26,200202408-202411

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-KK030iGUN136..6F..ARL202408-202411

main51203-KK040iGUN125,126..GHAP,KENP,SAP¥13,800202411

sub51203-KK250¥12,500

main51203-KK050iGGN125,LAN125,TGN126..SAP202411

sub51203-KK260

main51203-KK130iTGN136..AGTP202411

sub51203-KK230

main51203-KK140iGUN13#..AGTP..6F202411

main51203-KK150iGUN125,126..AGTP202411

main51203-KK190iGUN13#..6FC..BZAG202411

sub51203-KK210

main51203-KK200iGGN125,TGN126..AGTP202411

main51203-KK210iGUN122,13#..(5F,6FC)..SA202411

EXCEPT PLANT TSAM

main51203-KK210iTGN121..6FC;GUN120,121,122,13#..THP..(5F,6FC)202408

main51203-KK230iTGN121,136..SAP202411

EXCEPT PLANT TSAM

main51203-KK230iTGN121..5F..ARL202408-202411

main51203-KK250iGUN126..S..IV3;GUN125..MAP,THP;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..CBU¥12,500202408-202411

main51203-KK260iGGN125,TGN126..THP202408

main51203-KK290iGUN122,13#..(5F,6FC)..SA202411

PLANT TSAM

main51203-KK300iTGN121,136..SAP202411

PLANT TSAM

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-KK030iGUN126..IND¥16,900202408-202411

main51204-KK040iTGN121..5F..ARL202408-202411

main51204-KK050iGUN136..6FC;GUN135,TGN136;GUN136..6F..H202408-202411

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-KK040iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121¥16,900202408-202411

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥21,700202408-202411

51365STOPPER, REAR BUMPER

main57081-KK010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408-202411

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-KK010iLAN125202411

main51401-KK020iTGN121..5F..ARL202408-202411

main51401-KK030iGGN125202408

main51401-KK040iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥2,760202408-202411

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-KK010iLAN125202411

main51402-KK020iTGN121..6FC..ARL;TGN12#,136..BZAG,GCC,GEN,LA,SA202408-202411

main51402-KK030iGGN125202408

main51402-KK040iGUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN120,121,122,125,135;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU¥2,760202408-202411

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-KK010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408-202411

main51501-KK020iGUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU¥21,100202408-202411

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-KK010iTGN121..5F..ARL202408-202411

main51502-KK020iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥21,100202408-202411

51508ABRACKET SUB-ASSY, LOWER ARM, RH

main51508-KK020iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408-202411

51509ABRACKET SUB-ASSY, LOWER ARM, LH

main51509-KK020iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408-202411

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,330202408-202411

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,330202408-202411

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-KK010iGUN126..IND¥3,630202408-202411

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥3,630202408-202411

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-KK020iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥2,440202408-202411

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51706-KK020iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥2,440202408-202411

51757BRACKET, BODY SUPPORT, NO.4 RH

main51077-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,660202408-202411

51758BRACKET, BODY SUPPORT, NO.4 LH

main51078-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,660202408-202411

51762BRACKET, BODY SUPPORT, NO.5 RH

main51075-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,660202408-202411

51763BRACKET, BODY SUPPORT, NO.5 LH

main51076-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥1,660202408-202411

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-0K020iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥5,200202408-202411

90105T0060

main90105-T0060

90105T0257

main90105-T0257¥310

90178T0015

main90178-T0015

90178T0107

main90178-T0107

46 parts on this diagram · 4 diagrams in section
