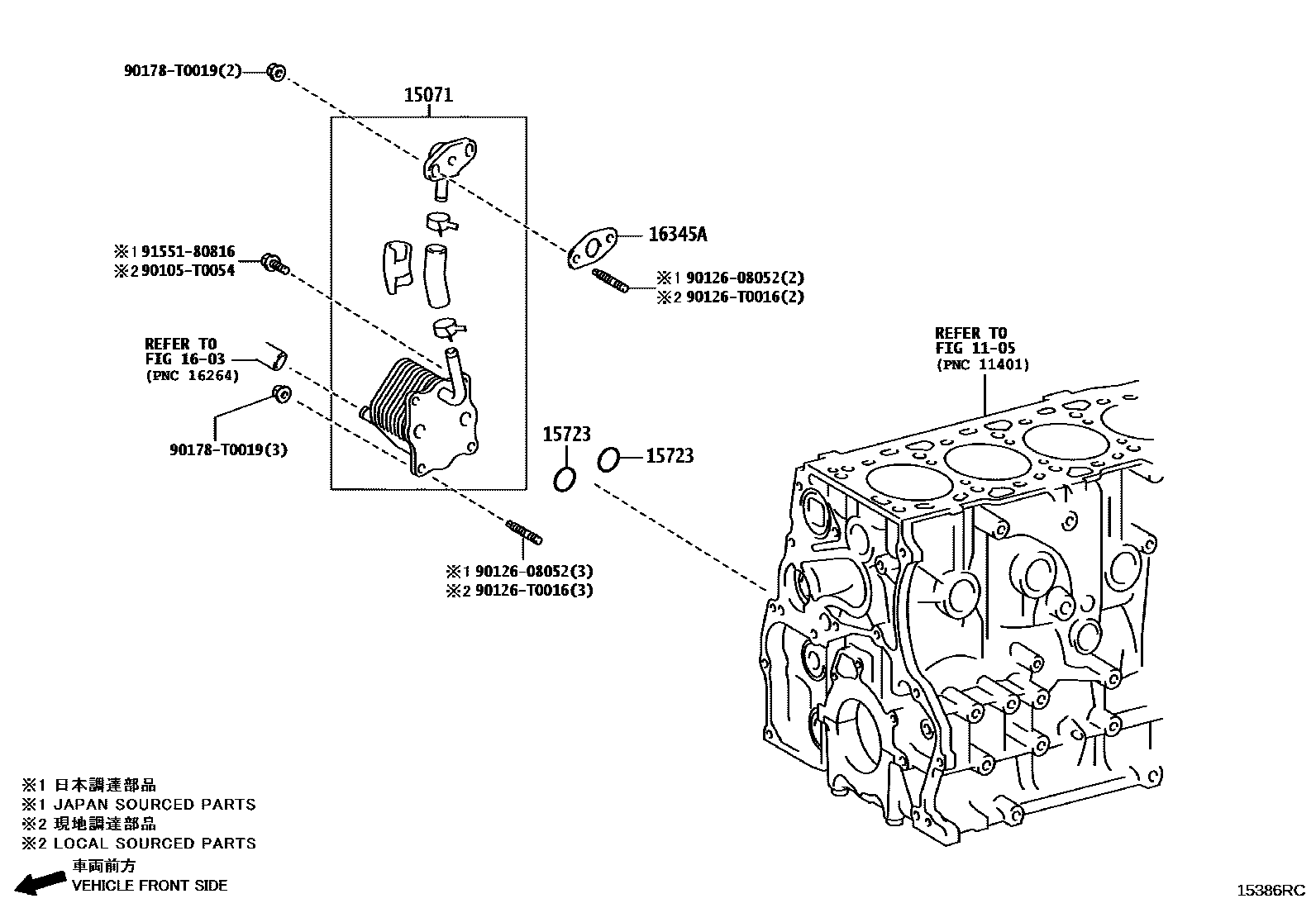

Toyota HILUX (DOUBLE CAB) — ENGINE OIL COOLER
1105
15071COOLER SET, ENGINE OIL
main15071-08010i1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135;1GDFTV..GUN126..(AGTP,CAMP,GHAP,K¥39,100202408-202411
15723RING, O
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
AZERBAIJAN SPEC,(J)
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
CAMBODIA SPEC,(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(J)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
UAE SPEC,(J)
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(L)
1603
16345AGASKET, WATER OUTLET PIPE
main16345-0E010i1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135;1GDFTV..GUN126..(AGTP,CAMP,GHAP,K202408-202411
THA SOURCED PARTS
URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
main16345-0E020i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..ARL..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS
main16345-0E020i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..ARL..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main16345-0E020i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..ARL..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main16345-0E020i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..ARL..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main16345-0E020i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..ARL..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main16345-0E020i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..ARL..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN)202408
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCEDPARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
AZERBAIJAN SPEC,JAPAN SOURCED PARTS
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
90105T0054
main90105-T0054
9012608052
90126T0016
main90126-T0016
90178T0019
main90178-T0019
9155180816
10 parts on this diagram · 4 diagrams in section
