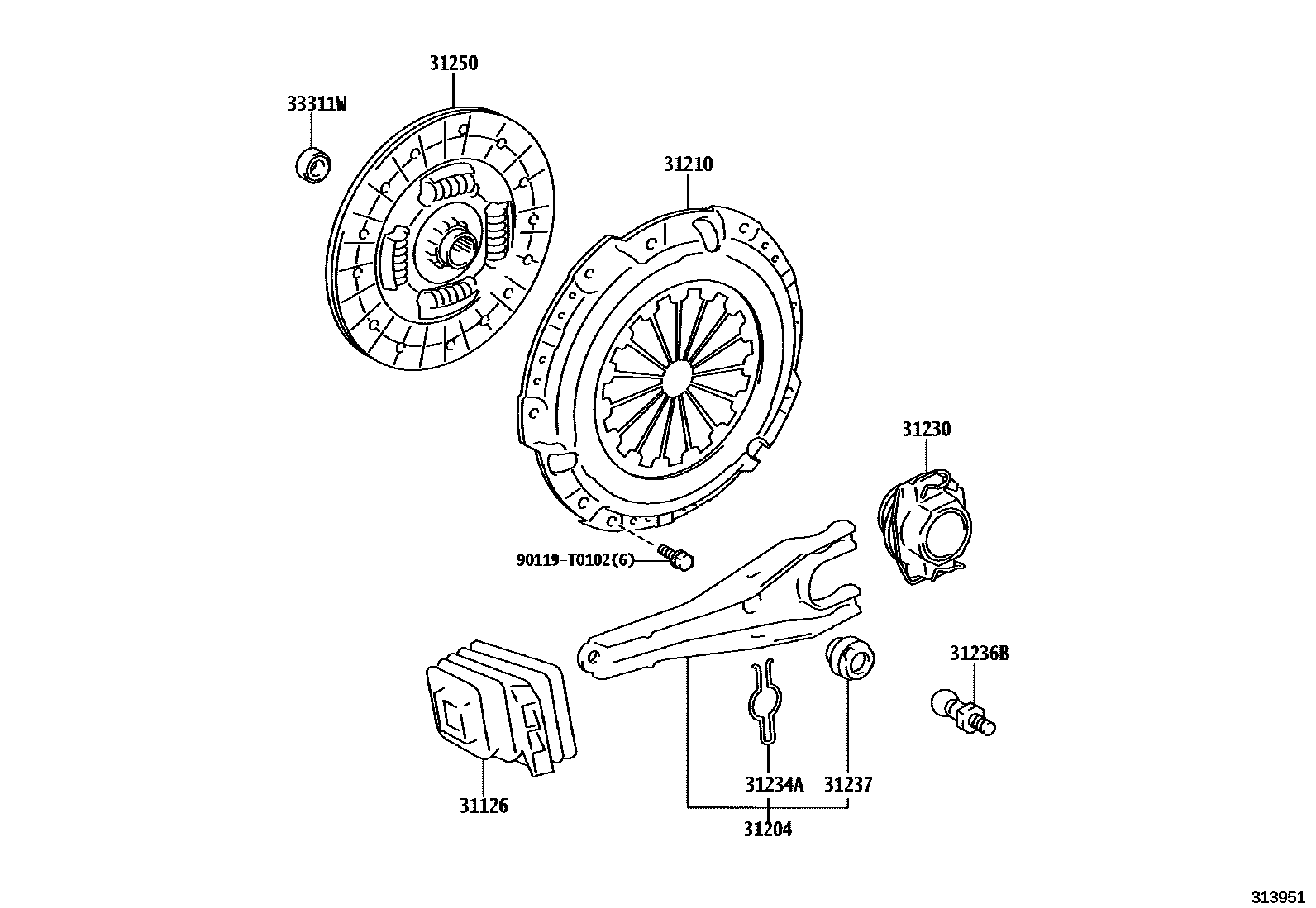

Toyota HILUX (DOUBLE CAB) — CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0K080iGUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F¥530202408

TYPE A:REFER 33-01

main31126-0K080iGUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F¥530202408

TYPE B:REFER 33-01

main31126-0K080iGUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F¥530202408

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main31126-0K080iGUN136..6F..ARL¥530202408-202411

TYPE A:REFER 33-01

main31126-0K090iTGN121..5F..ARL202408-202411

TYPE B:REFER 33-01

main31126-0K090iTGN12#,136..5F..(BZAG,GCC,GEN,LA,SA)202408

TYPE B:REFER 33-01

main31126-0K100iGUN122..5F202408

TYPE B:REFER 33-01

main31126-0K110iLAN125202411

TYPE B:REFER 33-01

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K110iGUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F¥3,240202408

TYPE A:REFER 33-01

main31204-0K110iGUN136..6F..ARL¥3,240202408-202411

TYPE A:REFER 33-01

main31204-0K110iGUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F¥3,240202408

TYPE B:REFER 33-01

main31204-0K110iGUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F¥3,240202408

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main31204-0K190iTGN121..5F..ARL202408-202411

TYPE B:REFER 33-01

main31204-0K190iLAN125,TGN12#,136..5F..(BZAG,GCC,GEN,LA,SA)202408

TYPE B:REFER 33-01

31210COVER ASSY, CLUTCH

main31210-0K260iTGN121..5F..ARL202408-202411

main31210-0K260iTGN121,126,136..5F..(BZAG,GCC,GEN,LA,SA)202408

main31210-0K281iGUN125,126,13#..AGTP..6F¥17,700202411

TYPE B:REFER ILLUST.

main31210-0K281iGUN136..6F..ARL¥17,700202408-202411

main31210-0K281iGUN136..THP..LA;GUN121,125,126,135..(INDP,MAP,THP)..6F¥17,700202408

main31210-0K300iTGN120202408

main31210-0K310iGUN122202408

main31210-0K420iLAN125202411

31230BEARING ASSY, CLUTCH RELEASE

main31230-0K040iTGN121..5F..ARL202408-202411

TYPE B:REFER 33-01

main31230-0K040iTGN12#,136..5F..(BZAG,GCC,GEN,LA,SA)202408

TYPE B:REFER 33-01

main31230-0K050iGUN135..THP..LA;GUN136..LHD..6F202408

TYPE B:REFER 33-01

main31230-0K050iGUN135..THP..LA;GUN136..LHD..6F202408

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main31230-0K050iGUN136..6F..ARL202408-202411

main31230-71061iLAN125202411

TYPE B:REFER 33-01

31234ASPRING, RELEASE FORK SUPPORT

main31234-71020iTGN121..5F..ARL202408-202411

TYPE B:REFER 33-01

main31234-71020iLAN125,TGN12#,136..5F..(BZAG,GCC,GEN,LA,SA)202408

TYPE B:REFER 33-01

31236BSUPPORT, RELEASE FORK

main31236-0K010iGUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F¥470202408

TYPE A:REFER 33-01

main31236-0K010iGUN136..6F..ARL¥470202408-202411

TYPE A:REFER 33-01

main31236-0K010iGUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F¥470202408

TYPE B:REFER 33-01

main31236-0K010iGUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F¥470202408

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main31236-0K030iGUN122..5F202408

TYPE B:REFER 33-01

main31236-0K060iLAN125,TGN12#,136..5F..(BZAG,GCC,GEN,LA,SA)202408

TYPE B:REFER 33-01

main31236-0K060iTGN121..5F..ARL202408-202411

TYPE B:REFER 33-01

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-0K020iTGN121..5F..ARL202408-202411

TYPE B:REFER 33-01

main31237-0K020iLAN125,TGN12#,136..5F..(BZAG,GCC,GEN,LA,SA)202408

TYPE B:REFER 33-01

31250DISC ASSY, CLUTCH

main31250-0K261iTGN121,126,136..5F202408-202409

sub31250-0K262

main31250-0K262iTGN121,126,136..5F..(BZAG,GCC,GEN,LA,SA)202409

main31250-0K262iTGN121..5F..ARL202409-202411

main31250-0K281iGUN136..THP..LA;GUN121,122,125,126,135..(INDP,MAP,THP)..6F¥20,200202408

main31250-0K281iGUN136..6F..ARL¥20,200202408-202411

main31250-0K281iGUN125,126,13#..AGTP..6F¥20,200202411

TYPE B:REFER ILLUST.

main31250-0K301iTGN120202408-202409

sub31250-0K302

main31250-0K302iTGN120202409

main31250-0K311iGUN122..5F202408

main31250-0K440iLAN125202411

33311WBEARING (FOR INPUT SHAFT)

main90363-12024iLAN125¥520202411

main90363-T0006iGUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..MTM¥1,050202408

main90363-T0006iGUN136..6F..ARL¥1,050202408-202411

main90363-T0019iTGN121..5F..ARL202408-202411

main90363-T0019iTGN12#,136..5F..(BZAG,GCC,GEN,LA,SA)202408

90119T0102

main90119-T0102¥80

10 parts on this diagram · 6 diagrams in section
