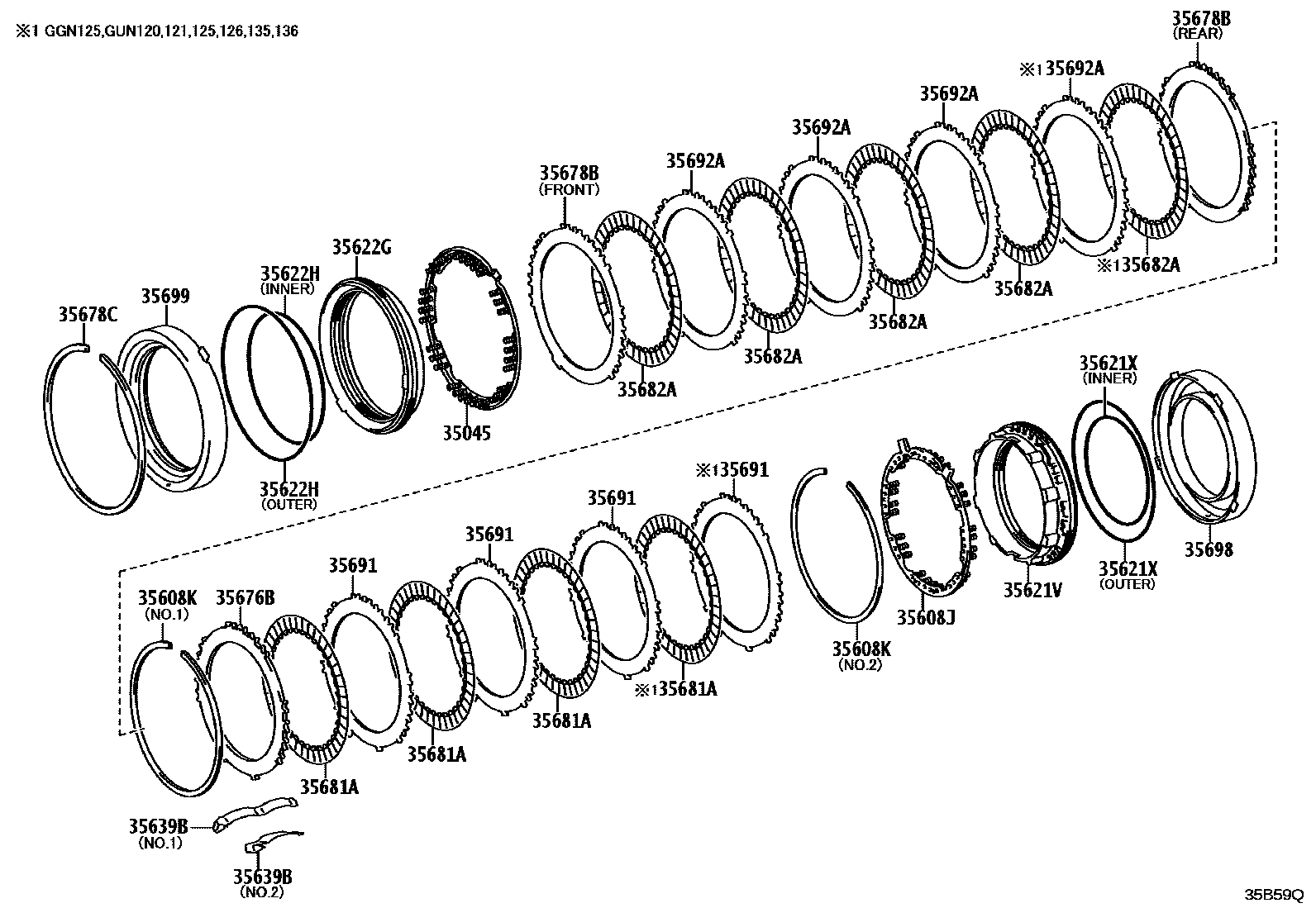

Toyota HILUX (DOUBLE CAB) — CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
main35045-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
TYPE B:REFER 35-01
TYPE A:REFER 35-01
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
TYPE A:REFER 35-01
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
main35608-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
TYPE B:REFER 35-01
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
TYPE A:REFER 35-01
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
TYPE A:REFER 35-01
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
main90520-99156iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥240202408
TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.1
T/P A:REF.35-01,NO.1
T/P A:REF.35-01,NO.1
T/P A:REF.35-01,NO.2
main90520-99157iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥300202408
TOYOTA STOP & START SYSTEM-WITH,T/P A:REF.35-01,NO.2
main90520-99157iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥300202408
TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.2
T/P A:REF.35-01,NO.2
main90520-T0288iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
T/P B:REF.35-01,NO.2
main90520-T0290iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
T/P B:REF.35-01,NO.1
35621VPISTON, BRAKE, NO.1
main35621-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#..(MAP,THP)..6FC202408
TYPE B:REFER 35-01
TYPE B:REFER 35-01
main35621-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥3,110202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
main35621-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥3,110202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
35621XRING, O (FOR BRAKE PISTON NO.1)
main90301-99115iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥200202408
T/P A:REF35-01,OUTER
main90301-99115iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥200202408
TOYOTA STOP & START SYSTEM-WITH,T/P A:REF35-01,OUTER
main90301-99115iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥200202408
TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,OUTER
T/P A:REF35-01,OUTER
T/P A:REF35-01,INNER
main90301-99123iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥200202408
TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,INNER
T/P A:REF35-01,INNER
T/PA:REF35-01,CENTER
main90301-T0078iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
T/P B:REF35-01,INNER
main90301-T0090iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
T/P B:REF35-01,OUTER
35622GPISTON, BRAKE, NO.2
main35622-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#..(MAP,THP)..6FC202408
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE A:REFER 35-01
main35622-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥2,680202408
TYPE A:REFER 35-01
main35622-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥2,680202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
main35622-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥2,680202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
TYPE A:REFER 35-01
35622HRING, O (FOR BRAKE PISTON NO.2)
TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,INNER
main90301-99132iGUN126..6FC..S..DCRL..(ARL,LA);GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC..(DCRL,HTWC);GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA¥200202408
T/P A:REF35-01,INNER
main90301-99132iGUN126..6FC..S..DCRL..(ARL,LA);GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC..(DCRL,HTWC);GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA¥200202408
TOYOTA STOP & START SYSTEM-WITH,T/P A:REF35-01,INNER
TOYOTA:REFER 35-01
T/P A:REF35-01,INNER
T/P A:REF35-01,OUTER
TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,OUTER
T/P A:REF35-01,OUTER
T/P B:REF35-01,OUTER
main90301-T0077iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
T/P B:REF35-01,OUTER
main90301-T0077iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
TOYOTA STOP & START SYSTEM-WITH,T/P A:REF35-01,OUTER
main90301-T0089iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
T/P B:REF35-01,INNER
35639BSPRING, BRAKE PLATE STOPPER
main35639-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥360202408
TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.1
main35639-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥360202408
T/P B:REF.35-01,NO.1
main35639-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥360202408
T/P A:REF.35-01,NO.1
T/P A:REF.35-01,NO.1
T/P B:REF.35-01,NO.2
T/P A:REF.35-01,NO.2
TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.2
T/P A:REF.35-01,NO.2
35676BFLANGE, BRAKE, NO.1
T=4.9,TYPE A:REFER 35-01
T=4.9,TYPE A:REFER 35-01
main35676-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=4.9,TYPE B:REFER 35-01
main35676-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=4.9,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
main35676-71020iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=5.0,TYPE A:REFER 35-01
main35676-71020iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=5.0,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
main35676-71020iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥2,170202408
T=5.0,TYPE B:REFER 35-01
T=5.0,TYPE A:REFER 35-01
T=5.1,TYPE A:REFER 35-01
main35676-71030iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=5.1,TYPE B:REFER 35-01
main35676-71030iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=5.1,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
T=5.1,TYPE A:REFER 35-01
main35676-71040iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥2,170202408
T=5.2,TYPE B:REFER 35-01
main35676-71040iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥2,170202408
T=5.2,TYPE A:REFER 35-01
main35676-71040iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥2,170202408
T=5.2,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
T=5.2,TYPE A:REFER 35-01
main35676-71050iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥2,170202408
T=5.3,TYPE A:REFER 35-01
main35676-71050iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥2,170202408
T=5.3,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
T=5.3,TYPE B:REFER 35-01
T=5.3,TYPE A:REFER 35-01
main35676-71060iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥2,170202408
T=5.4,TYPE A:REFER 35-01
main35676-71060iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=5.4,TYPE B:REFER 35-01
main35676-71060iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=5.4,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
T=5.4,TYPE A:REFER 35-01
main35676-71070iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥2,170202408
T=5.5,TYPE A:REFER 35-01
T=5.5,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
T=5.5,TYPE B:REFER 35-01
T=5.5,TYPE A:REFER 35-01
T=5.6,TYPE A:REFER 35-01
T=5.6,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
T=5.6,TYPE B:REFER 35-01
T=5.6,TYPE A:REFER 35-01
T=5.7,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
main35676-71090iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=5.7,TYPE B:REFER 35-01
main35676-71090iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=5.7,TYPE A:REFER 35-01
T=5.7,TYPE A:REFER 35-01
main35676-71100iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=5.8,TYPE B:REFER 35-01
main35676-71100iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=5.8,TYPE A:REFER 35-01
main35676-71100iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥2,170202408
T=5.8,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
T=5.8,TYPE A:REFER 35-01
35678BFLANGE, BRAKE, NO.2
main35678-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=3.8,T/P B:REF35-01,REAR
main35678-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=3.8,T/P A:REF35-01,REAR
main35678-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=3.8,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,REAR
T=3.8,T/P A:REF35-01,REAR
main35678-71020iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.0,T/P A:REF35-01,FRONT
T=2.0,T/P A:REF35-01,FRONT
main35678-71020iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.0,T/P B:REF35-01,FRONT
main35678-71020iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.0,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
T=2.1,T/P A:REF35-01,FRONT
T=2.1,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
main35678-71030iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.1,T/P B:REF35-01,FRONT
T=2.1,T/P A:REF35-01,FRONT
main35678-71040iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥1,720202408
T=2.2,T/P B:REF35-01,FRONT
main35678-71040iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥1,720202408
T=2.2,T/P A:REF35-01,FRONT
main35678-71040iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥1,720202408
T=2.2,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
T=2.2,T/P A:REF35-01,FRONT
main35678-71050iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥1,720202408
T=2.3,T/P A:REF35-01,FRONT
main35678-71050iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.3,T/P B:REF35-01,FRONT
main35678-71050iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.3,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
T=2.3,T/P A:REF35-01,FRONT
main35678-71060iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥1,720202408
T=2.4,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
T=2.4,T/P B:REF35-01,FRONT
T=2.4,T/P A:REF35-01,FRONT
T=2.4,T/P A:REF35-01,FRONT
T=2.5,T/P B:REF35-01,FRONT
main35678-71070iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.5,T/P A:REF35-01,FRONT
main35678-71070iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.5,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
T=2.5,T/P A:REF35-01,FRONT
T=2.6,T/P A:REF35-01,FRONT
T=2.6,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
main35678-71080iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥1,720202408
T=2.6,T/P B:REF35-01,FRONT
T=2.6,T/P A:REF35-01,FRONT
T=2.7,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
main35678-71090iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.7,T/P B:REF35-01,FRONT
main35678-71090iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.7,T/P A:REF35-01,FRONT
T=2.7,T/P A:REF35-01,FRONT
T=2.8,T/P A:REF35-01,FRONT
main35678-71100iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.8,T/P B:REF35-01,FRONT
main35678-71100iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,720202408
T=2.8,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
T=2.8,TYPE A:REFER 35-01
T=2.8,T/P A:REF35-01,FRONT
35678CRING, SNAP (FOR BRAKE NO.2)
TYPE A:REFER 35-01
main90520-99155iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)¥300202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
TYPE A:REFER 35-01
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
main90520-T0291iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
TYPE B:REFER 35-01
35681ADISC, BRAKE, NO.1
main35681-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#..(MAP,THP)..6FC202408
TYPE B:REFER 35-01
main35681-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC..DCRL;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);¥760202408
TYPE A:REFER 35-01
main35681-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC..DCRL;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);¥760202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
main35681-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC..DCRL;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);¥760202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
TYPE A:REFER 35-01
T/P A:REF35-01,OUTER
TYPE A:REFER 35-01
35682ADISC, BRAKE, NO.2
TYPE B:REFER 35-01
main35682-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥760202408
TYPE A:REFER 35-01
main35682-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥760202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
main35682-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥760202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
35691PLATE, BRAKE, NO.1
TYPE B:REFER 35-01
main35691-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥740202408
TYPE A:REFER 35-01
main35691-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥740202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
main35691-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥740202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
35692APLATE, BRAKE, NO.2
TYPE B:REFER 35-01
main35692-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥740202408
TYPE A:REFER 35-01
main35692-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥740202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
main35692-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126¥740202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
35698CYLINDER, BRAKE, NO.1
main35698-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,760202408
TYPE B:REFER 35-01
main35698-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,760202408
TYPE A:REFER 35-01
main35698-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,760202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
TYPE A:REFER 35-01
35699CYLINDER, BRAKE, NO.2
main35699-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,760202408
TYPE B:REFER 35-01
main35699-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,760202408
TYPE A:REFER 35-01
main35699-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC¥1,760202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01
TYPE A:REFER 35-01
17 parts on this diagram · 1 diagram in section
