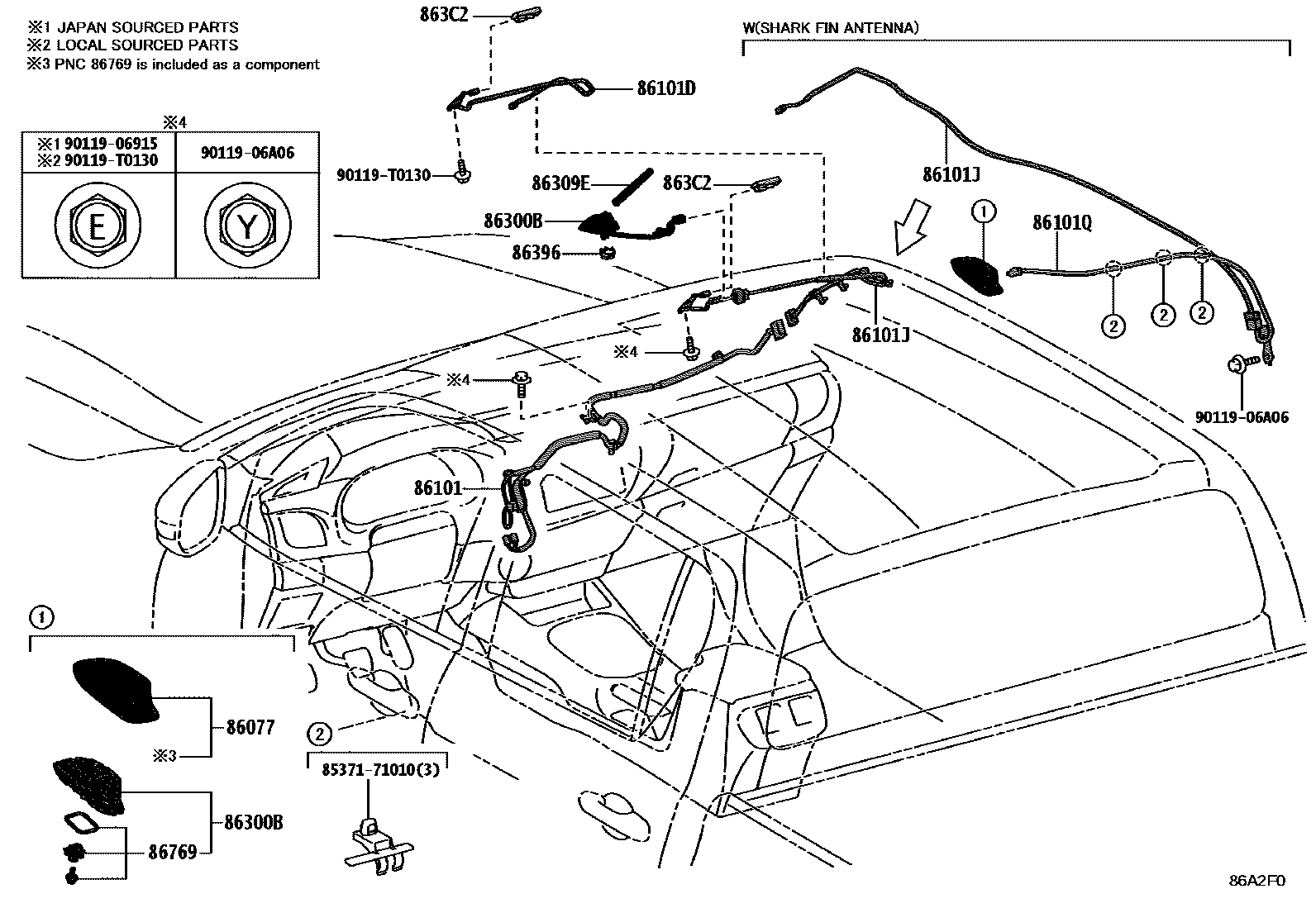

Toyota HILUX (DOUBLE CAB) — ANTENNA
86077COVER KIT, ANTENNA
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM),SUPER WHITE 2,040
SUPER WHITE 2,040
DATA COMMUNICATION MODULE-WITH(AU-DCM),SUPER WHITE 2,040
DATA COMMUNICATION MODULE-WITHOUT,SUPER WHITE 2,040
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM),PLATINUM WHITE PEARL MC.,089
main86077-12030-A2iGUN126,136..6F..S..ARL..CBU;GUN126,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL202408-202411
DATA COMMUNICATION MODULE-WITH(AU-DCM),PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
DATA COMMUNICATION MODULE-WITH(AU-DCM),GRAY ME.,1G3
DATA COMMUNICATION MODULE-WITHOUT,GRAY ME.,1G3
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM),GRAY ME.,1G3
SILVER ME.,1L0
DATA COMMUNICATION MODULE-WITH(AU-DCM),SILVER ME.,1L0
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM),SILVER ME.,1L0
DATA COMMUNICATION MODULE-WITHOUT,SILVER ME.,1L0
DATA COMMUNICATION MODULE-WITH(AU-DCM),ATTITUDE BLACK MC.,218 ,2PS ,2SC ,2UE
DATA COMMUNICATION MODULE-WITH(AU-DCM),ATTITUDE BLACK MC.,218
main86077-12030-C1iGUN126..6F..IV3;GUN126..MHV..ARL;GUN136..6FC..ARL;GUN126..6F..H..ARL202408-202411
ATTITUDE BLACK MC.,218
DATA COMMUNICATION MODULE-WITHOUT,ATTITUDE BLACK MC.,218
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM),ATTITUDE BLACK MC.,218,2PS ,2SC ,2UE
EMOTIONAL RED 2,3U5
main86077-12030-D2iGUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3202408-202411
DATA COMMUNICATION MODULE-WITH(AU-DCM),EMOTIONAL RED 2,3U5
main86077-12030-D2iGUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3202408
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM),EMOTIONAL RED 2,3U5
main86077-12030-D2iGUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3202408
DATA COMMUNICATION MODULE-WITHOUT,EMOTIONAL RED 2,3U5
NEBULA BLUE ME.,8X2
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM),NEBULA BLUE ME.,8X2
DATA COMMUNICATION MODULE-WITH(AU-DCM),NEBULA BLUE ME.,8X2
main86077-12030-J2iGUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3202408-202411
DK. BLUE MC.,8X8
main86077-12030-J2iGUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3202408
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM),DK. BLUE MC.,8X8
main86077-12030-J2iGUN126,136..6F..S..ARL..CBU;GUN126,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL202408-202411
DATA COMMUNICATION MODULE-WITH(AU-DCM),DK. BLUE MC.,8X8
main86077-12030-J2iGUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3202408
DATA COMMUNICATION MODULE-WITHOUT,DK. BLUE MC.,8X8
86101CORD SUB-ASSY, ANTENNA
main86101-0K760iGUN126..AGTP..6FC..LA;GUN125,135,TGN136..AGTP..LA;GUN126,TGN126..AGTP..MTM..S..LA202411
AUDIO-*DA(8INCH) & *BT
main86101-0K760iGUN126..AGTP..6FC..LA;GUN125,135,TGN136..AGTP..LA;GUN126,TGN126..AGTP..MTM..S..LA202411
AUDIO-AUDIO (IN LINE ACCESSORY)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0K851iGUN125..(H,L)..GCC;TGN126..(H,S)..GCC;GUN135..THP..(LA,VN);GUN126..THP..6F..S..LA;TGN120,121,136..GCC,GEN;GUN125..THP..(LA,PH,VN);GUN125,TGN126..LHD..L..GEN;GUN126.202408
GCC SPEC EURO4 2018MY&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0K851iGUN125..(H,L)..GCC;TGN126..(H,S)..GCC;GUN135..THP..(LA,VN);GUN126..THP..6F..S..LA;TGN120,121,136..GCC,GEN;GUN125..THP..(LA,PH,VN);GUN125,TGN126..LHD..L..GEN;GUN126.202408
GCC SPEC EURO4 2022MY&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0K851iGUN125..(H,L)..GCC;TGN126..(H,S)..GCC;GUN135..THP..(LA,VN);GUN126..THP..6F..S..LA;TGN120,121,136..GCC,GEN;GUN125..THP..(LA,PH,VN);GUN125,TGN126..LHD..L..GEN;GUN126.202408
MLM ADVENTURE PACKAGE&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
main86101-0K851iGUN125..(H,L)..GCC;TGN126..(H,S)..GCC;GUN135..THP..(LA,VN);GUN126..THP..6F..S..LA;TGN120,121,136..GCC,GEN;GUN125..THP..(LA,PH,VN);GUN125,TGN126..LHD..L..GEN;GUN126.202408
MLM ADVENTURE WIDE TREAD&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
main86101-0K851iGUN125..(H,L)..GCC;TGN126..(H,S)..GCC;GUN135..THP..(LA,VN);GUN126..THP..6F..S..LA;TGN120,121,136..GCC,GEN;GUN125..THP..(LA,PH,VN);GUN125,TGN126..LHD..L..GEN;GUN126.202408
GR SPORT WIDE TREAD&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
main86101-0K851iGUN125..(H,L)..GCC;TGN126..(H,S)..GCC;GUN135..THP..(LA,VN);GUN126..THP..6F..S..LA;TGN120,121,136..GCC,GEN;GUN125..THP..(LA,PH,VN);GUN125,TGN126..LHD..L..GEN;GUN126.202408
AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
main86101-0K861iGUN126..AGTP..6FC..LA;GUN126..AGTP..6F..(L,S)..LA;GUN125,135,TGN126,136..AGTP..(L,S)..LA202411
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0KF81iGUN135..GEN,PH;GUN126..LHD..THP..(GEN,PH,VN);GGN125,GUN122,136..LHD..THP..H;GUN125,TGN126..LHD..THP..MTM..H..(GEN,LA)202408
AUDIO-*DA(8INCH) & *BT
main86101-0KF81iGUN135..GEN,PH;GUN126..LHD..THP..(GEN,PH,VN);GGN125,GUN122,136..LHD..THP..H;GUN125,TGN126..LHD..THP..MTM..H..(GEN,LA)202408
AUDIO-AVN(8INCH) & *BT
ASIA COLD COUNTRY SPEC&DATA COMMUNICATION MODULE-WITHOUT
GCC SPEC EURO4 2018MY&AUDIO-*DA(8INCH) & *BT
GCC SPEC EURO4 2018MY&AUDIO-AVN(8INCH) & *BT
GCC SPEC EURO4 2022MY&AUDIO-*DA(8INCH) & *BT
GCC SPEC EURO4 2022MY&AUDIO-AVN(8INCH) & *BT
main86101-0KG81iGUN126..TH;GUN126..S..MHV;GUN136..6FC..S;GUN126..6F..IV3;GUN125,135..RHD..H..(GEN,TH)¥4,520202408
CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(8INCH) & *BT
main86101-0KG81iGUN126,136..6F..S..ARL..CBU;GUN126,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL¥4,520202408-202411
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE&DATA COMMUNICATION MODULE-WITH(AU-DCM)
AUDIO-*DA(8INCH) & *BT & DAB
main86101-0KM00iGUN126,136..6F..S..ARL..CBU;GUN126,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL202408-202411
DATA COMMUNICATION MODULE-WITH(AU-DCM)
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-10.25INCH *DA
AUDIO-*DA(FOR EMERGING MARKET)
EXPORT FROM SA&AUDIO-*DA(FOR EMERGING MARKET)
SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
UAE SPEC
main86101-0KP90iTGN121..S;TGN121..5F..H;TGN126..5F..GCC;GUN122,125..MTM..L..GCC;GGN125,GUN125,TGN126..(6F,6FC)..H..GCC202408
UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
main86101-0KS60iGUN126..S..DCRL..ARL..CBU;GUN126..6FC..S..DCRL..IV3;GUN125,135,TGN121..(6F,6FC)..ARL202408
DATA COMMUNICATION MODULE-WITH(AU-DCM)
86101DCORD SUB-ASSY, ANTENNA, NO.3
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM)
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE&DATA COMMUNICATION MODULE-WITH(AU-DCM)
GR SPORT WIDE TREAD
DATA COMMUNICATION MODULE-WITH(AU-DCM)
86101JCORD SUB-ASSY, ANTENNA, NO.2
GCC SPEC EURO4 2018MY&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0KA21iGUN126..S..MHV;GUN136..6FC..S;TGN126..L..GEN;GUN126..6F..IV3;TGN126..THP..(GCC,LA,SA);GUN126..THP..(GEN,LA,PH,TH,TWN,VN);GGN125,GUN120,121,122,125,13#,TGN120,121,13202408
ASIA COLD COUNTRY SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86101-0KA21iGUN126..S..MHV;GUN136..6FC..S;TGN126..L..GEN;GUN126..6F..IV3;TGN126..THP..(GCC,LA,SA);GUN126..THP..(GEN,LA,PH,TH,TWN,VN);GGN125,GUN120,121,122,125,13#,TGN120,121,13202408
GCC SPEC EURO4 2018MY&AUDIO-*DA(8INCH) & *BT
main86101-0KA21iGUN126..S..MHV;GUN136..6FC..S;TGN126..L..GEN;GUN126..6F..IV3;TGN126..THP..(GCC,LA,SA);GUN126..THP..(GEN,LA,PH,TH,TWN,VN);GGN125,GUN120,121,122,125,13#,TGN120,121,13202408
GCC SPEC EURO4 2018MY&AUDIO-AVN(8INCH) & *BT
main86101-0KA21iGUN126..S..MHV;GUN136..6FC..S;TGN126..L..GEN;GUN126..6F..IV3;TGN126..THP..(GCC,LA,SA);GUN126..THP..(GEN,LA,PH,TH,TWN,VN);GGN125,GUN120,121,122,125,13#,TGN120,121,13202408
GCC SPEC EURO4 2018MY&AUDIO-*DA(FOR EMERGING MARKET)
main86101-0KA21iGUN126..S..MHV;GUN136..6FC..S;TGN126..L..GEN;GUN126..6F..IV3;TGN126..THP..(GCC,LA,SA);GUN126..THP..(GEN,LA,PH,TH,TWN,VN);GGN125,GUN120,121,122,125,13#,TGN120,121,13202408
GCC SPEC EURO4 2022MY&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0KA21iGUN126..S..MHV;GUN136..6FC..S;TGN126..L..GEN;GUN126..6F..IV3;TGN126..THP..(GCC,LA,SA);GUN126..THP..(GEN,LA,PH,TH,TWN,VN);GGN125,GUN120,121,122,125,13#,TGN120,121,13202408
GCC SPEC EURO4 2022MY&AUDIO-*DA(8INCH) & *BT
main86101-0KA21iGUN126..S..MHV;GUN136..6FC..S;TGN126..L..GEN;GUN126..6F..IV3;TGN126..THP..(GCC,LA,SA);GUN126..THP..(GEN,LA,PH,TH,TWN,VN);GGN125,GUN120,121,122,125,13#,TGN120,121,13202408
GCC SPEC EURO4 2022MY&AUDIO-AVN(8INCH) & *BT
main86101-0KA21iGUN126..S..MHV;GUN136..6FC..S;TGN126..L..GEN;GUN126..6F..IV3;TGN126..THP..(GCC,LA,SA);GUN126..THP..(GEN,LA,PH,TH,TWN,VN);GGN125,GUN120,121,122,125,13#,TGN120,121,13202408
GCC SPEC EURO4 2022MY&AUDIO-*DA(FOR EMERGING MARKET)
main86101-0KA21iGUN126,136..6F..S..ARL..CBU;GUN126,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL202408-202411
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB
SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB
UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
UAE SPEC
main86101-0KE00iGUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3202408
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM)
main86101-0KE00iGUN126..S..DCRL..ARL..CBU;GUN126..6FC..S..DCRL..IV3;GUN125,135,TGN121..(6F,6FC)..ARL202408
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE&DATA COMMUNICATION MODULE-WITH(AU-DCM)
main86101-0KE00iGUN126..S..DCRL..ARL..CBU;GUN126..6FC..S..DCRL..IV3;GUN125,135,TGN121..(6F,6FC)..ARL202408
DATA COMMUNICATION MODULE-WITH(AU-DCM)
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE&DATA COMMUNICATION MODULE-WITH(AU-DCM)
DATA COMMUNICATION MODULE-WITH(AU-DCM)
main86101-0KK41iGUN126..LHD..SA;GUN125..GHA,KEN,MA;GUN125..LHD..SAP..S;GUN125,135,TGN136..SAP..(H,L);GUN126..(CAMP,GHAP,INDP,KENP,MAP,MMRP)..H;GUN122,126,LAN125,TGN121,126..(INDP,S202409
86101QCORD SUB-ASSY, ANTENNA, NO.4
main86101-0KE30iGUN126..S..DCRL..ARL..CBU;GUN126..6FC..S..DCRL..IV3;GUN125,135,TGN121..(6F,6FC)..ARL202408
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM)
main86101-0KE30iGUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3202408
DATA COMMUNICATION MODULE-WITH(AU-DCM)
main86101-0KE30iGUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3202408
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE&DATA COMMUNICATION MODULE-WITH(AU-DCM)
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE&DATA COMMUNICATION MODULE-WITH(AU-DCM)
DATA COMMUNICATION MODULE-WITH(AU-DCM)
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-0K200iGUN126,136..6F..S..ARL..CBU;GUN126,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL202408-202411
main86300-0K200iGUN126..S..MHV;TGN126..L..GEN;GUN126..6F..IV3;GUN126..H..MHV..IV3;GUN126..THP..(H,L)..CBU;GUN126..THP..S..(GEN,LA);GUN136,TGN126..THP..(5F,6FC)..(ARL,GCC,LA,SA);GGN202408
DATA COMMUNICATION MODULE-WITHOUT
main86300-0K260iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP202409
DATA COMMUNICATION MODULE-WITH(AU-DCM)
main86760-0K051iGUN126..S..DCRL..ARL..CBU;GUN126..6FC..S..DCRL..IV3;GUN125,135,TGN121..(6F,6FC)..ARL202408
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM)
main86760-0K051iGUN126..S..DCRL..ARL..CBU;GUN126..6FC..S..DCRL..IV3;GUN125,135,TGN121..(6F,6FC)..ARL202408
DATA COMMUNICATION MODULE-WITH(AU-DCM)
86309EPOLE SUB-ASSY, ROOF ANTENNA
DATA COMMUNICATION MODULE-WITHOUT
main86309-0K080iGUN126,136..6F..S..ARL..CBU;GUN126,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL202408-202411
main86309-0K090iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP202409
86396NUT, ANTENNA
main86396-47010iGUN126,136..6F..S..ARL..CBU;GUN126,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL¥430202408-202411
main86396-47010iGUN136..6F..H;GUN126..S..MHV;TGN126..L..GEN;GUN126..6F..IV3;GUN126..H..MHV..IV3;GUN126..H..ARL..CBU;GUN136,TGN126..(5F,6FC)..(ARL,BZAG,GCC,LA,SA);GGN125,GUN12#,135,¥430202408
DATA COMMUNICATION MODULE-WITHOUT
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
AUDIO-*DA(FOR EMERGING MARKET) & DAB
ASIA COLD COUNTRY SPEC
UAE SPEC
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(FOR EMERGING MARKET)
EXPORT FROM SA
86769HOUSING, ROOF ANTENNA
DATA COMMUNICATION MODULE-WITH(AU-DCM)
main86769-0K030iGUN126..S..DCRL..ARL..CBU;GUN126..6FC..S..DCRL..IV3;GUN125,135,TGN121..(6F,6FC)..ARL202408
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM)
8537171010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
9011906915
9011906A06
90119T0130
main90119-T0130
14 parts on this diagram · 1 diagram in section
