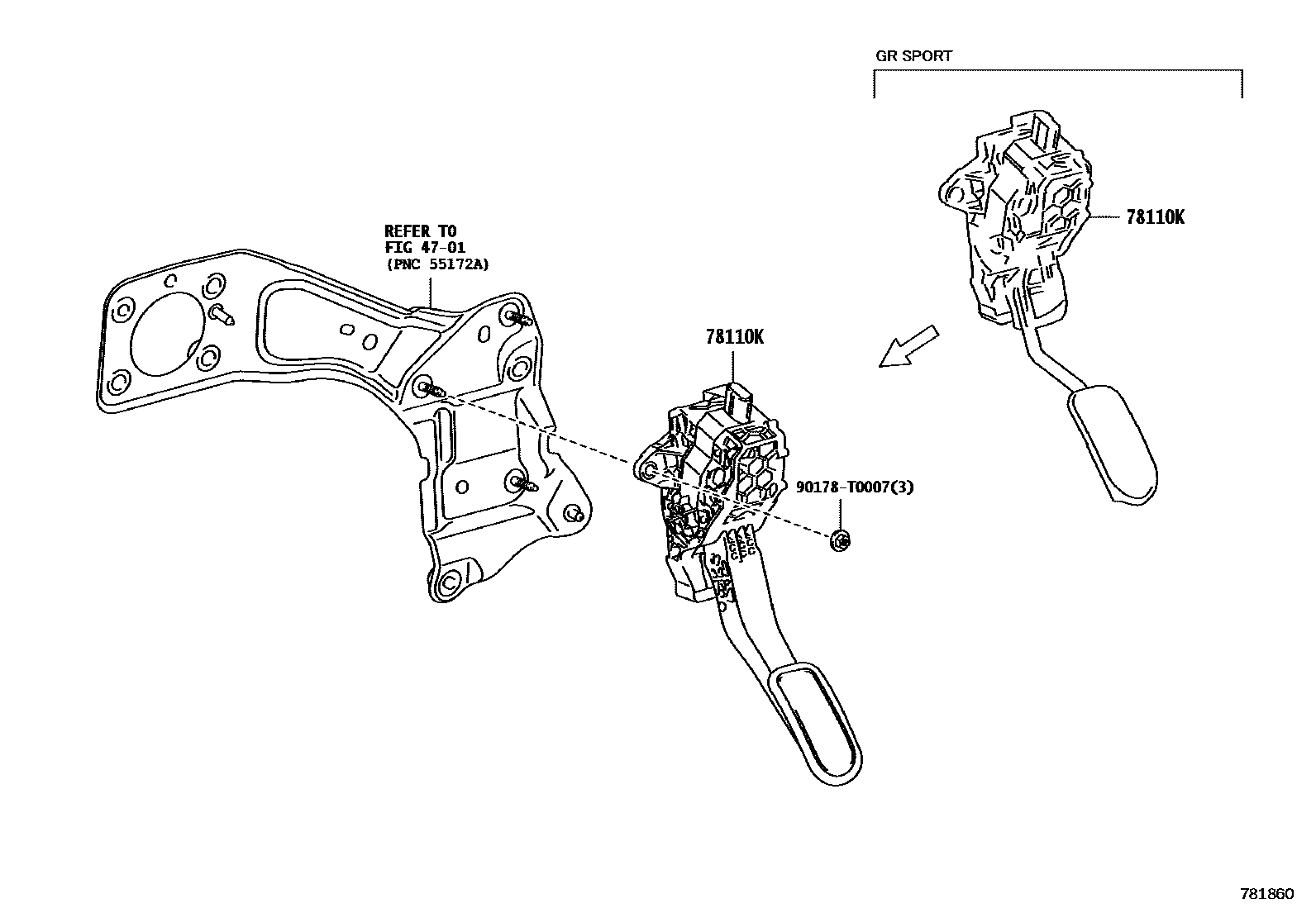

Toyota HILUX (DOUBLE CAB) — ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-KK011iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL¥7,600202408-202411

main78110-KK011iGUN126..S..IV3;GUN136..6F..SA;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GGN125,GUN120,121,122,125,135,TGN136..RHD;GUN126,TGN121..RHD..(KENP,MAP,SAP,THP)..(6F,6FC)..CBU¥7,600202408

main78110-KK011iGUN126..IND¥7,600202412

main78110-KK021iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD202408

90178T0007

main90178-T0007¥80

3 parts on this diagram · 2 diagrams in section
