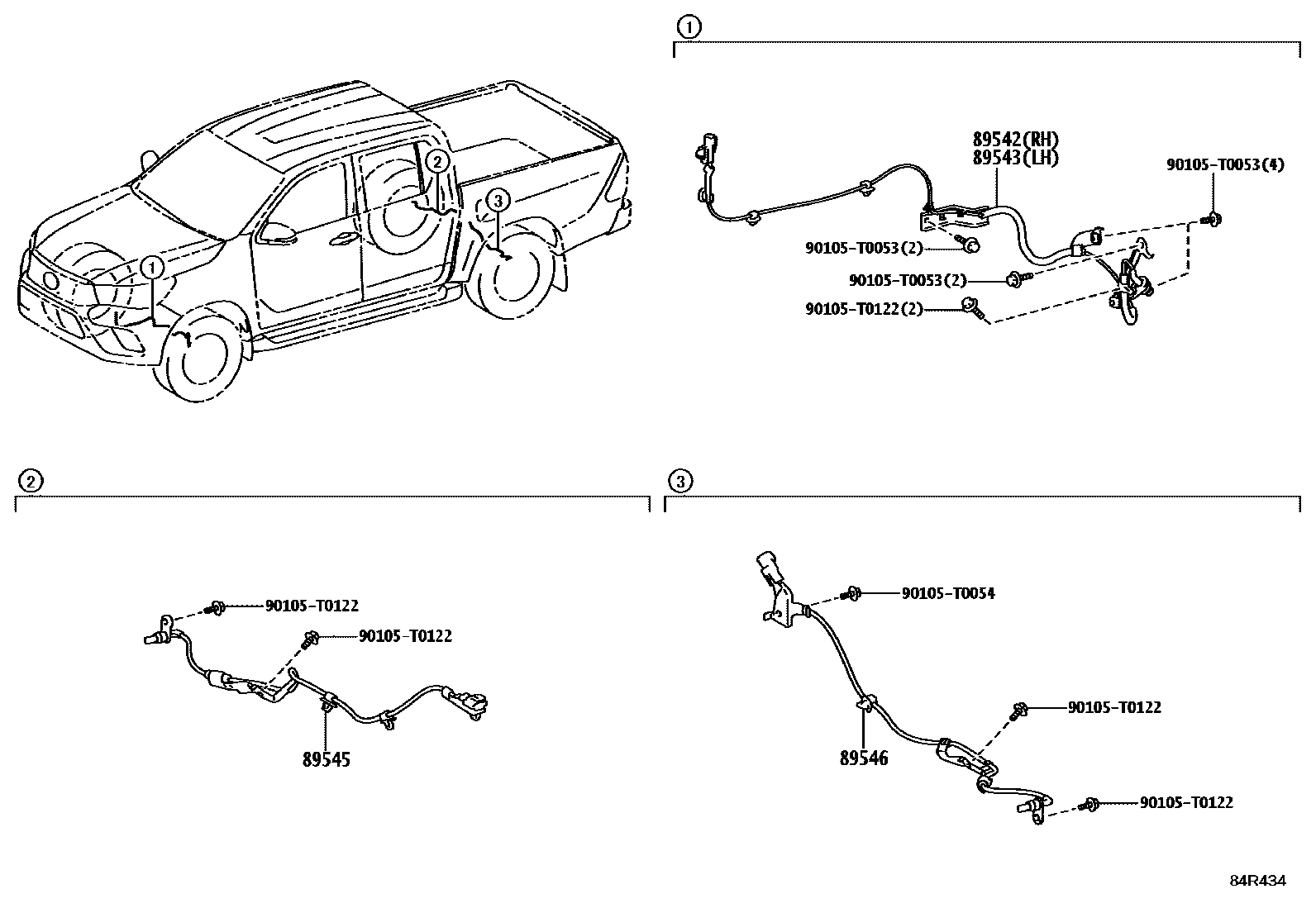

Toyota HILUX (DOUBLE CAB) — ABS & VSC

0001 1 0002 1

89542SENSOR, SPEED, FRONT RH

main89542-0K050iTGN121..5F..ARL202408-202411

main89542-0K060iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥8,100202408-202411

main89542-0K070iGUN126..IND202412

main89542-0K080iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,MAP,SAP202409

89543SENSOR, SPEED, FRONT LH

main89543-0K050iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408-202411

main89543-0K061iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥8,100202408-202411

main89543-0K071iGUN126..IND202412

main89543-0K081iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,MAP,SAP202409

89545SENSOR, SPEED, REAR RH

main89545-0K220iTGN121..5F..ARL202408-202411

main89545-0K240iGUN126..S..IV3;GUN136..LHD..6F;GUN126..H..MHV..IV3;GUN136..6FC..(ARL,BZAG);GGN125,GUN125,135,TGN126,136..AGTP,THP;GUN126..(AGTP,CAMP,INDP,MMRP,THP)..CBU¥8,100202408-202411

main89545-0K280iGUN122,TGN121..SAP202411

main89545-0K290iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,MAP,SAP202409

89546SENSOR, SPEED, REAR LH

main89546-0K220iTGN121..5F..ARL202408-202411

main89546-0K240iGUN136..6F..ARL;GUN126..H..DCRL..IV3¥8,100202408-202411

main89546-0K280iGUN122,TGN121..SAP202411

main89546-0K290iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,MAP,SAP202409

90105T0053

main90105-T0053

90105T0054

main90105-T0054

90105T0122

main90105-T0122

7 parts on this diagram · 2 diagrams in section
